| Nhóm thuộc tính của Mainboard | |
| Thương Hiệu | ASUS |
| Model | PRIME Z790-P D4-CSM |
| Kích Cỡ | ATX |
| CPU Socket | LGA1700 |
| Chipset | Intel® Z790 Chipset |
| Số Khe Ram | 4 x DIMM |
| Bus Ram Hỗ Trợ | DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Dung Lượng Ram Tối Đa Hỗ Trợ | 128GB |
| Số Kênh Bộ Nhớ Hỗ Trợ | Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x1 slot |
| PCI Express x1 |
|
| Số Cổng SATA | 4 x SATA 6Gb/s ports |
| M.2 | 3 x M.2 slots |
| SATA RAID | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Chip Xử Lý Âm Thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| LAN Chipset | 1 x Realtek 2.5Gb Ethernet |
| Tốc Độ LAN | 2.5Gb |

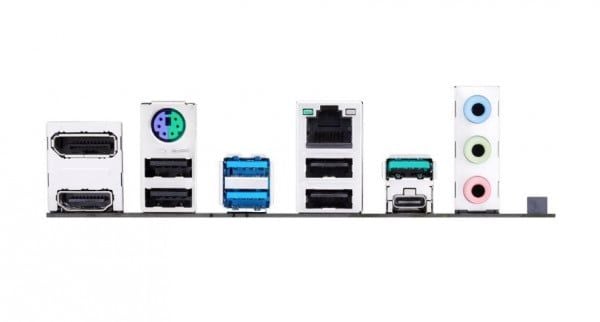

| Cổng I/O Phía Sau | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Onboard USB | 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Cổng Kết Nối Khác | 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ (USB4®) Header |
| Kích Thước (W x L) | 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Chân Cắm Nguồn | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
