| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASUS |

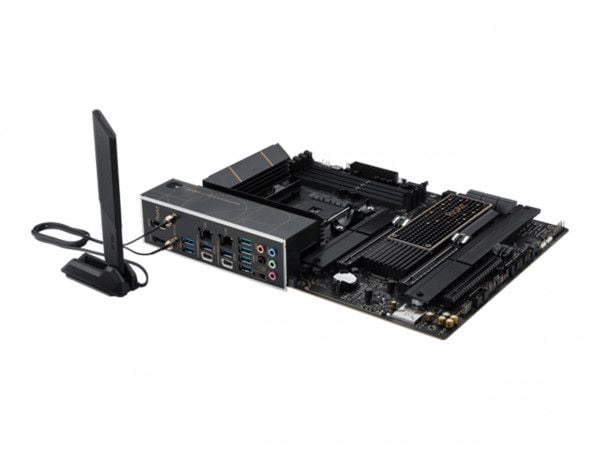

| Model | ProArt X570 Creator Wifi |
| CPU hỗ trợ | AMD |
| Chipset | X570 |
| RAM hỗ trợ | 4 x DDR4 memory slots, support up to 128GB |
| Khe cắm mở rộng | AMD Ryzen™ 5000 Series and 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8**)* AMD Ryzen™ 5000 G-Serie, 4000 G-Series and 2000 Series Processors 2 x PCIe 3.0 x16 (x16 or dual x8**)* AMD Ryzen™ 2000 G-Series and 3000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Support PCIe bandwidth bifurcation for RAID on CPU function. ** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings. |
| Ổ cứng hỗ trợ | 8 x SATA 6Gb/s ports, 1 x M.2 slot |
| Cổng kết nối (Internal) | 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x W_PUMP+ header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header |
| Cổng kết nối (Back Panel) | 2 x Thunderbolt™ 4 USB Type-C® port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Intel® I225-V 2.5Gb Ethernet port 1 x Marvell® AQtion AQC113CS 10Gb Ethernet port 1 x ASUS Wi-Fi Module 5 x Audio jacks 1 x BIOS FlashBack™ button |
| LAN / Wireless | 1 x Marvell® AQtion AQC113CS 10Gb Ethernet 1 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard 1 x Intel® 2.5Gb Ethernet 1 x Marvell® 10Gb Ethernet Wi-Fi 6E |
| Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
