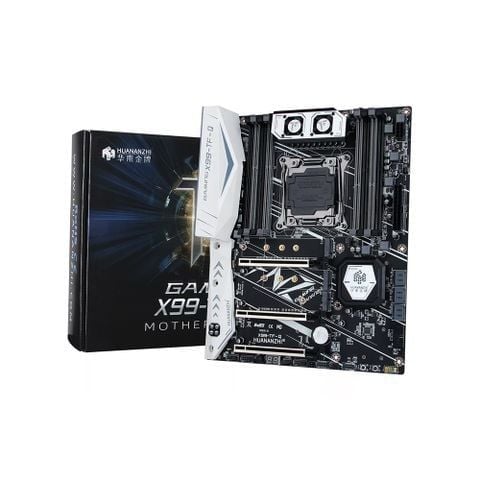

Mainboard HUANANZHI X99-TFQ Gaming
| AINBOARD | HUANANZHI X99-TF-Q |
|---|
| PLATFORM | Intel® LGA2011-3 |
|---|
| MEMORY | 4 x DIMM DDR3 1866/1600/1333 MHz,
4 x DIMM DDR4 2400/2133/1866 MHz,
Max 128GB, Supports ECC or non-ECC Memory, 4 Channel Memory Architecture
* DDR3 and DDR4 memory can’t be mixed.
* CPU Support for DDR3: E5-2629v3 / 2649v3 / 2669v3 / 2673v3 / 2676v3 / 2678v3 / 2696v3. |
|---|
| GRAPHIC | No display output port,
Supports NVIDIA® and AMD® Graphics Cards |
|---|
| AUDIO | Realtek®, 7.1-Channel, High Definition Audio CODEC |
|---|
| LAN | Realtek®, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
|---|
| EXPANSION SLOTS | 2 x PCIe 3.0 x16，1 x PCIe 3.0 x4，1 x PCIe 3.0 x1 |
|---|
| STORAGE | 1 x M.2 Socket 3, NVMe
1 x M.2 Socket 2, SATA
6 x SATA3.0 (6GB/s) port(s)
1 x M.2 WIFI port(s) |
|---|
| INTERNAL I/O PORTS | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s)
1 x CPU Fan connector(s) (1 x 4-pin)
3 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x COM connector(s)
1 x POST codes display LED |
|---|
| BACK I/O PORTS | 1 x PS/2 Keyboard and Mouse port
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0
5 x Audio jack(s)
1 x optical S/PDIF Out connector |
|---|
| FORM FACTOR | Extended ATX Form Factor; 30cm x 24.4cm |
|---|
