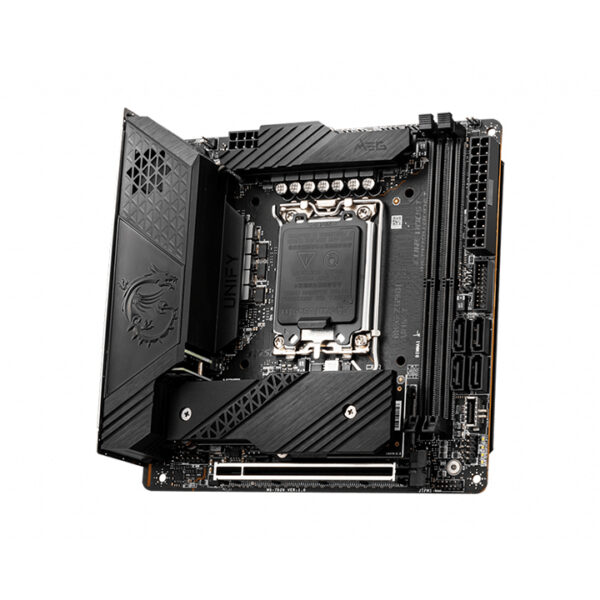

| MAINBOARD MSI | |
|---|---|
| PROCESSOR | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors Processor socket LGA1700 |
| CHIPSET | Intel® Z690 Chipset |
| MEMORY | 2x DDR5 memory slots, supporting up to 64GB Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| EXPANSION SLOT | 1x PCIe 5.0 x16 slot (From CPU) |
| ONBOARD GRAPHICS | 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x HDMI 2.1 with HDR port, supporting a maximum resolution of 4K 60Hz |
| THUNDERBOLT 4 | Intel® JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panel Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A ,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| STORAGE | 4x SATA 6Gb/s ports (From Z690 chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2280 storage devices M2_2 slot (From Z690 chipset) M2_2 supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2280 storage devices M2_3 slot (From Z690 chipset) M2_3 supports up to PCIe 4.0 x4 Supports 2280 storage devices M2_2~3 slots support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | Intel® Z690 Chipset: 1x USB3.2 Gen2x2 20Gbps port (1 Type-C internal connector) 2x USB 3.2 Gen 2 10Gbps ports on the back panel 6x USB 3.2 Gen 1 5Gbps ports( (4 Type-A ports on the back panel and 2 ports available through internal USB connectors) 2x USB 2.0 ports available through the internal USB connector |
| AUDIO | Realtek® ALC4080 Codec: 7.1-Channel High Definition Audio |
| LAN | 1x Inte® I225V 2.5Gbps LAN controller |
| WIRELESS LAN & BLUETOOTH | Intel®Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2x2 20Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 1x System panel connector 1x Chassis Intrusion connector 1x TPM module connector |
| LED FEATURE | 4x EZ Debug LED 1x 3-pin RAINBOW LED connectors |

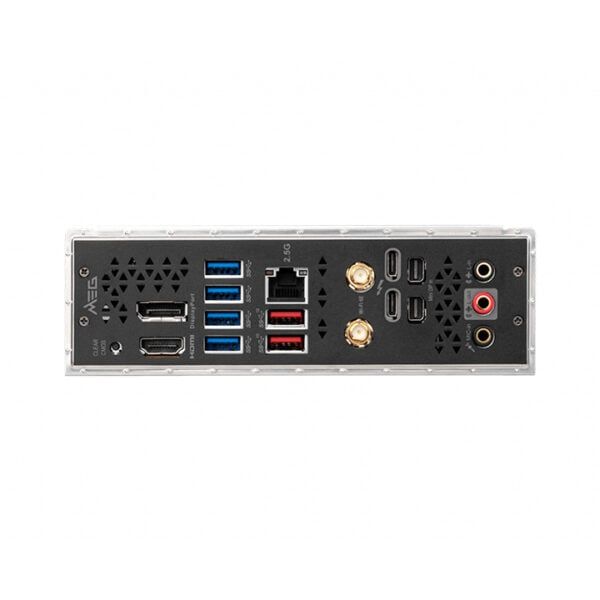

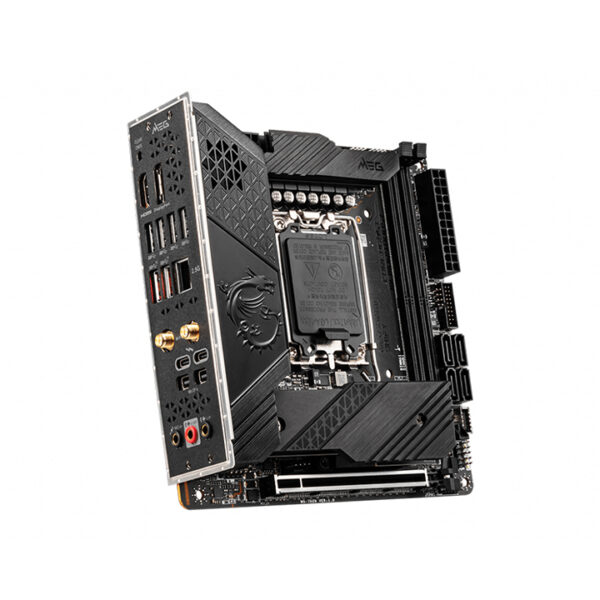

| BACK PANEL PORTS | DisplayPort USB 3.2 Gen1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Thunderbolt 4 40Gbps (Type-C) HD Audio Connectors Clear CMOS Button HDMI USB 3.2 Gen2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) |
| DIMENSIONS | Mini-ITX Form Factor: 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm] |
| support Windows 11 / Windows 10 |
