- Display
Panel Size: Wide Screen 28"(71.12cm) 16:9
Panel Type : TN
True Resolution : 3840x2160 at 60Hz (DisplayPort) ,3840x2160 at 30Hz (HDMI)
Display Viewing Area(HxV) : 620.93 x 341.28 mm
Pixel Pitch : 0.155mm
Brightness(Max) : 330 cd/㎡
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR≧10) : 170°(H)/160°(V)
Response Time : 1ms (Gray to Gray)
Display Colors : 1073.7M (10bit)
Flicker free : Yes
LCD ZBD Warranty : Yes - Video Feature
Trace Free Technology : Yes
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode)
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes (Letter/A4/B5/Alignment Grid/Photo Modes)
GamePlus(modes) : Yes (Crosshair/Timer)
Picture-in-Picture : Yes
Picture-by-Picture : Yes
Low Blue Light : Yes
HDCP support : Yes
VividPixel : Yes - Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
- Convenient Hotkey
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Contrast Adjustment
Volume Adjustment
Input Selection
Picture-in-Picture
QuickFit - I/O Ports

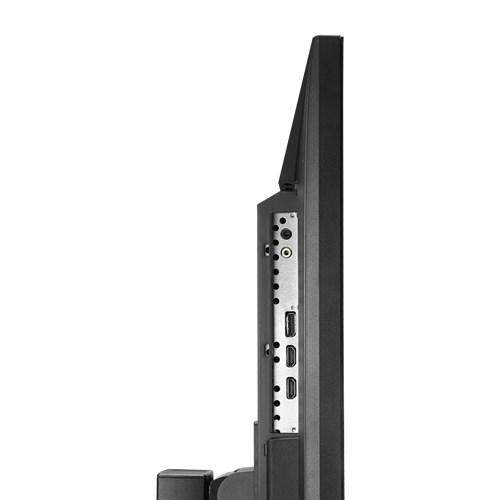

Signal Input : HDMI, HDMI/MHL, DisplayPort
PC Audio Input : 3.5mm Mini-Jack
Earphone jack : 3.5mm Mini-Jack (for HDMI & DisplayPort Only) - Signal Frequency
Digital Signal Frequency : 24 ~99 KHz (H) /30 ~75 Hz(V)
- Power Consumption
Power ON (Typical): < 30.45W*
Power Saving Mode : < 0.5W
Power Off Mode : < 0.5W
Voltage : 100–240V, 50 / 60 Hz - Mechanical Design
Chassis Colors : Black

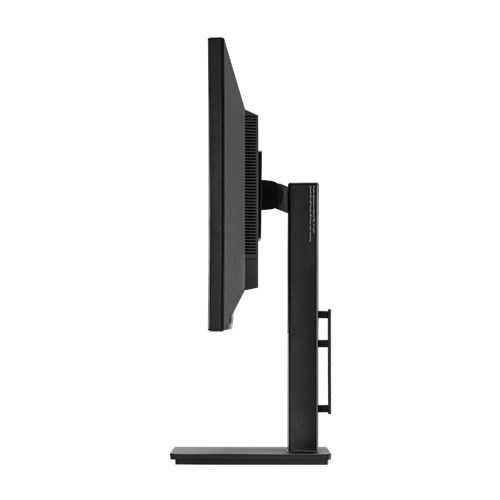

Tilt : +20°~-5°
Swivel : +60°~-60°

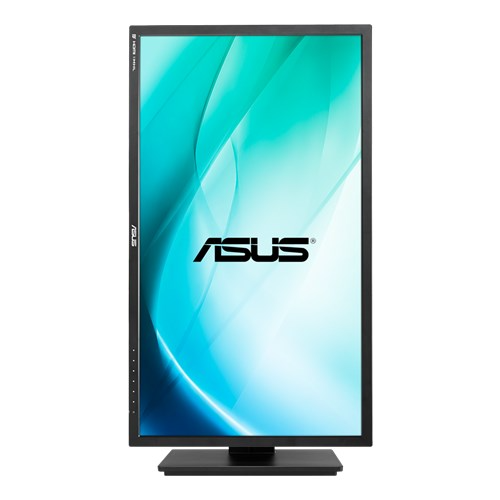

Pivot : 0°~+90°

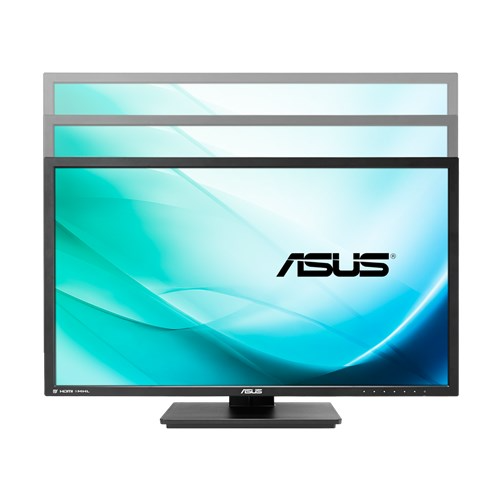

Height Adjustment : 0~150 mm
VESA Wall Mounting : 100x100mm - Security
Kensington lock
- Dimensions
Phys. Dimension with Stand(WxHxD): 660x414(lowest)x220.06 mm
Phys. Dimension without Stand(WxHxD):660.26x380.67x63.55 mm(For VESA Wall Mount)
Box Dimension (WxHxD): 764x465x224 mm - Weight
Net Weight (Esti.) : 7.9kg
Gross Weight (Esti.) : 10.6kg - Accessories
Cable Clamp
Audio cable
Power cord
DisplayPort cable (Optional)
Quick start guide
HDMI cable (Optional)
Warranty Card
MHL cable (Optional) - Compliance and Standards
BSMI, CB, CCC, CE, C-Tick, CU, ErP, FCC, ISO-9241-307, KCC, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7), eStandby
- Note
** measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
Features EyeCare Technology (Low-blue Light / Flicker-free)
