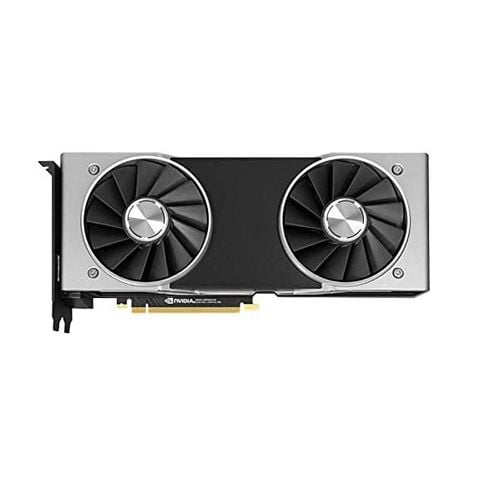

GeForce RTX 3060 Family
| GeForce RTX 3060 Ti | GeForce RTX 3060 | ||
|---|---|---|---|
| GPU Engine Specs: | NVIDIA CUDA® Cores | 4864 | 3584 |
| Boost Clock (GHz) | 1.67 | 1.78 | |
| Base Clock (GHz) | 1.41 | 1.32 | |
| Memory Specs: | Standard Memory Config | 8 GB GDDR6 | 12 GB GDDR6 |
| Memory Interface Width | 256-bit | 192-bit | |
| Technology Support: | Ray Tracing Cores | 2nd Generation | 2nd Generation |
| Tensor Cores | 3rd Generation | 3rd Generation | |
| NVIDIA Architecture | Ampere | Ampere | |
| Microsoft DirectX® 12 Ultimate | Yes | Yes | |
| NVIDIA DLSS | Yes | Yes | |
| NVIDIA Reflex | Yes | Yes | |
| NVIDIA Broadcast | Yes | Yes | |
| PCI Express Gen 4 | Yes | Yes | |
| Resizable BAR | Yes | Yes | |
| NVIDIA® GeForce Experience™ | Yes | Yes | |
| NVIDIA Ansel | Yes | Yes | |
| NVIDIA FreeStyle | Yes | Yes | |
| NVIDIA ShadowPlay | Yes | Yes | |
| NVIDIA Highlights | Yes | Yes | |
| NVIDIA G-SYNC® | Yes | Yes | |
| Game Ready Drivers | Yes | Yes | |
| NVIDIA Studio Drivers | Yes | Yes | |
| NVIDIA Omniverse | Yes | Yes | |
| NVIDIA GPU Boost™ | Yes | Yes | |
| NVIDIA NVLink™ (SLI-Ready) | - | - | |
| Vulkan RT API, OpenGL 4.6 | Yes | Yes | |
| NVIDIA Encoder | 7th Generation | 7th Generation | |
| NVIDIA Decoder | 5th Generation | 5th Generation | |
| CUDA Capability | 8.6 | 8.6 | |
| VR Ready | Yes | Yes | |
| Display Support: | Maximum Digital Resolution (1) | 7680x4320 | 7680x4320 |
| Standard Display Connectors | HDMI(2), 3x DisplayPort(3) | HDMI(2), 3x DisplayPort(3) | |
| Multi Monitor | 4 | 4 | |
| HDCP | 2.3 | 2.3 | |
| Card Dimensions: | Length | 9.5" (242 mm) | |
| Width | 4.4" (112 mm) | ||
| Slot | 2-Slot | ||
| Thermal and Power Specs: | Maximum GPU Temperature (in C) | 93 | 93 |
| Graphics Card Power (W) | 200 | 170 | |
| Required System Power (W) (4) | 600 | 550 | |
| Supplementary Power Connectors | 1x PCIe 8-pin (adapter to 1x 12-pin included) |
1 - Up to 4k 12-bit HDR at 240Hz with DP1.4a+DSC. Up to 8k 12-bit HDR at 60Hz with DP 1.4a+DSC or HDMI2.1+DSC. With dual DP1.4a+DSC, up to 8K HDR at 120Hz
2 - Supports 4K 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1
3 - DisplayPort 1.4a
4 - Requirement is made based on PC configured with an Intel Core i9-10900K processor. A lower power rating may work depending on system configuration.
Note: The above specifications represent this GPU as incorporated into NVIDIA's Founders Edition or reference graphics card design. Clock specifications apply while gaming with medium to full GPU utilization. Graphics card specifications may vary by add-in-card manufacturer. Please refer to the add-in-card manufacturers' website for actual shipping specifications.
