Thông số kỹ thuật

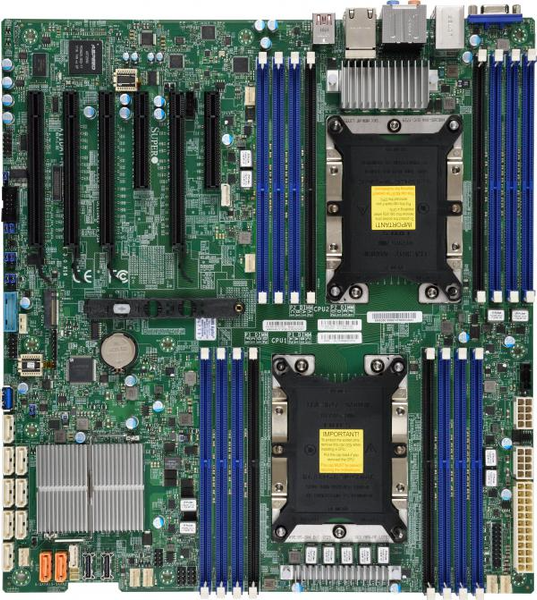

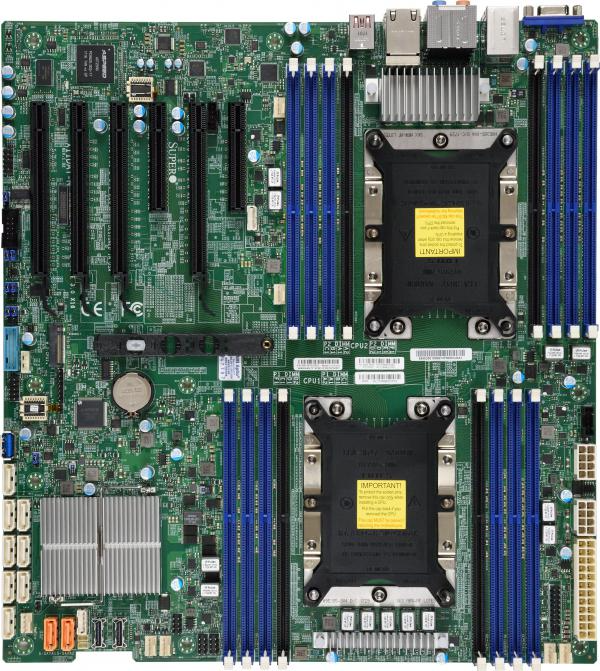

| Sản phẩm | Bo mạch chủ |
| Mã sản phẩm | X11DAI-N |
| Dạng Thức | E-ATX |
| Kích cỡ | 12" x 13" (30.48cm x 33.02cm) |
| Hỗ trợ Socket | LGA 3647 Dual Socket |
| Memory Capacity | Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots |
| Memory Type | 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
| DIMM Sizes | RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Chipset | Intel® C621 |
| SATA | Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with GbE from C621 |
| Audio | 7.1 HD Audio |
| Graphics | Aspeed AST2500 BMC |
| USB | 4 USB 3.0 ports (4 rear via header(s)), 2 USB 3.1 ports (2 rear) |
| VideoOutput | 1 VGA port(s) |
| Serial Port / Header | 1 COM Port (1 header(s) |
TPM | 1 TPM Header |
Others | Thunderbolt header for Thunderbolt 3.0 AOC support |
| PCI-Express | 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 |
M.2 | Interface: PCIe 3.0 x4 Form Factor: M-Key 2260, 2280, 22110 |
| BIOS Type | UEFI 128M |
| Software | Intel® Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby |
FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring , Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors |
Temperature | N/A |
LED | N/A |
Other Features | Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS |
