- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: boost clock 2640 MHz (OC mode)/ 2610 MHz (default mode)
- Graphics card high-power gold finger for power transmission, and prevent GPU sag
- Eliminate the need for traditional 16-pin external power connections to the graphics card
- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps
- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls,

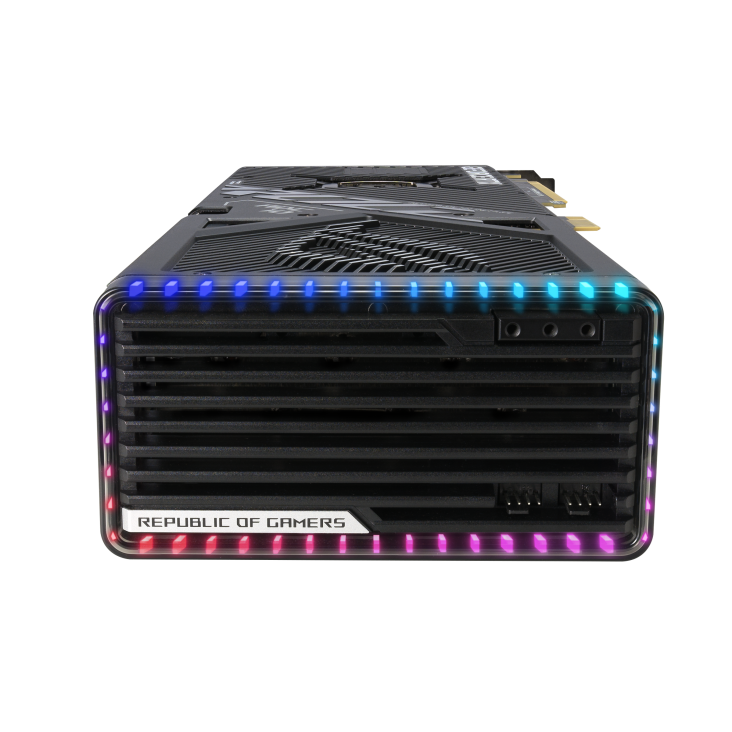

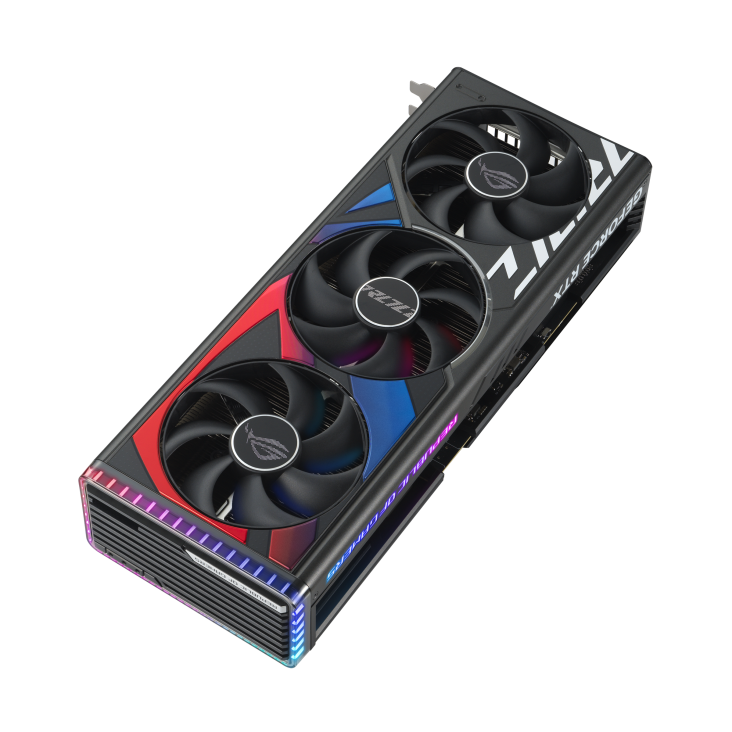

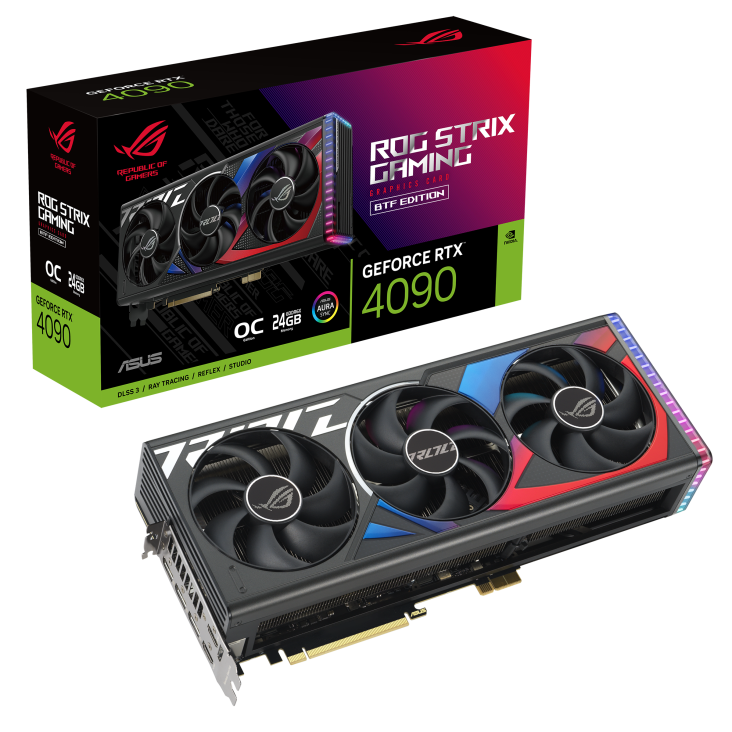

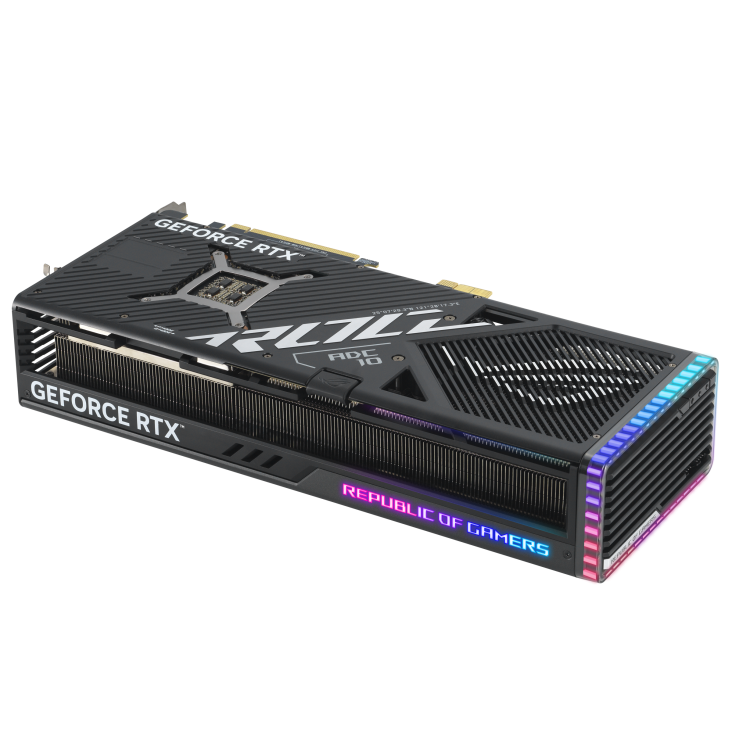

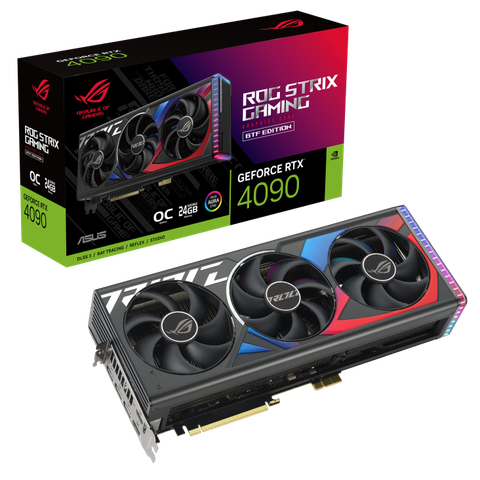

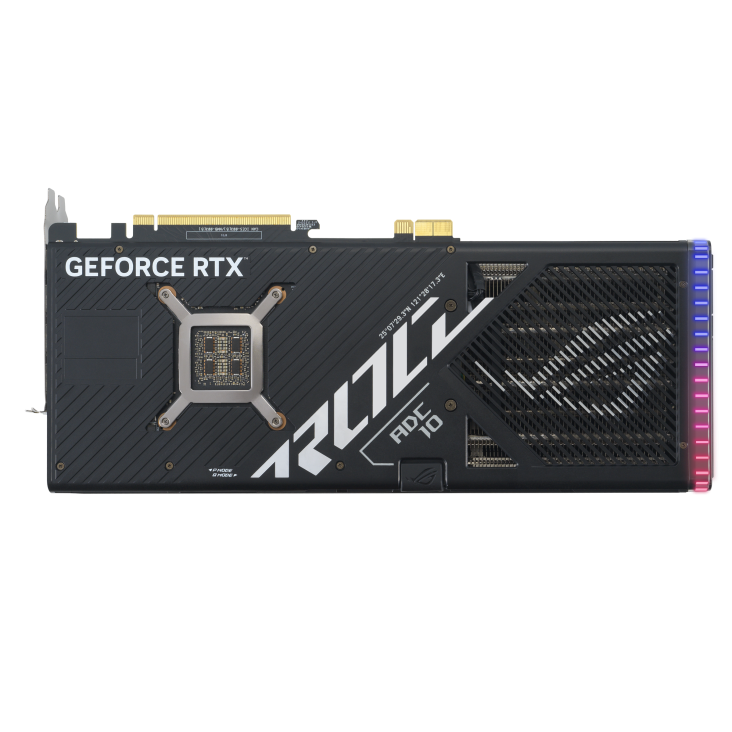

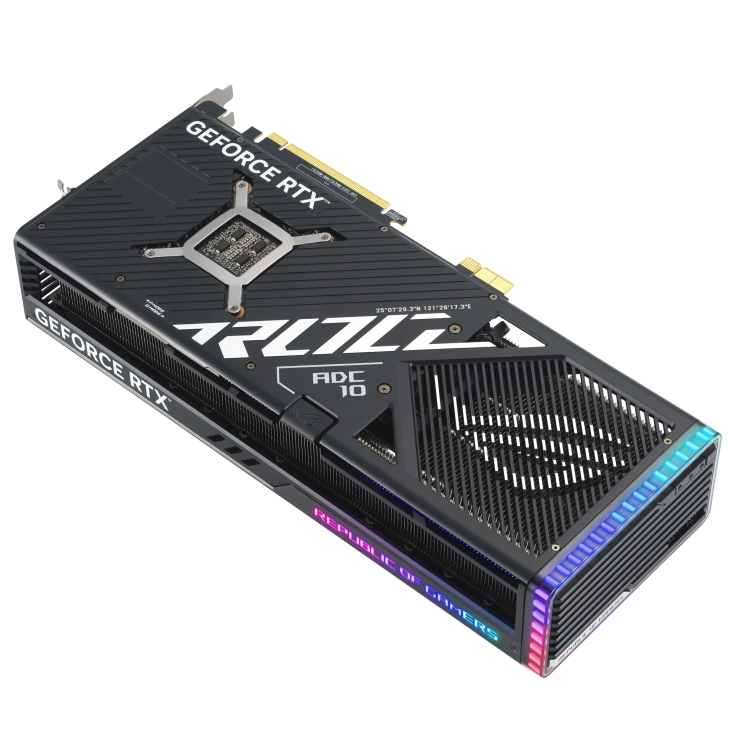

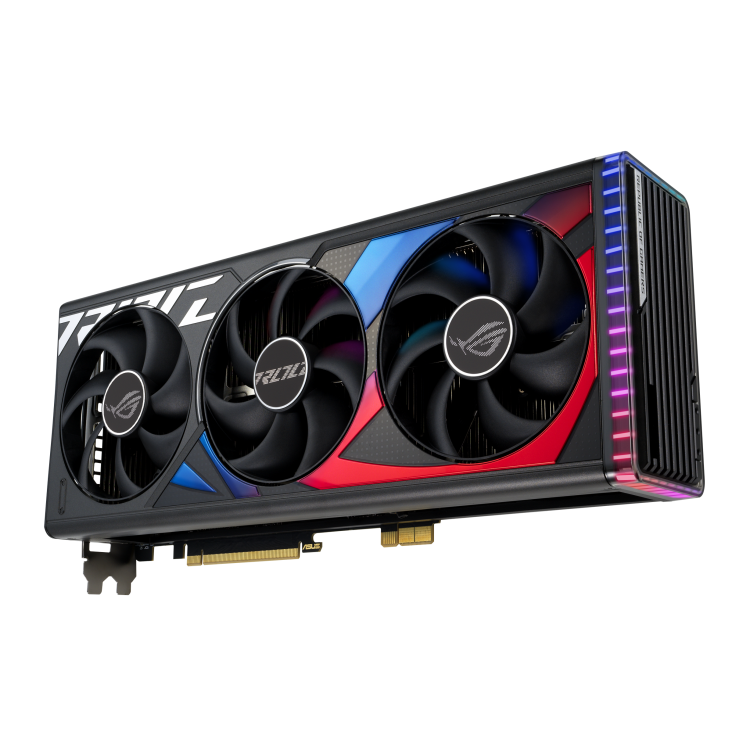

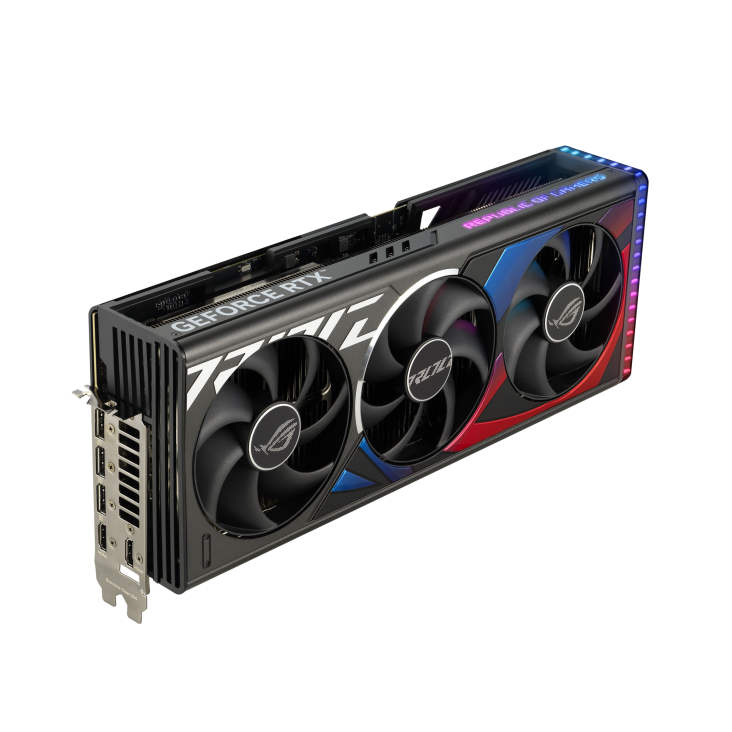

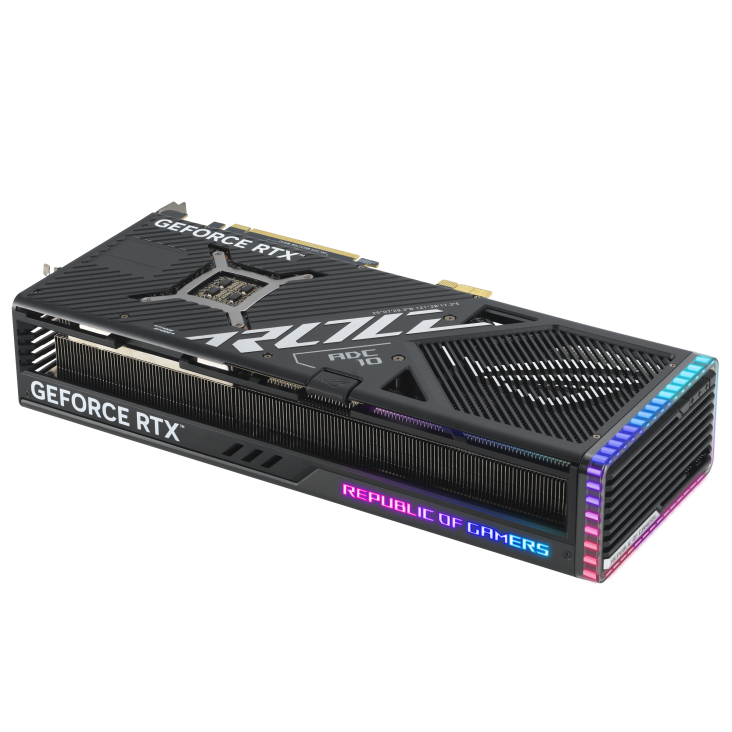

ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X
Graphic Engine
NVIDIA® GeForce RTX™ 4090
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
24GB GDDR6X
Engine Clock
OC mode: 2640 MHz Default mode: 2610 MHz (Boost clock)
CUDA Core
16384
Memory Speed
21 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories

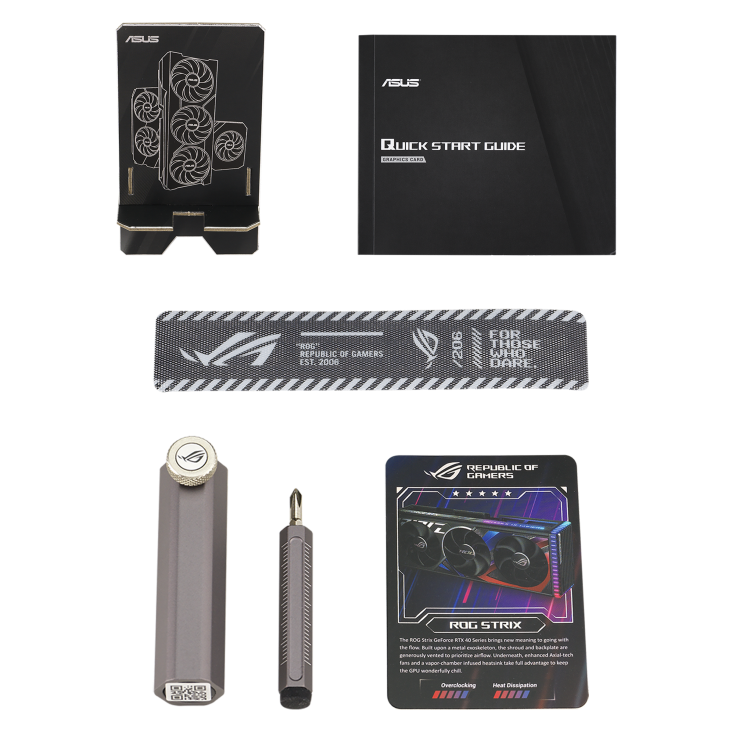

1 x Collection Card 1 x Speedsetup Manual 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 70.1mm
Recommended PSU
1000W
Power Connectors
PCIe high-power connector
Slot
3.5 Slot
AURA SYNC
ARGB
