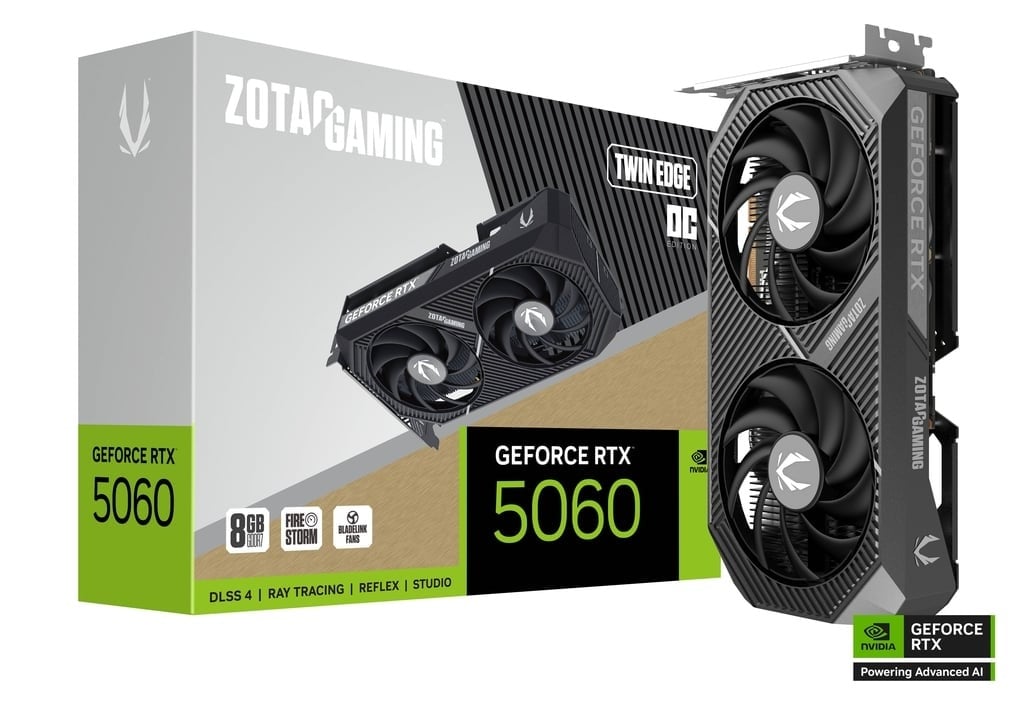

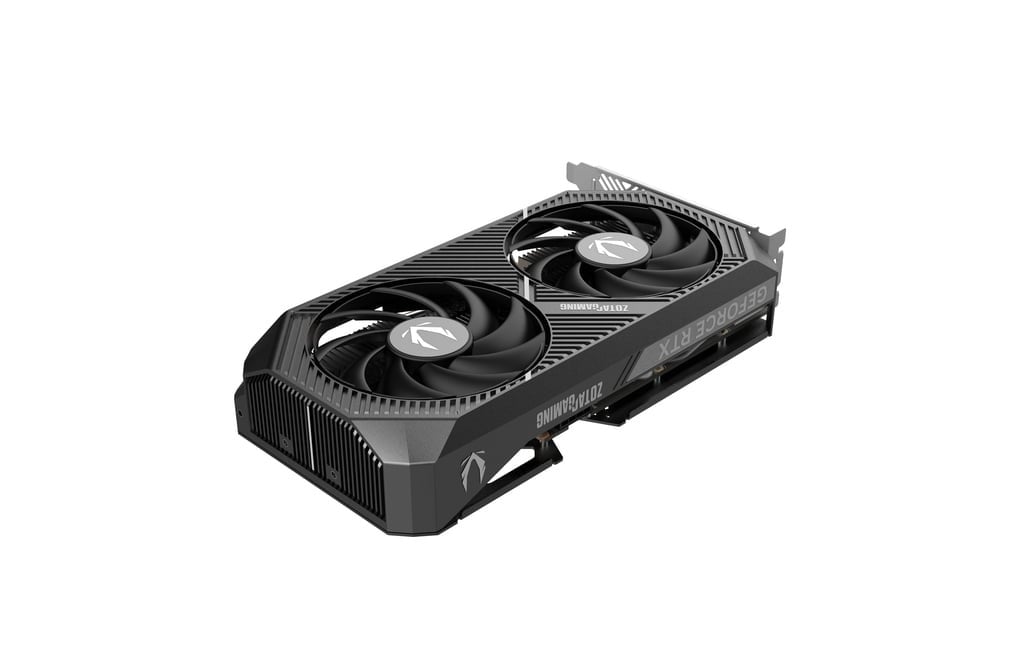

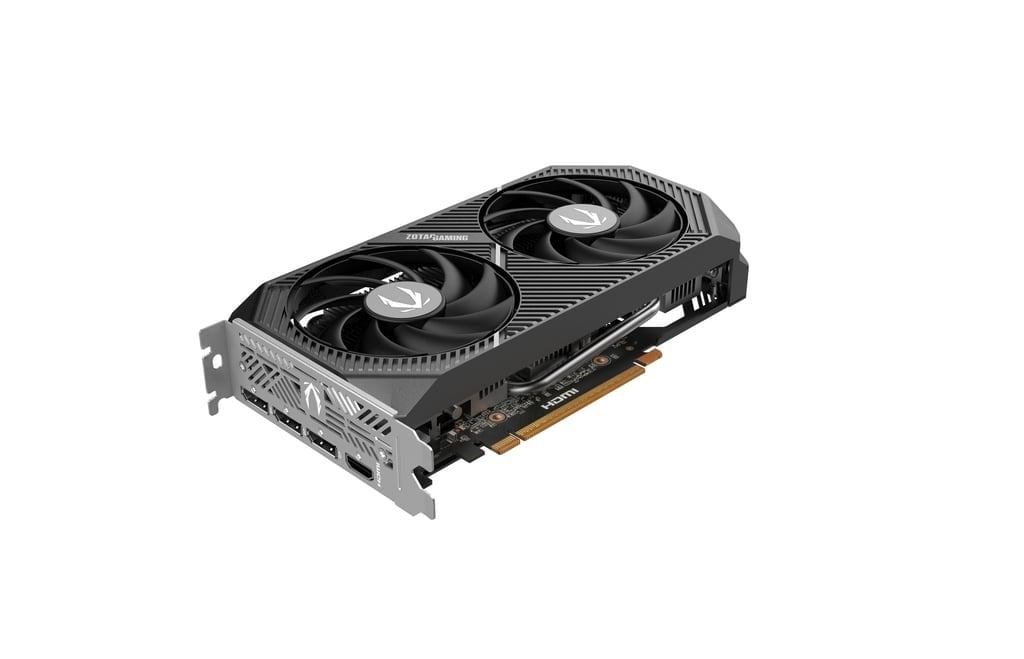

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a strong factory OC and solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.
Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready compact Graphics Card
- Metal Backplate
- BladeLink Fans
GPU
NVIDIA GeForce RTX 5060 GPU
Nhân CUDA
3840
Memoria Video
8GB GDDR7
Bus RAM
128-bit
Clock GPU
2527 MHz
Xung bộ nhớ
28 Gbps
AI TOPS
614
PCI Express
PCI Express 5.0 x8
Cổng xuất hình
3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)Hỗ trợ HDCP
2.3
Đa màn hình
Quad Display
Công suất nguồn đề nghị
550W
Tiêu thụ năng lượng
145W
Công suất đầu vào
1 x 8-pin power input
DirectX
Microsoft DirectX® 12 Ultimate
OpenGL
4.6
Tản nhiệt
Air Cooled
Kích cỡ khe cắm
2
SLI
No
Hệ điều hành hỗ trợ
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Chiều dài Card
220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
Phụ kiện
User Manual
