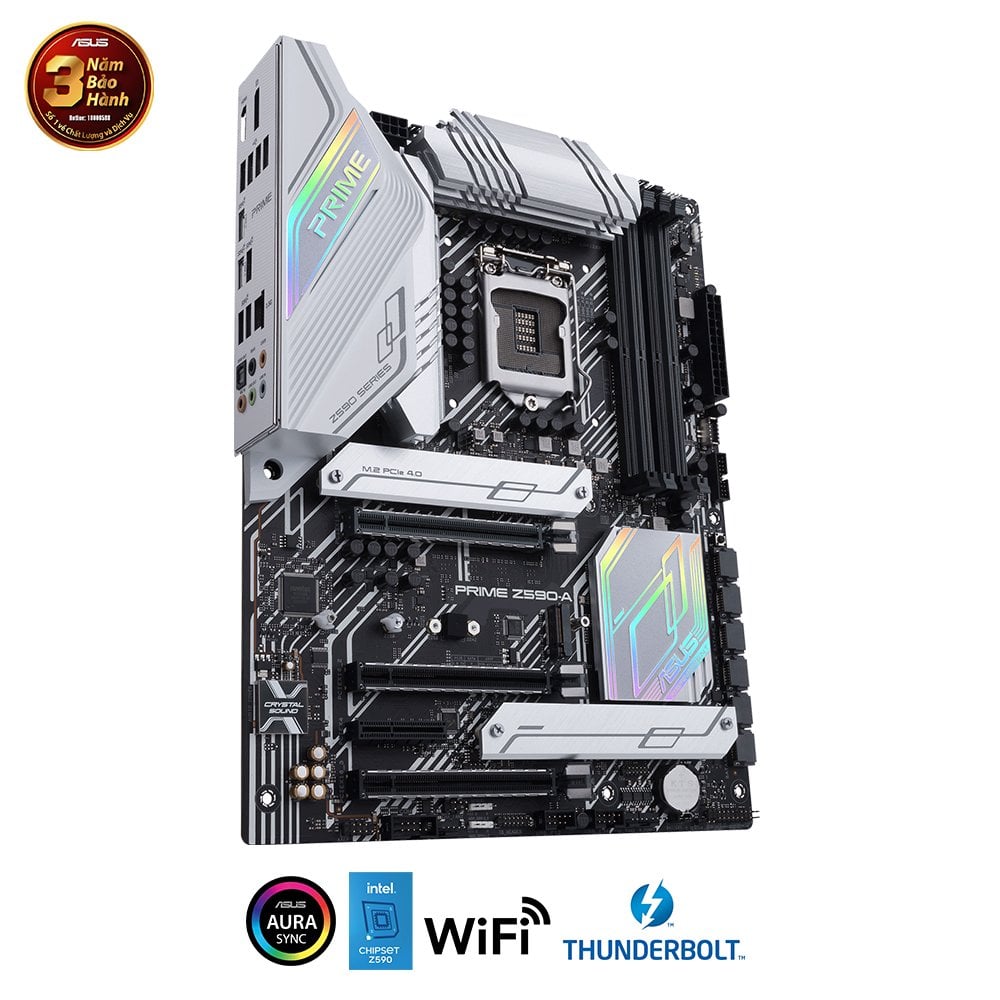

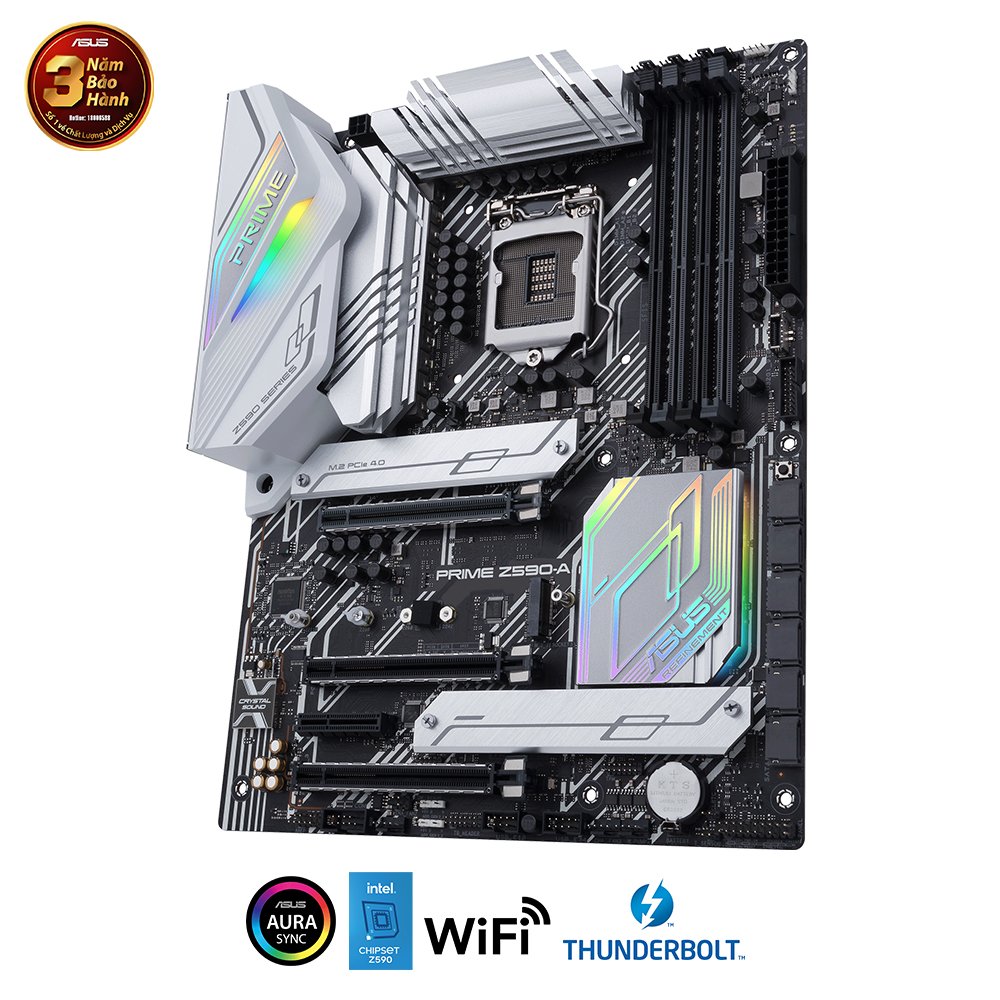

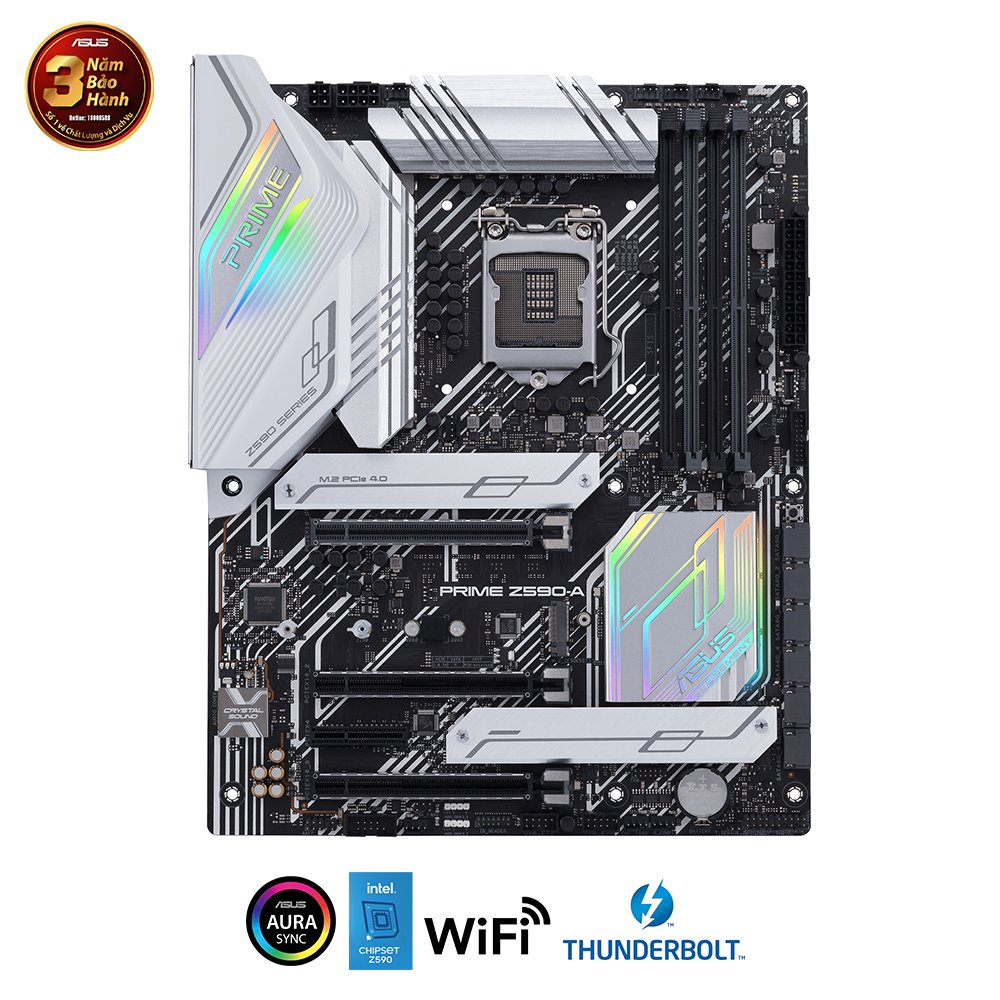

ASUS PRIME Z590 A

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Refer to www.asus.com for CPU support list.

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memory

• 4 x DIMM, Max. 128GB, DDR4 DDR4
• 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
• MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.

Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

• 1 x DisplayPort 1.4
• 1 x HDMITM 2.0

Graphics specifications may vary between CPU types.

Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution

of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates"

Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.

VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• Supports PCIe bandwidth bifurcation for RAID on CPU function.

Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)****
6 x SATA 6Gb/s portsRaid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.

M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled.

USB

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)

• 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback

• Power pre-regulator reduces power input noise to ensure consistent performance
• Rear optical S/PDIF out port
• Premium Japanese audio capacitors
• Audio Shielding
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

Internal I/O Connectors

Special Features

• ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
• ASUS Enhanced DRAM Overcurrent Protection
• ASUS ESD Guards
• ASUS LANGuard
• ASUS Overvoltage Protection
• ASUS Stainless-Steel Back I/O

• M.2 Q-Latch
• ASUS Q-Connector
• ASUS Q-DIMM
• ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
• ASUS Q-Slot

• Aluminum M.2 Heatsink
• Flexible M.2 heatsink

• Procool
• Pre-mounted I/O shield
• ASUS SafeSlot

• Aura Creator
• Aura Sync
• Two-Way AI Noise Cancelation
• AI Suite 3
• 5-way Optimization with AI Overclocking
• TPU
• EPU
• Digi+ VRM
• Fan Xpert 4
• Turbo app
• EZ update
• AI Charger
• ASUS CPU-Z
• ASUS Turbo LAN
• MyAsus

• AI Overclocking Guide

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• EZ Tuning Wizard

Accessories

• Cables: 3 x SATA 6Gb/s cable
• Miscellaneous: 2 x M.2 Rubber Packages, 1 x Q-connector
• Installation Media: 1 x Support DVD
• Documentation: 1 x User manual
