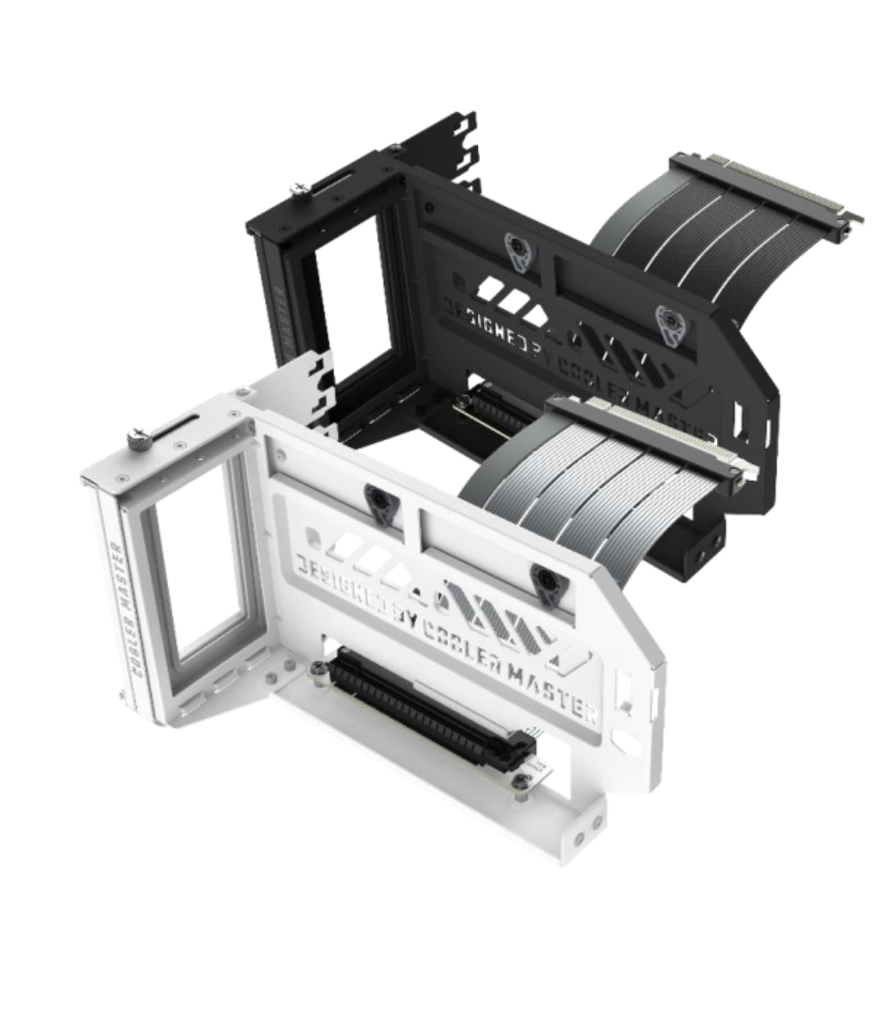

VERTICAL GRAPHICS CARD HOLDER KIT V3 PICE 5.0 X16 165MM
Give your chassis an instant makeover with Cooler Master’s Vertical Graphics Card Holder Kit Gen 5, now available in sleek black and white finishes. Designed for broad compatibility, it supports cases ranging from Micro-ATX to ATX, offering unmatched versatility for a variety of builds.
The kit includes a PCIe 5.0 riser cable, ensuring effortless installation, next-gen efficiency, and uncompromised transfer speeds. With a bi-directional, tool-less adjustment system, the GPU bracket can shift up to 65mm towards the front panel and 30mm towards the side panel, delivering greater flexibility and seamless component compatibility.
FEATURES
PCIE 5.0 RISER CABLE INCLUDED
Ultra-durable and backwards compatible PCIe 5.0 riser cable ensures next-gen bandwidth, higher transfer speeds, and seamless compatibility with the latest GPUs.
SHOWCASE YOUR GPU WITH STYLE
Transform your build with a premium vertical mount that highlights your graphics card as the centerpiece of your rig.
ATX & M-ATX CASE COMPATIBILITY
Designed to support triple-slot GPUs while maintaining broad compatibility with most ATX and m-ATX cases on
the market.
TOOL-LESS, FLEXIBLE ADJUSTMENT
Fully modular design with a removable GPU panel. Effortlessly adjustable in two directions: up to 65mm
towards the front and 30mm towards the side panel.
PREMIUM STEEL, 42% MORE DURABLE
Built with thick SGCC steel for reliable support of even the heaviest GPUs, preventing sagging or deformation .
SIMPLIFIED INSTALLATION
GPUs can be mounted after the holder is secured, streamlining the build process—especially in compact m-ATX
cases.
VERTICAL GRAPHIC S CARD H OLDER K IT V3 | |
Product Name | VERTICAL GRAPHICS CARD HOLDER KIT V3 PCIE 5.0 X16 165MM | ||
Color | Black | White | |
Model Number | MCA-U000C-KFVK03 | MCA-U000C-WFVK03 | |
Dimensions (L x W x H) |
GFX Holder Kit | 249 x 148.1 x 141.8 mm (Close Size) | |
305 x 178.1 x 141.8 mm (Open Size) | |||
Riser Cable | 165 mm | ||
Supported Chassis Type | E-ATX, ATX , Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.) | ||
Supported GPU Type | Any length, up to3 slots wide | ||
Component Materials | PCBA, silver-plated Copper Wire 30 AWG | ||
Insulation Materials | FEP(Cable), PA10T+35%GF(Connector) | ||
Other Materials | ABS, PP, SGCC Steel, Nickel, Gold, Brass | ||
Compatibility | PCIe 5.0 and older | ||
CE Certificate Number | BKC25093934JC | ||
PCB / Wire UL Numbers | E467745/E527405 | ||
Connectors | PCIe x16 Male to PCIe x16 90° Female | ||
Required PCI Slots | Minimum 4 PCI slots required for mounting | ||
Working Voltage / Current | DC 12V / 3.3V/3.3Vaux A,75W(Max） | ||
Operating Temperature | -20° to +80° Celsius | ||
Net Weight | 0.81 g | ||
Gross Weight | 1.03 g | ||
Warranty | 1 Years | ||
SHIPPING DETAILS
Product Name | VERTICAL GRAPHICS CARD HOLDER KIT V3 PCIE 5.0 X16 165MM | |||
EAN Code | SKU | MCA-U000C-KFVK03 | MCA-U000C-WFVK03 | |
Global | 4719512163665 | 4719512163672 | ||
CN | 6928968323969 | 6928968323976 | ||
UPC Code | 884102135965 | 884102135972 | ||
Carton Net weight | 9.72 KG | |||
Carton Gross weight | 13.6 KG | |||
Units Per Carton Box | 12 pcs | |||
Retail Box dimension (L x W x H) | 168 x 144 x 265 mm | |||
Carton Dimension (L x W x H) | 455 x 352 x 568mm | |||
Container 20 feet | With Pallet | 2880 | ||
Carton / Pallet | 20 | |||
Container 40 feet | With Pallet | 5760 | ||
Carton / Pallet | 20 | |||
Container 40 HQ | With Pallet | 6912 | ||
Carton / Pallet | 24 | |||
