Tech Specs

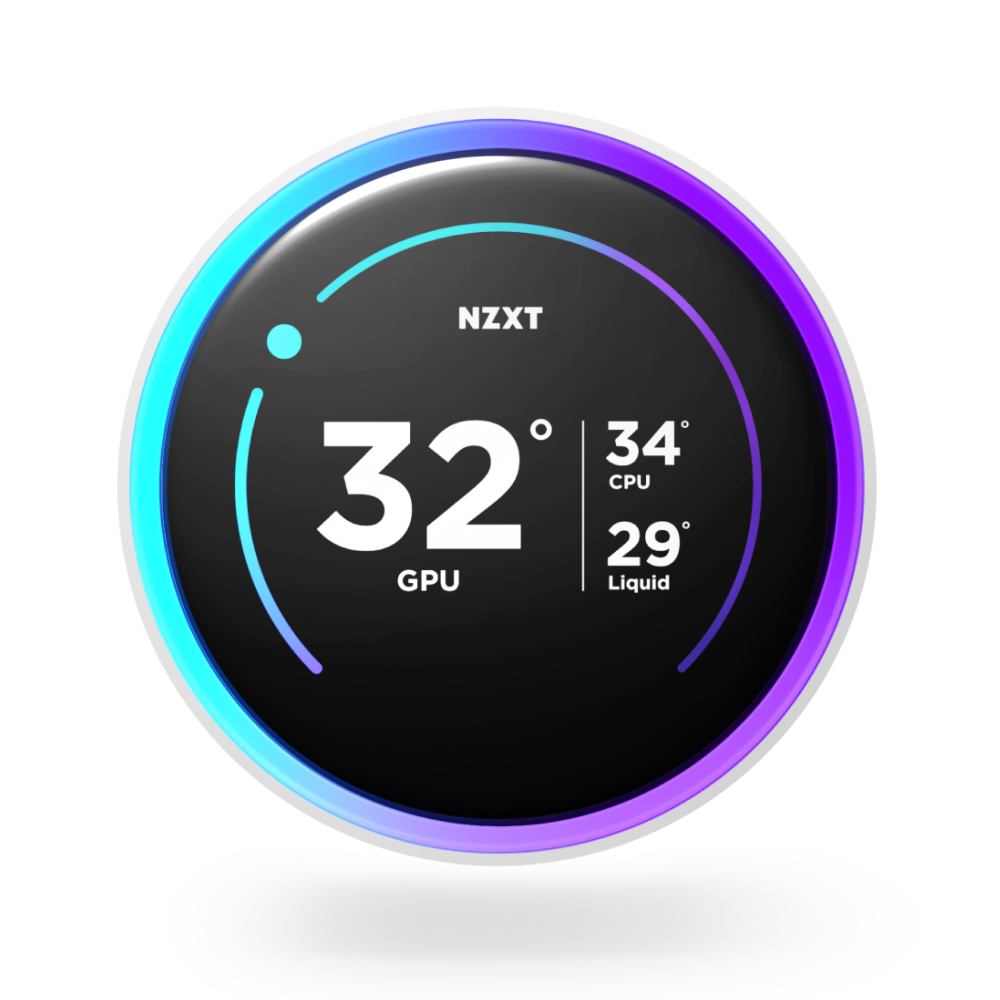

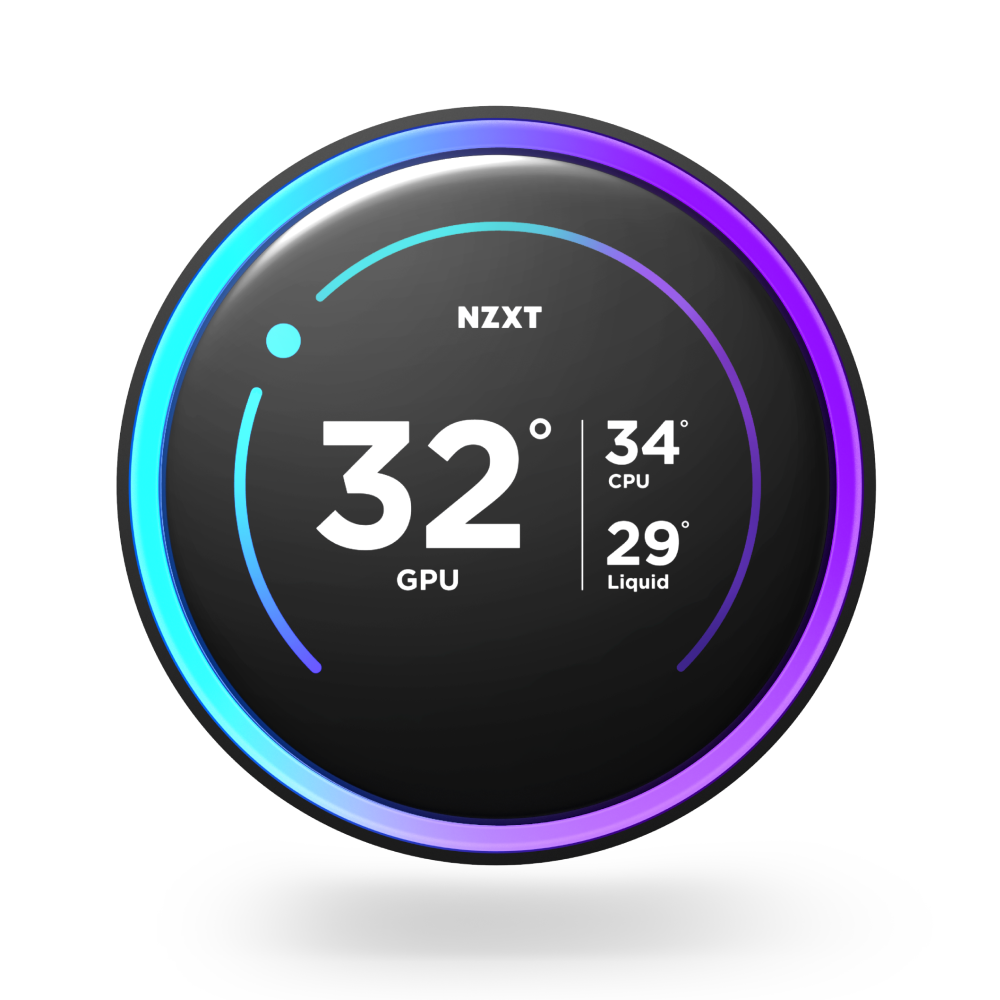

LCD
Diameter:2.72 in (69 mm)
Colors:16.7 million
Resolution:640 x 640 px
Brightness:690 cd/m²
Panel Type:IPS
Refresh Rate:60 Hz
Orientation:Software adjustable
Pump
Name:NZXT Turbine Pump
Motor Speed:1,200 - 2,800 ± 300 RPM
Power:12V DC, 0.3A
Cap
Diameter:3.68 in (93.5 mm)
Height:2.56 in (65 mm)
Cap Material:Plastic
Ring Material:Plastic

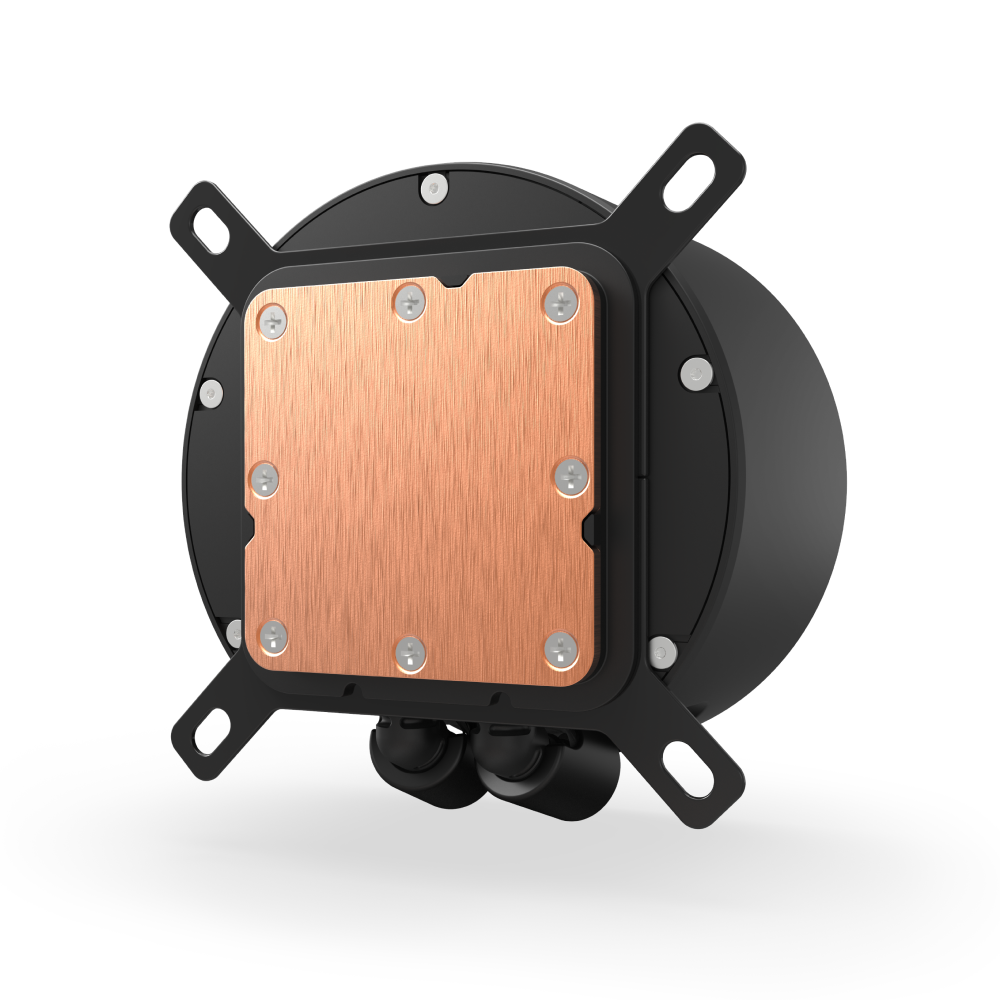

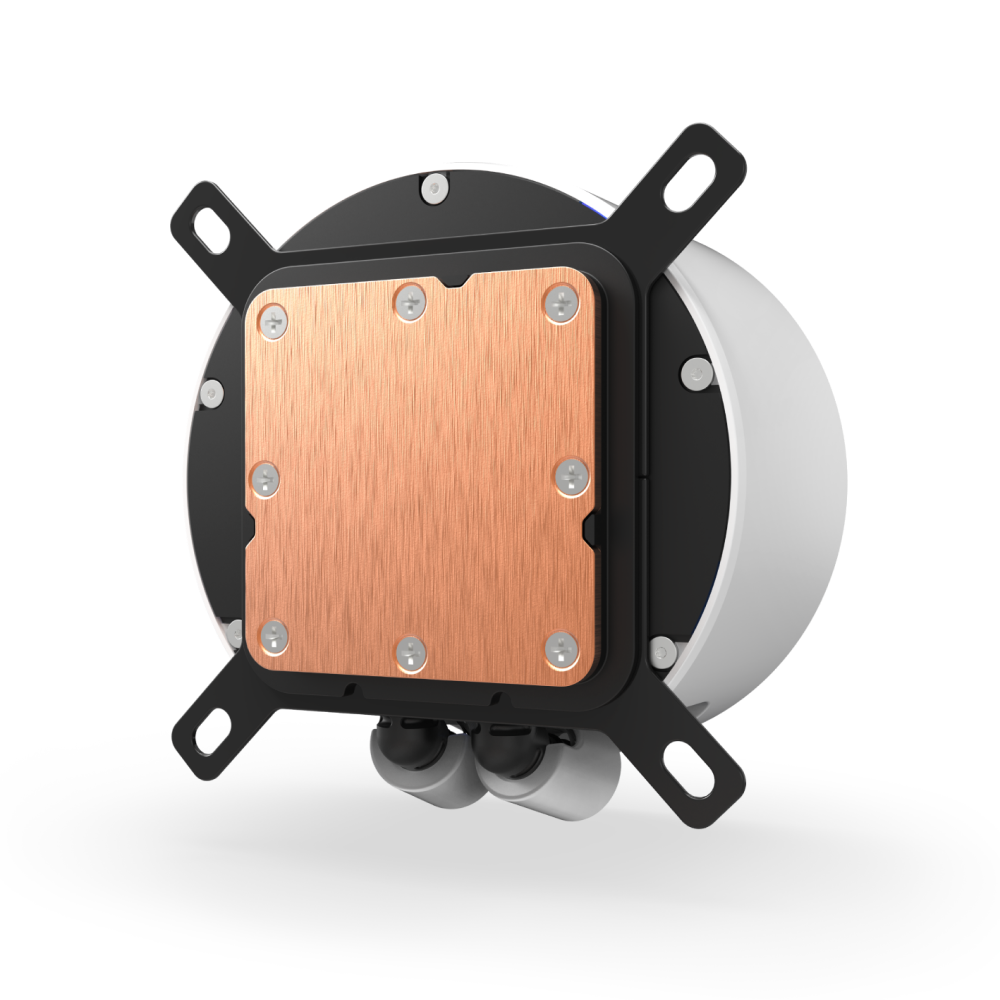

Cold Plate Material:Copper
Housing Material:Plastic
Radiator
Dimensions (L x W x H):401 x 120 x 27 mm
Material:Aluminum
Tubing
Length:420 mm
Material:CIIR rubber with PET braided sleeve
Fan Specs
Model:F360 RGB Core Fan
Quantity:1
Dimensions (W x H x D):360 x 120 x 26 mm
Speed:500 - 2,400 ± 250 RPM per fan
Airflow:75.12 CFM per fan
Static Pressure:3.3 mm H2O per fan
Noise:30.00 dBA per fan
Power Consumption:12V DC, 0.79 A, 9.48W / 5 V DC, 0.81 A, 4.05 W
Bearing:Fluid Dynamic Bearing
Output LED:8 LEDs per fan
Connector:8-pin for PWM & RGB
Cable Length:600 mm
Material:Plastic, rubber, PCB
Life:60,000 hours
CPU & Socket
Intel:Intel Socket LGA 1851, 1700 & 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD:AMD Socket AM5, AM4 AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3
