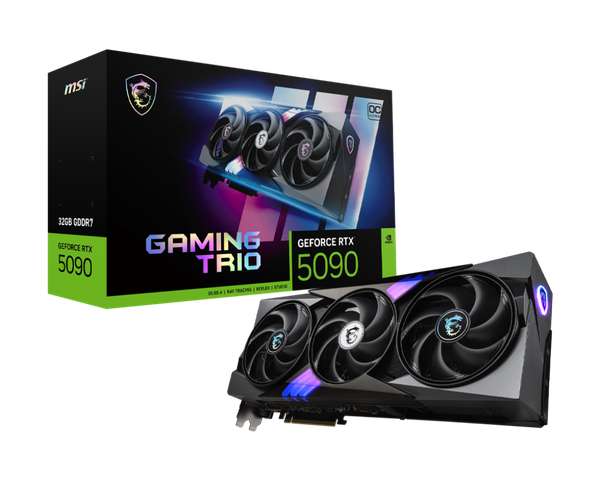

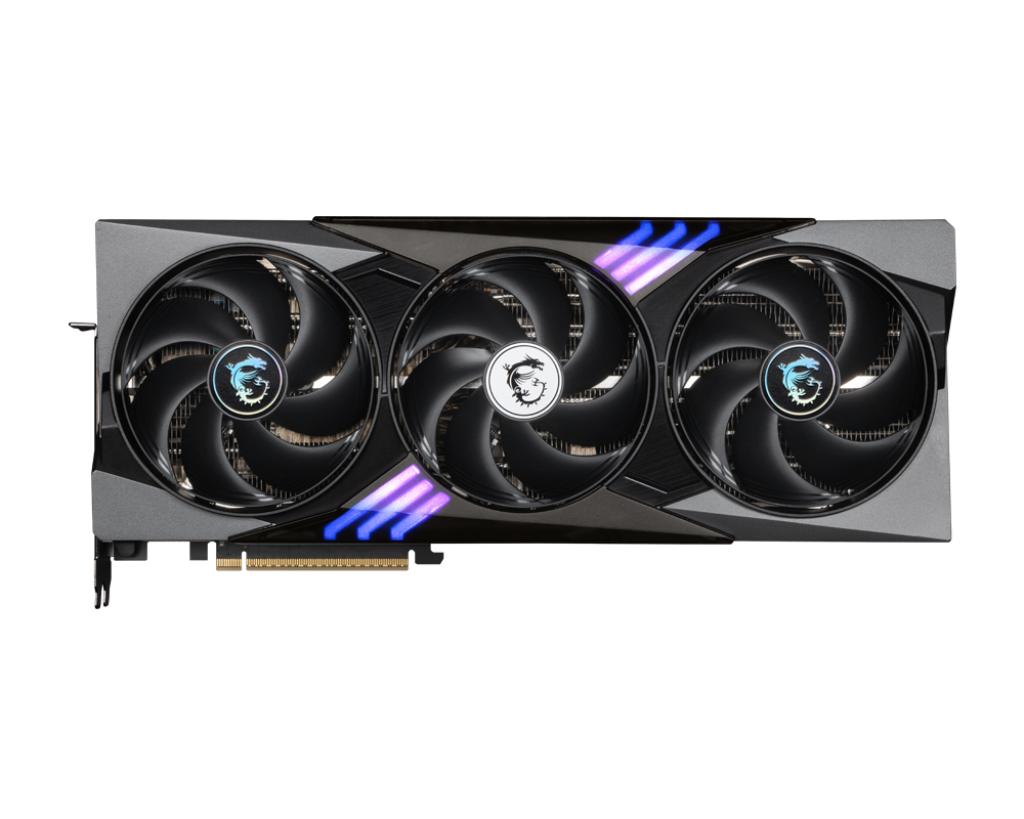

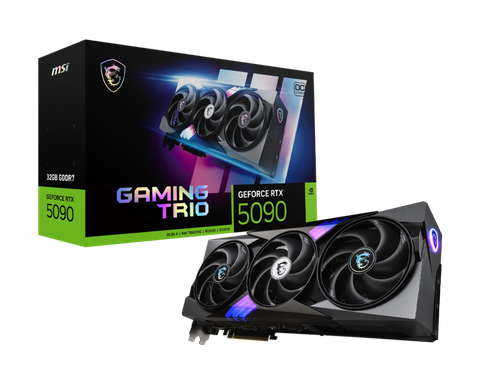

GeForce RTX™ 5090 32G GAMING TRIO OC
Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks:
Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz (GAMING & SILENT Mode)TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.

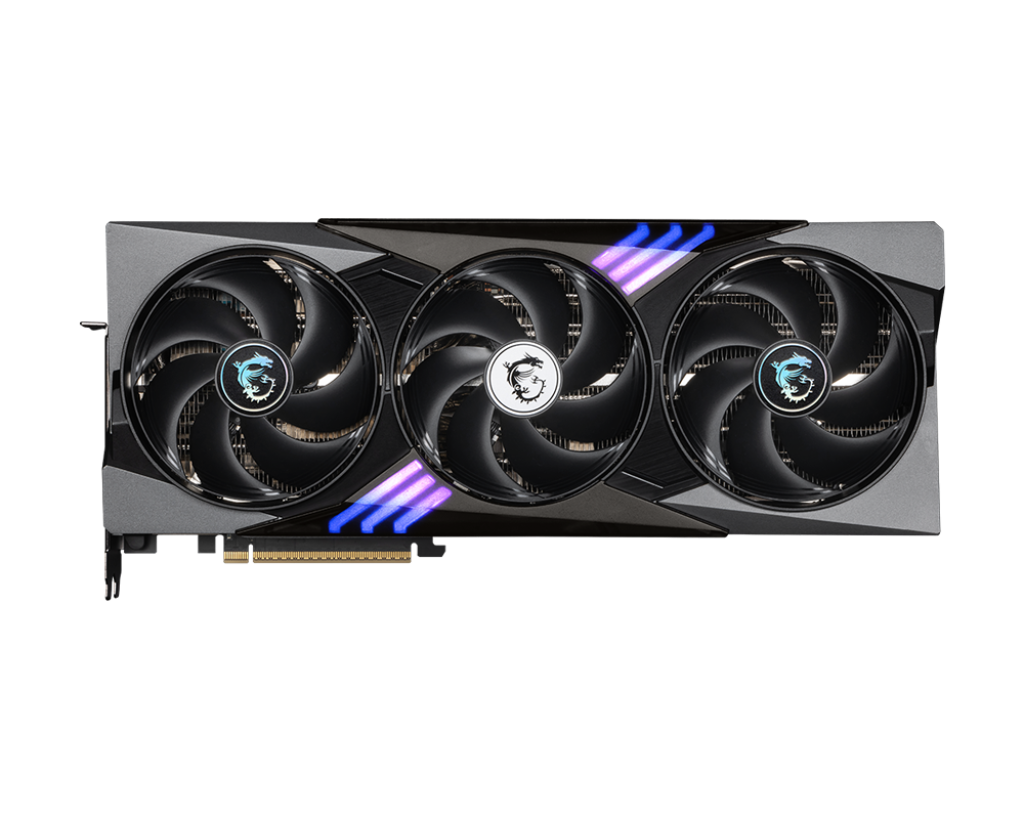

STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

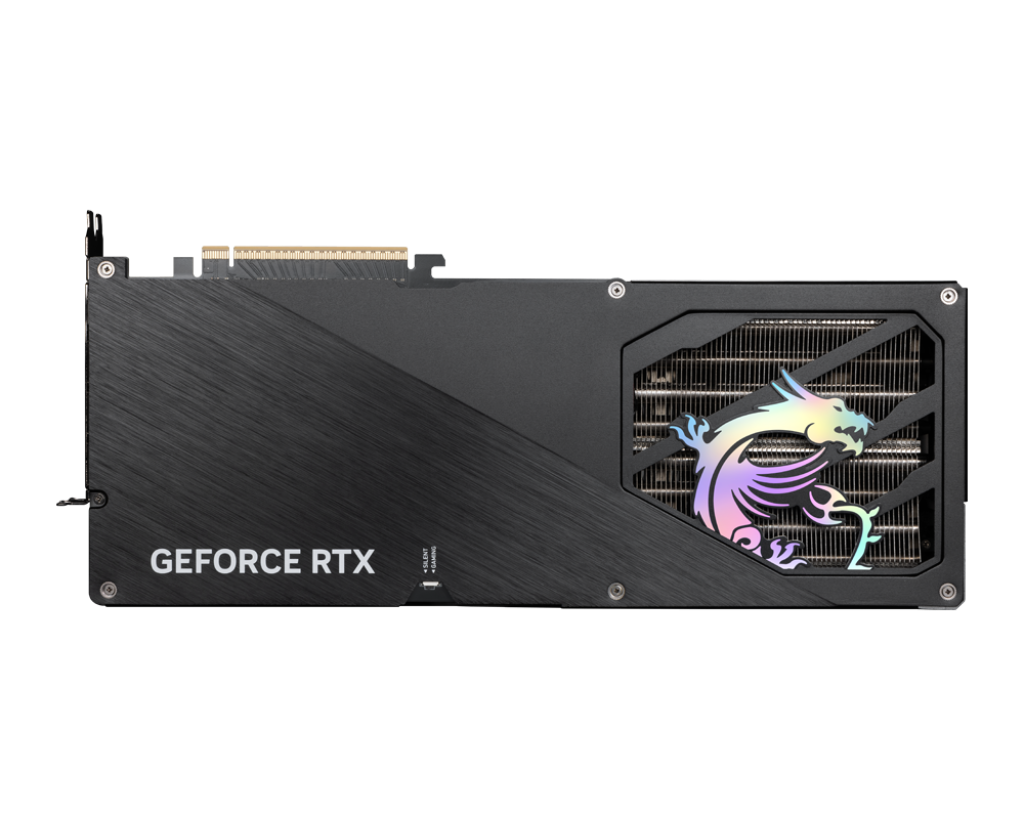

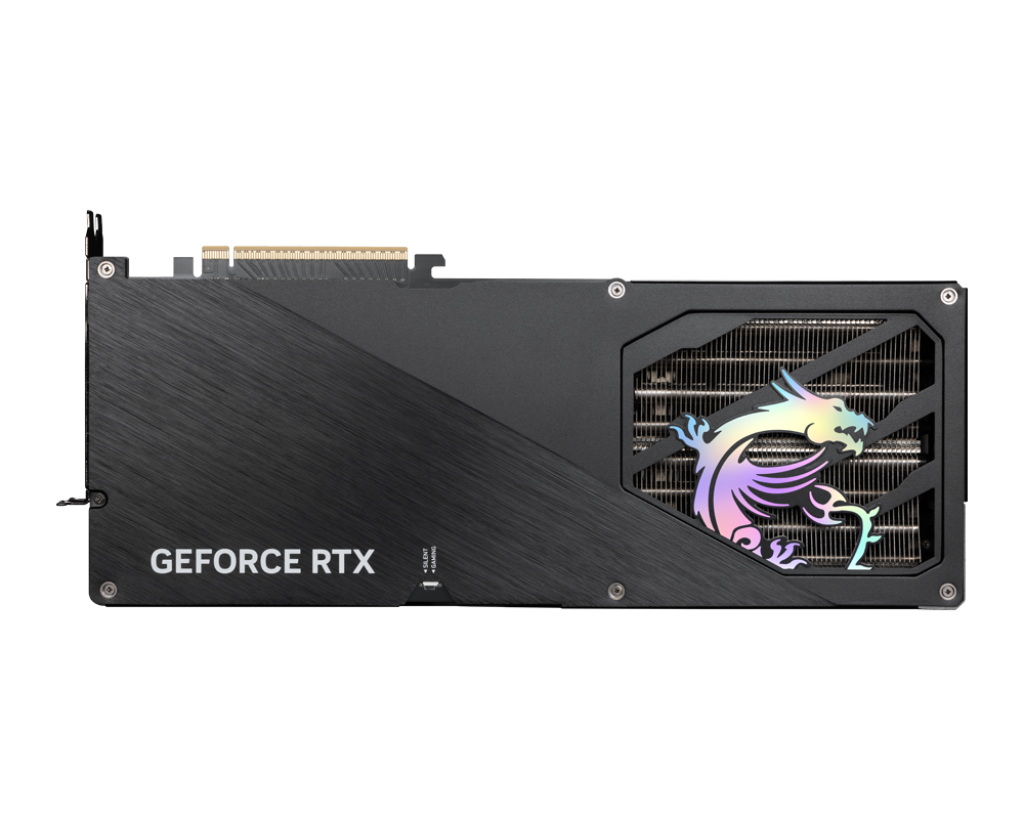

Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Thông số kỹ thuật :
| Specification | Details |
|---|---|
| Marketing Name | GeForce RTX™ 5090 32G GAMING TRIO OC |
| Model Name | G5090-32GTC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2497 MHz (MSI Center), Boost: 2482 MHz |
| CUDA® CORES | 21760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512-bit |

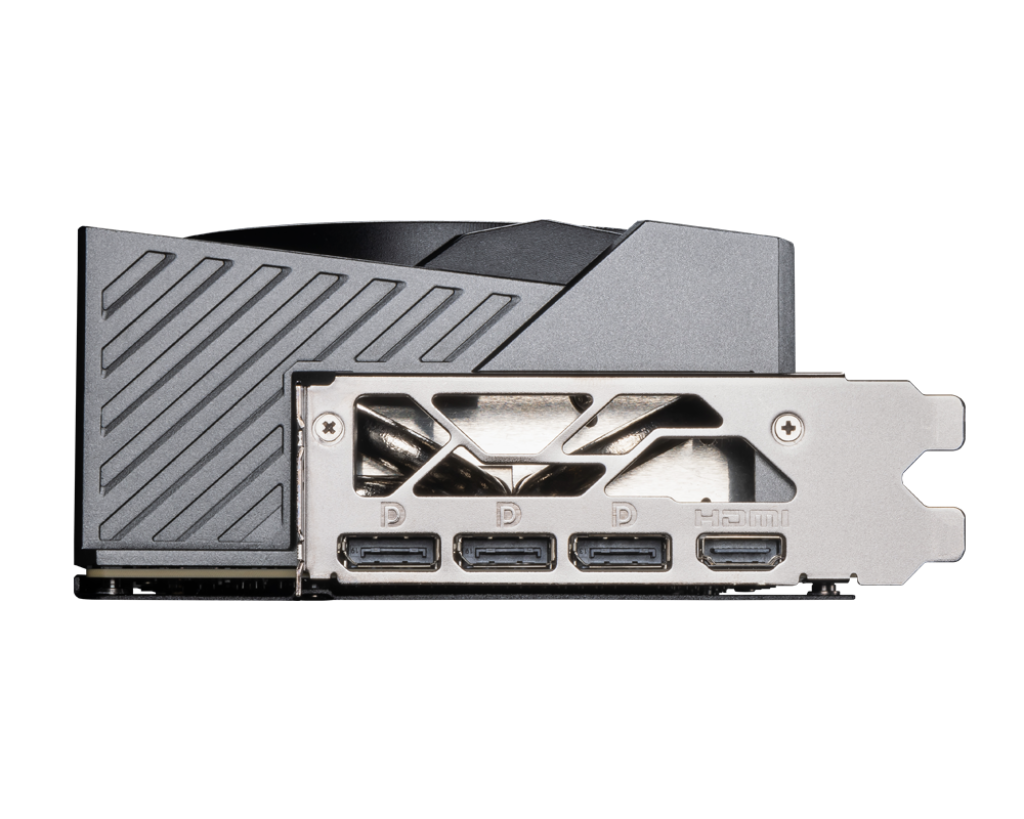

| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 (up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 575 W |

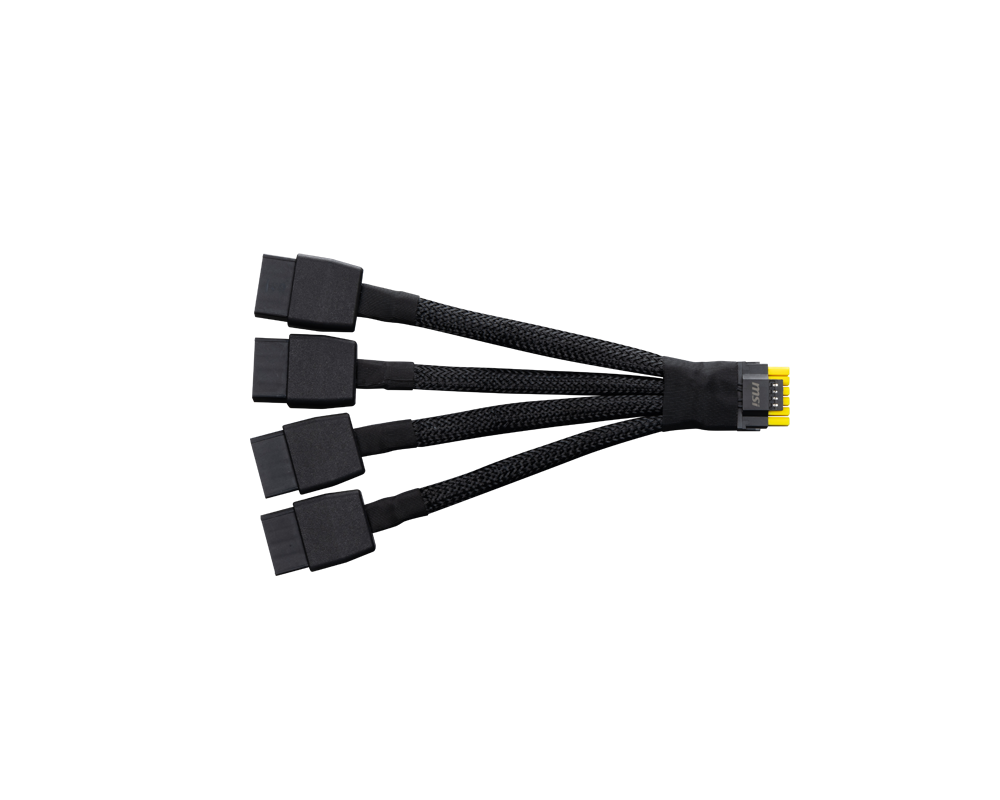

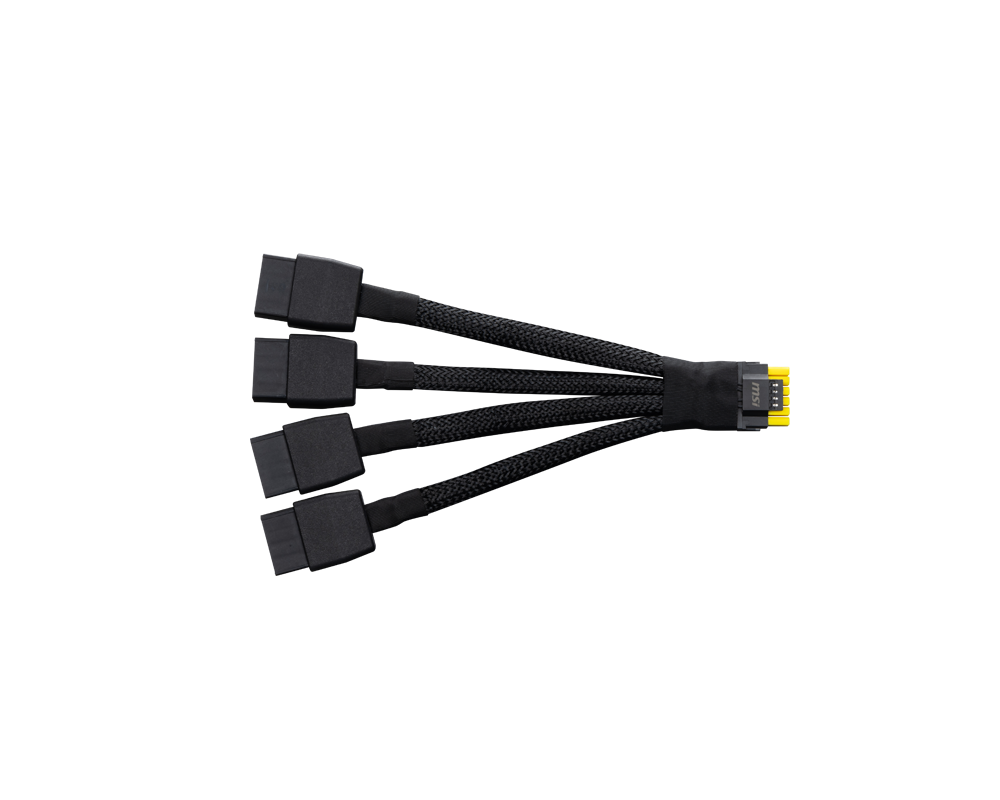

| Power Connectors | 16-pin x 1 |
| Recommended PSU | 1000 W |
| Card Dimensions (mm) | 359 x 149 x 70 |
| Weight (Card / Package) | 2119 g / 2735 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
