THÔNG SỐ KỸ THUẬT

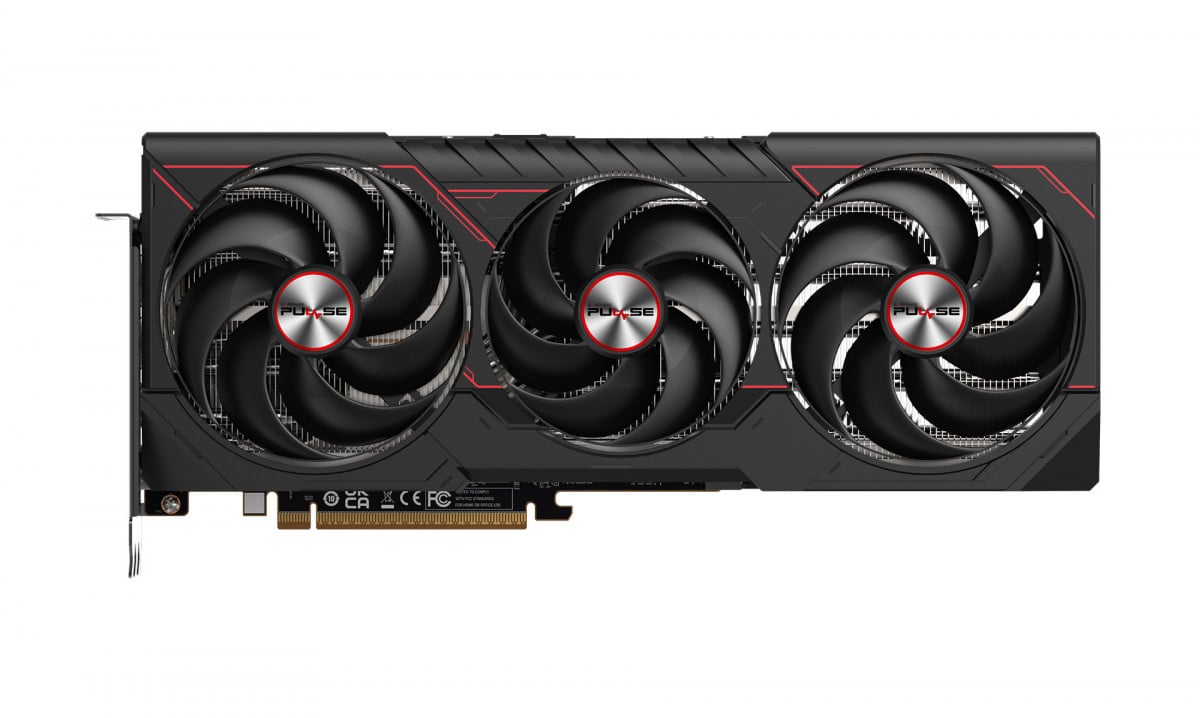

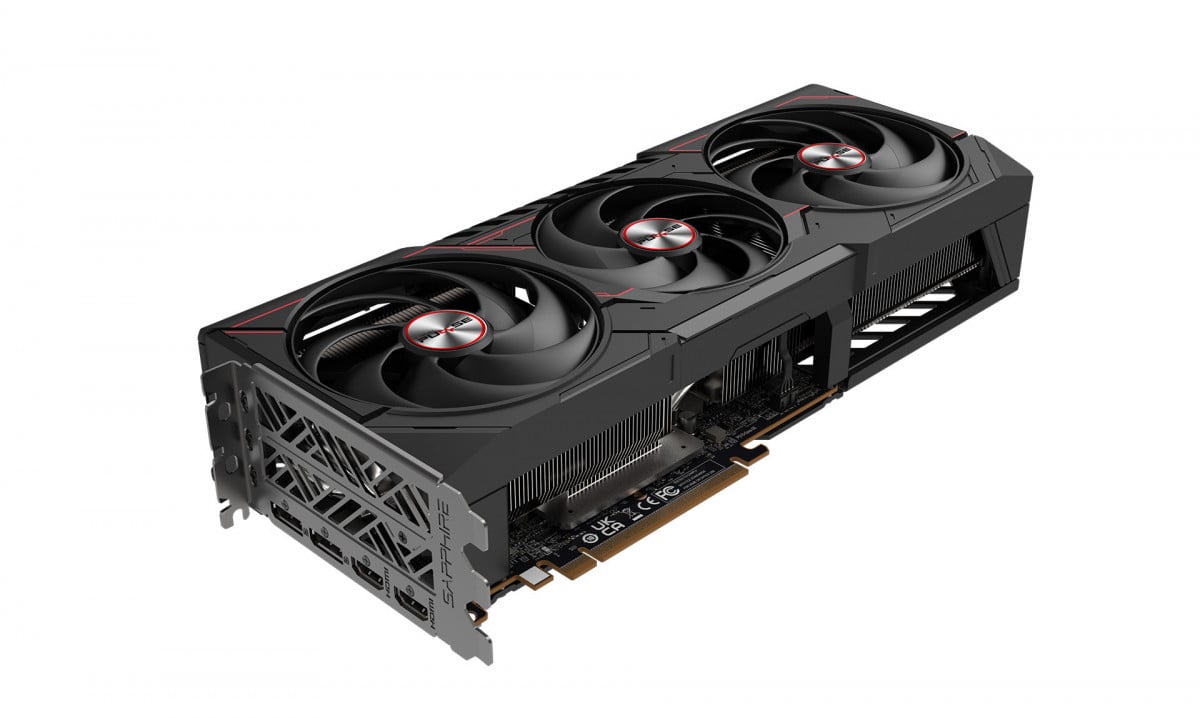

GPU | AMD Radeon™ RX 9070 XT Graphics Card |
Engine Clock | Boost Clock: Up to 2970 MHz |
| Game Clock: Up to 2400 MHz | |
Stream Processors | 4096 |
Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
Infinity Cache | 64MB |
Ray Accelerators | 64 |
AI Accelerator | 128 |
Memory Size/Bus | 16GB/256 bit GDDR6 |
Memory Clock | 20 Gbps Effective |
Displays | Maximum 4 Displays |
Resolution | HDMI®: 7680×4320 |
| DisplayPort™ 2.1a: 7680×4320 | |
Interface | PCI-Express 5.0 x16 |
Output | 2x HDMI® |
| 2x DisplayPort™ 2.1a | |
BIOS Support | UEFI |
Game Index | 4K |
Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) |
| AeroCurve Fan Blade | |
| Free Flow | |
| FrameDefense | |
| Integrated Cooling Module | |
| Tri-X Cooling Technology | |
| High TG Copper PCB | |
| Optimized Composite Heatpipes | |
| Metal Backplate | |
| ARGB SAPPHIRE Logo | |
| Two-Ball Bearing Fans | |
| 14-Phase Digital Power Design | |
| Fuse Protection | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| TriXX Supported | |
| Performance vs. Efficiency Quicksets | |
| Glow! | |
| TriXX Boost | |
| External RGB LED MB Synchronization | |
Accessories Bundled | L-Shape Support Bracket |
| 3pin 5V ARGB Cable | |
AMD Features | AMD RDNA™ 4 Architecture |
| 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) | |
| AMD HYPR-RX with AFMF 2 | |
| AMD FidelityFX™ Super Resolution 4 with AI Upscaling | |
| DisplayPort™ 2.1a | |
| AMD Radiance Display™ Engine | |
| AMD Fluid Motion Frames 2 technology | |
| AMD Radeon™ Anti-Lag 2 technology | |
| AV1 Encode/Decode | |
| AMD FidelityFX™ technologies | |
| Microsoft® DirectX® 12 Ultimate | |
| AMD Noise Suppression | |
| AMD Freesync™ technology | |
| 16 GB of GDDR6 on 256-bit Memory Bus | |
| AMD smart technologies | |
| AMD Software: Adrenalin Edition™ application | |
Cooler Type | Tri-X Cooling |
| AeroCurve Fan Blade | |
| Free Flow | |
| Integrated Cooling Module | |
| High TG Copper PCB | |
| Optimized Composite Heatpipes | |
| Two-Ball Bearing | |
Form Factor | 3 slot, ATX |
| Dimension: 320(L)X 120.25(W)X 61.6 (H)mm | |
Power Consumption | 317W Typical Board Power |
OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
System Requirement | Minimum 750 Watt Power Supply |
| 2 x 8-pin Power Connector. | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. |
