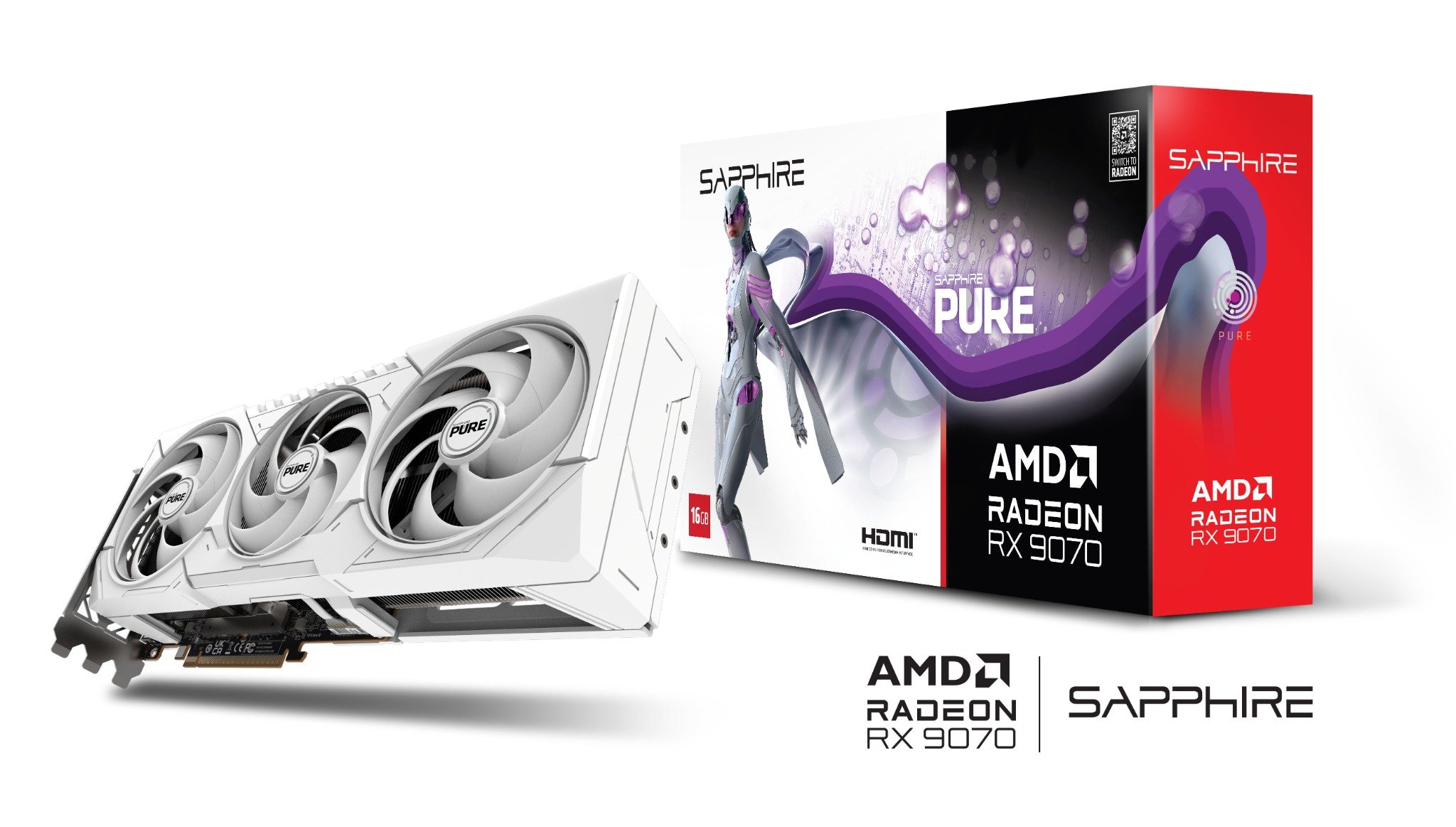

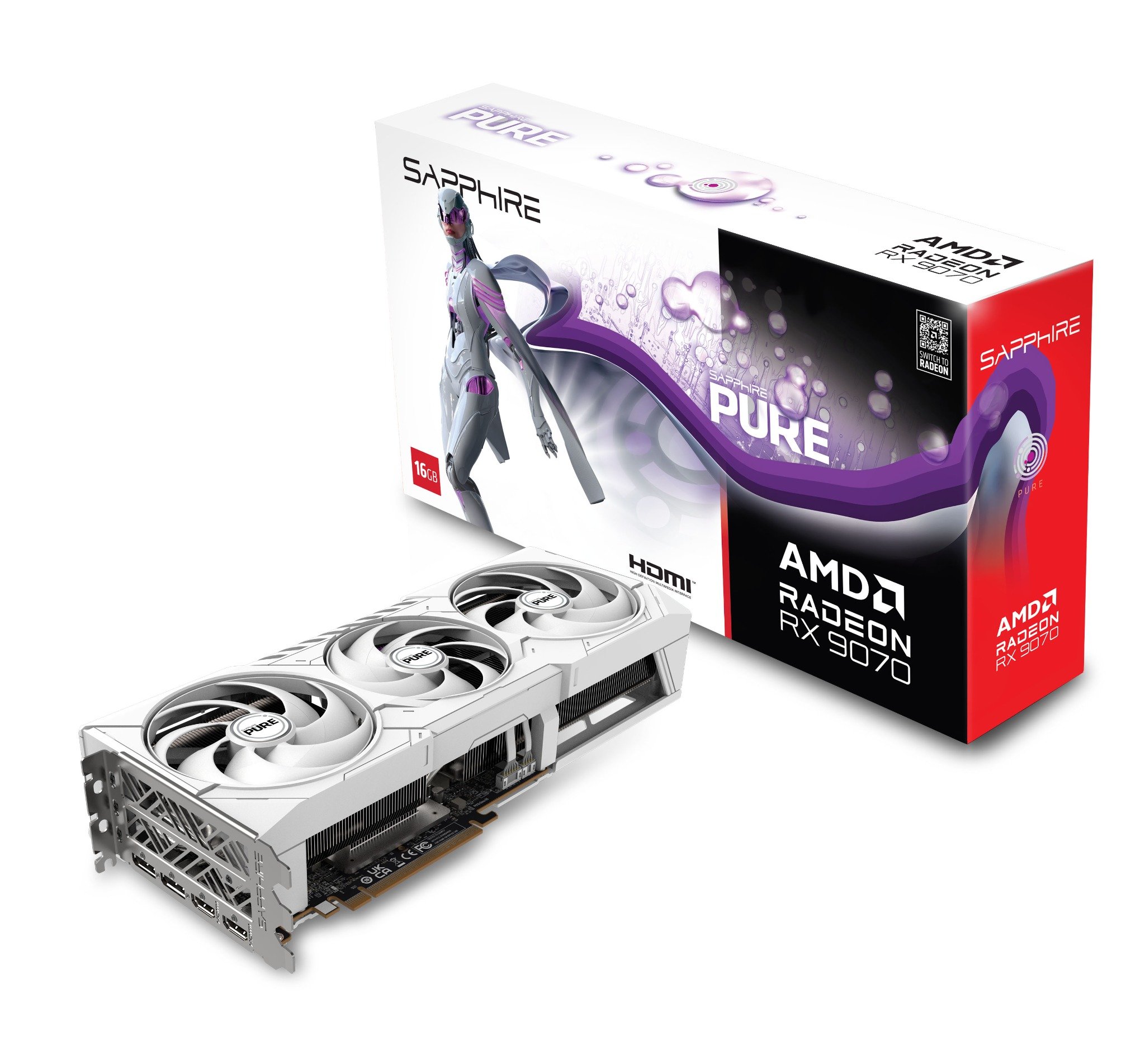

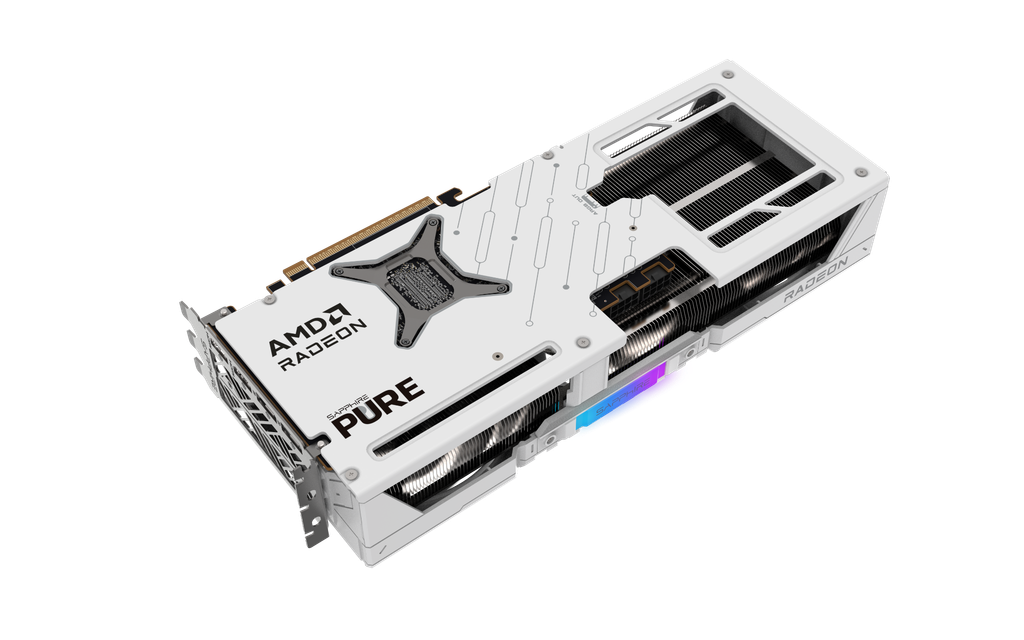

| GPU | AMD Radeon™ RX 9070 Graphics Card |
| Architecture | AMD RDNA™ 4 |
| Engine Clock | Boost Clock: Up to 2700 MHz Game Clock: Up to 2210 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 3584 |
| Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 56 |
| AI Accelerator | 112 |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |

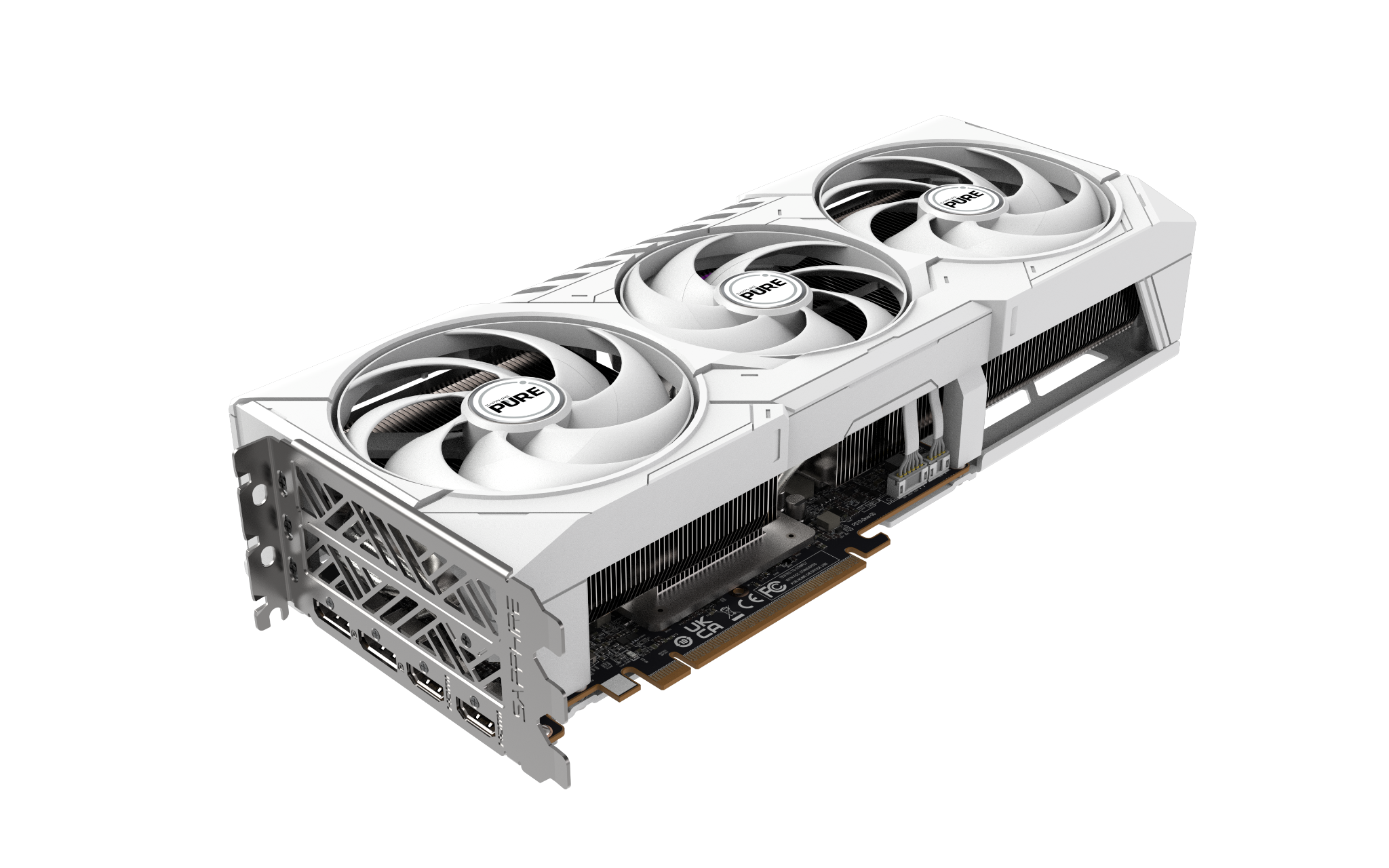

| Output | 2x HDMI®, 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |

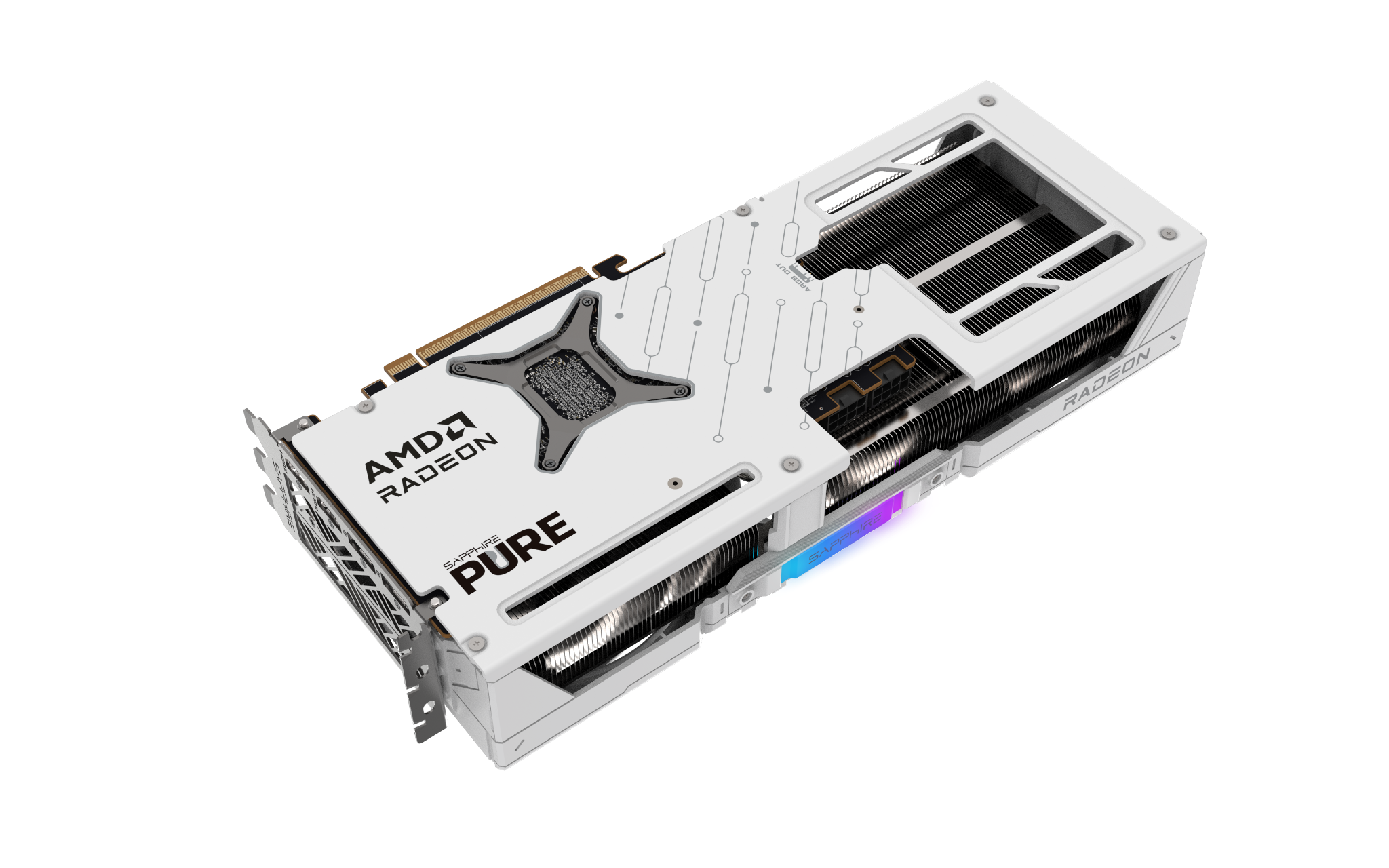

| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB SAPPHIRE Logo Two-Ball Bearing Fans 12-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! TriXX Boost External RGB LED MB Synchronization Accessories Bundled L-Shape Support Bracket 3pin 5V ARGB Cable |
| AMD Features | AMD RDNA™ 4 Architecture 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |

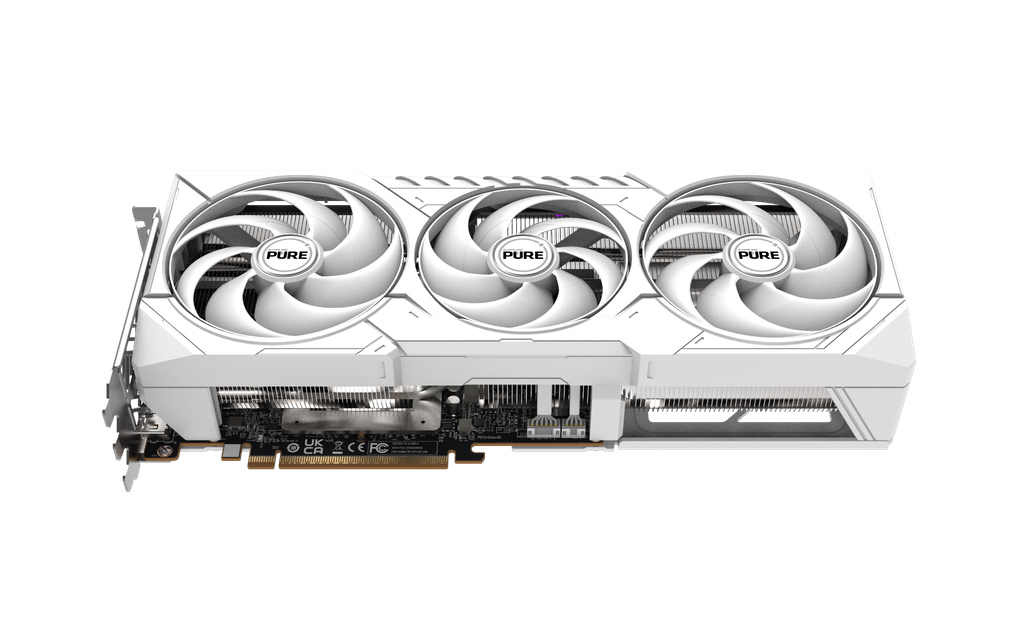

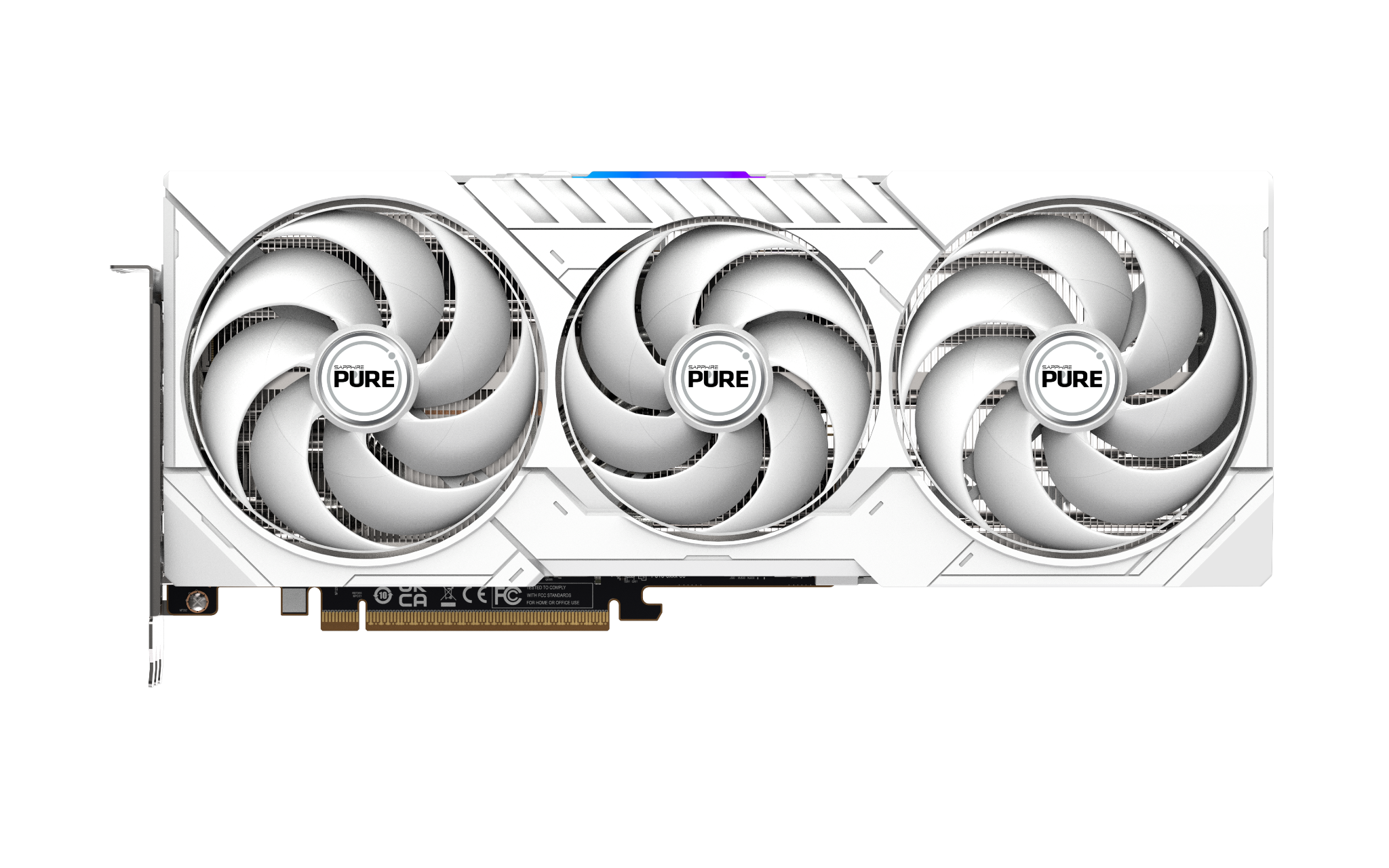

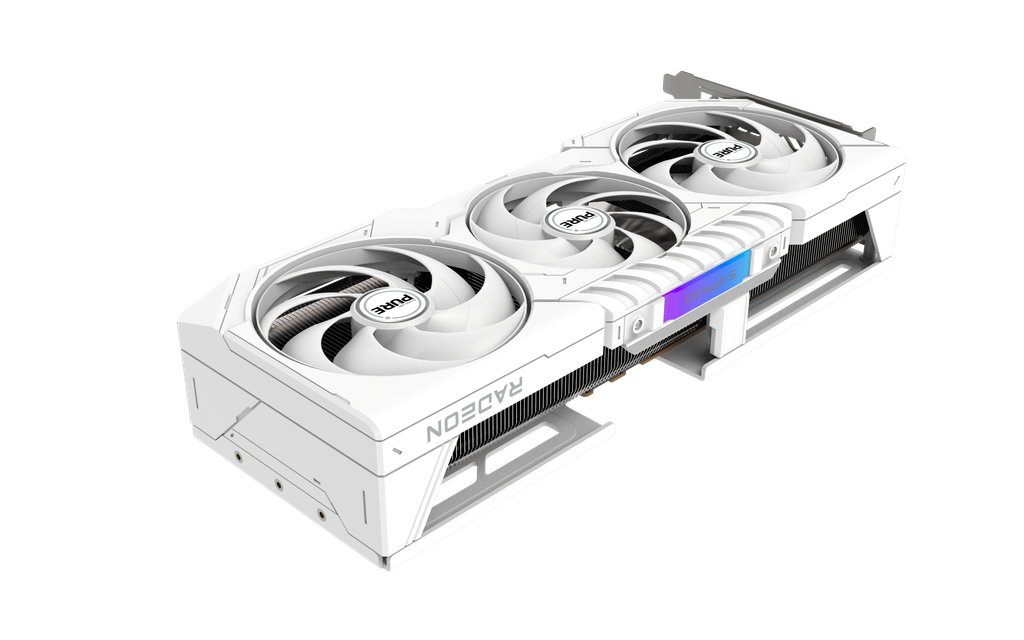

| Cooler Type | Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 3 slot, ATX Dimension: 320(L)X 120.25(W)X 61.6 (H)mm |
| Power Consumption | 245W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 650 Watt Power Supply 2 x 8-pin Power Connector PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard Minimum 8GB of system memory. 16GB recommended |
