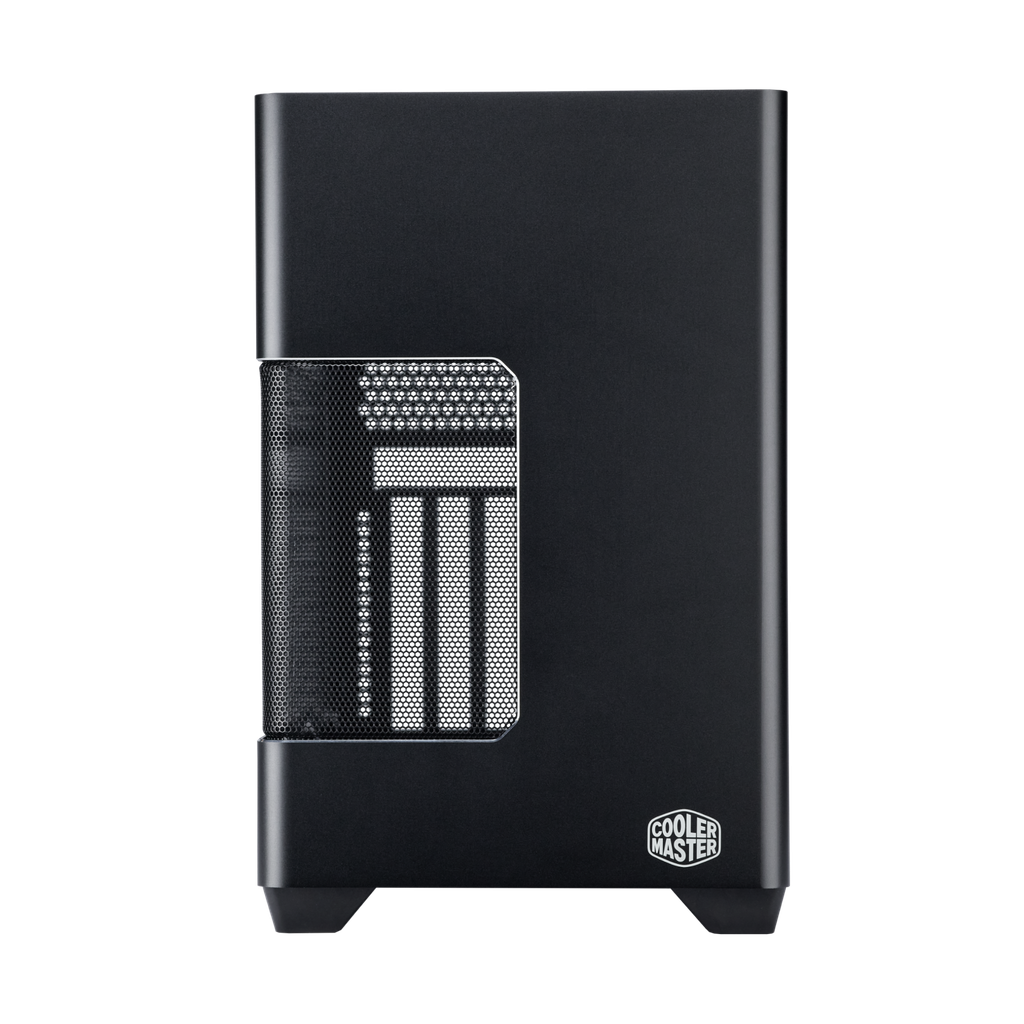

Product NameNR200P V3
Model NumberNR200PV3-KWNN-S00
Exterior ColorBlack
Materials - ExteriorAluminum, SGCC Steel, Mesh, ABS Plastic
Material - Side panelAluminum, Steel
Motherboard CompatibilityMini-ITX
Drive Bays - 5.25" ODDN/A
Drive Bays - 3.5" HDD1 (Max. 2)
Drive Bays - 2.5" SSD1 (Max. 2)
I/O Panel - Power-LED ColorWhite
I/O Panel - HDD-LED ColorN/A

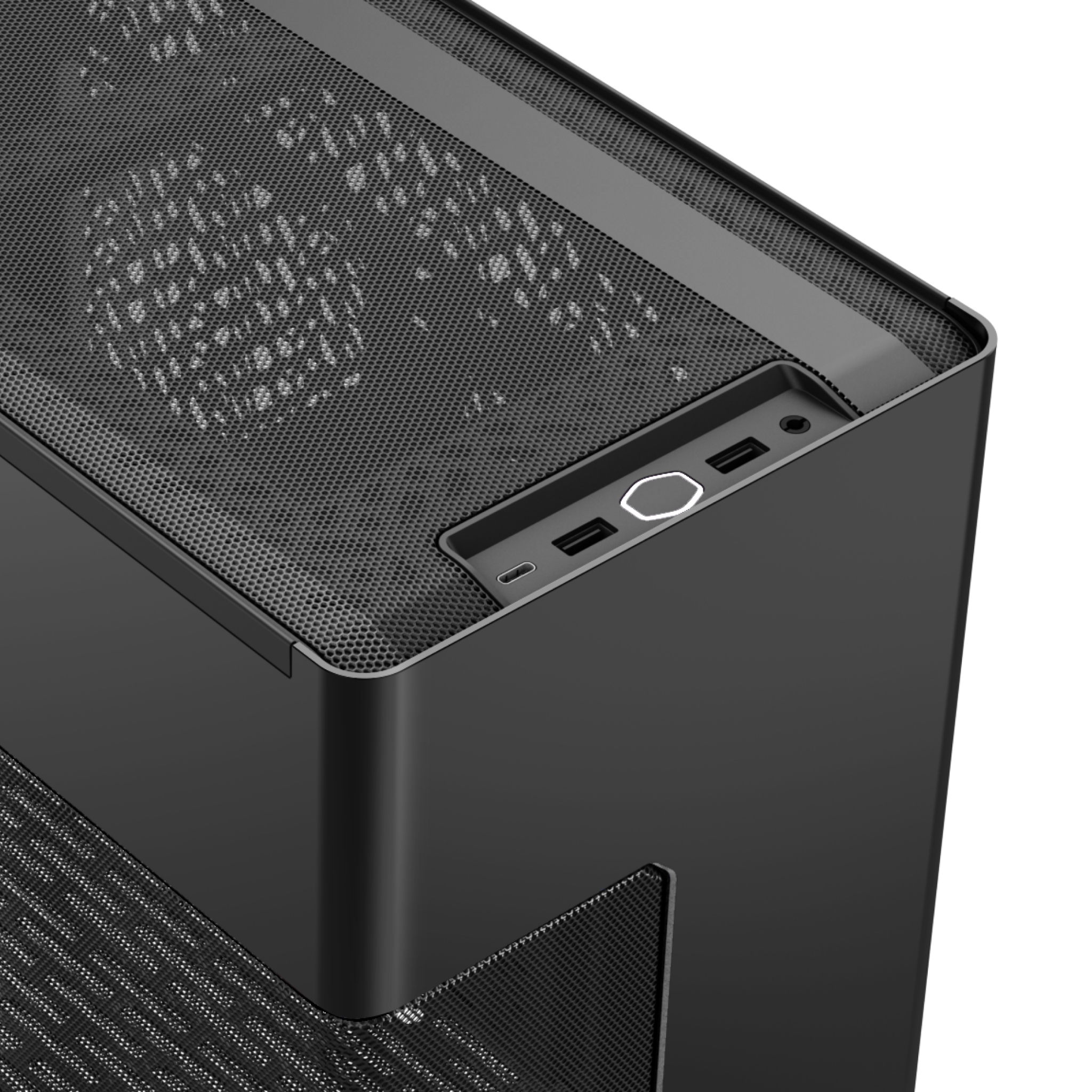

I/O Panel - USB Ports2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen2 x 2 Type-C
I/O Port - Audio - 3.5mm Headset Jack (Audio+Mic)1
Clearance - CPU Cooler70 mm
Clearance - PSUSFX, SFX-L

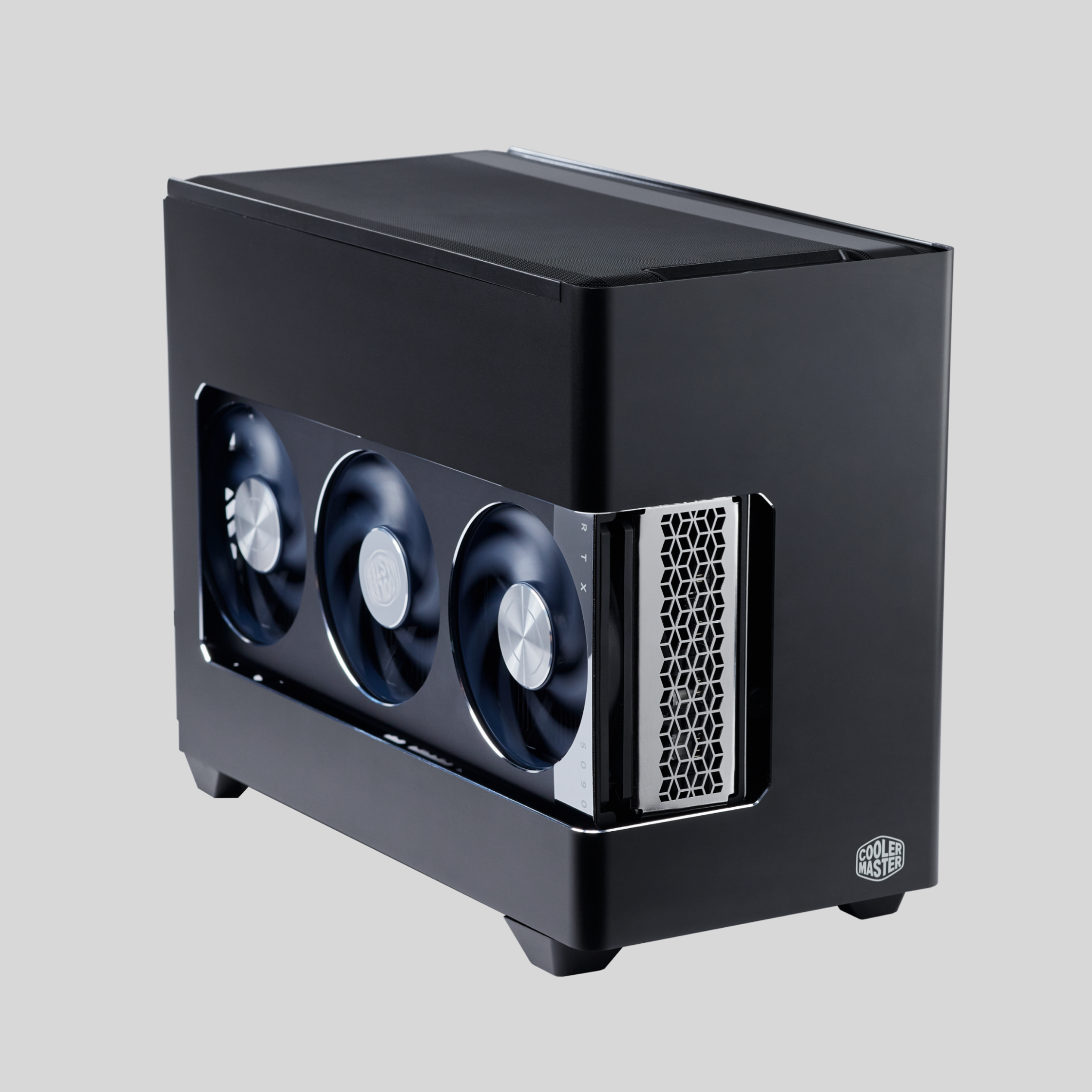

Clearance - Graphics CardL: 361.5 mm (incl. power connector) H: 160 mm (incl. power connector) W: 78.5 mm (3.8 slots)
Fan Support - FrontN/A
Fan Support - Top2 x 120 mm / 2 x 140 mm
Fan Support - BackN/A
Fan Support - Bottom1 x 120mm (W/O 3.5”HDD at the bottom)
Fan Support - Left sideN/A
Radiator Support - FrontN/A
Radiator Support - Top120 / 140 / 240 / 280mm
Radiator Support - BackN/A
Radiator Support - BottomN/A
Radiator Support - Left sideN/A
Included AccessoriesPCIe 5.0 x16 riser cable x1
Included AccessoriesGPU holder
Volume (incl. Protrusions)18.62 L
Dimensions (L x W x H)378.2 x 185 x 292 mm(Incl. Protrusions), 367.2 x 185 x 274 mm(Excl. Protrusions)
Warranty2 years
SeriesMasterBox Series
SizeMini ITX
