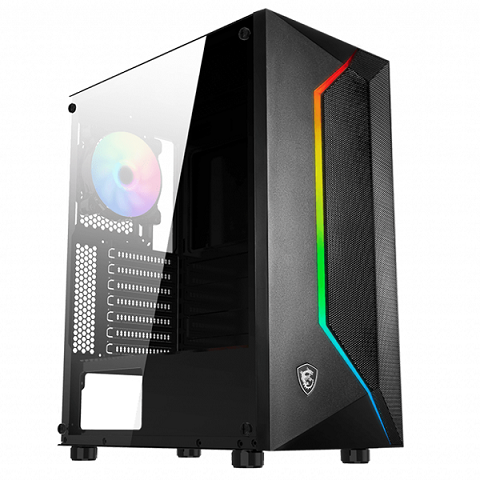

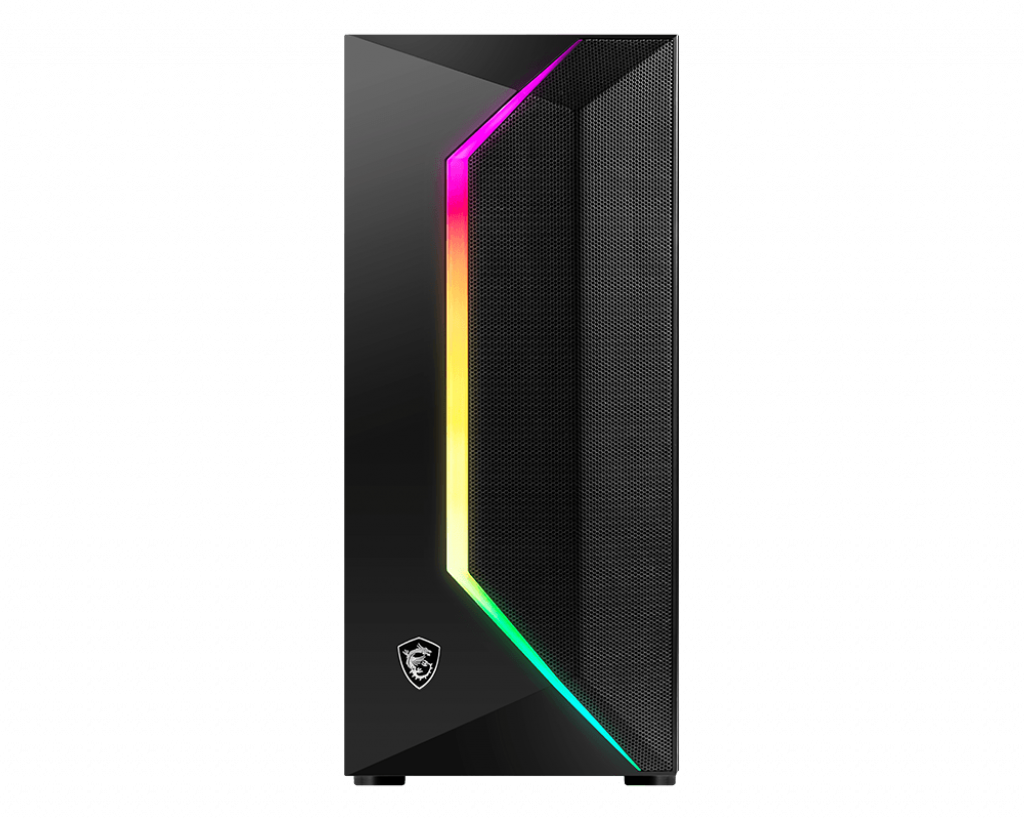

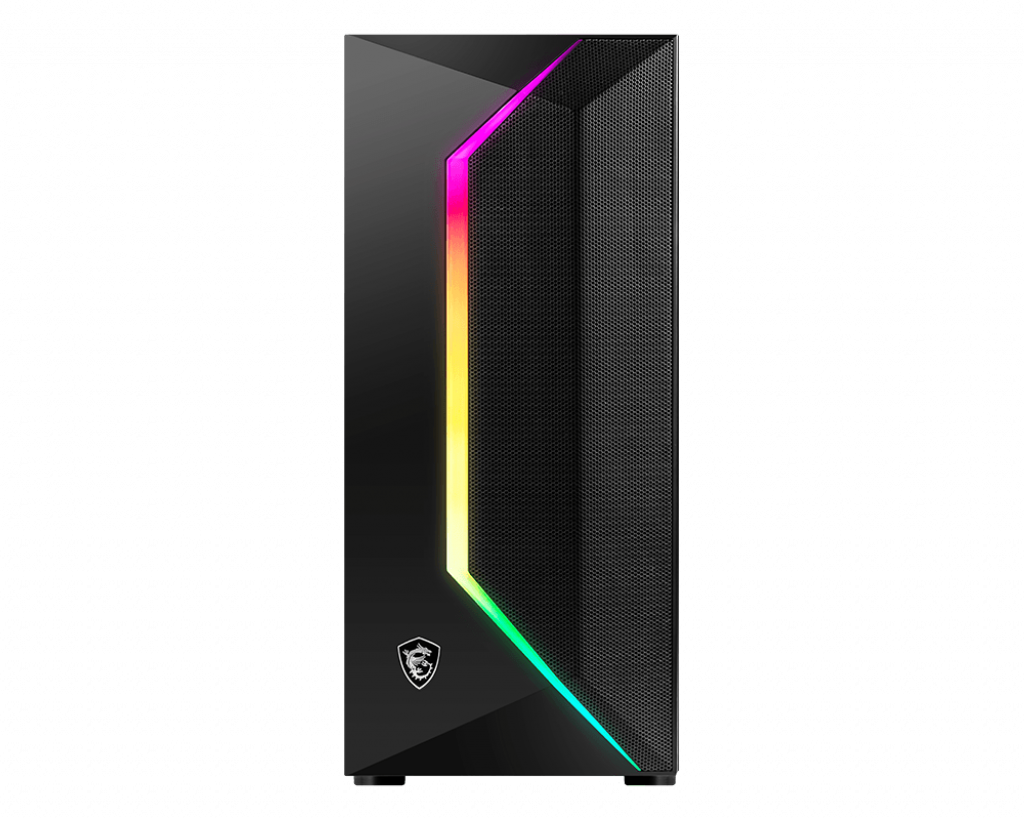

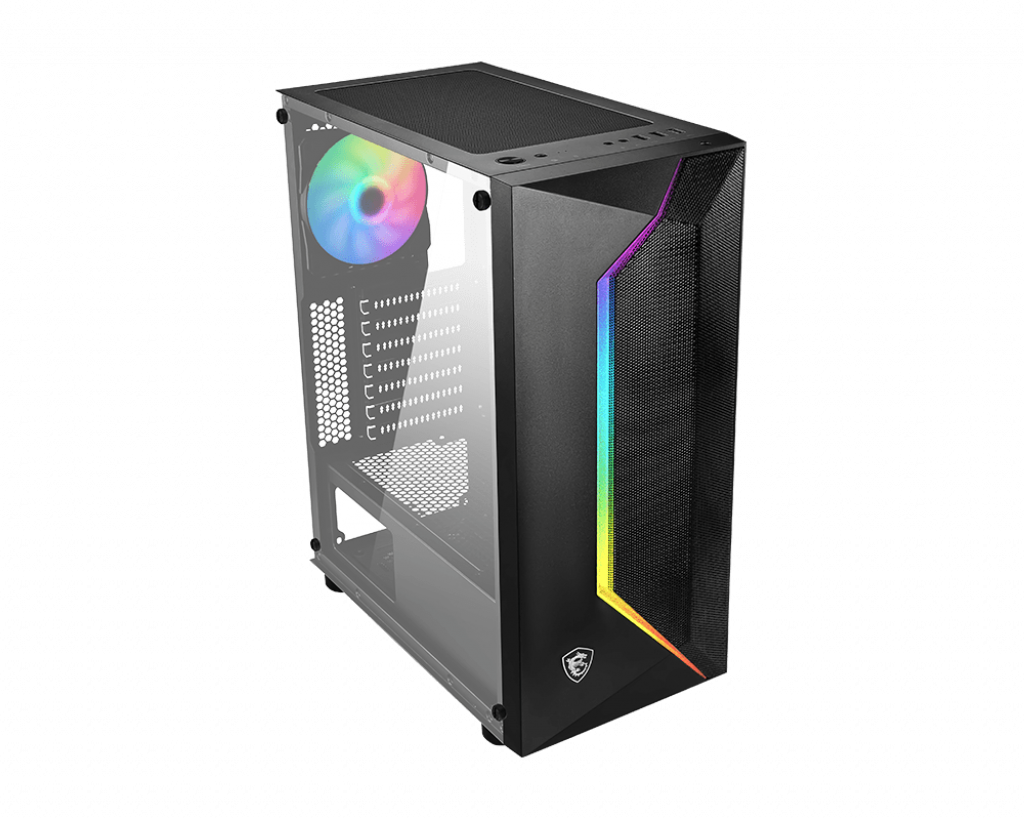

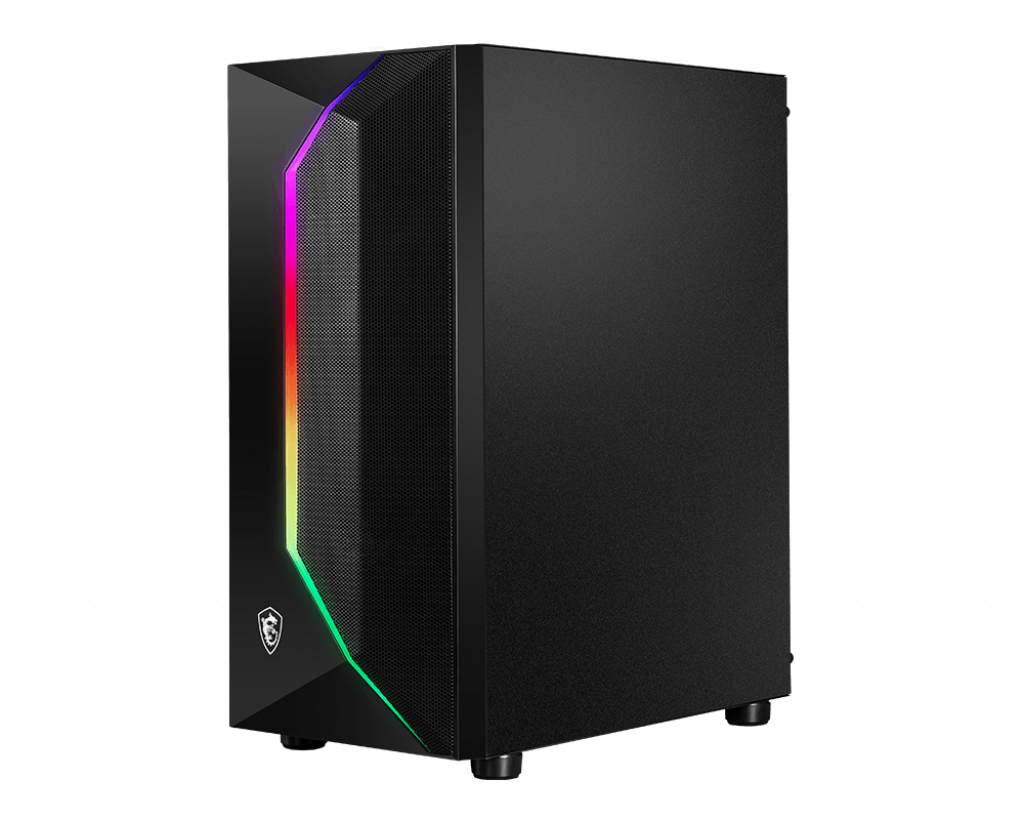

| Product Name | MAG VAMPIRIC 100R |
| Support MB Form Factor | ATX / M-ATX / Mini-ITX |
| Dimension (W) x (D) x (H) | 205 x 390 x 457 mm / 8.07 x 15.35 x 17.99 inches |

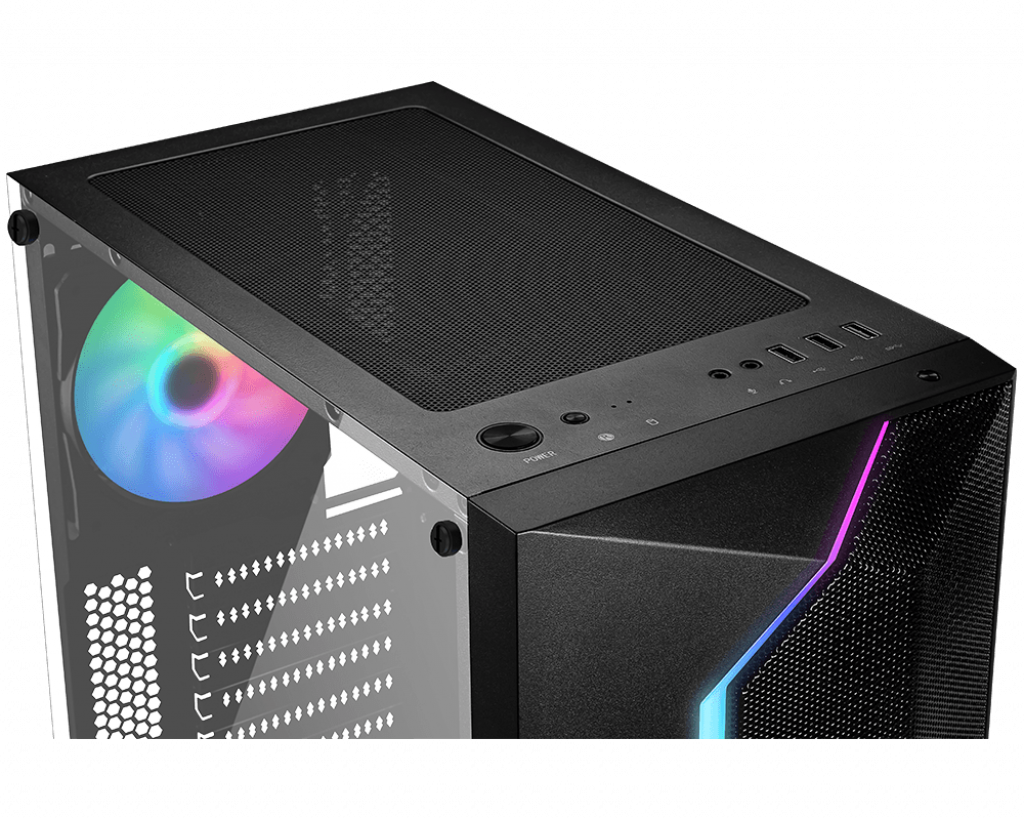

| I/O Ports | 1 x USB 3.2 Gen 1 Type A / 2 x USB 2.0 / HD Audio / Mic |
| Driver Bays | 2 x 2.5" + 2 x 3.5" (1 x compatible with 2.5") |
| VGA Card Support | Max 300 mm / 11.81 inch |
| CPU Cooler Support | Max 160 mm / 6.3 inch |
| Power Supply | Standard ATX, max to 270 mm( without 3.5" HDD tray installed ) |
Cooling Layout | Front Max: 3 x 120 mm or 2 x 140 mm(1 x 120 mm Fan included)
Top: Max: 2 x 120 mm
Rear: 1 x 120 mm(1 x 120 mm ARGB Fan included) |
| Radiator Layout | Front: up to 240 mm / Rear: up to 120 mm |
