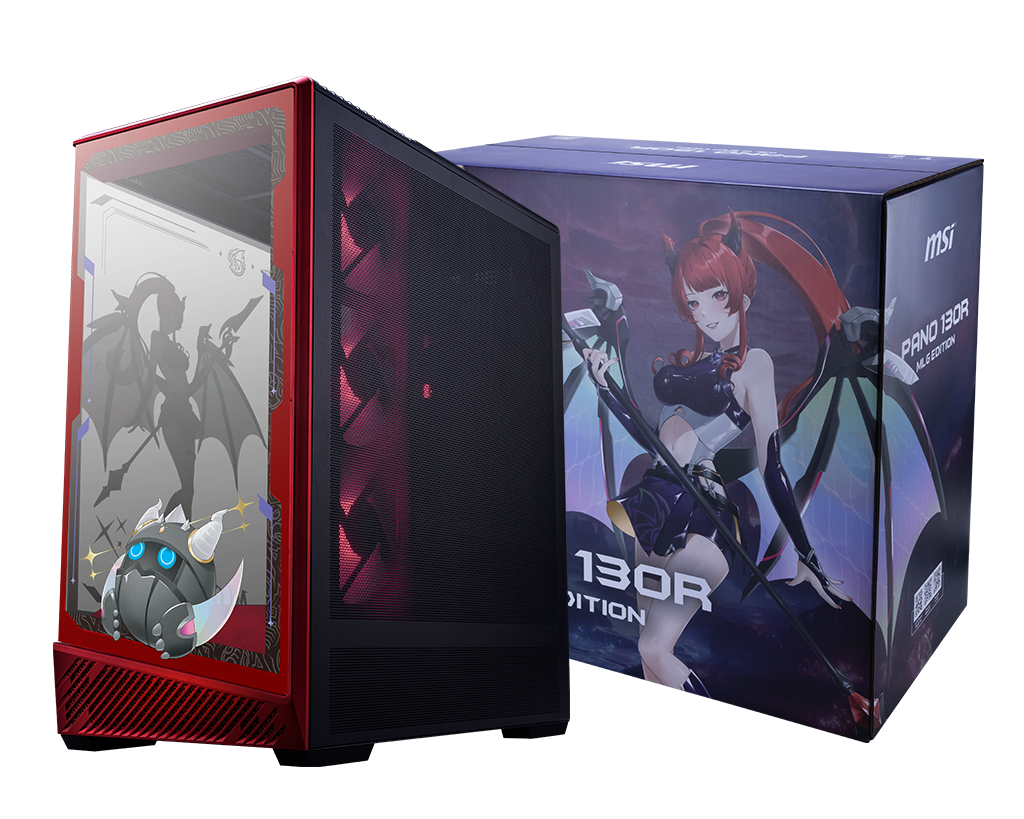

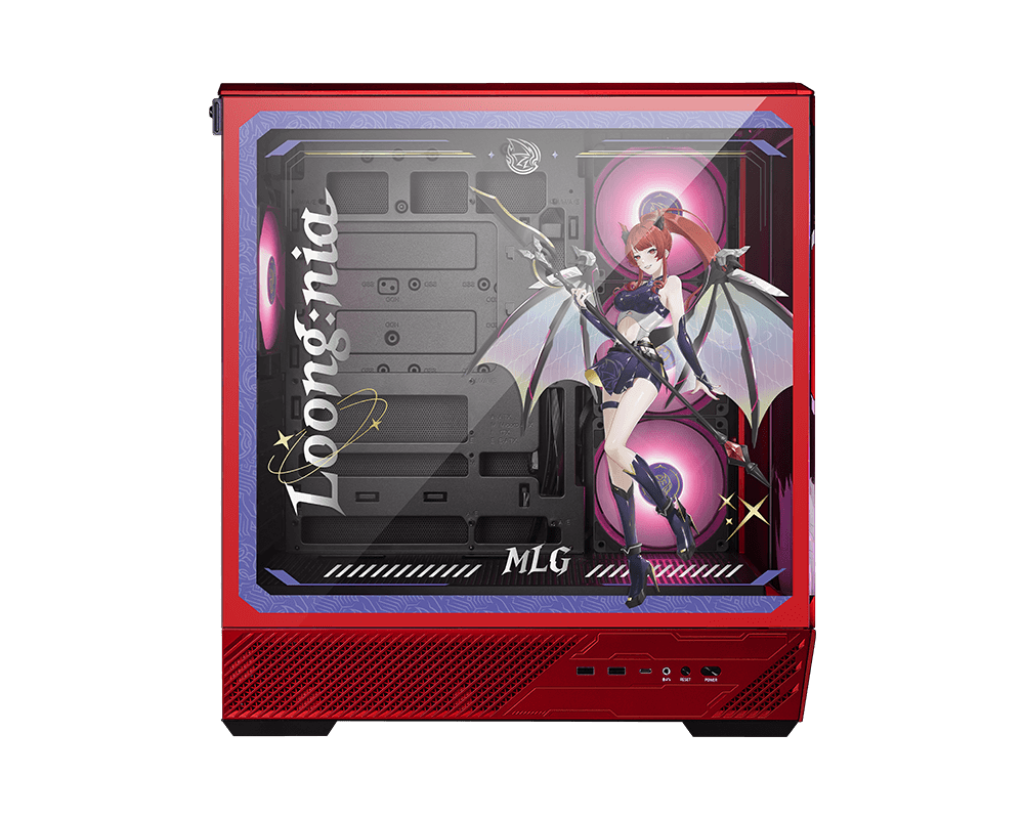

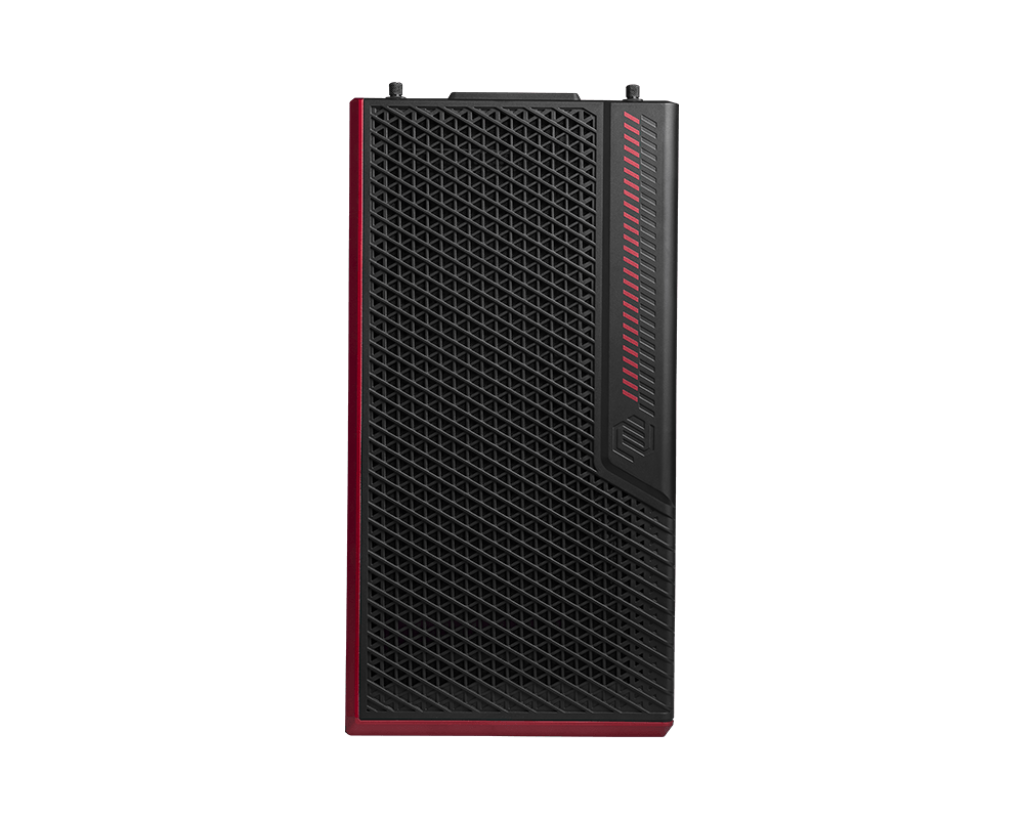

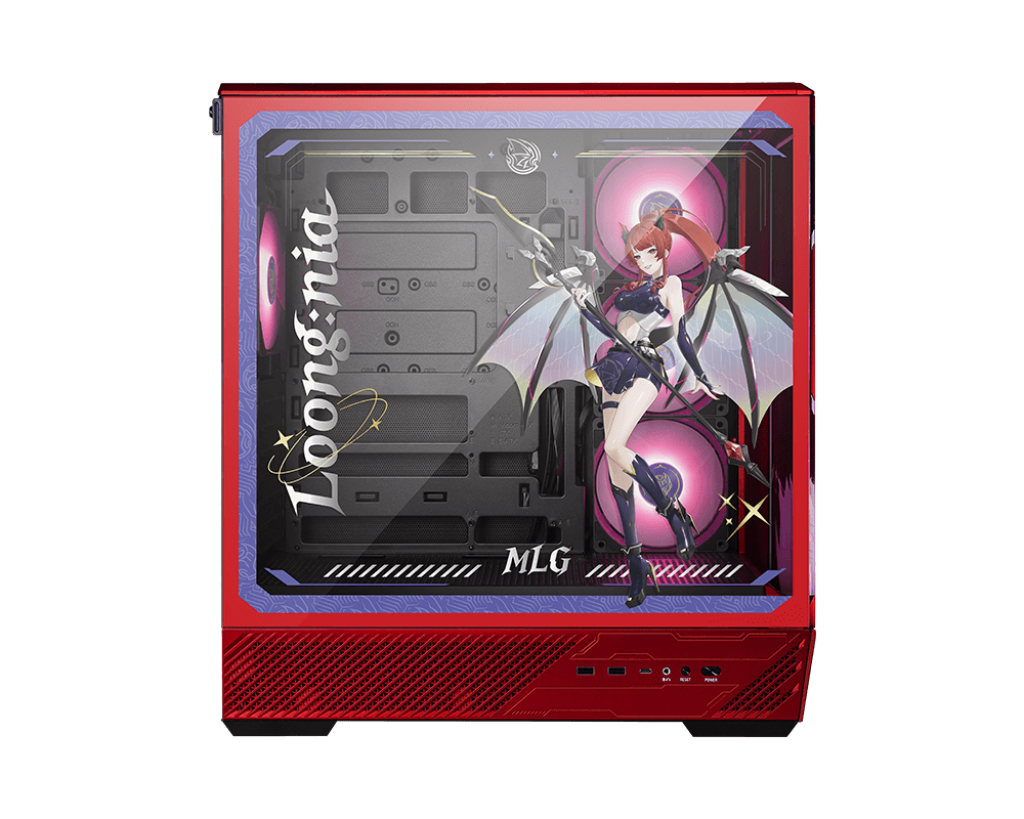

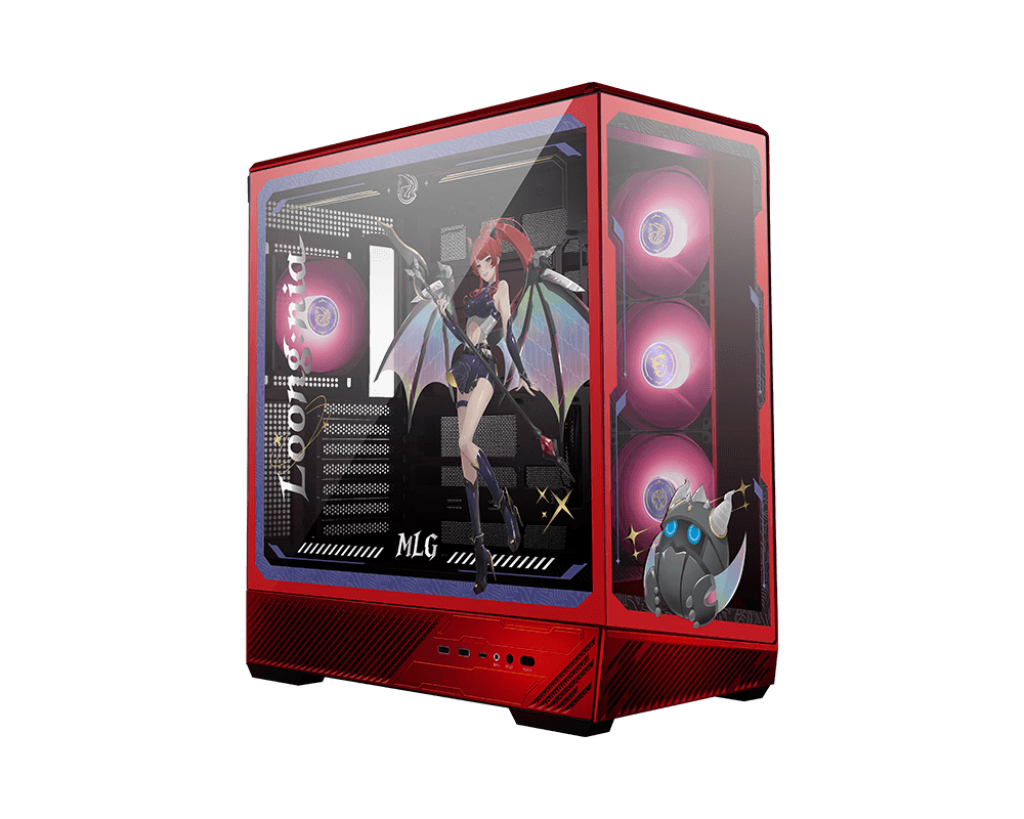

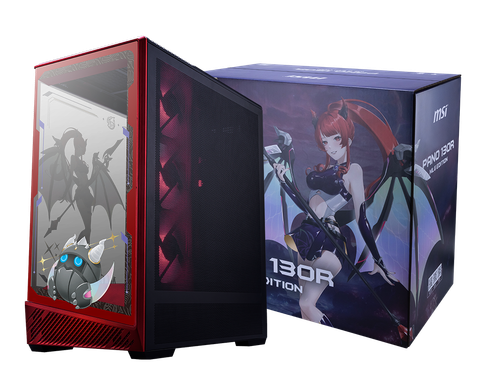

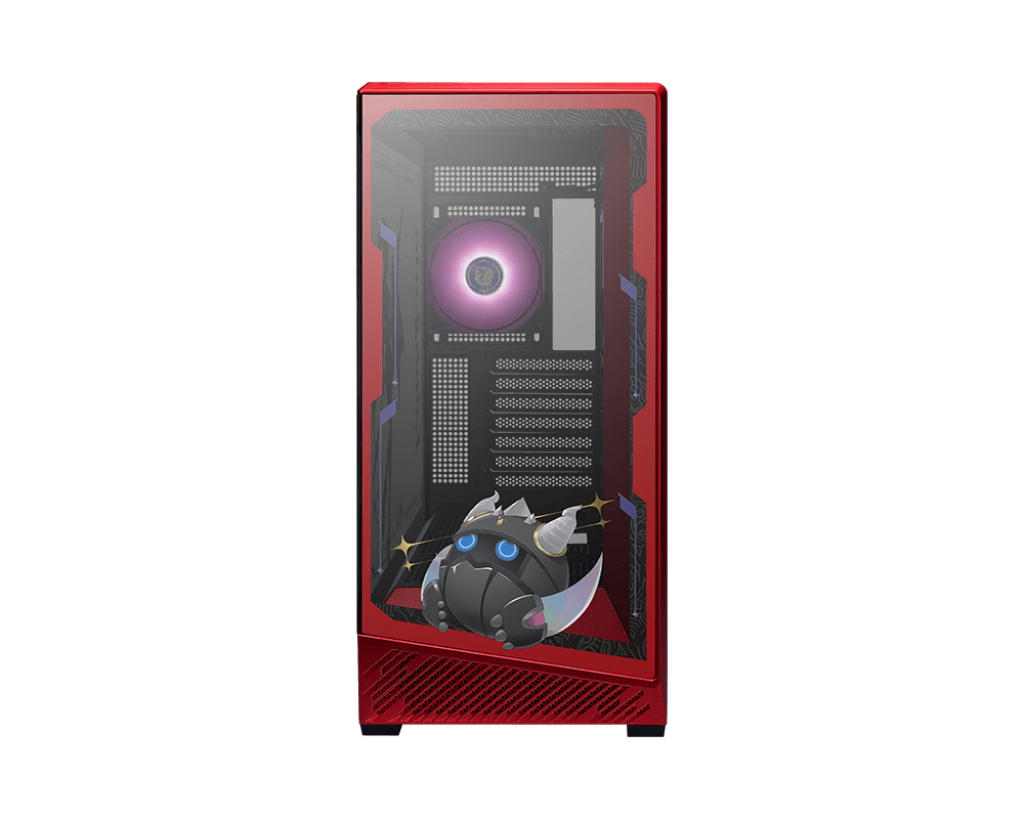

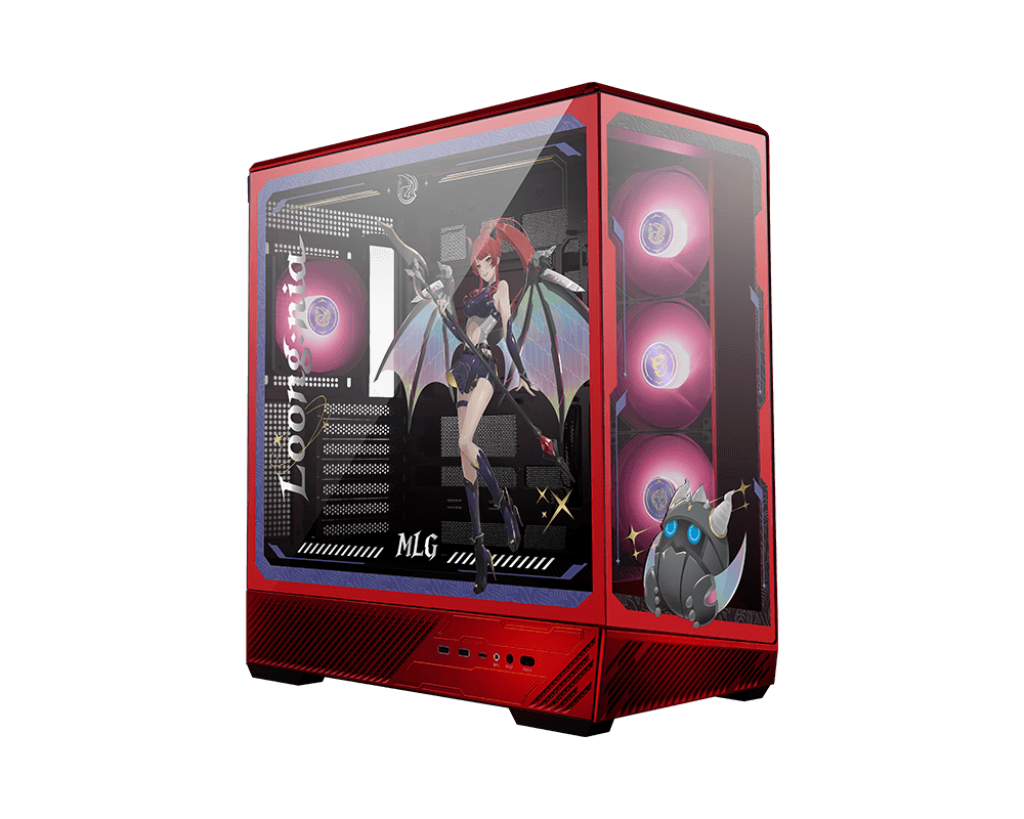

Product Name PANO 130R MLG EDITION
Case Form Factor Mid-Tower
Motherboard Form Factor Support Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX
I/O Ports 2 x USB 5Gbps (Type-A) 1 x USB 20Gbps (Type-C) 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button
Drive Mount Support Up to 3 x 2.5” SSD Up to 2 x 3.5” HDD (Maximum of 3 drives can be mounted at once, depending on configuration)
Expansion Slots 7
Maximum GPU Length 400 mm / 15.75 inches
Maximum CPU Cooler Height 165 mm / 6.50 inches
Power Supply Support ATX
Maximum PSU Length 180 mm / 7.09 inches
Fan Size Support Top: 3 x 120 mm / 2 x 140 mm Front: N/A Rear: 1 x 120 mm Side: 3 x 120 mm Bottom: 3 x 120 mm (Above the power shroud)
Pre-installed Fan Type Rear: 1 x 120 mm ARGB Fan Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan)
Radiator Size Support Top: 120 / 140 / 240 / 280 / 360 mm Front: N/A Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 1 x 360 mm (Above the power shroud)
Dimensions (DxWxH) 460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches
Net Weight 8.38 kg / 18.47 lbs
Gross Weight 10.5 kg / 23.15 lbs
