SPECIFICATION

Bên trong hộp

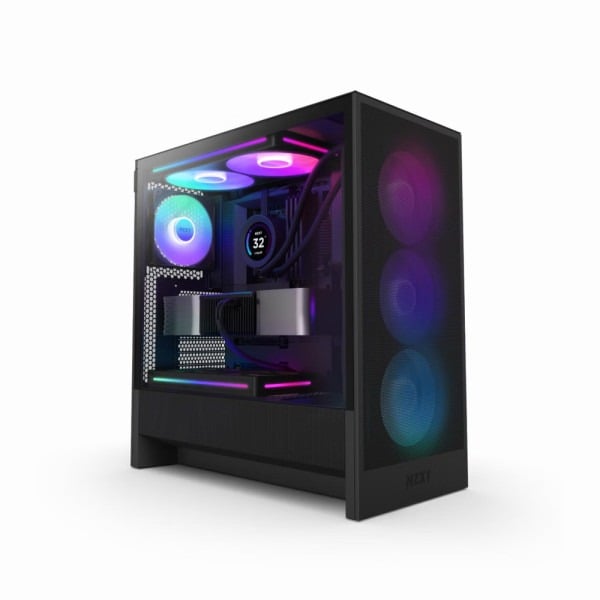

H5 Flow RGB

1

F360 RGB Core (CV)

1

F120Q (CV)

1

Installation Accessories

1

User guide

1

Tech Specs

Key Specs

Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type: Mid-Tower
Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

Height (with feet): 465 mm / 18.31 in
Width: 225 mm / 8.86 in
Depth: 430 mm / 16.93 in
Weight: 7.63 kg / 16.82 lb

Compatibility & Clearance

CPU Cooler Height: Up to 170 mm
GPU Length: Up to 410 mm
PSU Length: Up to 200 mm
Cable Management: Up to 28.7 mm
Top Radiator: Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 55 mm

Front I/O Ports

USB 3.2 Gen 1 Type-A: 1
USB 3.2 Gen 2×2 Type-C (20 Gbps): 1
Headset Audio Jack: 1

Expansion Slots

Standard: 7
Vertical: 0

Drive Bays

2.5″: 2
3.5″: 1

Fan Support

Front: 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
Top: 2 x 120 mm / 2 x 140 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

Front: Up to 360 mm
Top: Up to 240 mm (280mm with low-profile memory only)

Fan Specs

Model: F360 RGB Core (Case Version)
Speed: 1,700 ± 200 RPM
Airflow: 50.1 CFM
Static: 1.27 mm-H₂O
Noise: 23.3 dBA
Fan Connector: 3-pin DC

Fan Specs

Model: F120Q (Case Version)
Speed: 1,350 ± 150 RPM
Airflow: 60.2 CFM
Static: 1.05 mm – H2O
Noise: 24.1 dBA
Fan Connector: 3-pin DC

General

Bảo hành: 24 Tháng
Model Number: CC-H52FW-R1 (White) / CC-H52FB-R1 (Black)
UPC: 810074845922 (White) / 810074845939 (Black)
EAN: 5056547205861 (White) / 5056547205878 (Black)
