Size Down, Power Up

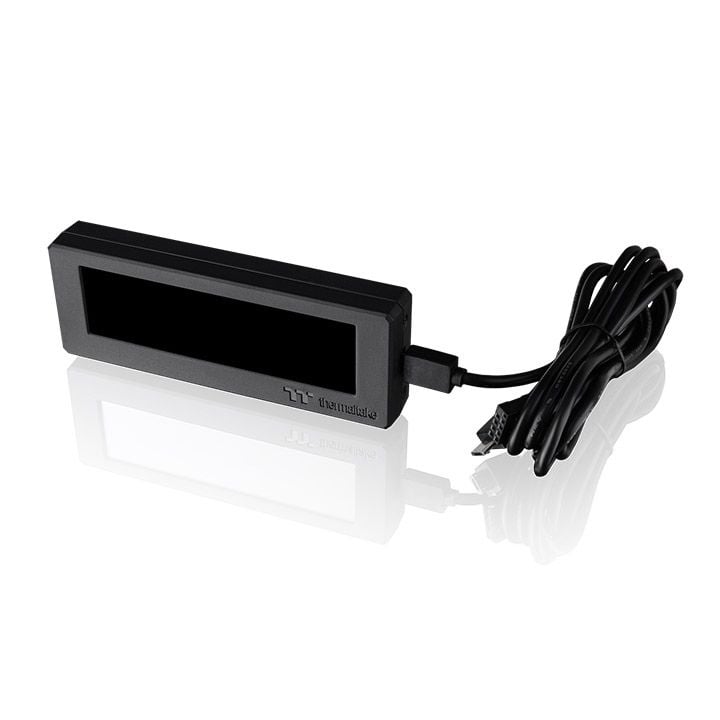

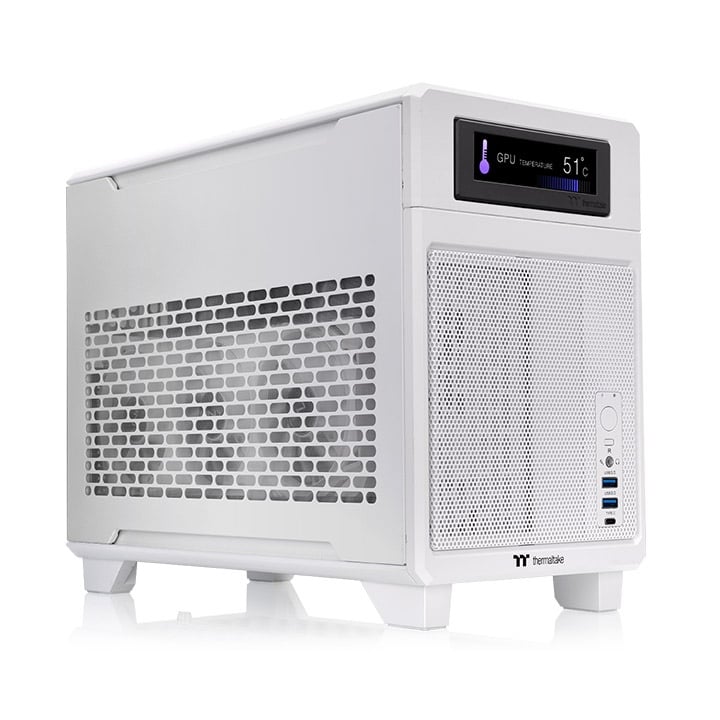

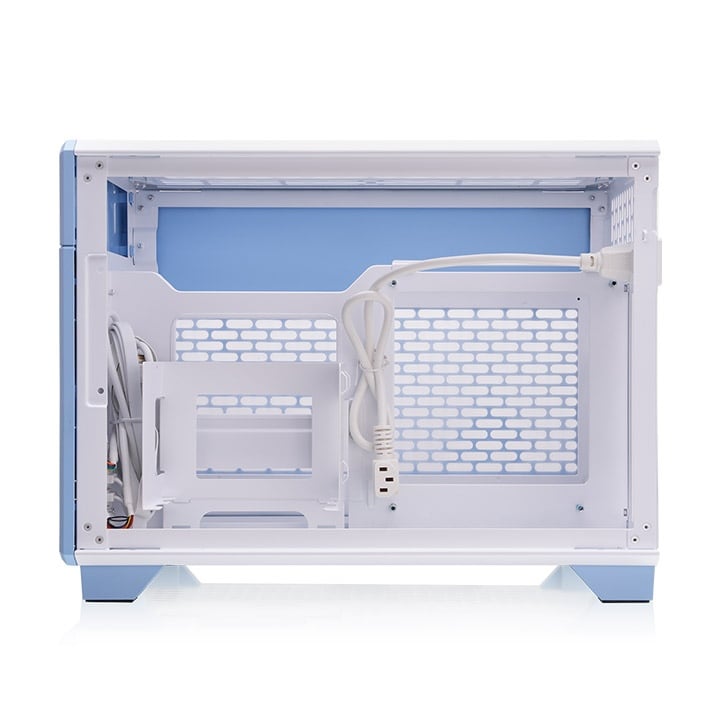

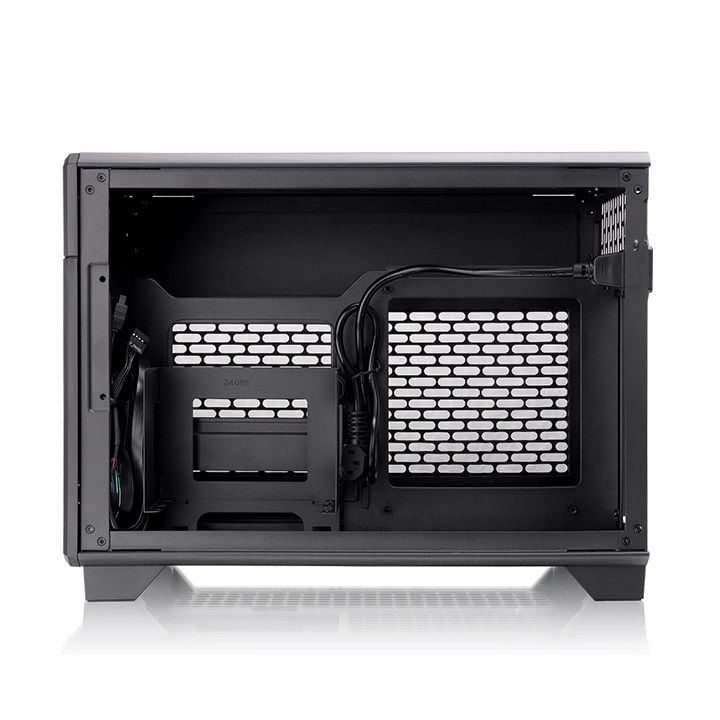

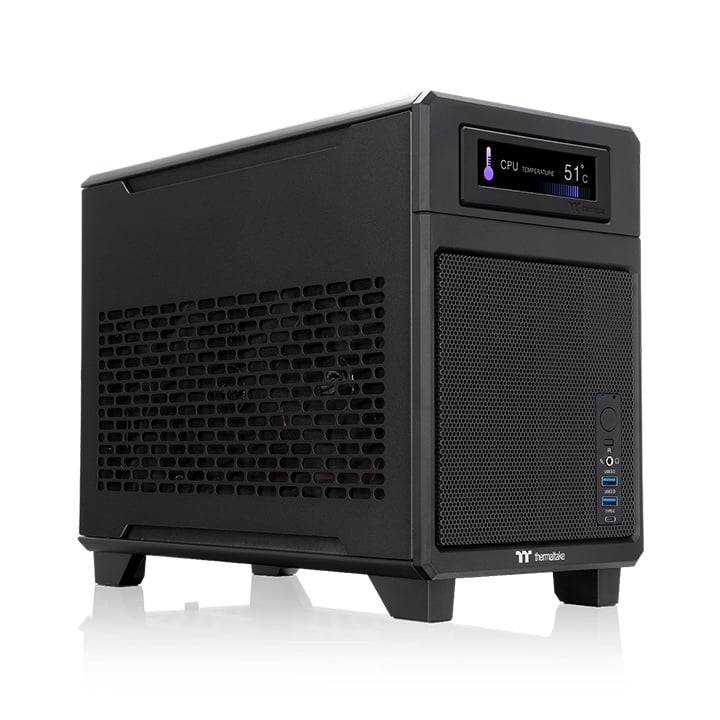

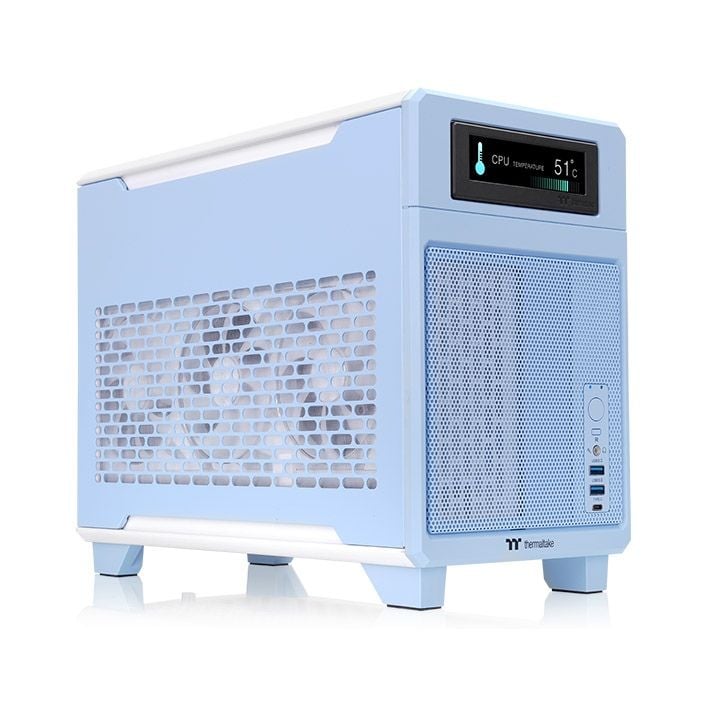

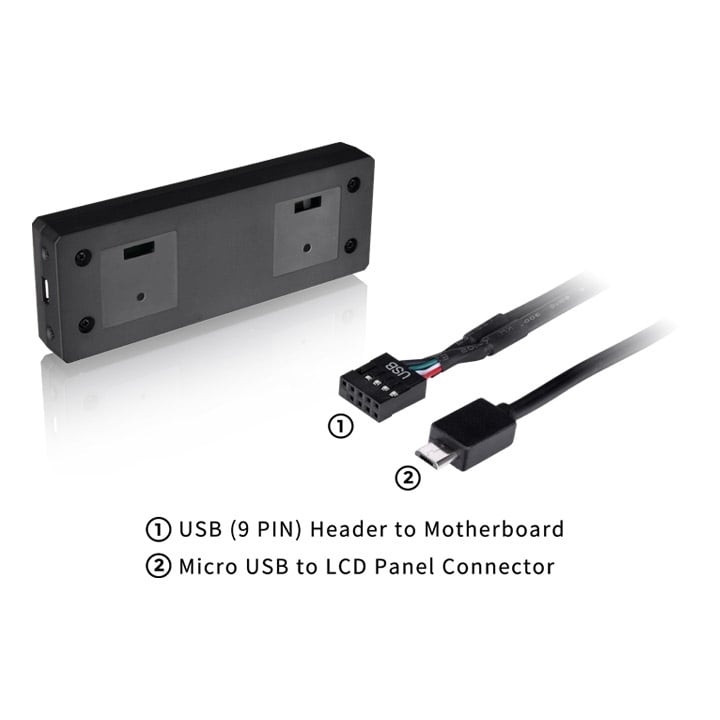

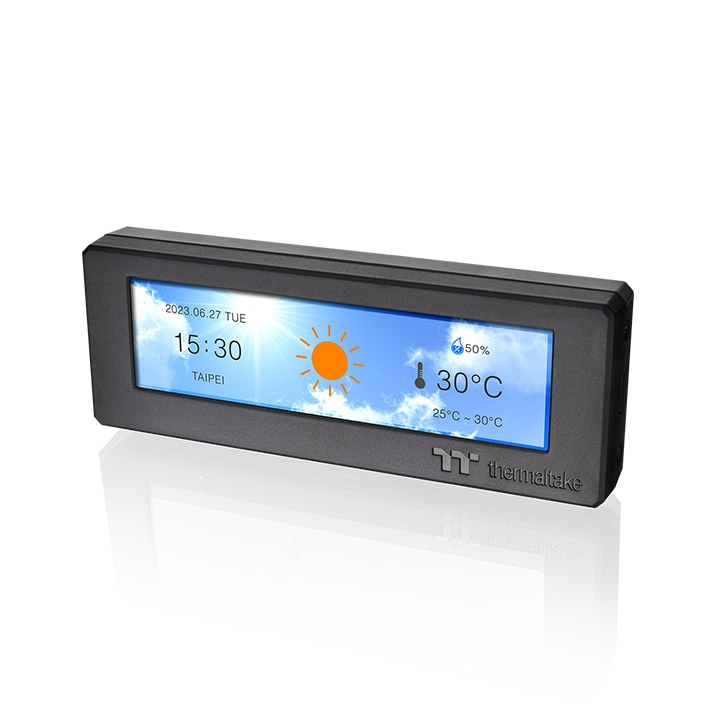

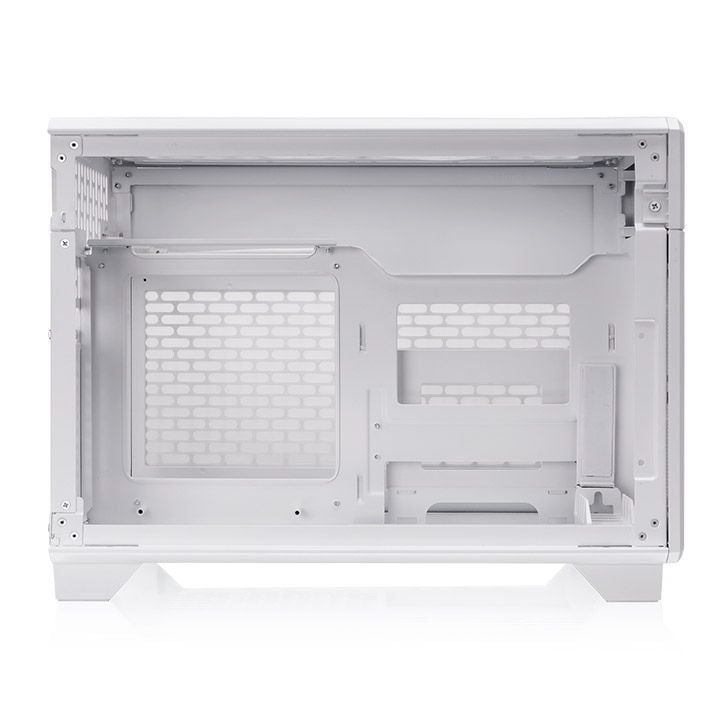

The TR100 Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!
The image is for reference only.

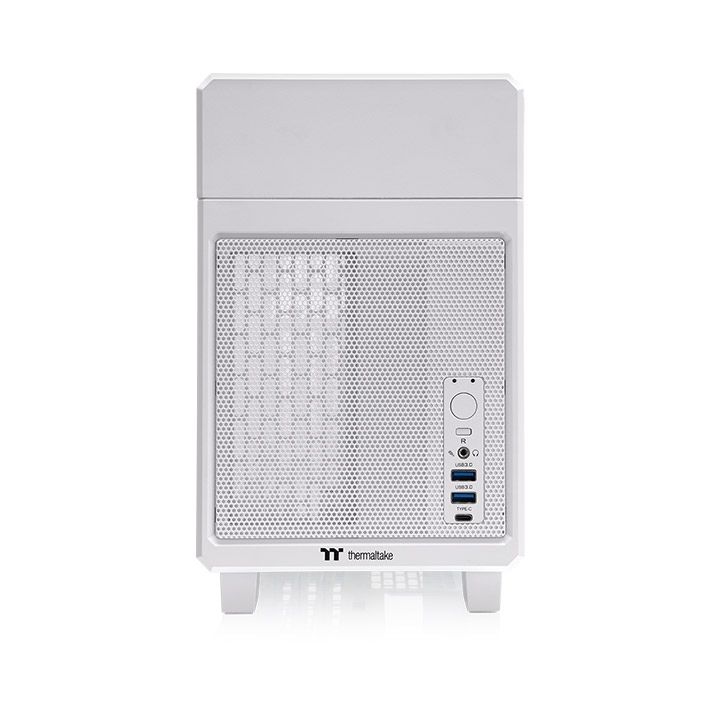

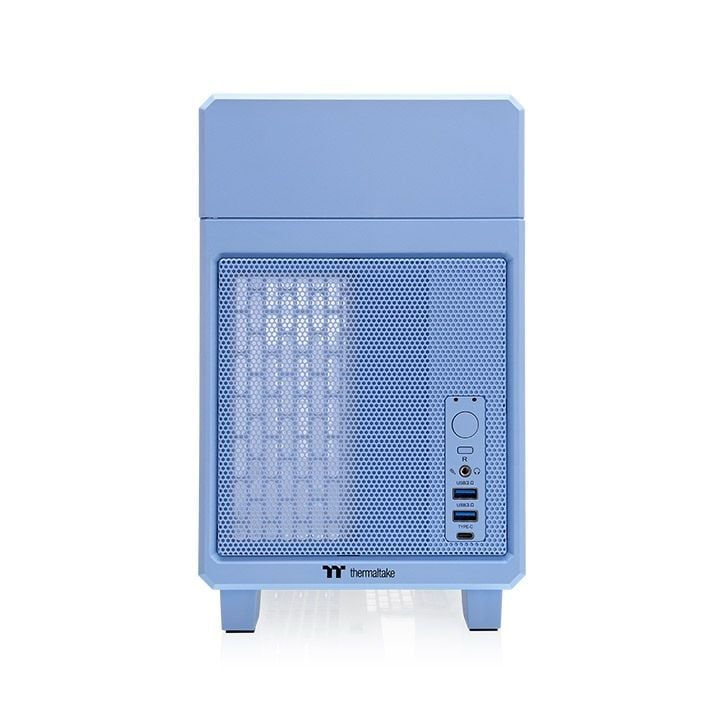

Compact Design
The TR100 is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.
The image is for reference only.
Superior GPU Support
The TR100 supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.
The image is for reference only.
Efficient Cooling Solutions
The TR100 supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.
| P/N | CA-11A-00S1NN-00 |
|---|---|
| Series | TR100 |
| CASE TYPE | Mini Case |
| Dimension (H x W x D) | 294 x 179 x 391 mm (11.58 x 7.05 x 15.39inch) |
| PANEL | Steel |
| MATERIAL | SPCC |
| Drive Bays | 2 x 2.5” or 1 x 2.5” |
| EXPANSION SLOTS | 3 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | SFX / SFX-L (optional) |
| FAN SUPPORT | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Top Side(AIO): 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler height limitation: 68mm VGA length limitation: 360mm VGA Width limitation: 70mm PSU length limitation: 130mm |
