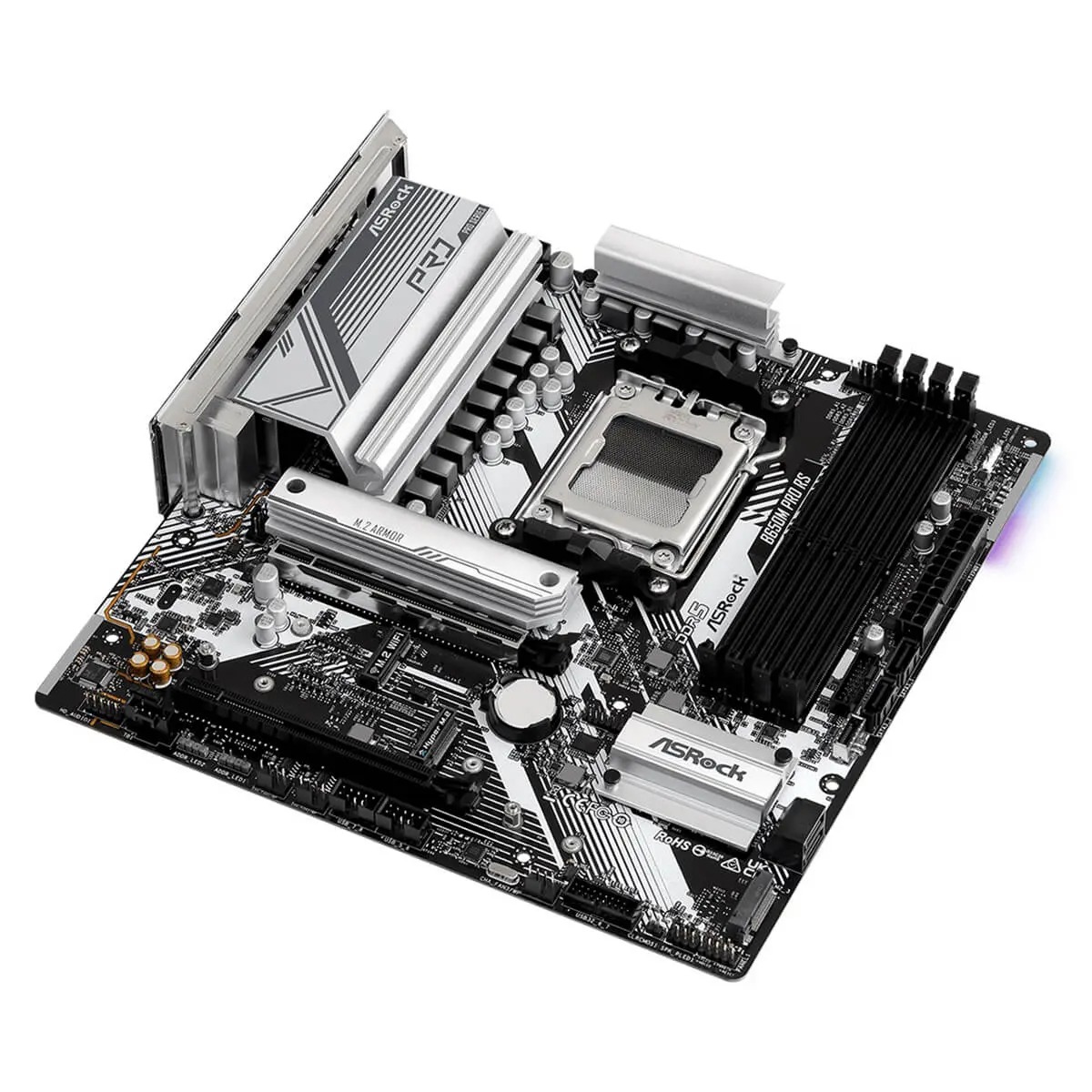

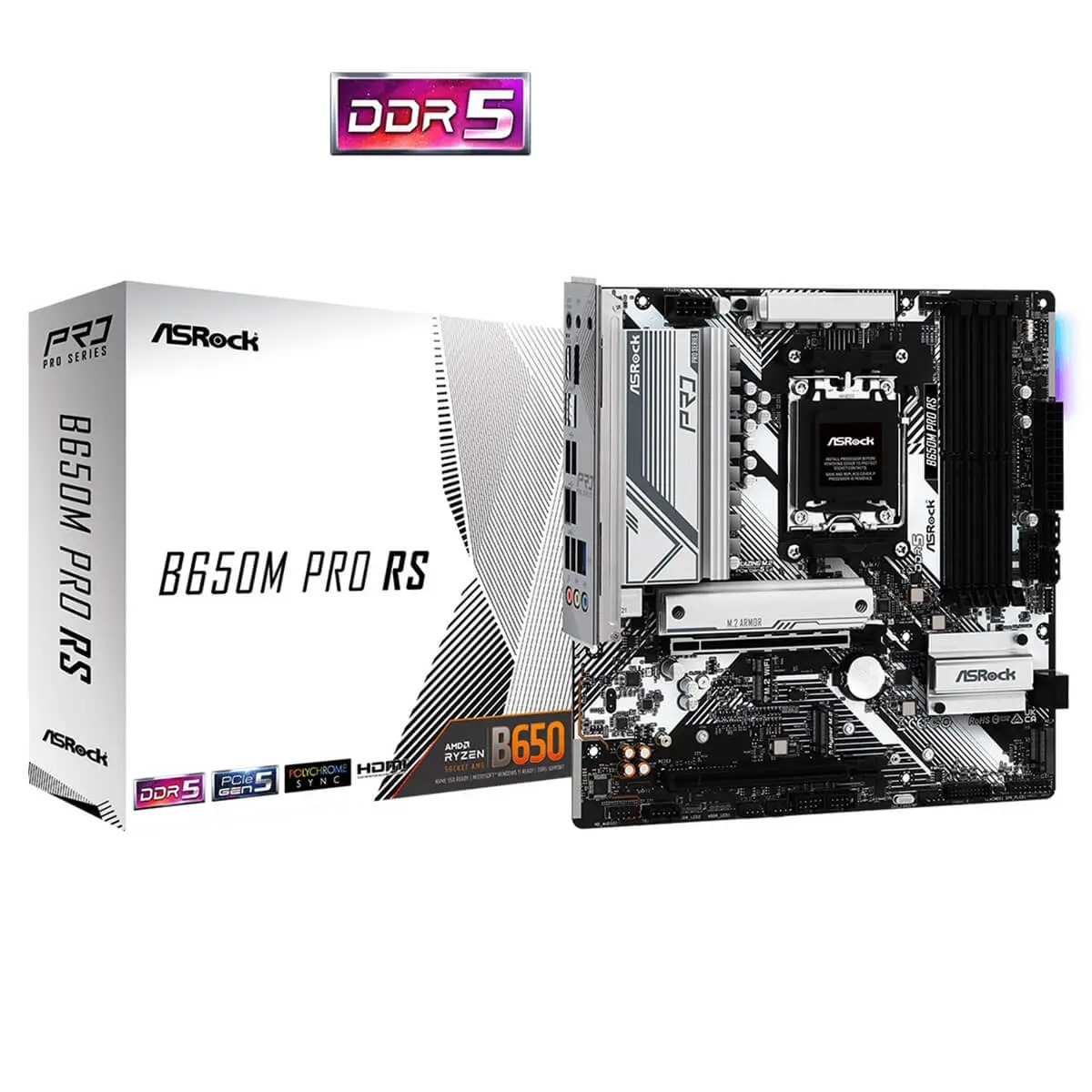

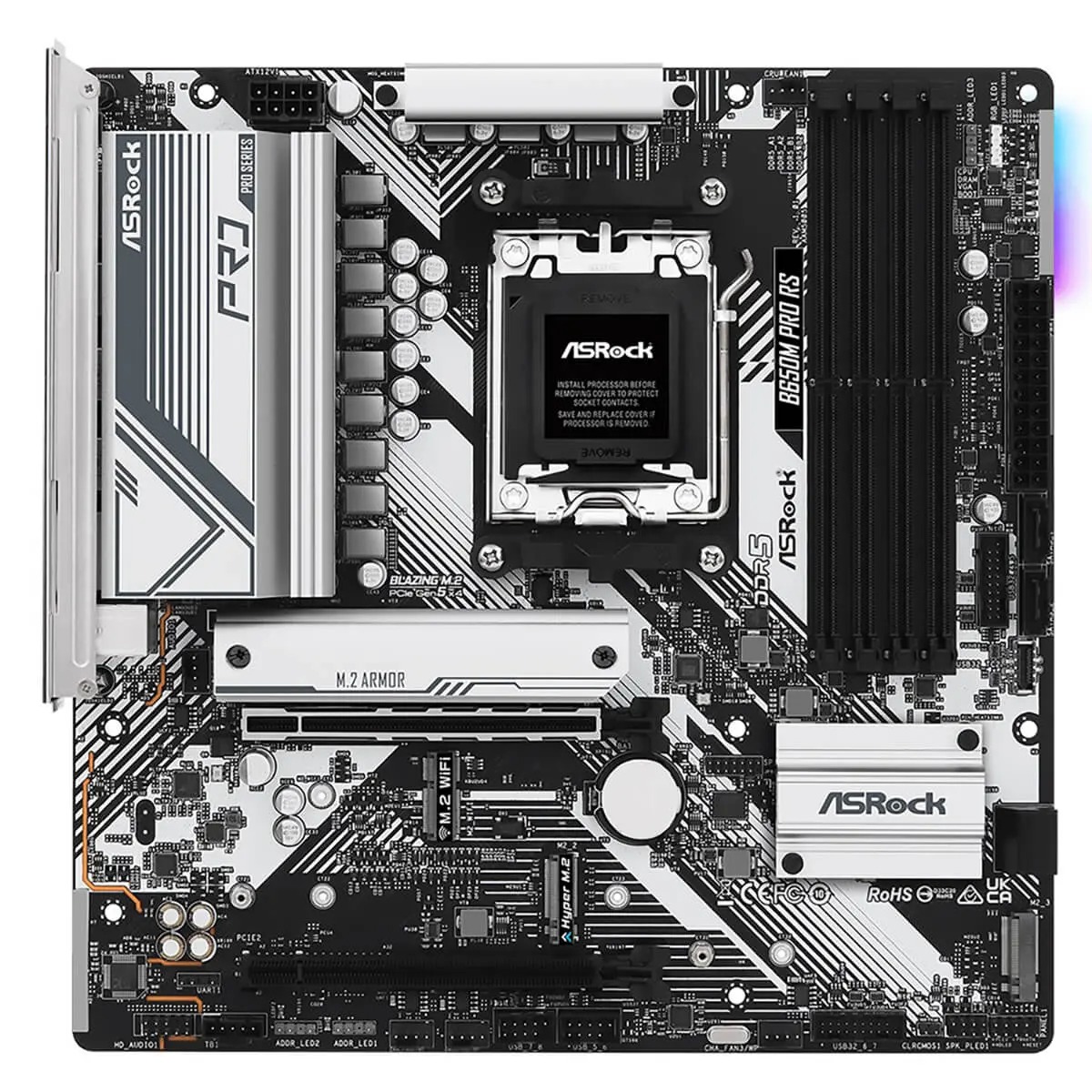

Mainboard ASRock B650M Pro RS
Mainboard ASRock B650M Pro RS
Mainboard ASRock B650M Pro RS

Mainboard ASRock B650M Pro RS

Thương hiệu: Khác Mã sản phẩm: BH 36TH
3,390,000₫ 4,990,000₫
-32%
(Tiết kiệm: 1,600,000₫)

Mainboard ASRock B650M Pro RS KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

MÔ TẢ SẢN PHẨM

Thông tin Sản Phẩm

    Unique FeatureSuperb Productivity
    – PCIe Gen5 (M.2)
    – Dual Channel DDR5
    Rock-Solid Durability
    – 8+2+1 Power Phase, 50A Dr.MOS
    – Pre-Installed I/O Shield
    Ultrafast Connectivity
    – 2.5G LAN
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker

    CPU

    – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

    *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

    Chipset

    – AMD B650

    Memory

    		– Dual Channel DDR5 Memory Technology
    – 4 x DDR5 DIMM Slots
    – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
    – Max. capacity of system memory: 256GB
    – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    *Please refer to Memory Support List for more information.

    BIOS

    		– 256Mb AMI UEFI Legal BIOS with GUI support

    Graphics

    		Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
    Audio– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Nahimic Audio
    LAN– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Dragon RTL8125BG
    – Supports Dragon 2.5G LAN Software
    – Smart Auto Adjust Bandwidth Control
    – Visual User Friendly UI
    – Visual Network Usage Statistics
    – Optimized Default Setting for Game, Browser, and Streaming Modes
    – User Customized Priority Control

    Slots

    		CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
    Chipset:
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    – Supports AMD CrossFire™
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks

    StorageCPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks

    RAID

    		– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    *Requires additional M.2 NVMe expansion cards to support RAID 10

    USB

    		– 1 x USB 3.2 Gen2 Type-C (Rear)
    – 1 x USB 3.2 Gen2 Type-A (Rear)
    – 1 x USB 3.2 Gen1 Type-C (Front)
    – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
    – 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection

    Connector– 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen1 Header

    *Supports in total up to 12V/3A, 36W LED Strip
    **Support in total up to 5V/3A, 15W LED Strip
    ***CPU_FAN1 supports the fan power up to 1A (12W).
    ****CPU_FAN2/WP supports the fan power up to 2A (24W).
    *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

    Rear Panel I/O

    		– 2 x Antenna Mounting Points
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    – 2 x USB 3.2 Gen1 Ports
    – 4 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone

    Software and UEFI

    		Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock Dragon 2.5G LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock Full HD UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

    Accessories

    – 1 x User Manual
    – 2 x SATA Data Cables
    – 4 x Screws for M.2 Sockets
    – 1 x Standoff for M.2 Socket

    Form Factor

    – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    – 2oz Copper PCB

    OS

    – Microsoft Windows® 10 64-bit / 11 64-bit

    Certifications

    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
