| Nhà sản xuất | ASRock |
| Model | B760M-PRO-RS |
| Chipset | Intel B760 |
| Hỗ trợ Ram | 4 x DDR5 non-ECC up to 7200+(OC) MHz (Maximum 192GB) |
| Khe cắm mở rộng | 1 x PCIe 5.0 x16 (PCIE1) 1 x PCIe 3.0 x16 (PCIE2) 1 x M.2 2230 WiFi Supports AMD CrossFire |
| Hỗ trợ ổ cứng | 1 x Hyper M.2 2242/ 2260/ 2280 PCIe Gen4 x4 2 x Hyper M.2 2280 PCIe Gen4 x4 4 x SATA 3 6.0 Gb/s Support Raid 0, 1, 5, 10. |
| LAN/Wireless | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Audio |
|
| Cổng kết nối bên trong | -Fan and Cooling 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) 4 x Chassis/Water Pump Fan Connectors (4-pin) -Power 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector -Storage 2 x M.2 4 x SATA 3 6Gbps -USB 2 x USB 2.0 Headers 1 x USB 3.2 Gen1 Headers -Miscellaneous 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) 1 x Front Panel Type C USB 3.2 Gen1 Header |

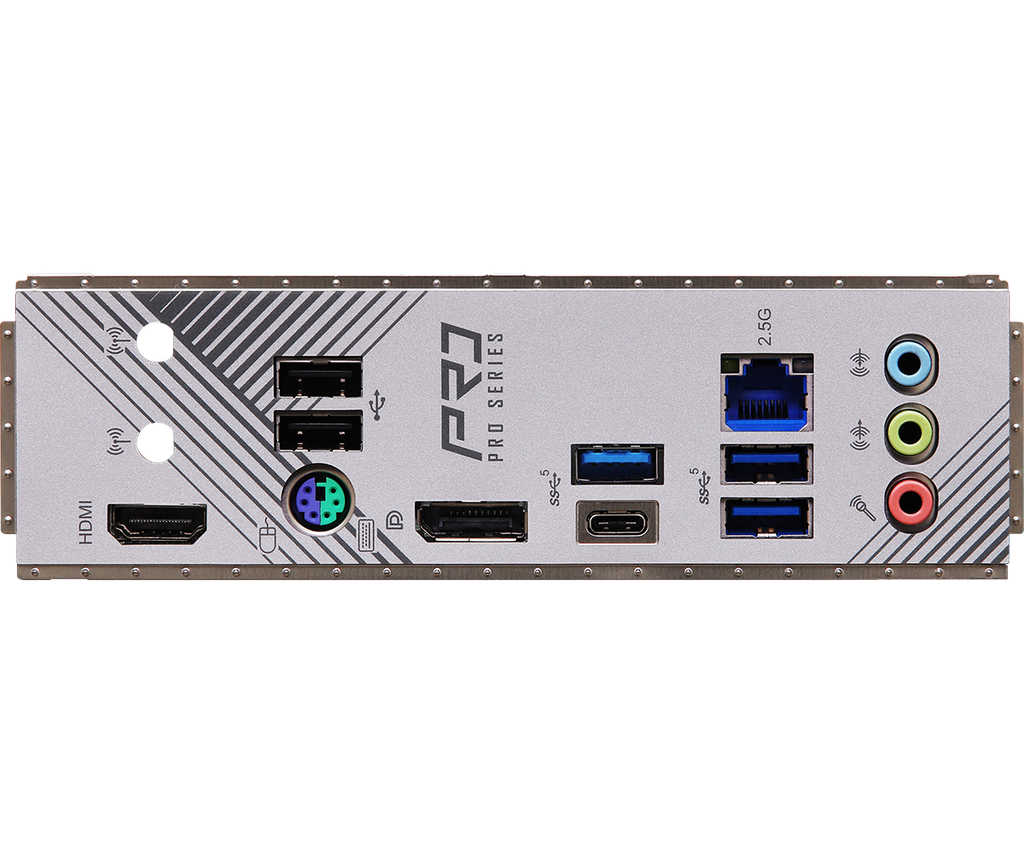

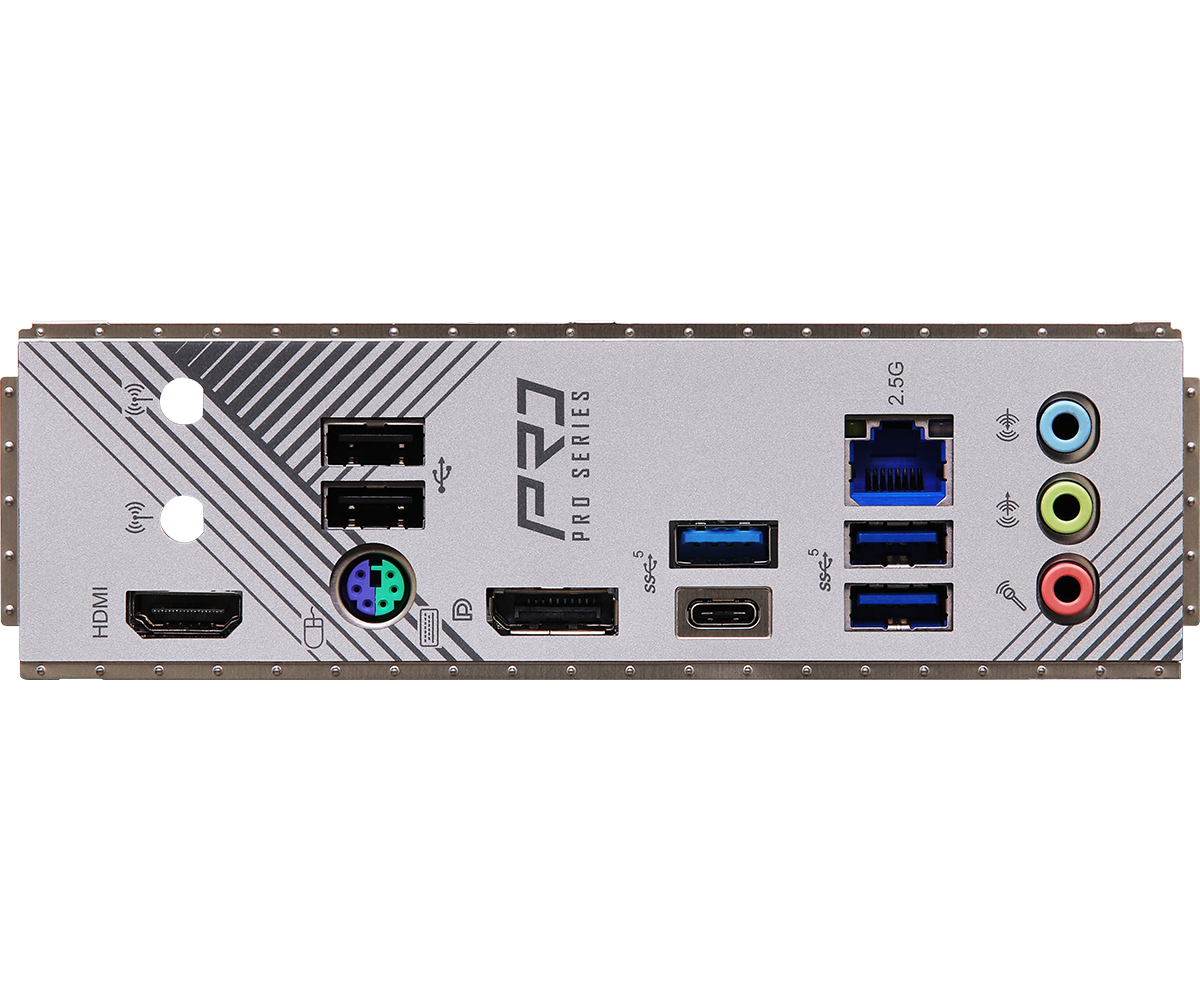

| Cổng kết nối phía sau | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x HD Audio Jacks: Line in / Front Speaker / Microphone |
| Kiểu dáng | mATX (244 x 244 mm) |
