Thông số sản phẩm
- Socket: AM4 hỗ trợ CPU Ryzen thế hệ 3 và 2
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 128GB)
- Khe cắm mở rộng: 2 x PCIe 4.0/3.0 x16, 3 x PCI Express 4.0 x1 Slots
- Khe cắm ổ cứng: 8 x SATA3 6.0 Gb/s Connectors, 2 x Hyper M.2 Socket

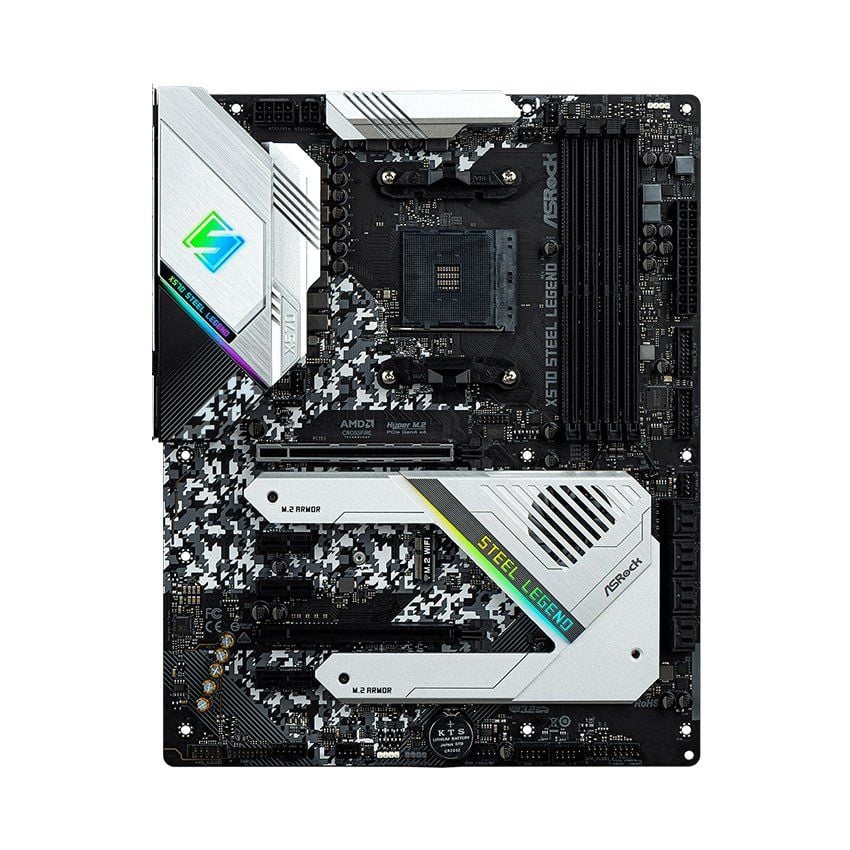

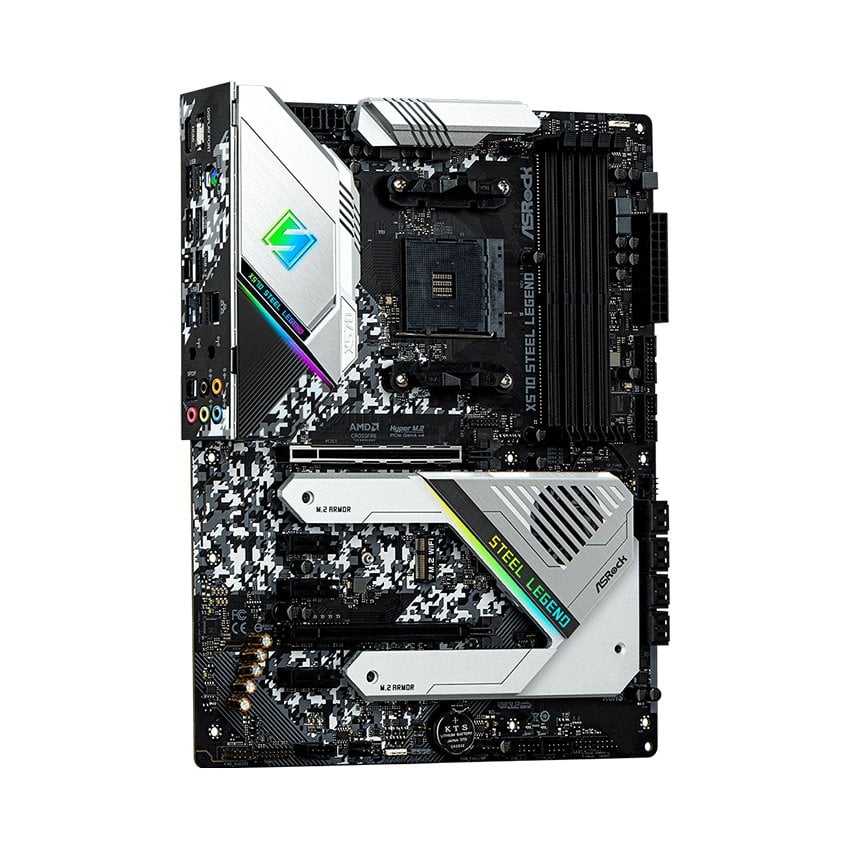

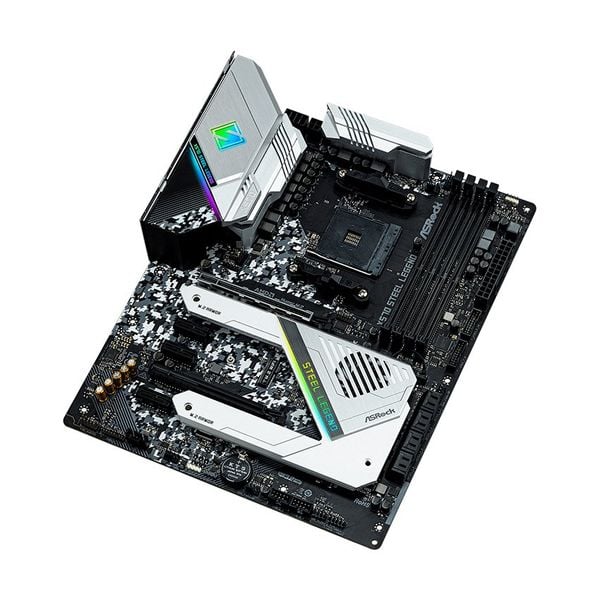

Thông số kỹ thuật chi tiết Mainboard ASROCK X570 Steel Legend (AMD X570, Socket AM4, ATX, 4 khe RAM DDR4)
| Sản phẩm | Mainboard - Bo mạch chủ |
| Tên Hãng | Asrock |
| Model | X570 Steel Legend |
| CPU hỗ trợ | AMD |
| Chipset | X570 |
| RAM hỗ trợ | 4 x DDR4 memory slots, support up to 128GB |
| Khe cắm mở rộng | 2 x PCI Express 4.0 x16 Slots, 3 x PCI Express 4.0 x1 Slots |
| Ổ cứng hỗ trợ | 8 x SATA3 6.0 Gb/s Connectors, 2 x M.2 slot (Key M) |
| Cổng kết nối (Internal) | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x AMD Fan LED Header* 1 x RGB LED Header** 1 x Addressable LED Header*** 1 x CPU Fan Connector (4-pin)**** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 1 x AMD LED Fan USB Header 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |

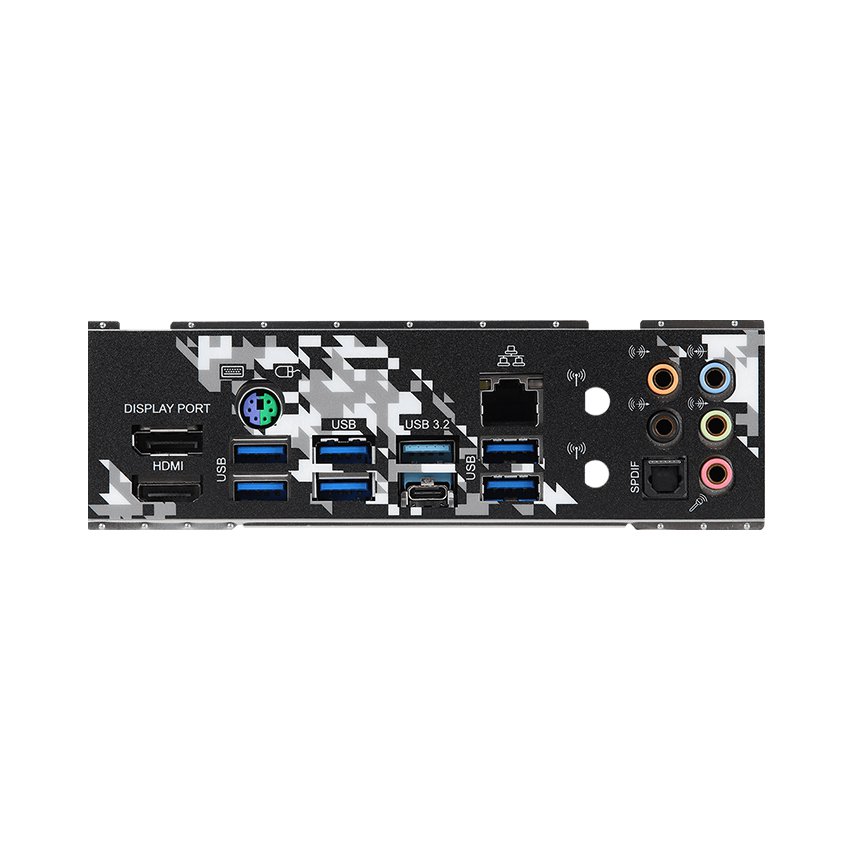

| Cổng kết nối (Back Panel) | 2 x Antenna Ports (on I/O Panel Shield) 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.2 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) hone |
| LAN / Wireless | Gigabit LAN 10/100/1000 Mb/s |
| Kích cỡ | ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm |
