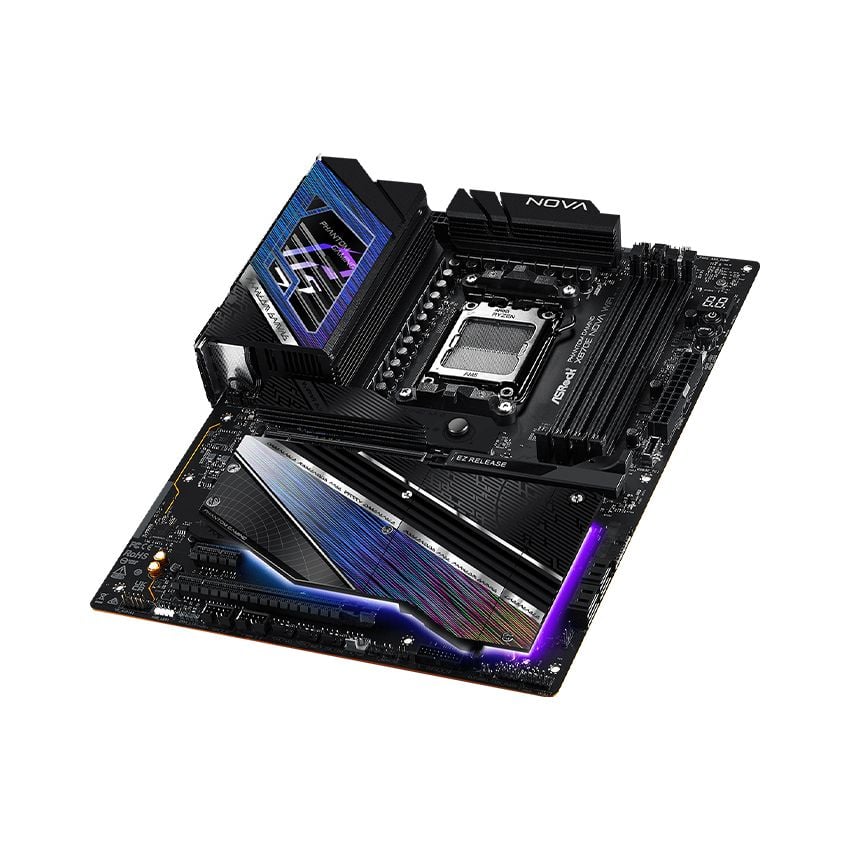

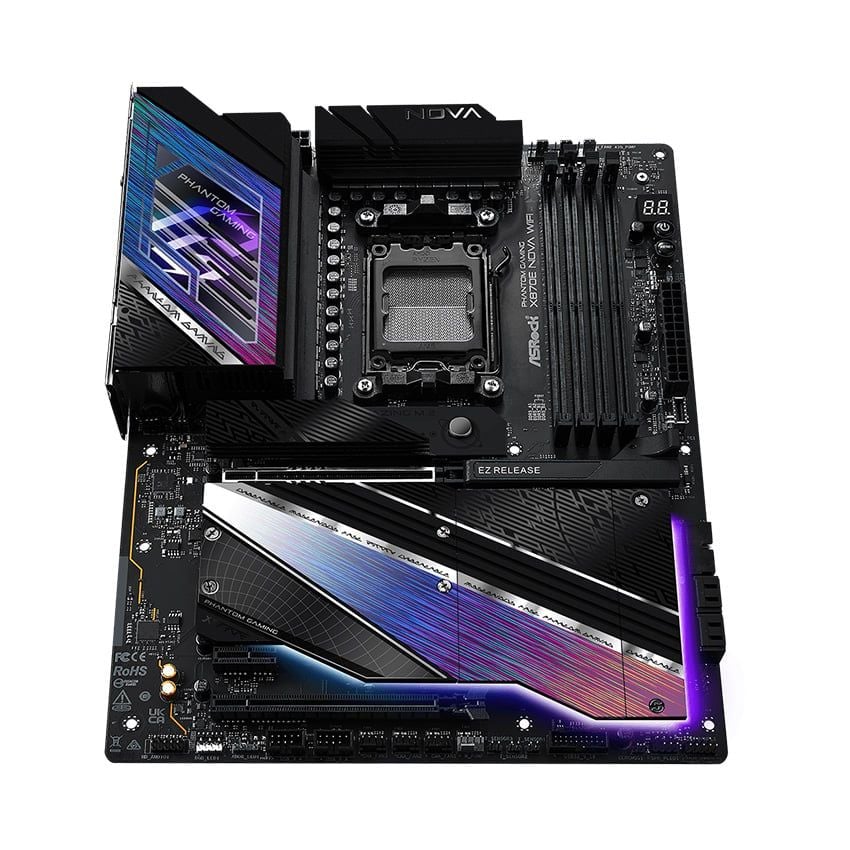

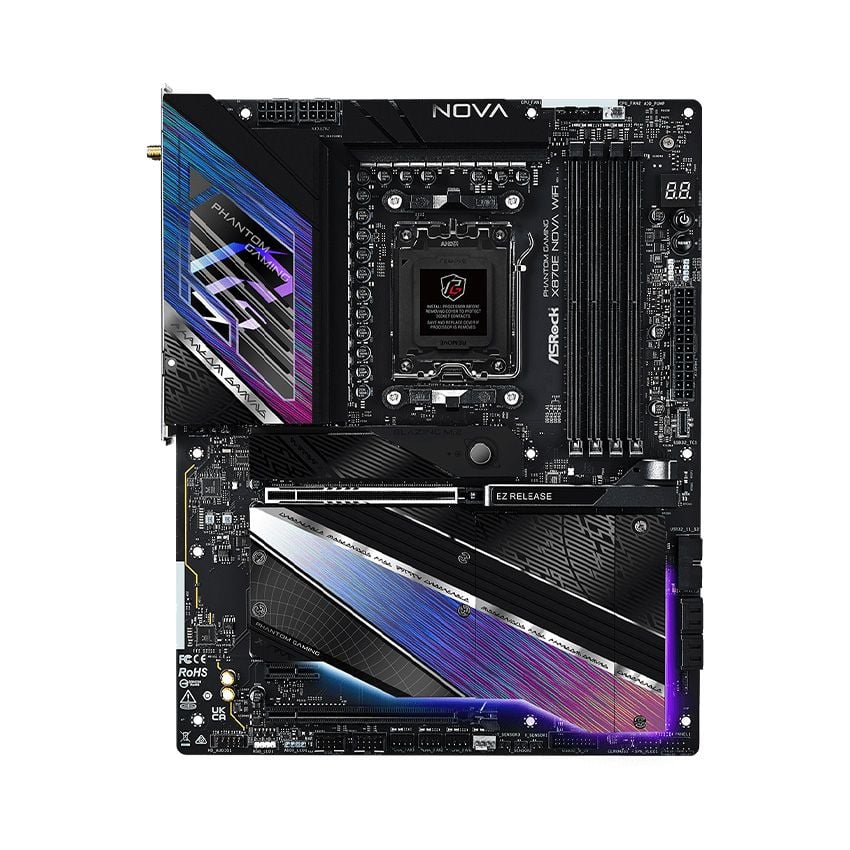

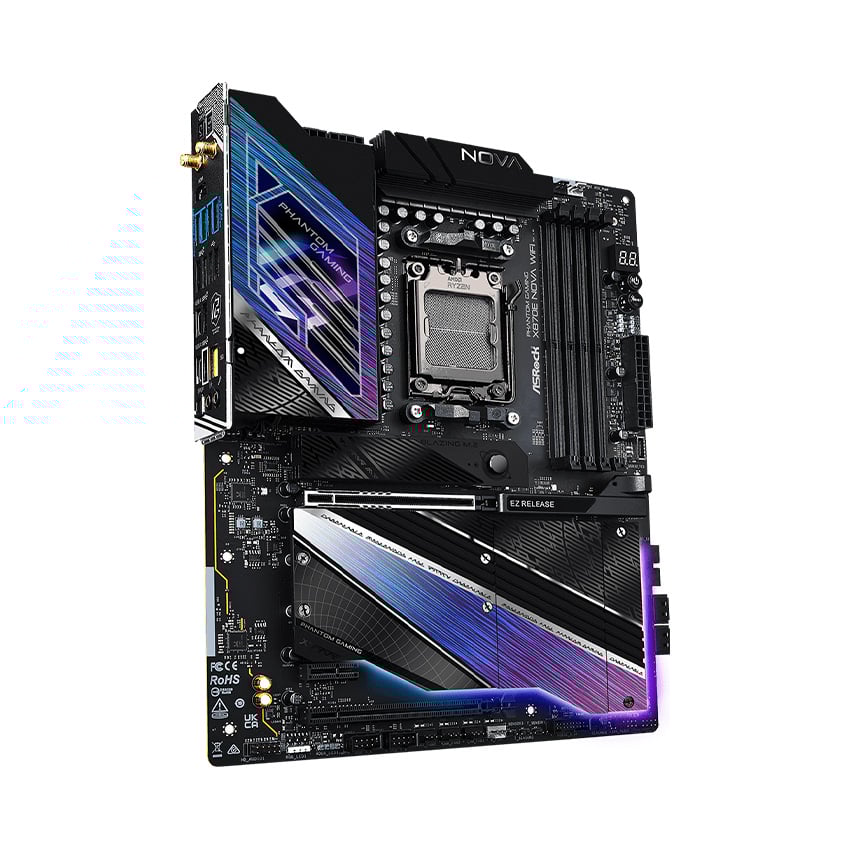

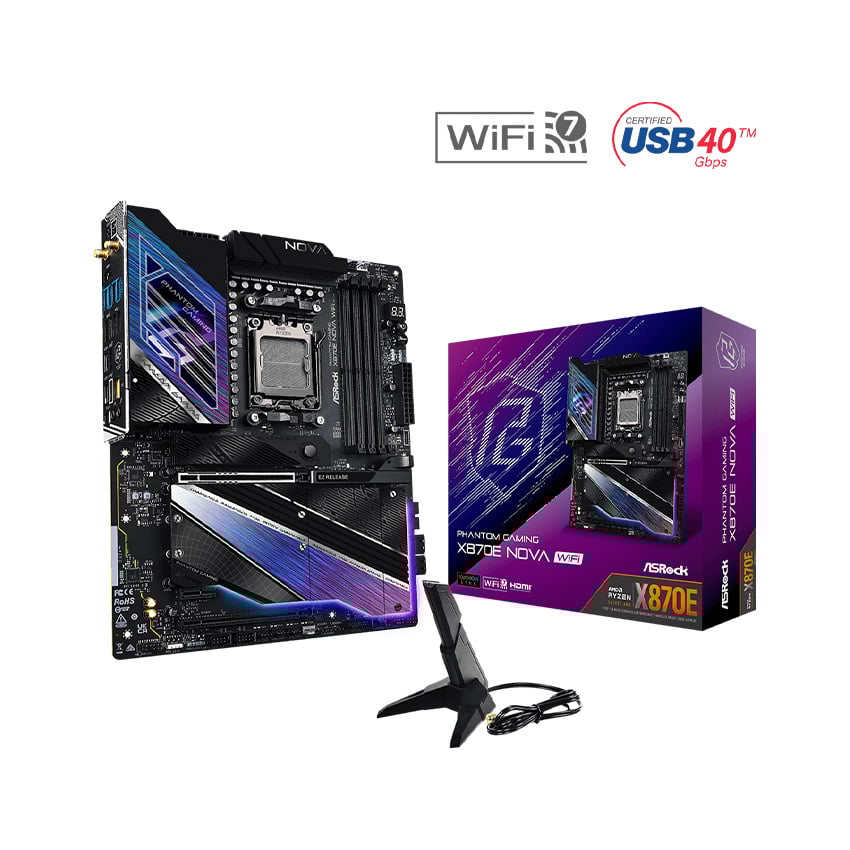

Mainboard Asrock X870E Nova WiFi

ASRock

36 tháng

AMD AM5

AMD X870E

8200+(OC)

4 khe

2 x PCIe 5.0 x16 Slot

256GB

Wi-Fi 7
Bluetooth 5.4

1 x Blazing M.2 Socket (CPU)
3 x Hyper M.2 Socket
1 x M.2 Socket

ATX

1x HDMI 2.1
2 x USB4

LAN 5Gb
Realtek RTL8126

CPU:
– 2 x USB4 Type-C (Rear)
– 2 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 3 x USB 3.2 Gen2 Type-A (Rear)
– 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)

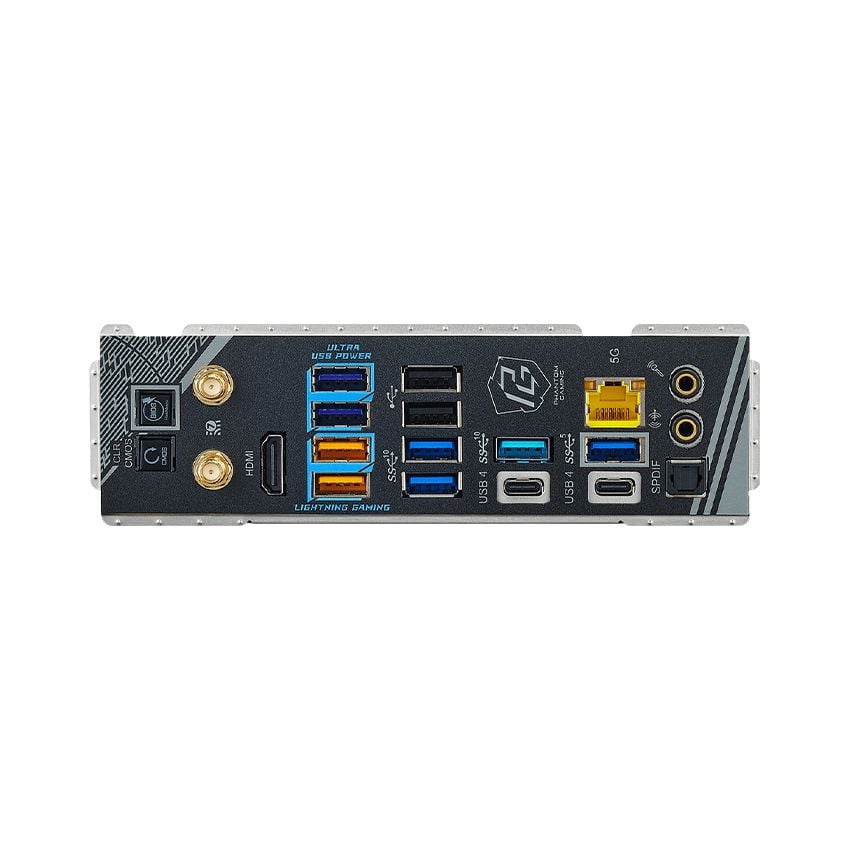

2 x Cổng Ăng-ten
1 x Cổng HDMI
1 x Cổng ra SPDIF quang
2 x Cổng USB4 Type-C
5 x Cổng USB 3.2 Gen2 Type-A.
3 x Cổng USB 3.2 Gen1 Type-A.
2 x Cổng USB 2.0
1 x Cổng LAN RJ-45
1 x Nút Clear CMOS
1 x Nút BIOS Flashback
1 x Line Out Jack
1 x Microphone Input Jack

3 x Thermistor Cable Headers
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin)
3 x Chassis Fan Connectors
1 x AIO Pump Fan Connector
1 x Water Pump Fan Connector
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers
1 x Front Panel Type C USB 3.2 Gen2x2 Header
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
