Thương hiệu: ASUS
Loại sản phẩm: Mainboard

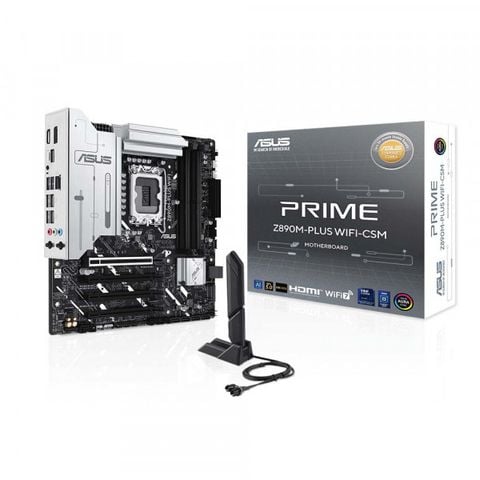

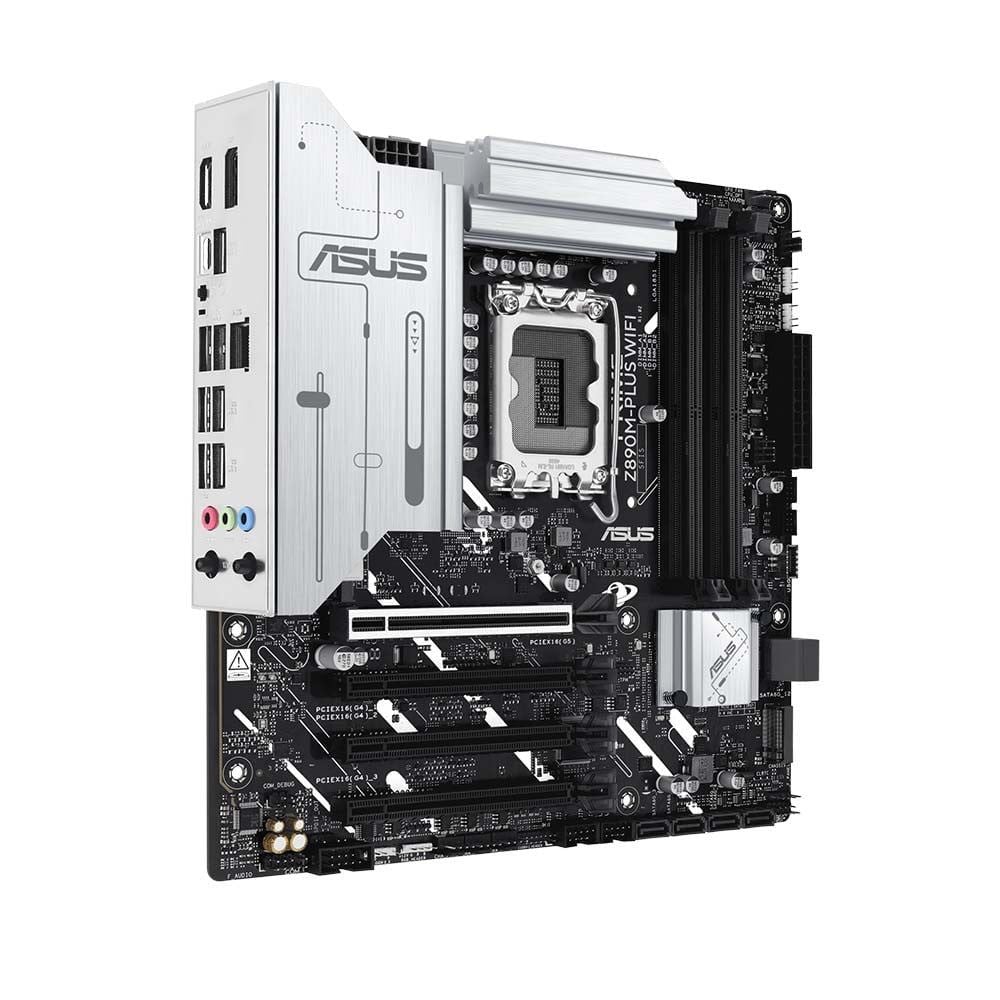

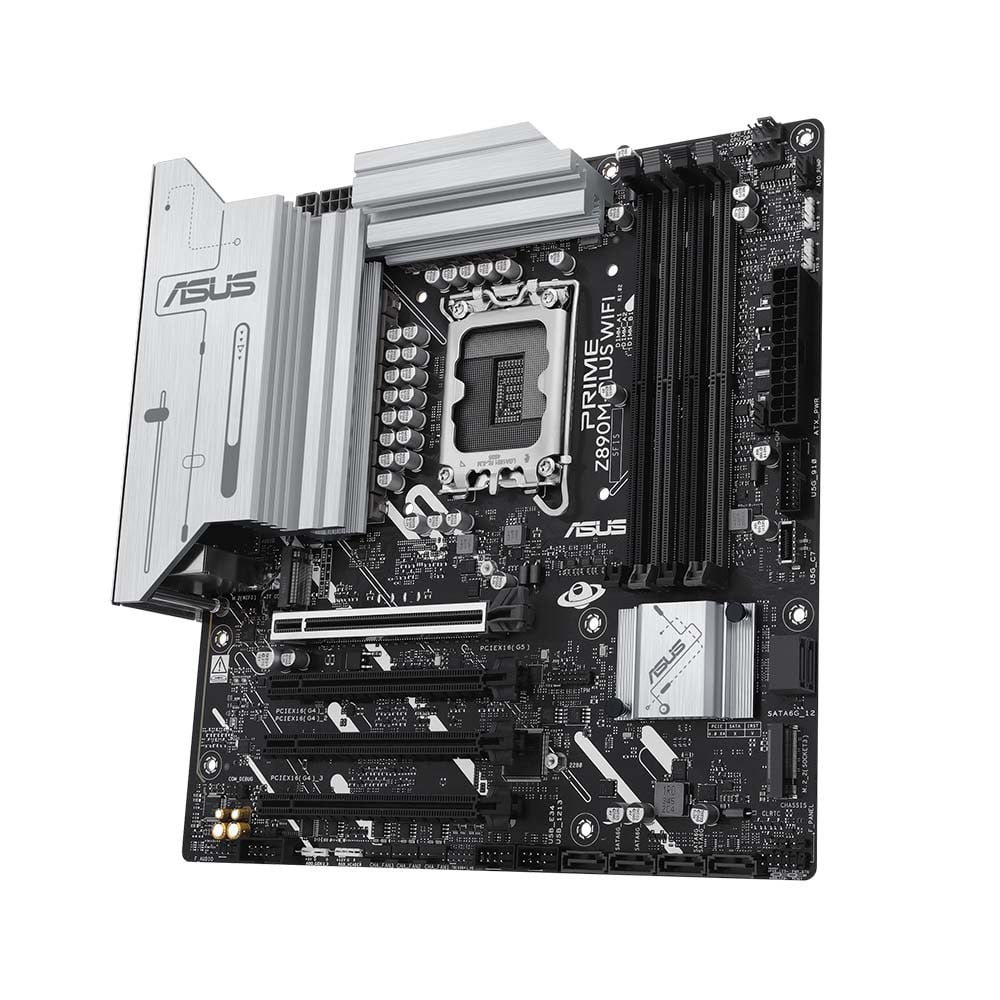

Model: Prime Z890M-PLUS WIFI-CSM
Hỗ trợ RAM: 4 x DIMM slots, Max. 192GB, DDR5
Hỗ trợ Socket: Intel® Core™ Ultra Processors (Series 2), LGA1851
Form Factor: M-ATX
Loại sản phẩm
Mainboard
Thương hiệu
ASUS
Model
ProArt Z890-CREATOR WIFI
Hỗ trợ Socket
Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® Z890 Chipset
Hỗ trợ bộ nhớ
4 x DIMM slots, max. 192GB, DDR5
Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
Khe mở rộng
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Srorage
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
Mạng Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Bluetooth, không dây
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
USB
Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Âm thanh
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

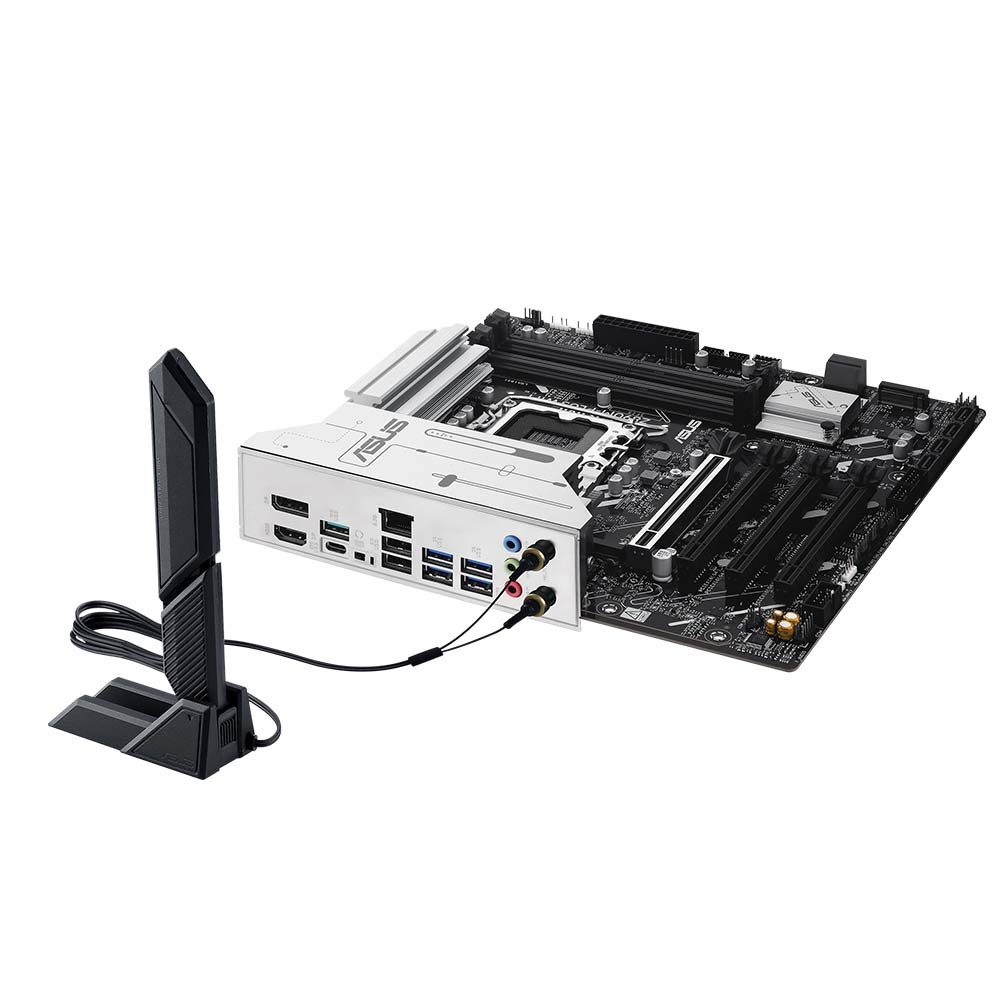

Cổng I/O mặt sau
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
Đầu nối I/O bên trong
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Hệ điều hành
Windows® 11 , Windows® 10 64-bit
Yếu tố hình thức
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
