| Specification | Details |
|---|
| Model | Mới

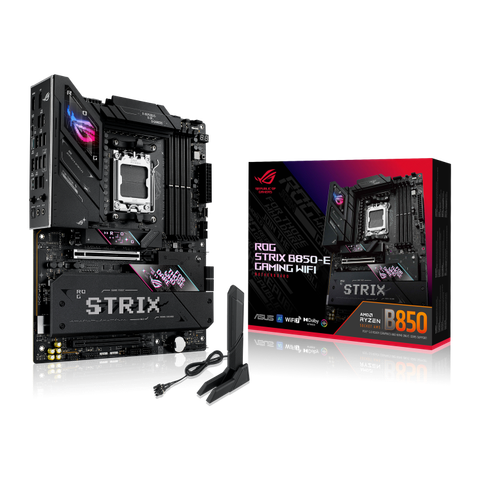

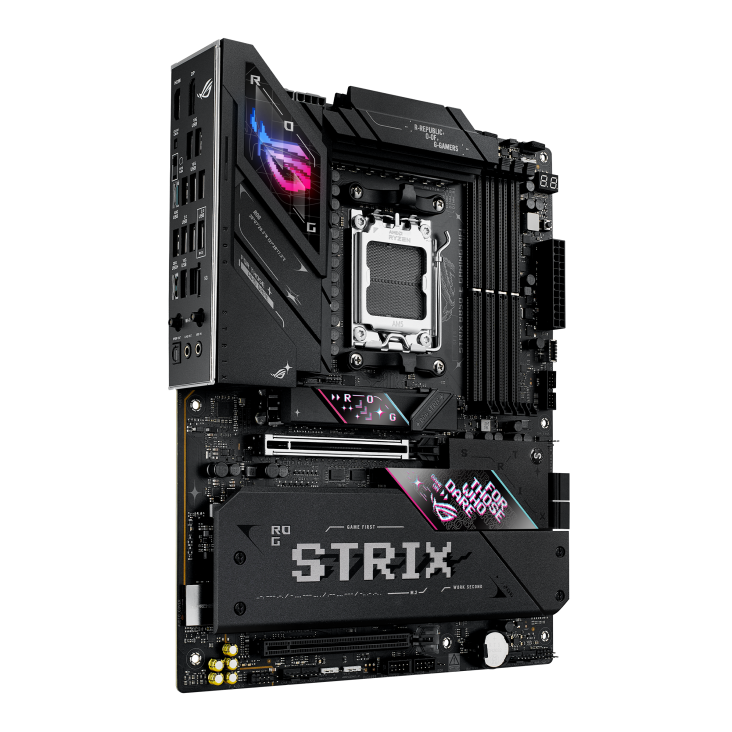

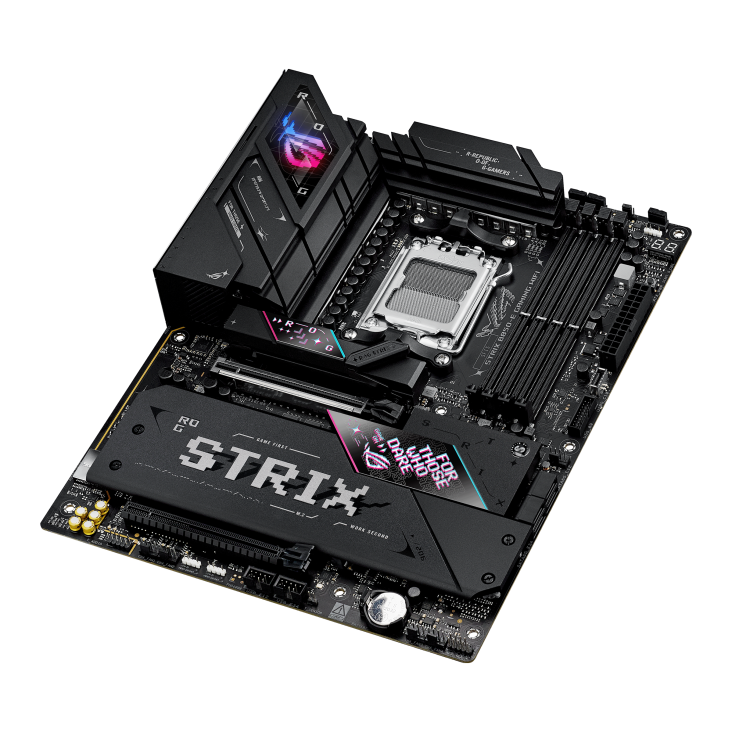

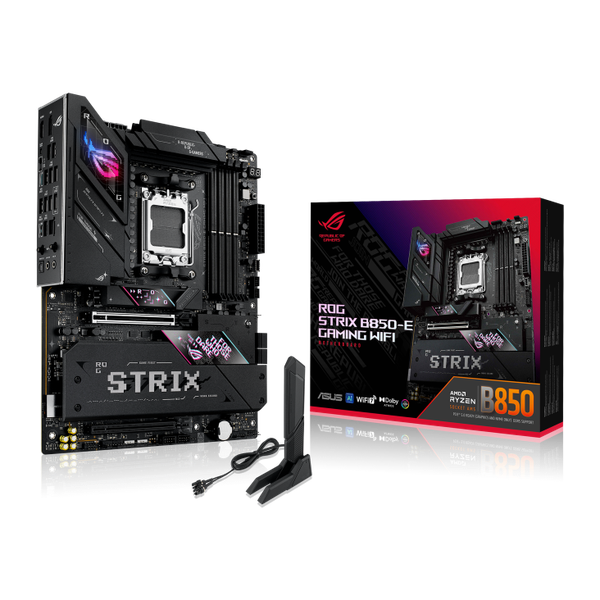

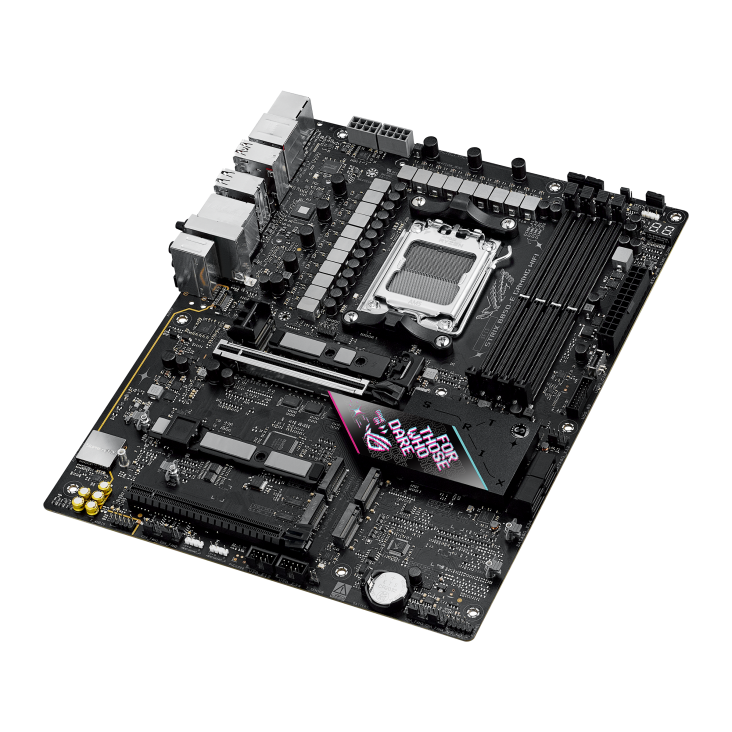

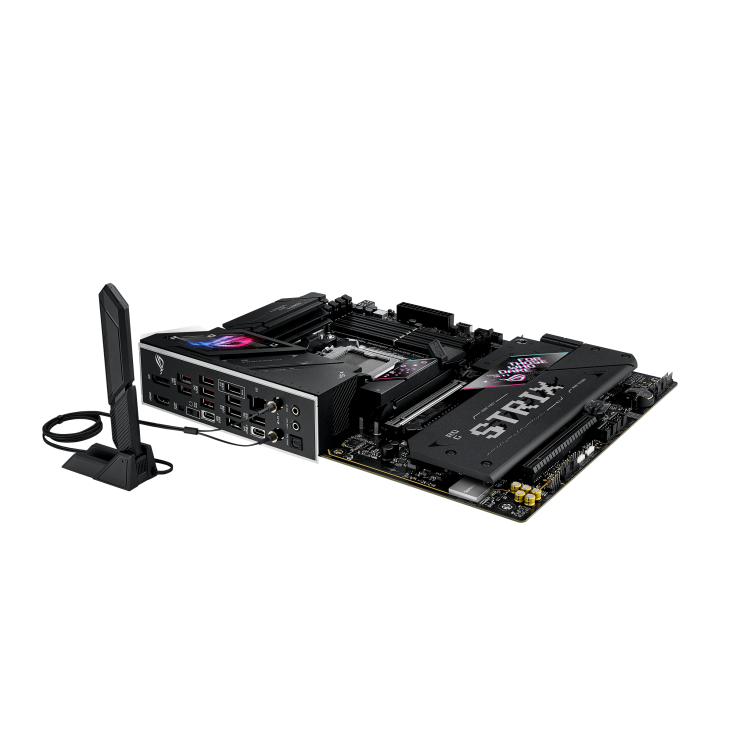

ROG STRIX B850-E GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to ASUS Support for CPU support list. |
| Bộ chip | AMD B850 Chipset |
| Bộ nhớ | - 4 x DIMM slots, max. 256GB, DDR5
- Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit ASUS Support.
- **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|

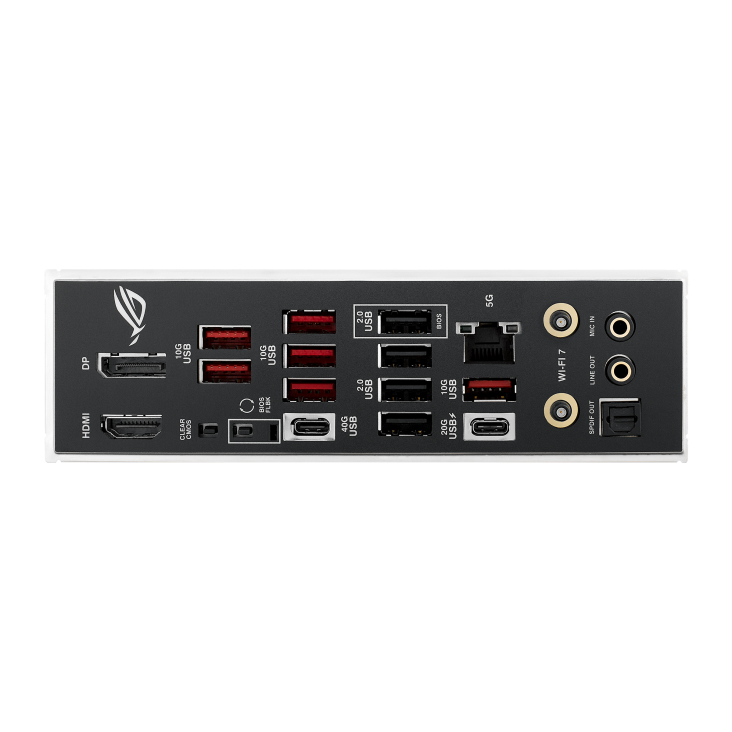

| Đồ họa | - 1 x DisplayPort* (Supports max. 8K@30Hz as specified in DisplayPort 1.4)
- 1 x HDMI™ port** (Supports 4K@60Hz as specified in HDMI 2.1)
- 1 x USB4® (40Gbps) port supports USB Type-C® display outputs***
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** VGA resolution support depends on processors' or graphic cards' resolution.
- *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
|
| Khe cắm mở rộng | - AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)**
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)***
- AMD B850 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)****
- * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- ** When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.
- *** Specifications vary by CPU types.
- **** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
- - To ensure compatibility of the device installed, please refer to ASUS Support for the list of supported peripherals.
|
| Lưu trữ | - Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*
- M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**
- M.2_3 slot (Key M), type 2280 (Not supports)***
- AMD B850 Chipset
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.
- ** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors.
- *** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
|
