| Specification | Details |
|---|

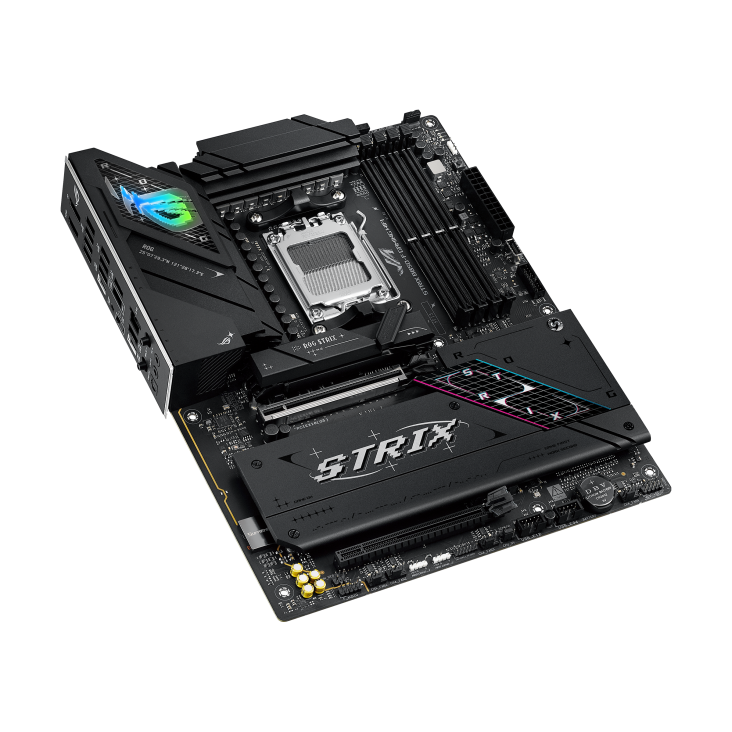

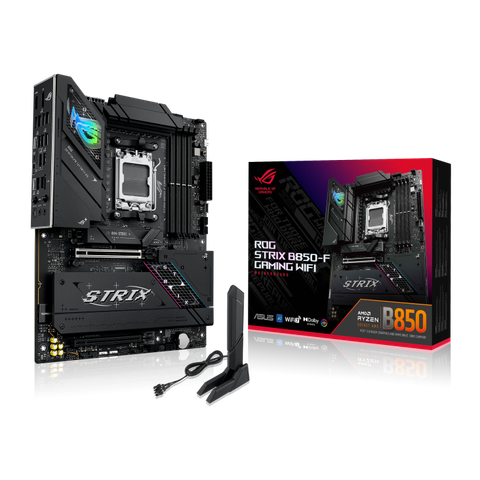

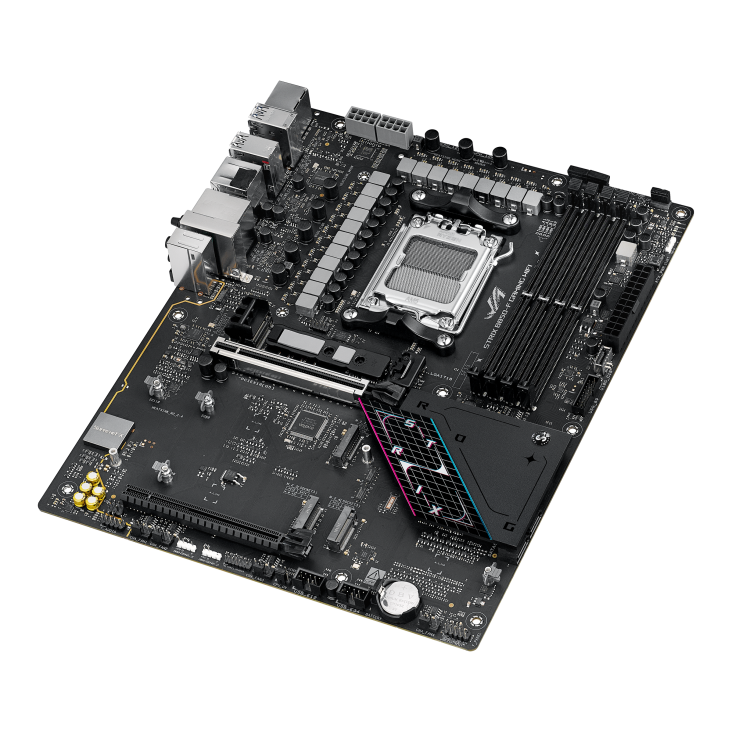

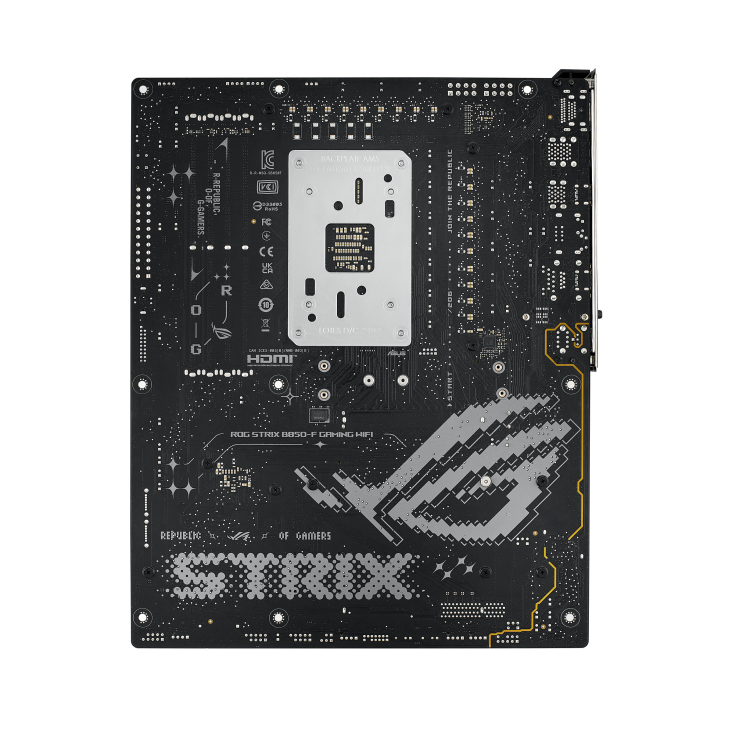

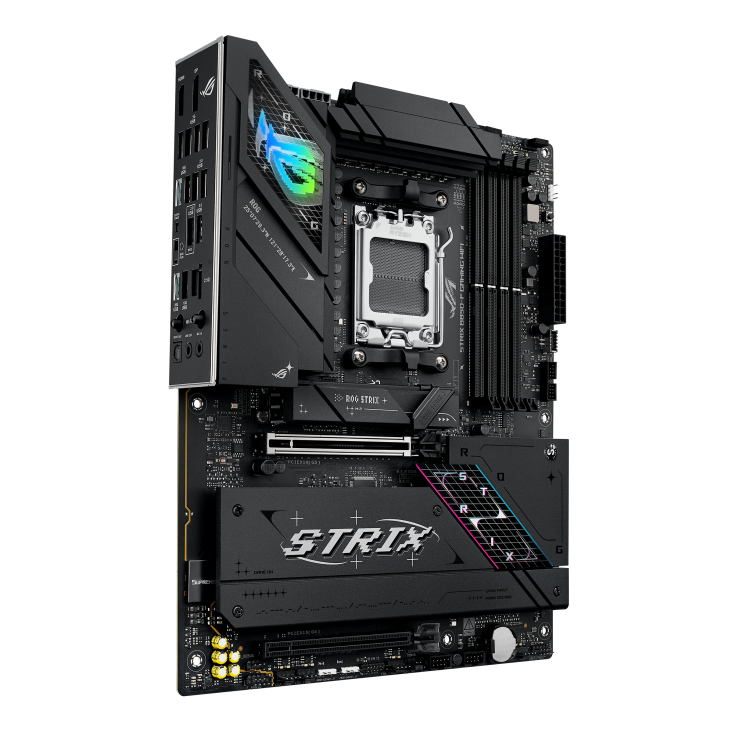

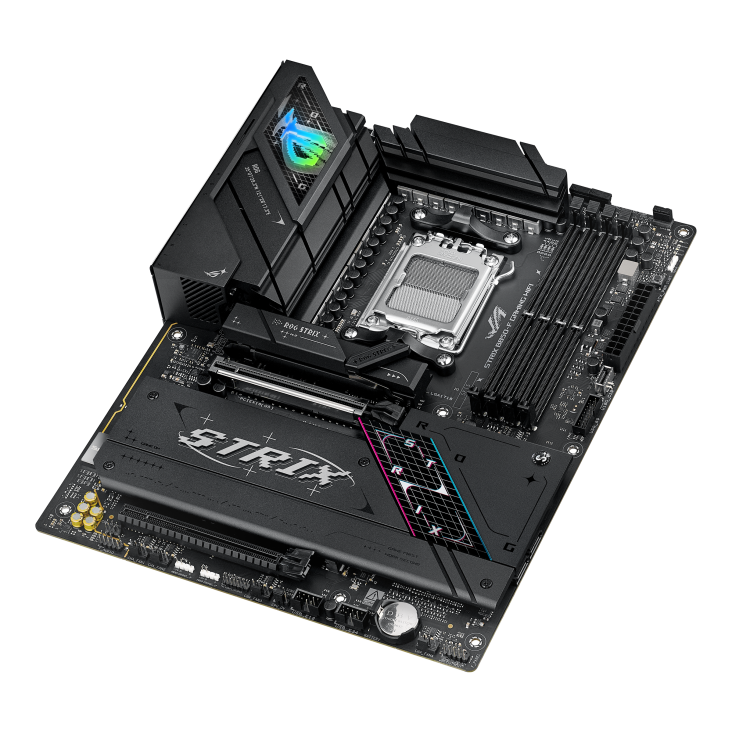

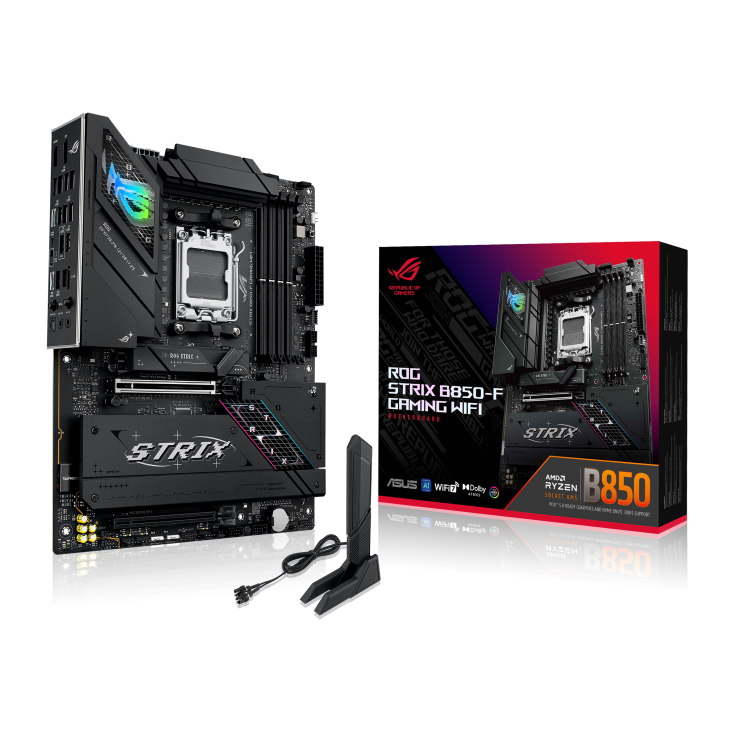

| Model | Mới

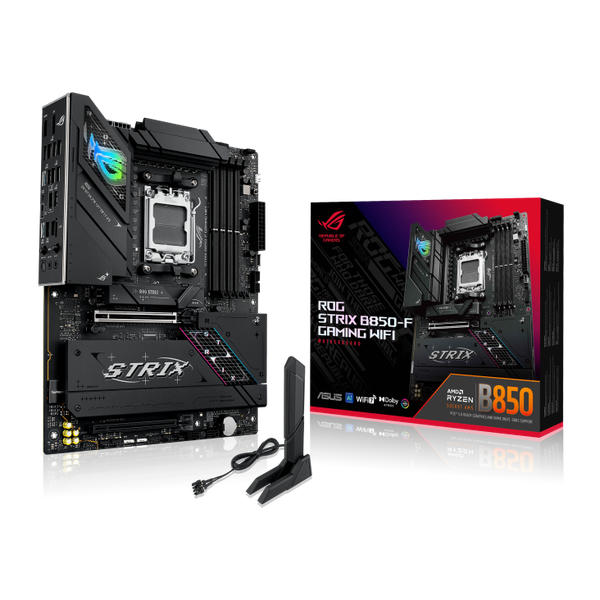

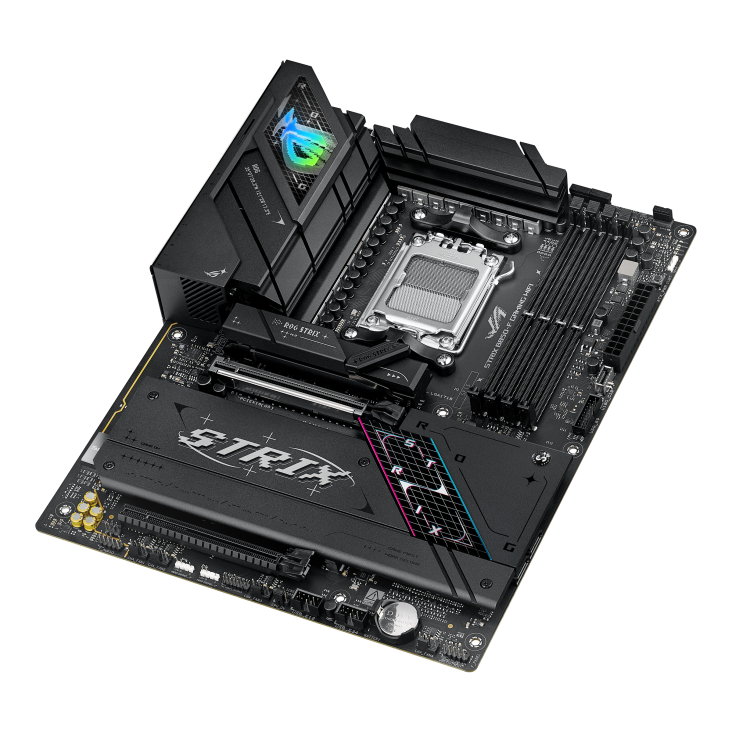

ROG STRIX B850-F GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to ASUS Support for CPU support list. |
| Bộ chip | AMD B850 Chipset |
| Bộ nhớ | - 4 x DIMM slots, max. 256GB, DDR5
- Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit ASUS Support.
- ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
| Đồ họa | - 1 x DisplayPort* (Supports max. 8K@30Hz as specified in DisplayPort 1.4)
- 1 x HDMI™ port** (Supports 4K@60Hz as specified in HDMI 2.1)
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** VGA resolution support depends on processors' or graphic cards' resolution.
|
| Khe cắm mở rộng | - AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot with Q-Release Slim
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8 or x4 mode)*
- AMD B850 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)**
- * Specifications vary by CPU types.
- ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
- - To ensure compatibility of the device installed, please refer to ASUS Support for the list of supported peripherals.
|
| Lưu trữ | - Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
- AMD Ryzen™ 7000 & 9000 Series Desktop Processors
- M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
- M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
- M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
- AMD B850 Chipset
- M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
- M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
- 2 x SATA 6Gb/s ports
- * Specifications vary by CPU types.
- ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
|
| Ethernet | 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard |
| Không dây & Bluetooth | - Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4***
- *Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, only Wi-Fi 6 is supported.
- ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
- *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
|

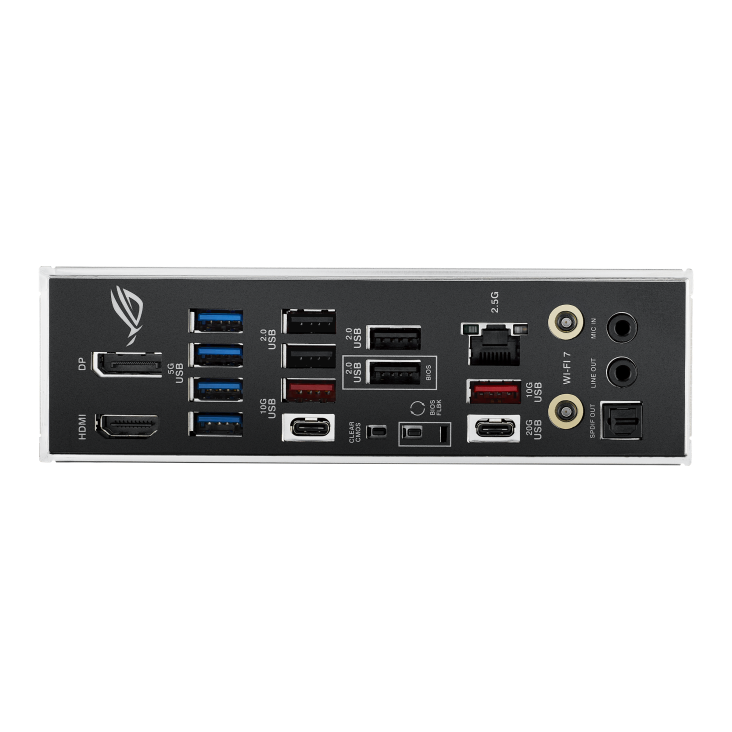

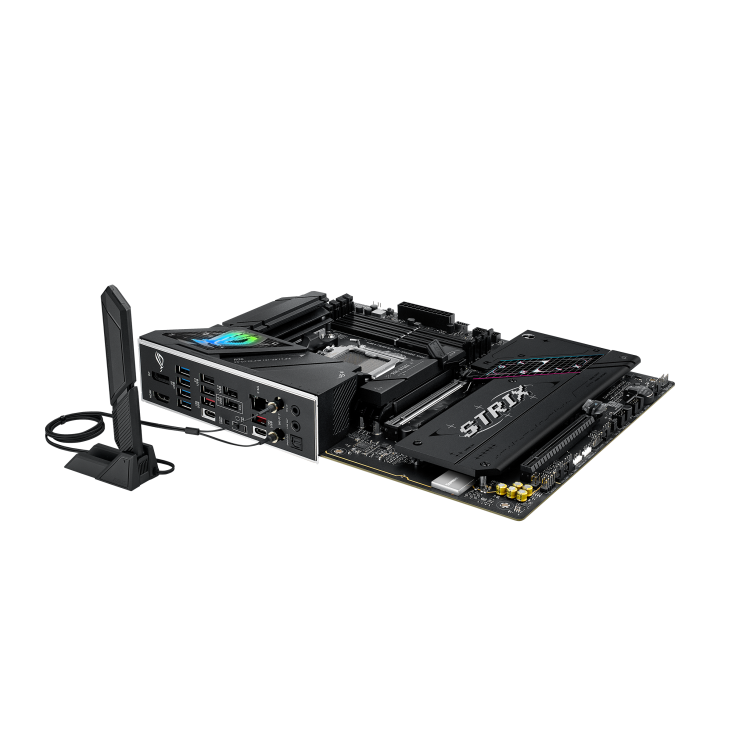

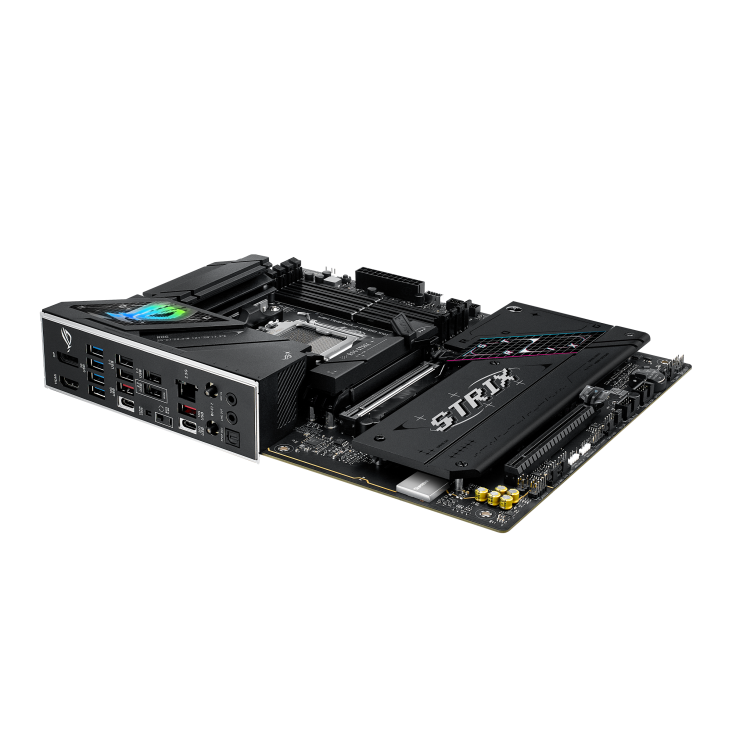

| USB | - Rear USB (Total 12 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
