Mainboard GIGABYTE X870E AORUS MASTER

Thương hiệu: gigabyte Mã sản phẩm: BH 36T
13,490,000₫ 14,990,000₫
-10%
(Tiết kiệm: 1,500,000₫)

Mainboard GIGABYTE X870E AORUS MASTER KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

ĐẶC ĐIỂM NỔI BẬT

Mainboard Gigabyte X870E Aorus Master

  • DDR5 ép xung lên đến 8600MT/s
  • AMD Socket AM5: Hỗ trợ bộ vi xử lý AMD Ryzen™ 9000 / 8000 / 7000 Series
  • Giải pháp VRM kỹ thuật số 16+2+2 pha
  • Dual Channel DDR5: 4 khe DIMM hỗ trợ mô-đun bộ nhớ AMD EXPO™
  • DDR Wind Blade: Hệ thống làm mát chủ động tăng cường cho mô-đun bộ nhớ
  • M.2 EZ-Match: Căn chỉnh nam châm giúp lắp đặt tản nhiệt dễ dàng
  • WIFI EZ-Plug: Thiết kế nhanh chóng và dễ dàng cho việc lắp đặt ăng-ten Wi-Fi
  • EZ-Latch Plus: Khe PCIe và M.2 với thiết kế tháo lắp nhanh không cần vít
  • EZ-Latch Click: Tản nhiệt M.2 với thiết kế không cần vít
  • Sensor Panel Link: Cổng video tích hợp cho việc lắp đặt bảng điều khiển bên trong dễ dàng
  • Giao diện thân thiện: Nhiều chủ đề, điều khiển quạt AIO, và Q-Flash Auto Scan trong BIOS và phần mềm
  • Power Monitor mới trong HWinfo giúp theo dõi thời gian thực các pha điện CPU
  • Lưu trữ siêu nhanh: 4 khe M.2, bao gồm 3 khe PCIe 5.0 x4
  • Tản nhiệt hiệu quả: VRM Thermal Armor Advanced với AORUS LIGHTING ở khu vực I/O và M.2 Thermal Guard XL
  • Mạng tốc độ cao: LAN 5GbE và Wi-Fi 7 với ăng-ten khuếch đại định hướng
  • Kết nối mở rộng: Dual USB4 Type-C với DP-Alt, HDMI
  • Âm thanh đáng tin cậy: Realtek ALC1220 HD Audio và tụ điện WIMA cấp audiophile
  • PCIe Armor siêu bền: Tấm lưng kim loại của khe PCIe x16 tăng cường độ bền
  • Khe PCIe UD X: Khe PCIe 5.0 x16 với độ bền gấp 10 lần dành cho card đồ họa.
Model

X870E AORUS MASTER

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

ChipsetAMD X870E
Memory

Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

LAN

Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

USB

CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Audio

Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

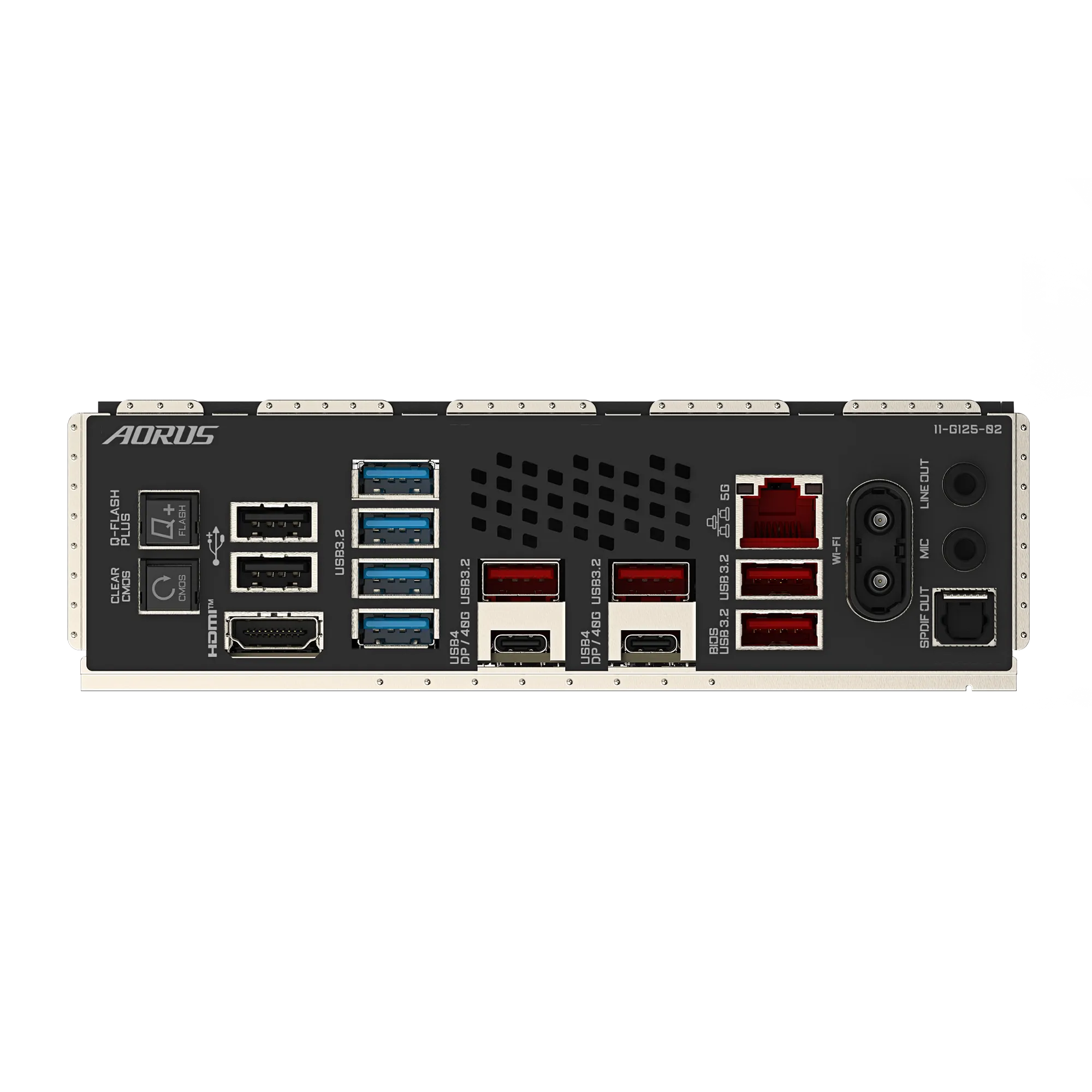

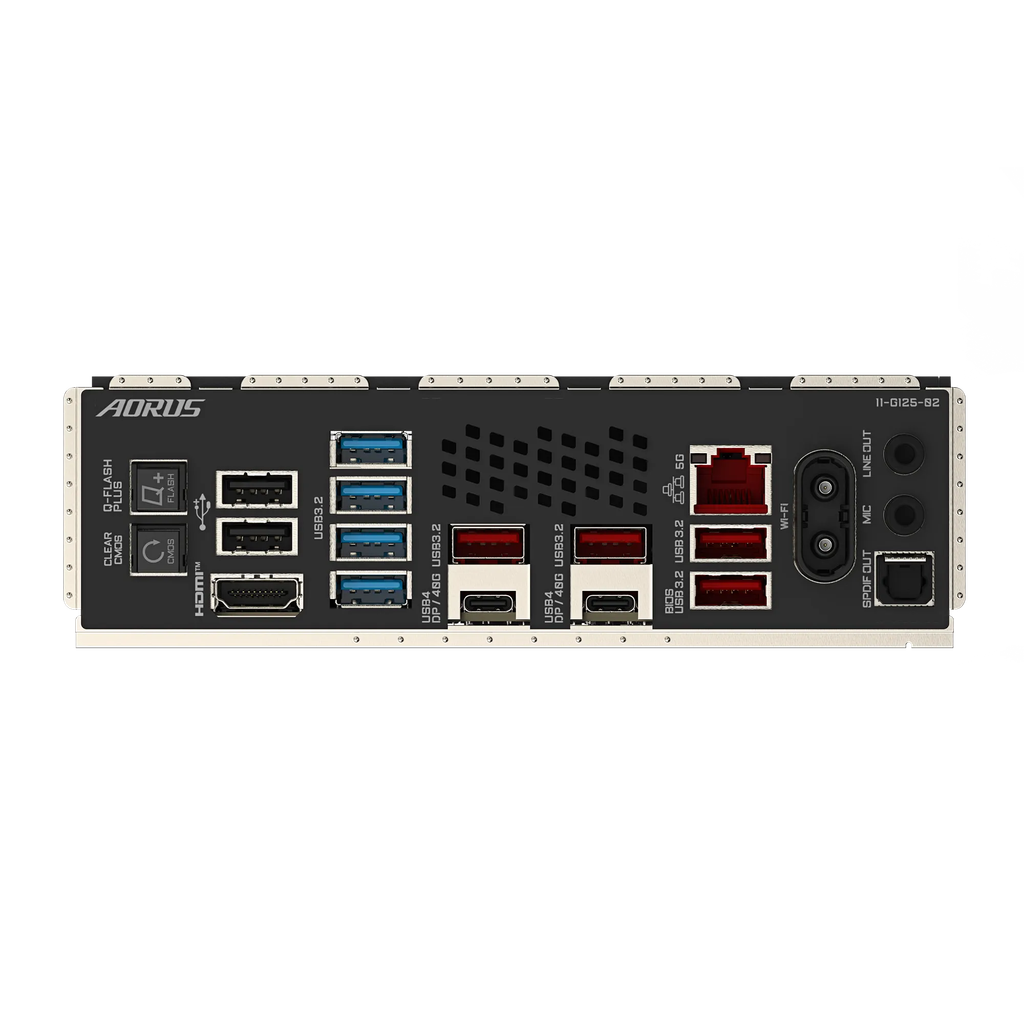

Back Panel I/O Ports

1 x Q-Flash Plus button
1 x Clear CMOS button
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPorts (Note))
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.

Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
(Note) Actual support may vary by CPU.

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

I/O Controller

iTE® I/O Controller Chip

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection

Bundle Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
