GIGABYTE Z590 VISION G Mainboard

Thương hiệu: GIGABYTE Mã sản phẩm: BH 36T
6,190,000₫ 7,900,000₫
-22%
(Tiết kiệm: 1,710,000₫)

GIGABYTE Z590 VISION G Mainboard KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

ĐẶC ĐIỂM NỔI BẬT

Thông tin chung:

  • Hãng sản xuất: Gigabyte
  • Tình trạng: Mới
  • Bảo hành: 36Tháng
  • Bo mạch chủ GIGABYTE Z590 VISION G

    Thông số kỹ thuật

    CPULGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
    Chipset
    1. Intel® Z590 Express Chipset
    Bộ nhớ
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Card đồ họa tích hợpIntegrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz.
      * Support for drawing tablets and 20V@3A of power delivery.
      *Support for DisplayPort 1.2 version and HDCP 2.3
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    (Supported graphics specifications may vary depending on CPU or graphics card used.)
    Âm thanh
    1. Realtek® ALC4080 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
    LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit
    Khe cắm mở rộng
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
      *Supported by 11th Generation processors only.
    2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
      (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
    Công nghệ đa card đồ họa
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Giao diện lưu trữCPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
      * Supported by 11th Generation processors only.
    2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
    2. 6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    USBChipset:
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    5. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 3.2 Gen 1 Hub:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
    Kết nối I/O bên trong
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 6 x SATA 6Gb/s connectors
    10. 4 x M.2 Socket 3 connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x S/PDIF Out header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    15. 1 x USB 3.2 Gen1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
    18. 2 x Thunderbolt™ add-in card connectors
    19. 1 x serial port header
    20. 1 x Clear CMOS jumper
    21. 1 x Q-Flash Plus button
    22. 1 x noise detection header

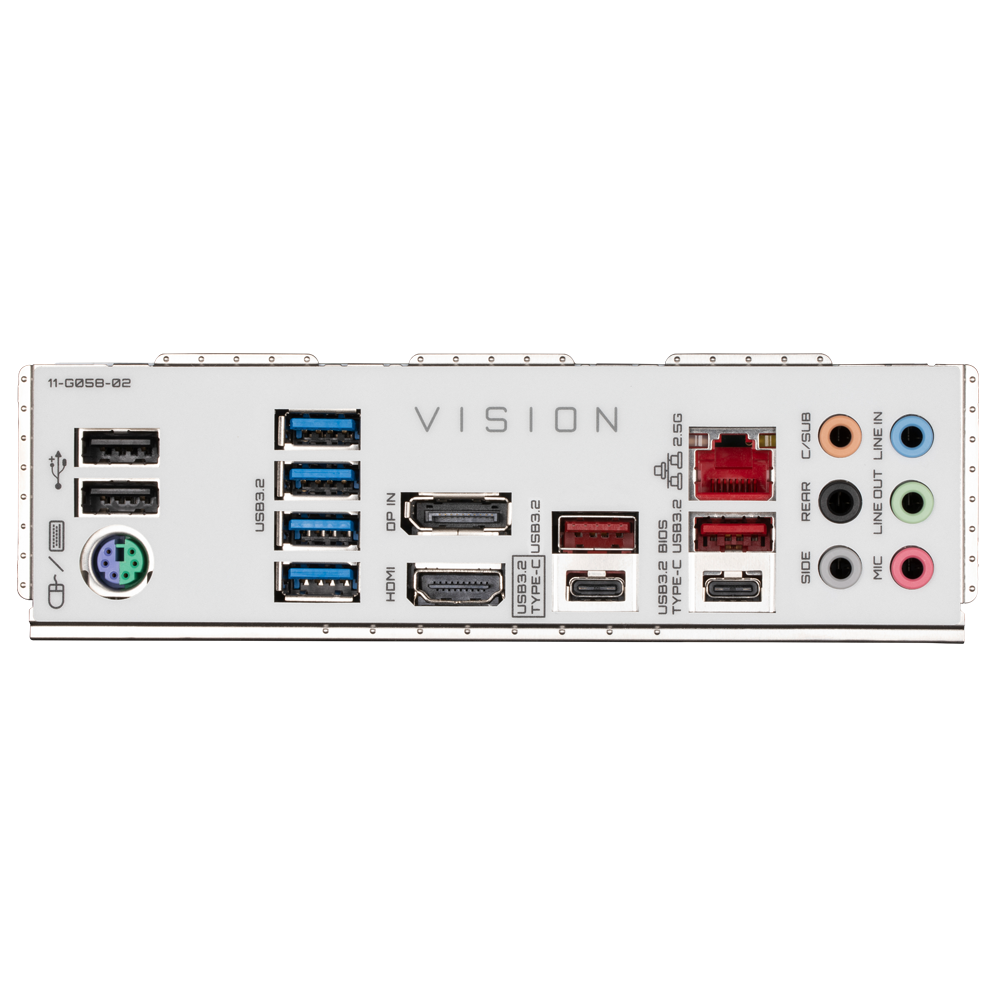

    Kết nối bảng phía sau
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 4 x USB 3.2 Gen 1 ports
    4. 1 x DisplayPort In port
    5. 1 x HDMI port
    6. 2 x USB 3.2 Gen2 Type-A ports
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    8. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    9. 1 x RJ-45 port
    10. 6 x audio jacks
    Điều khiển I/O
    1. iTE® I/O Controller Chip
    Theo dõi phần cứng
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
    7. Noise detection
    BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Tính năng duy nhất
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
    Gói phần mềm
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
    Hệ điều hành
    1. Support for Windows 10 64-bit
    Hệ số khuôn
    1. ATX Form Factor; 30.5cm x 24.4cm

    Đánh giá chi tiết bo mạch chủ GIGABYTE Z590 VISION G

    Bo mạch chủ GIGABYTE Z590 VISION G là một trong những sản phẩm mới nhất Mainboard Z590 thuộc dòng VISION Series. Với hiệu suất cực cao, kết nối ấn tượng cùng khả năng mở rộng đồ họa và lưu trữ cực nhanh, từ đó cho người sử dụng sáng tạo giúp tối đa hiệu năng sử dụng.

    Mainboard GIGABYTE Z590 VISION G

    I/O mạnh mẽ của bo mạch chủ GIGABYTE Z590 VISION G

    Tối ưu mà không cần thêm cáp

    Truyền dữ liệu, đầu ra video và sạc điện tất cả thông qua một USB Type-C® cáp giúp đơn giản hơn bao giờ hết. Với đa nhiệm liền mạch giữa PC và thiết bị của bạn, nó cho phép bạn sử dụng dễ dàng và nhanh chóng, bên cạnh đó khả năng tương thích có thể thay đổi tùy theo cấu hình hệ thống và thông số kỹ thuật của thiết bị.

    Tăng sức mạnh đồ họa của bạn

    Bạn đã bao giờ tự hỏi liệu bạn có thể tăng hiệu suất đồ họa của mình không? Thiết kế displayport™_In giúp GPU trở nên vượt trội hơn. Nó mang đến sáng tạo của bạn với chủ nghĩa hiện thực và hiệu suất đáng kinh ngạc.

    Mainboard GIGABYTE Z590 VISION G

    Kết nối hoàn hảo

    Băng thông cao và độ trễ thấp

    Việc thông qua Intel® Mạng LAN 2.5G cung cấp khả năng kết nối mạng lên tới 2.5GbE, tốc độ truyền nhanh hơn ít nhất 2 lần so với mạng 1GbE nói chung. Nó giúp cải thiện băng thông cần thiết để có thể dễ dàng truyền tải tệp lớn, chỉnh sửa video và các công việc khác với hiệu suất cao.

    Kết nối dễ dàng

    Để có thiết kế kết nối USB 3.2 Gen2x2, hiệu năng gấp đôi so với USB3.2 Gen2 hiện tại. Mainboard GIGABYTE Z590 VISION G hoạt động truyền dữ liệu cực nhanh lên đến 20Gbps trong khi kết nối với các thiết bị ngoại vi tuân thủ USB 3.2.

    Thiết kế đầy đủ PCIe 4.0* cùng băng thông cao

    Bo mạch chủ GIGABYTE Z590 VISION G hỗ trợ hầu hết các thiết bị tiên tiến, chiếc bo mạch chủ này hỗ trợ nhiều thiết bị PCIe 4.0, bao gồm card đồ họa và SSD M.2. Băng thông PCIe lên đến 31,58GB/ giây từ các thiết kế khe cắm. Đảm bảo hiệu năng card màn hình, thẻ tăng tốc deep learning và card chụp video.

    Mainboard GIGABYTE Z590 VISION G

    Mainboard GIGABYTE Z590 VISION G mang lại hiệu năng cao

    Dung lượng bộ nhớ tối đa trên bo mạch chủ Z590 là 128GB với khe cắm đơn hỗ trợ lên tới 32GB. Bạn có thể trải nghiệm hiệu suất nhanh trong khi thực hiện các tác vụ thiết kế phức tạp và nhận kết quả theo thời gian thực.

    Lưu trữ cực nhanh

    Tốc độ nhanh hơn

    GIGABYTE Z590 VISION G được trang bị tối đa 4 khe PCIe M.2, cung cấp băng thông vượt trội và nâng cấp dung lượng lưu trữ của bạn để tăng tốc quy trình làm việc của bạn. SSD M.2 PCIe cung cấp cho bạn trải nghiệm truyền dữ liệu nhanh hơn 7 lần so với ổ đĩa trạng thái rắn SATA 2.5". Cho phép sự sáng tạo chảy từ suy nghĩ này sang suy nghĩ khác nhanh hơn và có được hiệu suất đáp ứng mà không cần chờ đợi.

    Mainboard GIGABYTE Z590 VISION G

    NVMe PCIe x4 M.2

    Giải pháp GIGABYTE M.2 cung cấp hiệu suất lưu trữ cao đáng kể và cung cấp bộ nhớ lý tưởng với các chế độ RAID. Để tính năng với 3 đầu nối PCIe 4.0 * M.2 tốc độ đầy đủ để cung cấp bộ nhớ cực nhanh có sẵn. Cung cấp cấu hình tốt nhất về dung lượng lưu trữ NVMe cho những người sáng tạo yêu cầu dung lượng cao, tùy chọn lưu trữ nhanh và kết xuất mô hình 3D phức tạp.

    Công nghệ tản nhiệt cực tốt

    Bảo vệ nhiệt M.2

    GIGABYTE cung cấp một giải pháp nhiệt siêu hiệu quả cho các ổ SSD PCIe 4.0 M.2 mới nhất. Bộ bảo vệ nhiệt M.2 độc đáo ngăn tất cả SSD M.2 nếu nhiệt độ vượt quá ngưỡng.

    Mainboard GIGABYTE Z590 VISION G

    Công nghệ Smart Fan 6

    Nhiều điểm cảm biến nhiệt độ được đặt trên bo mạch chủ để theo dõi nhiệt độ trong thời gian thực để điều chỉnh phù hợp với các khối lượng công việc khác nhau thông qua Smart Fan 6. Người sáng tạo được phép đặt điểm kích hoạt để kích hoạt quạt và tốc độ tương ứng. Quạt sẽ dừng hoàn toàn khi thực hiện các tác vụ nhẹ để tránh tiếng ồn, tiết kiệm điện và tăng độ bền quạt.
