Sản phẩm | Bo mạch chủ |
Tên Hãng | GIGABYTE |
CPU hỗ trợ | LGA1851 |
Chipset | Intel Z890 Express Chipset |
RAM hỗ trợ | Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module |
Khe cắm mở rộng | CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
Ổ cứng hỗ trợ | CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 2 x SATA 6Gb/s connectors |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper |

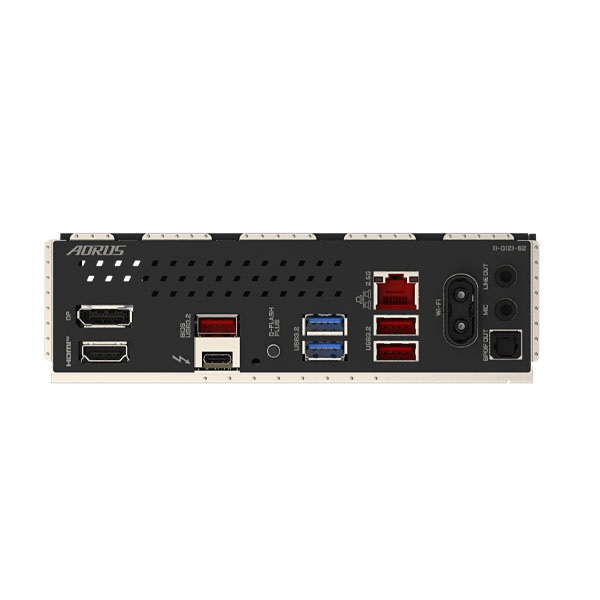

Cổng kết nối (Rear Panel) | 1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x Intel® Thunderbolt 4 connectors (USB Type-C ports)
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector |
LAN / Wireless | LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Intel Wi-Fi 7 BE202 (BE200NGW M)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard |
Kích cỡ | Mini-ITX Form Factor; 17.0cm x 17.0cm |
