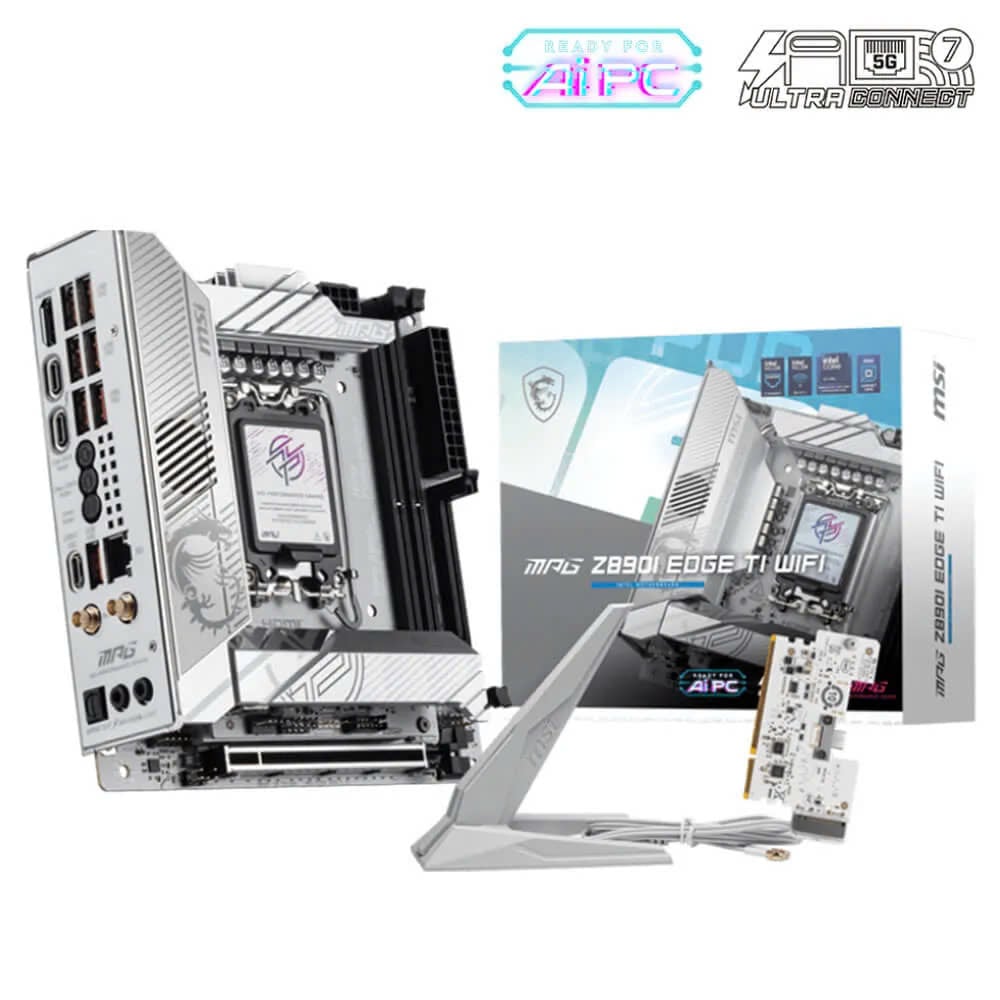

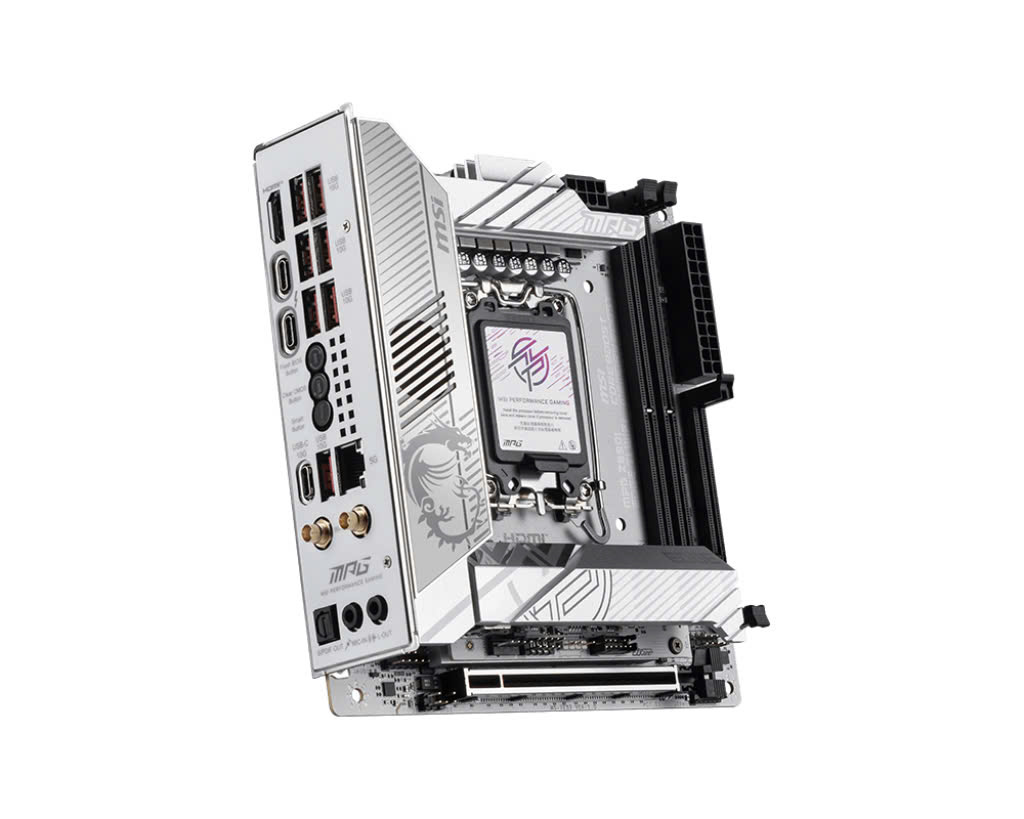

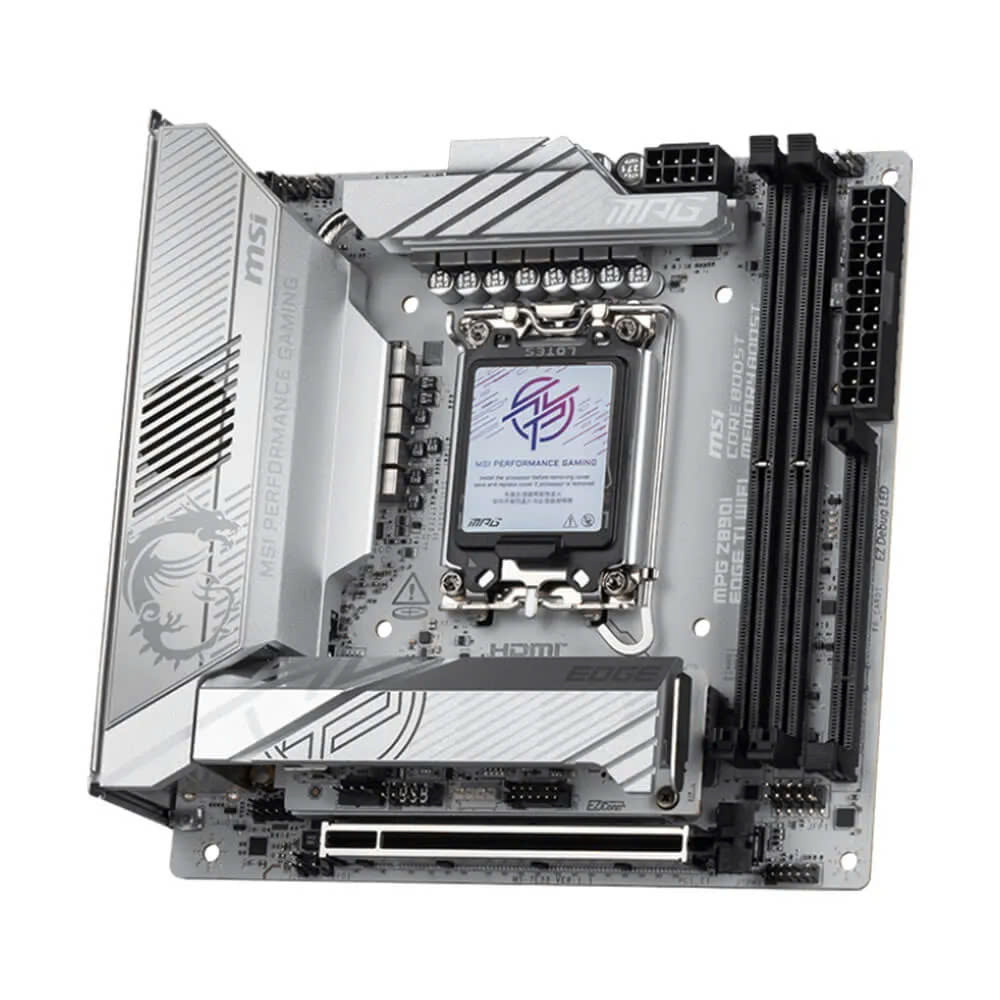

Mainboard MPG Z890I EDGE TI WIFI

Thương hiệu: MSI Mã sản phẩm: BH 36TH
Liên hệ

Mainboard MPG Z890I EDGE TI WIFI KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

ĐẶC ĐIỂM NỔI BẬT

ChipsetINTEL Z890
CPUSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory2x DDR5, Maximum Memory Capacity 128GB
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics1x HDMI™
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
AudioRealtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Storage4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G

•M.2_4 & 2x SATA are supported by 5-in-1 XPANDER
•Please refer to the manual for M.2 SSD heatsink restrictions.
RAID•Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
•Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB2x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
7x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN1x Intel® Killer™ E5000B 5G LAN
Internal IO1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTHIntel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE4x EZ Debug LED

BACK PANEL PORTS
  1. USB 10Gbps Type-A
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 5G LAN
  6. Wi-Fi / Bluetooth
  7. Audio Connectors
  8. HDMI™
  9. Thunderbolt 4
  10. USB 10Gbps Type-C
  11. USB 10Gbps Type-A
  12. Optical S/PDIF Out
OPERATING SYSTEMSupport for Windows® 11 64-bit
