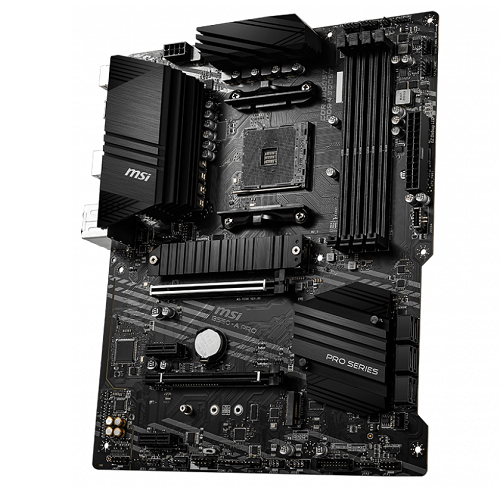

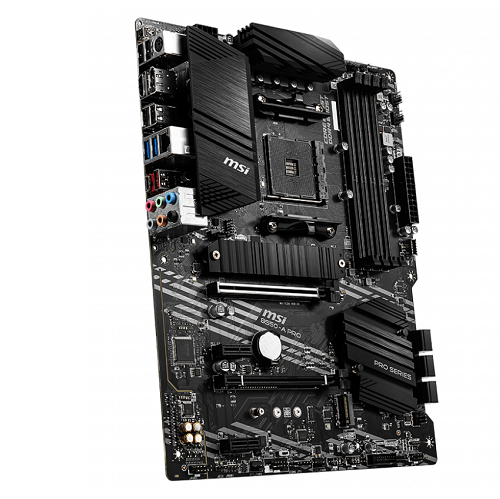

Mainboard MSI B550 A Pro

Sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.

Chipset

AMD B550 Chipset

RAM hỗ trợ

• 4x DDR4 memory slots, support up to 128GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
    • 1DPC 1R Max speed 4800 MHz
    • 1DPC 2R max speed 3866 MHZ
    • 2DPC 1R max speed 4000 MHZ
    • 2DPC 2R max speed 3600 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Khe cắm mở rộng

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
• 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
• 2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.

When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

Hình ảnh

• 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
• Maximum shared memory of 2048 MB

Available for the processor with integrated graphics.

Lưu trữ

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Âm Thanh

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek® 8111H Gigabit LAN controller

Cổng kết nối ( I/O bên trong)

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1xTPM module connector
• 1x Clear CMOS jumper

Cổng kết nối ( I/O Phía sau)

1. Keyboard / Mouse
2. DisplayPort
3. LAN
4. HD Audio Connectors
5. Flash BIOS Button
6. USB 2.0
7. HDMI
8. USB 2.0
9. USB 3.2 Gen 1 5Gbps Type-A
10. USB 3.2 Gen 2 10Gbps Type-A+C

Kích cỡ

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
