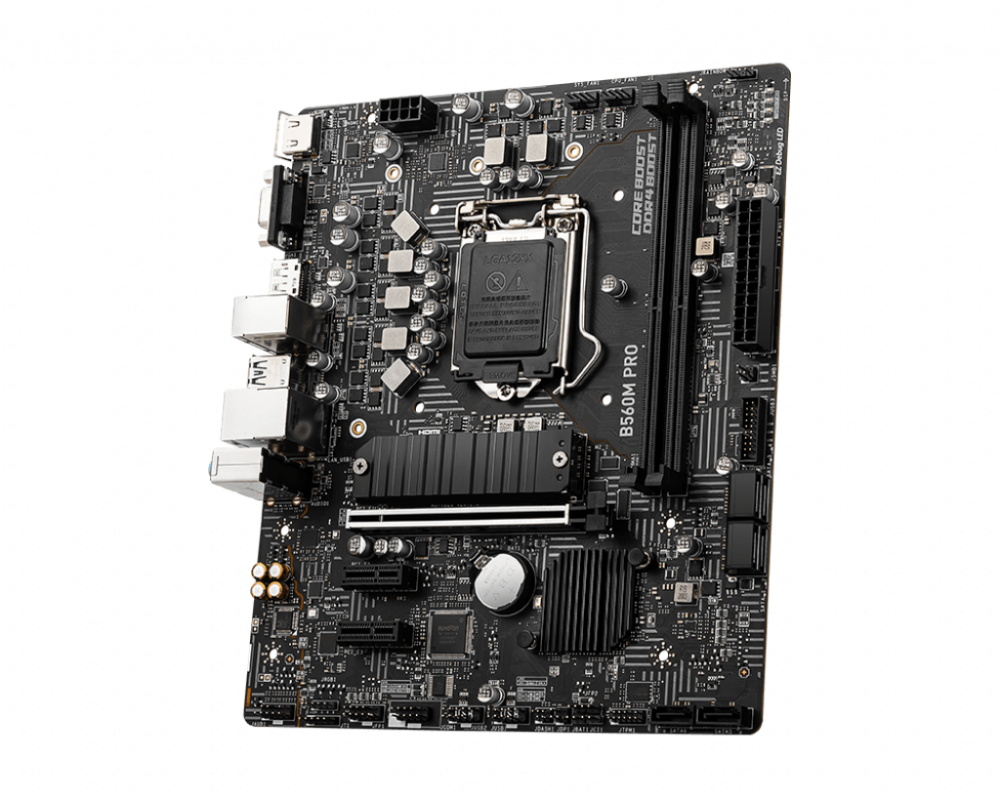

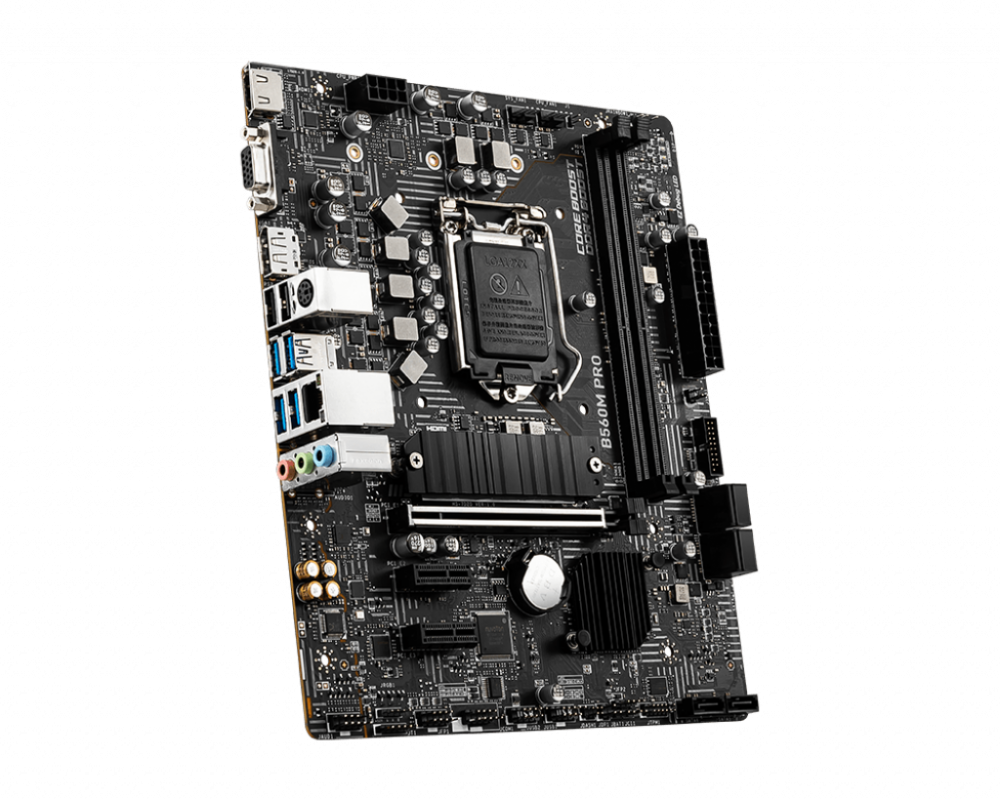

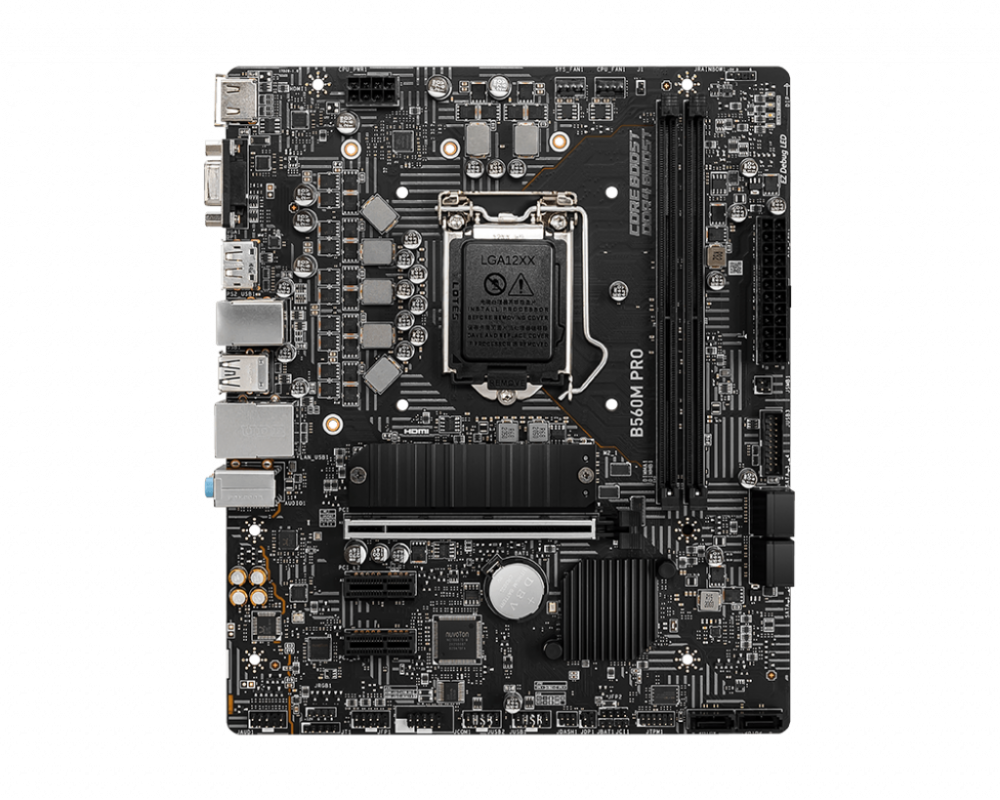

Mainboard MSI B560M PRO

Giá Cũ:2,500,000₫
Giá KM:2,290,000₫

Thông tin sản phẩm

Mã hàng: MAMB9997
Bảo hành: 36 Tháng
Hãng sản xuất: MSI

Mô tả sản phẩm

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5200(OC) MHz

THÔNG SỐ

CPU

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1200

  1. Please go to intel.com for compatibility information

CHIPSET

Intel® B560 chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5200 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  • Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 2x PCIe 3.0 x1 slots (From B560 chpiset)

ONBOARD GRAPHICS

  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz12
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • Available only on processors featuring integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio

LAN

1x Realtek® 8125B 2.5Gbps LAN controller

STORAGE

  • 6x SATA 6Gb/s ports (From B560 chipset)
  • 1x M.2 slot (Key M)1
    • Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
    • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
    • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  • Intel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B560 Chipset

  • 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)

FORM FACTOR

  • mATX Form Factor
  • 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)

BIOS FEATURES

  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SMBIOS 3.0
  • Multi-language

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x M.2 slot (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Tuning Controller Connector

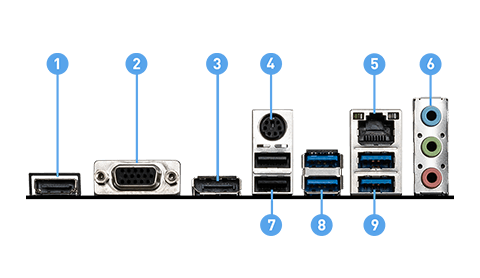

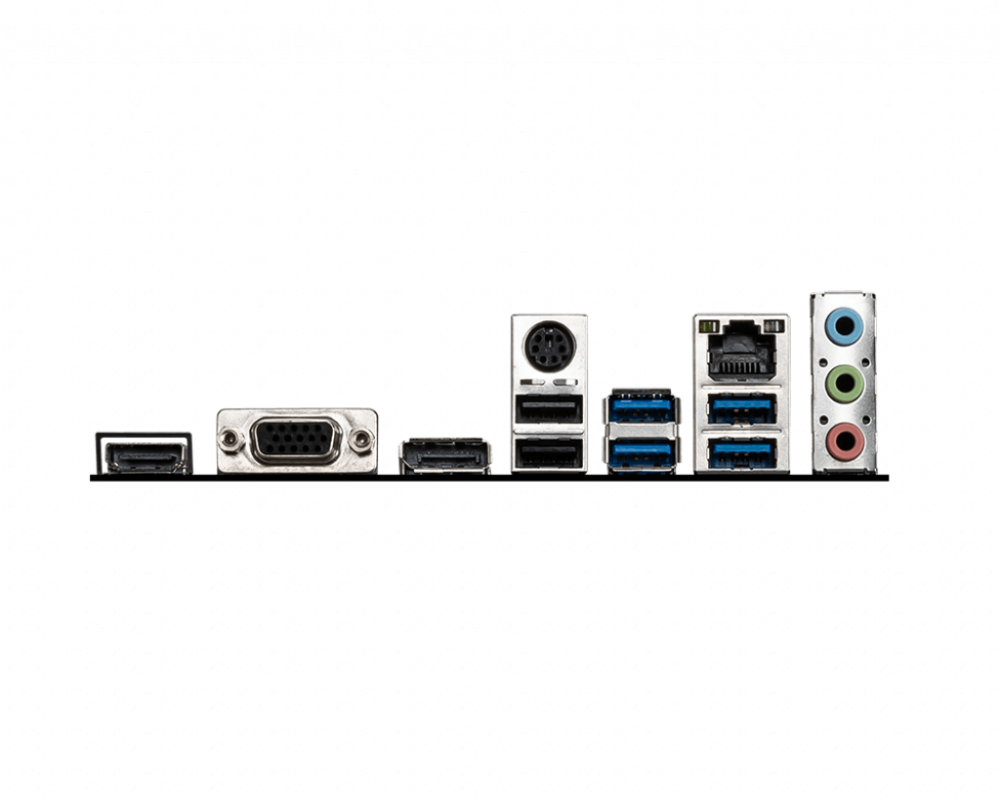

BACK PANEL CONNECTORS

  1. HDMI
  2. VGA
  3. DisplayPort
  4. Keyboard / Mouse
  5. LAN port
  6. Audio connector
  7. USB 2.0
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. USB 3.2 Gen 1 5Gbps Type-A
MSI Z490-A PRO back panel ports

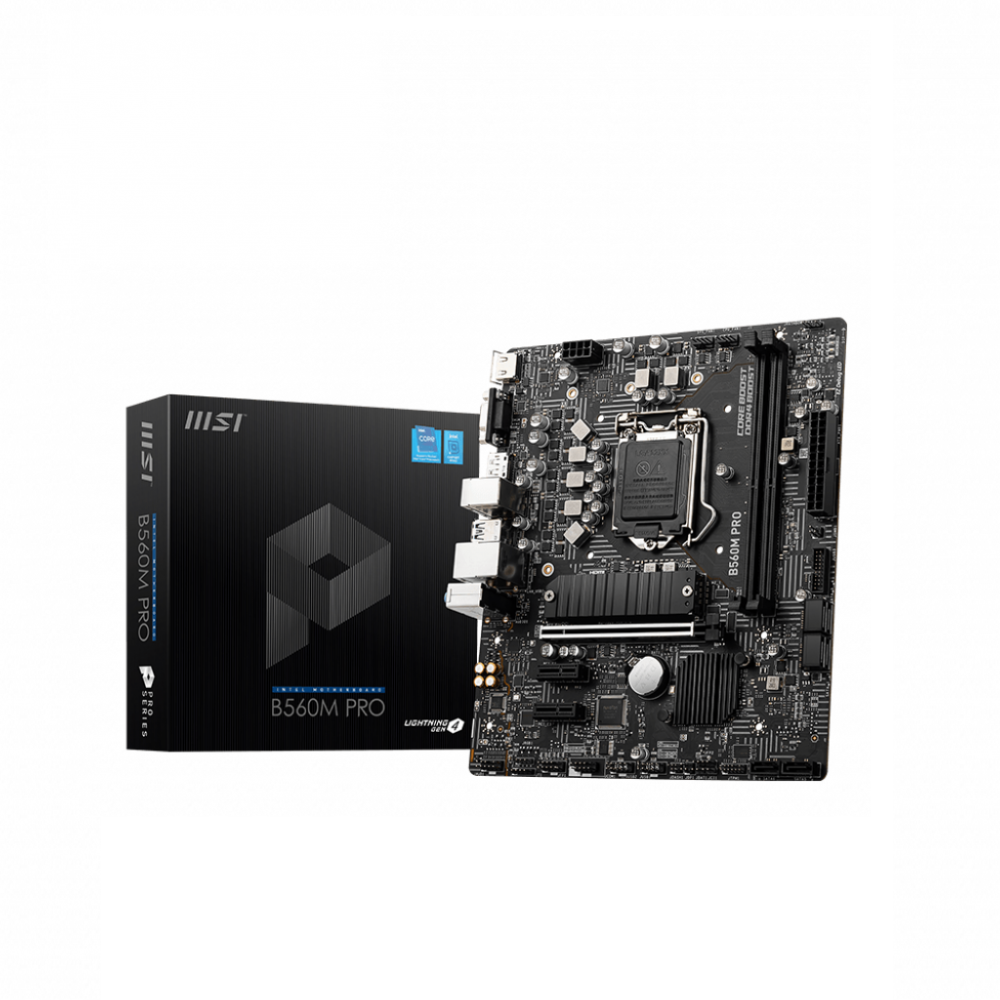

BOX CONTENT

MSI B560M PRO box content
