| Nhà sản xuất | MSI |
| Model | |
| Mainboard Form Factor | E-ATX |
| Chipset | AMD X870E |
| Socket CPU | LGA AM5 |
| CPU Hỗ trợ | - AMD Ryzen 7000, 8000, 9000 Series
|
| RAM Hỗ trợ | |
| Dung lượng RAM tối đa | 256GB |
| Khe cắm mở rộng | - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| Lưu trữ mở rộng | - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G
- M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
- M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
|
| Supported RAID Type | - Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
- *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
- **RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
|
| Kết nối không dây | |
| Cổng kết nối phía trước | - 4x USB 2.0 (Front)
- 4x USB 5Gbps Type A (Front)
- 1x USB 10Gbps Type C (Front)
- 1x USB 20Gbps Type C (Front)
|
| Lan | - 1x Marvell® AQC113CS 10Gbps LAN
- 1x Realtek® 8126 5Gbps LAN
|

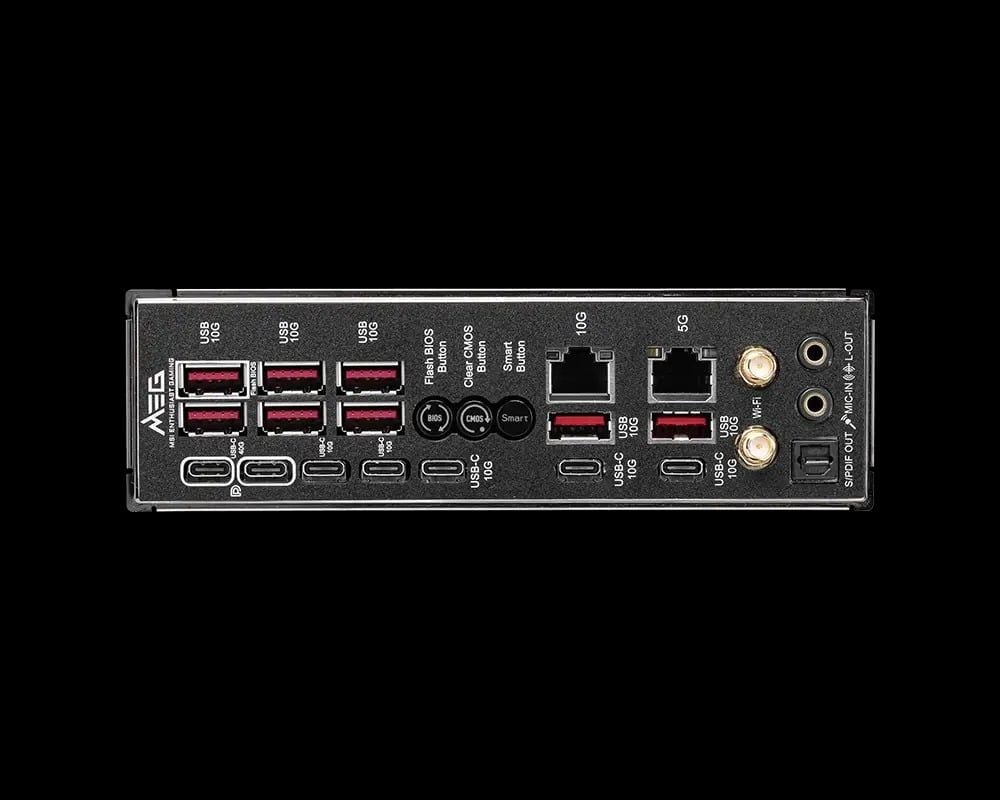

| Cổng kết nối phía sau | - 8x USB 10Gbps Type A (Rear)
- 5x USB 10Gbps Type C (Rear)
- 2x USB 40Gbps Type C (Rear)
|
| Phụ kiện | - 1x M.2 Expander-Z Slider Gen5
- 1x EZ CONTROL HUB
- 1x EZ Wi-Fi Antenna
- 1x USB Drive
- 1 to 3 ARGB Gen2 Extension Cable
- 1x ARGB RGB Extension Cable
- 1x 1 to 3 EZ Conn-Cable (V2)
- 1x EZ Link Cable
- EZ Control Hub Sata Power Cable
- M.2 Xpander Card FAN Control Cable
- 1x EZ Front Panel Cable
- 4x Sata Cables
- 2x Thermistor Cables
- M.2 Xpander Card Thermal pads
- EZ M.2 Clips II Remover
- EZ Control Hub Screw Sets
- Cable Sticker
|
| Bảo hành | |
