Feature Highlights:
CVN series exclusive custom white motherboard
CVN series customized frost heat dissipation armor, paired with full-coverage condensation plate to enhance heat dissipation
2 PCIe 4.0 x4 M.2 SSD slots available
Provides 1 x USB 3.2 Gen 1 Type-C and 2 x USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Realtek 2.5G fast wired network card and AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2
Supports iGame Center lighting effect control software, which can synchronize the lighting effect of radiator, cooling fan and memory
Six major protection technologies, more stable product operation
Strictly tested 200 processes, guaranteed quality
PCB atomization process is comprehensively upgraded
"410" quality service, guaranteed after-sales service

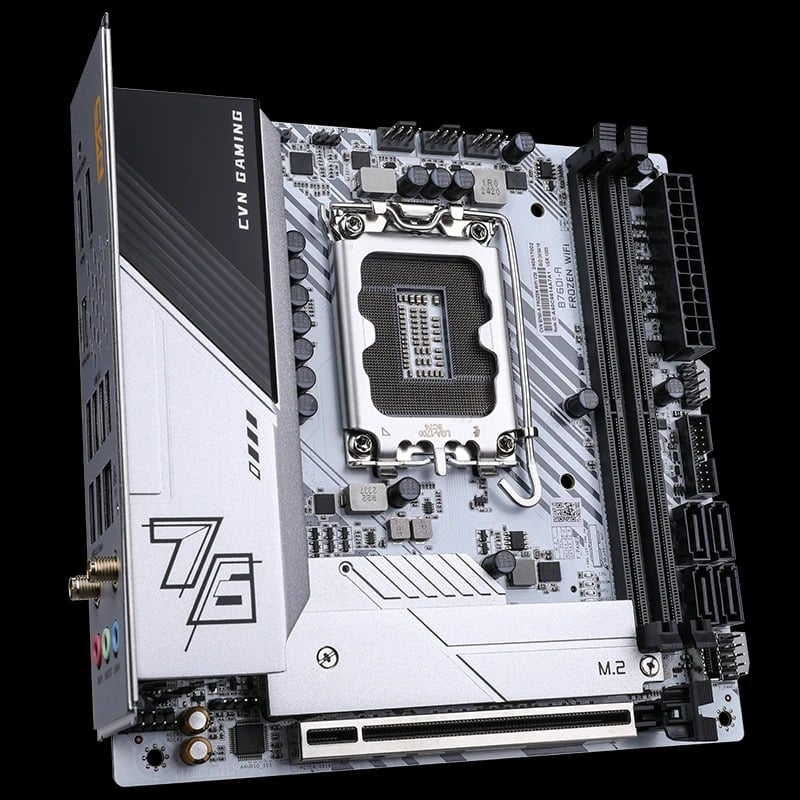

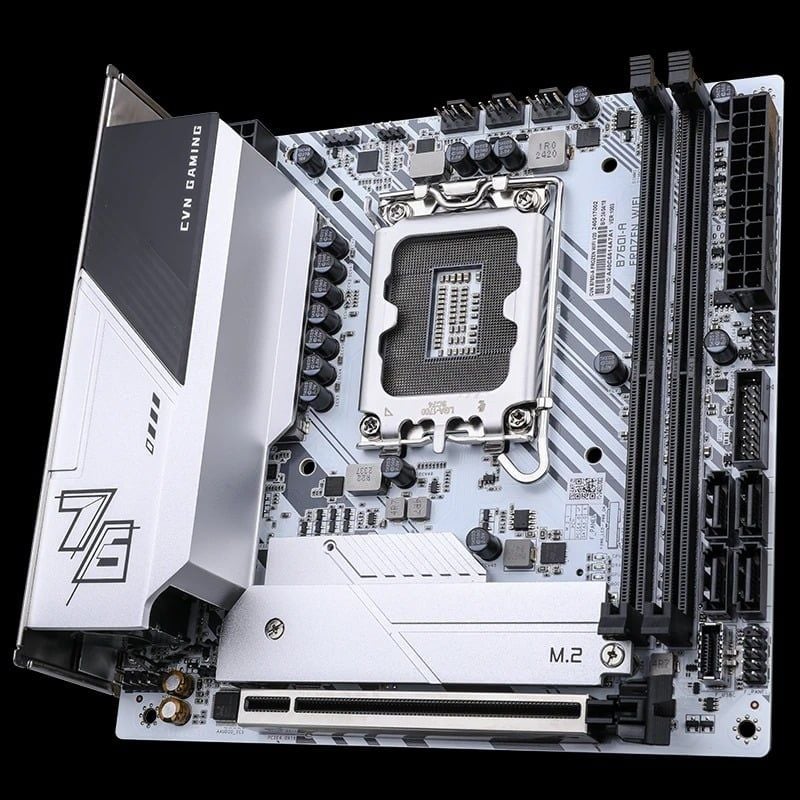

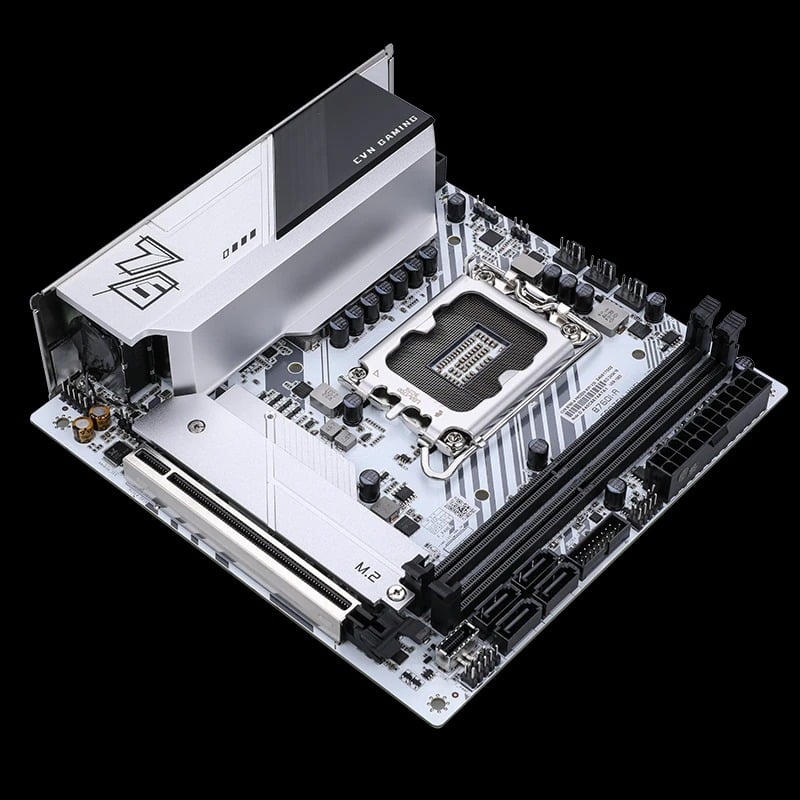

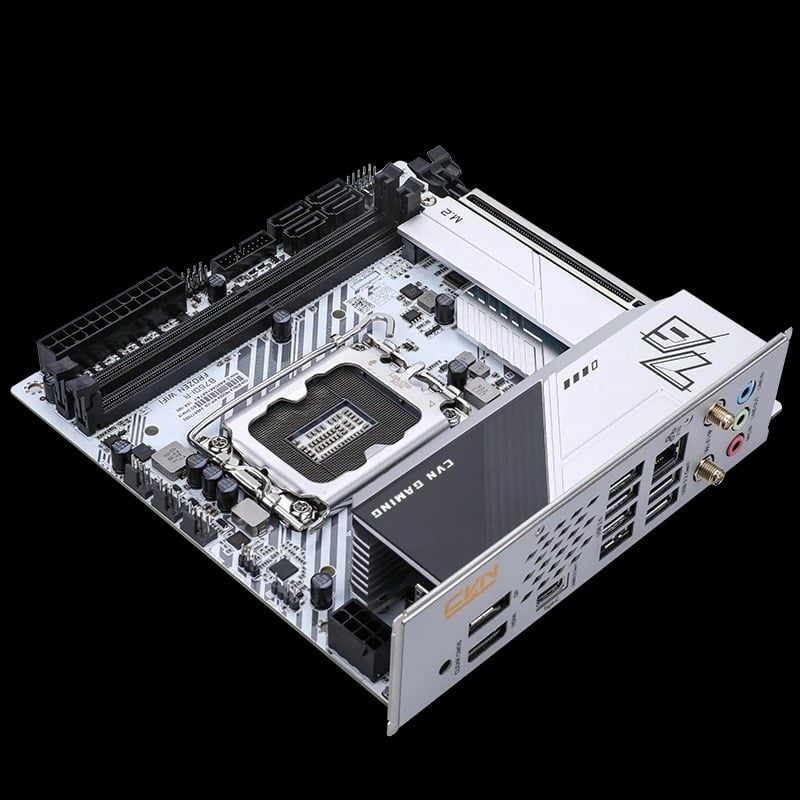

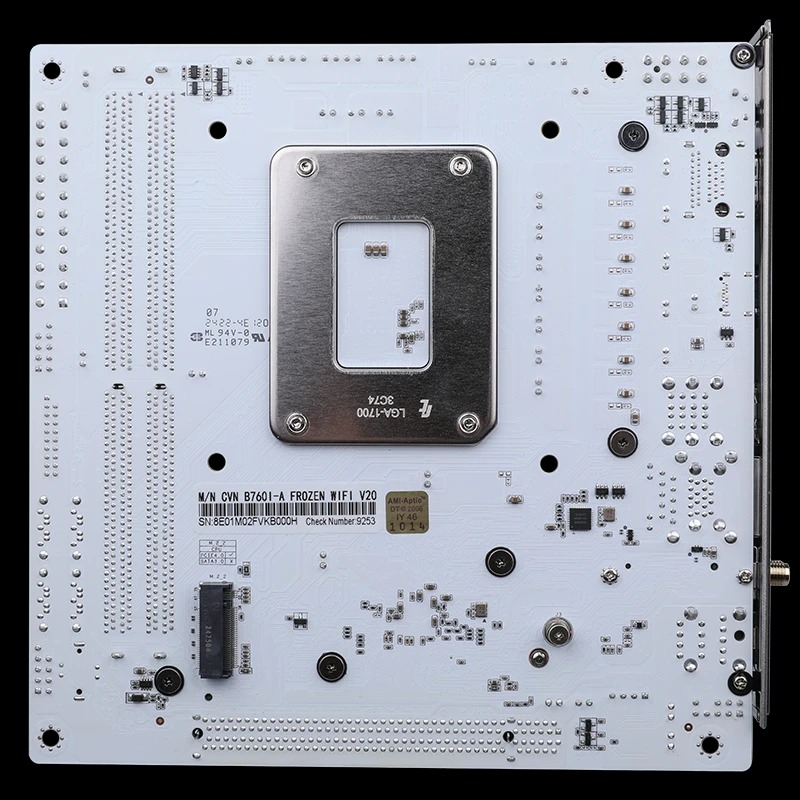

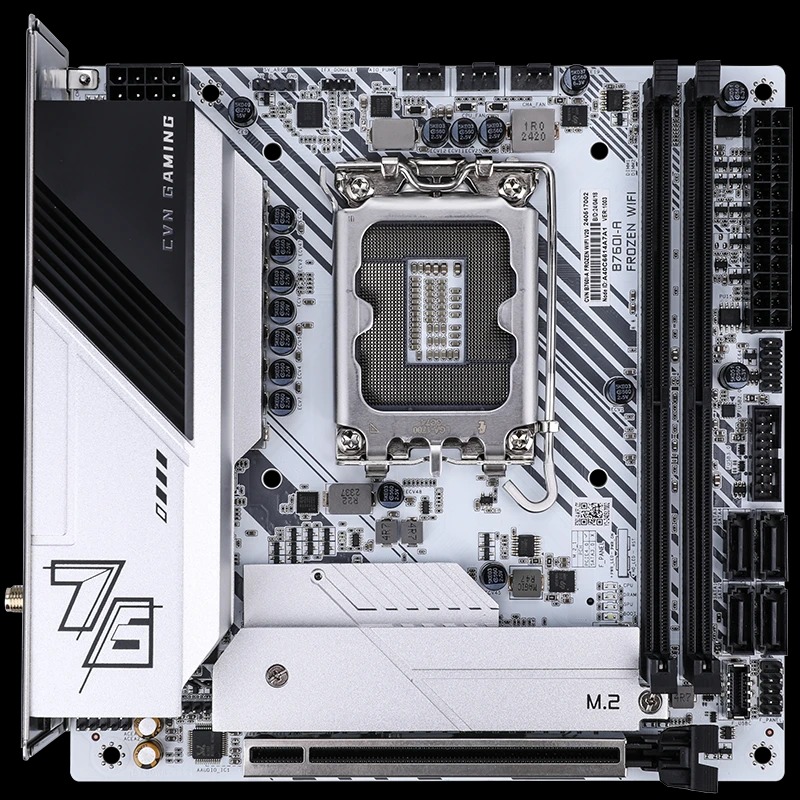

| Model | CVN B760I-A FROZEN WIFI V20 |
|---|---|
| Product Color | |
| Product Series | CVN series |
| Chipset | Intel B760 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB) - Supports DDR4-4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Supports Intel® Extreme Memory Profile (XMP) memory technology - Supports dual-channel memory technology (*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces - M.2_1 slot: supports 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: supports 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |

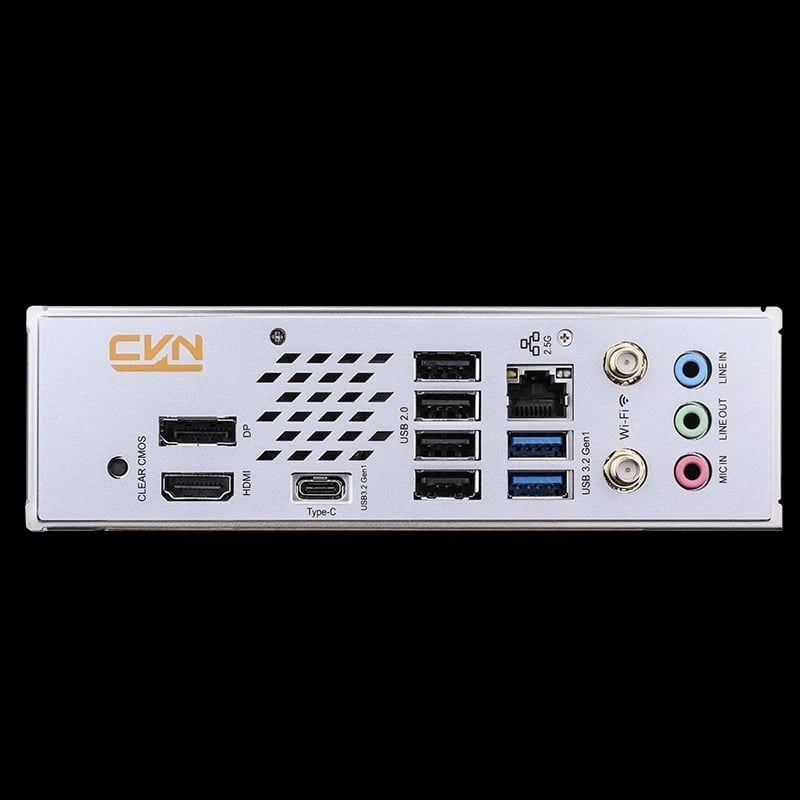

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C interface -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×2.5G network interface -1×CMOS clearing key -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×Water cooling pump pin -1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface -1×5V 3-pin ARGB pin -1×Front audio pin -1×Front panel pin -1×Speaker pin |
| Expansion Slots | 1 PCIe 4.0 x16 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card, AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels |
| Configuration | ITX 170mm x 170mm |
