2. Intel® C621
3. Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
4. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
M.2 Interface: PCIe 3.0 x4
M.2 Form Factor: 2260, 2280, 22110, 2 PCI-E 3.0 NVMExpress x4 Internal Port(s)
5. 1 VGA port(s)
6. Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Dual LAN with 10GBase-T with Intel® X557
Specifications
Product SKUs | |

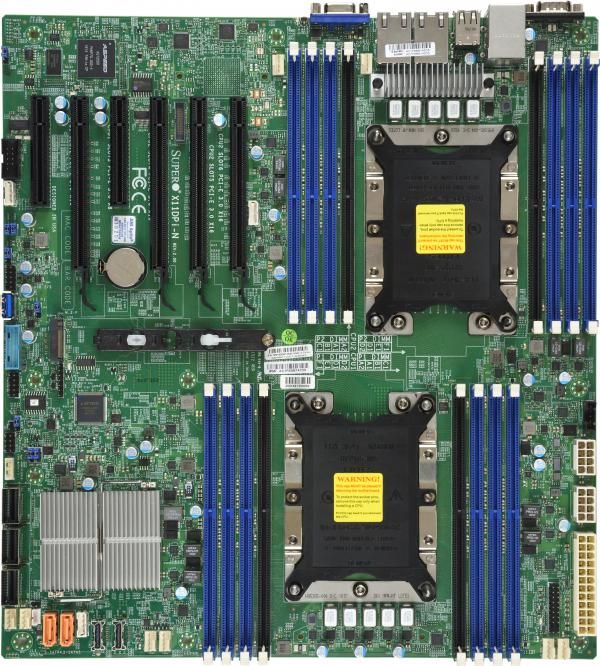

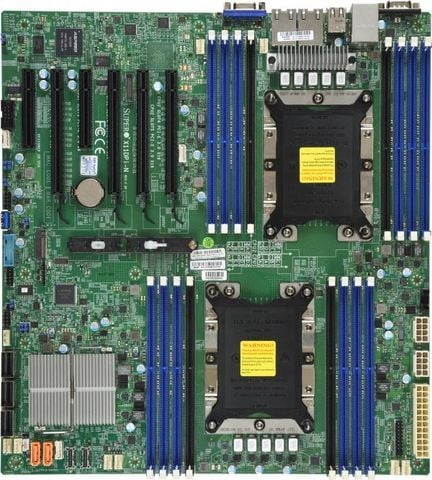

MBD-X11DPi-NT | X11DPi-NT |
Physical Stats | |
Form Factor | E-ATX |
Dimensions | 12" x 13" (30.48cm x 33.02cm) |
Processor/Cache | |
CPU | Intel® Xeon® Processor Scalable Family. |
System Memory | |
Memory Capacity | Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots |
Memory Type | 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
DIMM Sizes | RDIMM: 64GB |
Memory Voltage | 1.2 V |
Error Detection | Corrects single-bit errors |
On-Board Devices | |
Chipset | Intel® C621 chipset |
SATA | Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
IPMI | ASPEED AST2500 |
Network Controllers | Dual LAN with 10GBase-T with Intel® X557 |
Graphics | Aspeed AST2500 BMC |
Input / Output | |
USB | 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A) |
VideoOutput | 1 VGA port(s) |
Serial Port / Header | 2 COM Ports (1 rear, 1 header(s)) |
TPM | 1 TPM Header |
Expansion Slots | |
PCI-Express | 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 |
M.2 | Interface: PCIe 3.0 x4 |
System BIOS | |
BIOS Type | AMI UEFI |
Management | |
Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
Power Configurations | ACPI Power Management |
PC Health Monitoring | |
Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control |
FAN | 8x 4-pin fan headers (up to 8 fans), PWM fan speed control |
Temperature | N/A |
LED | N/A |
Other Features | Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS |
