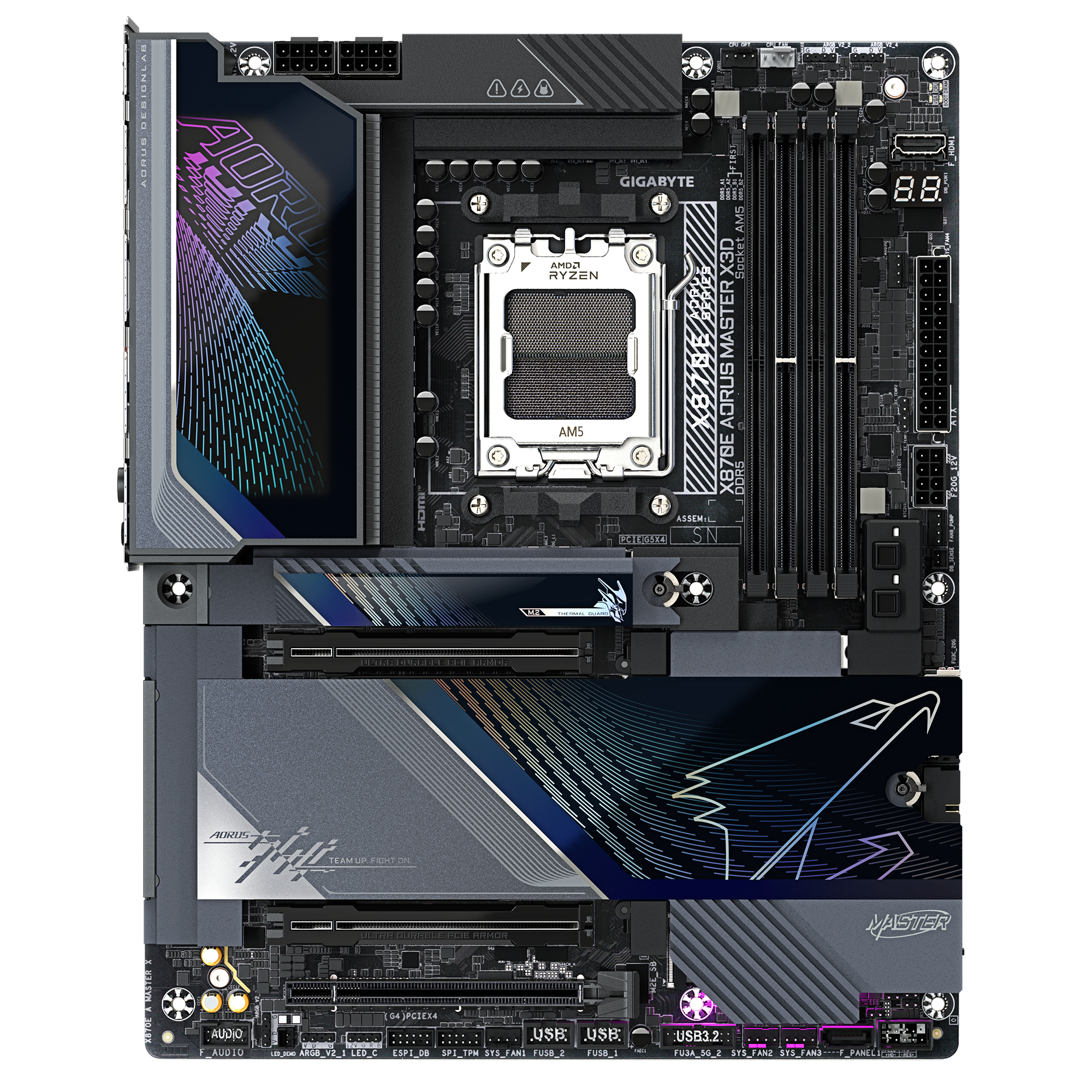

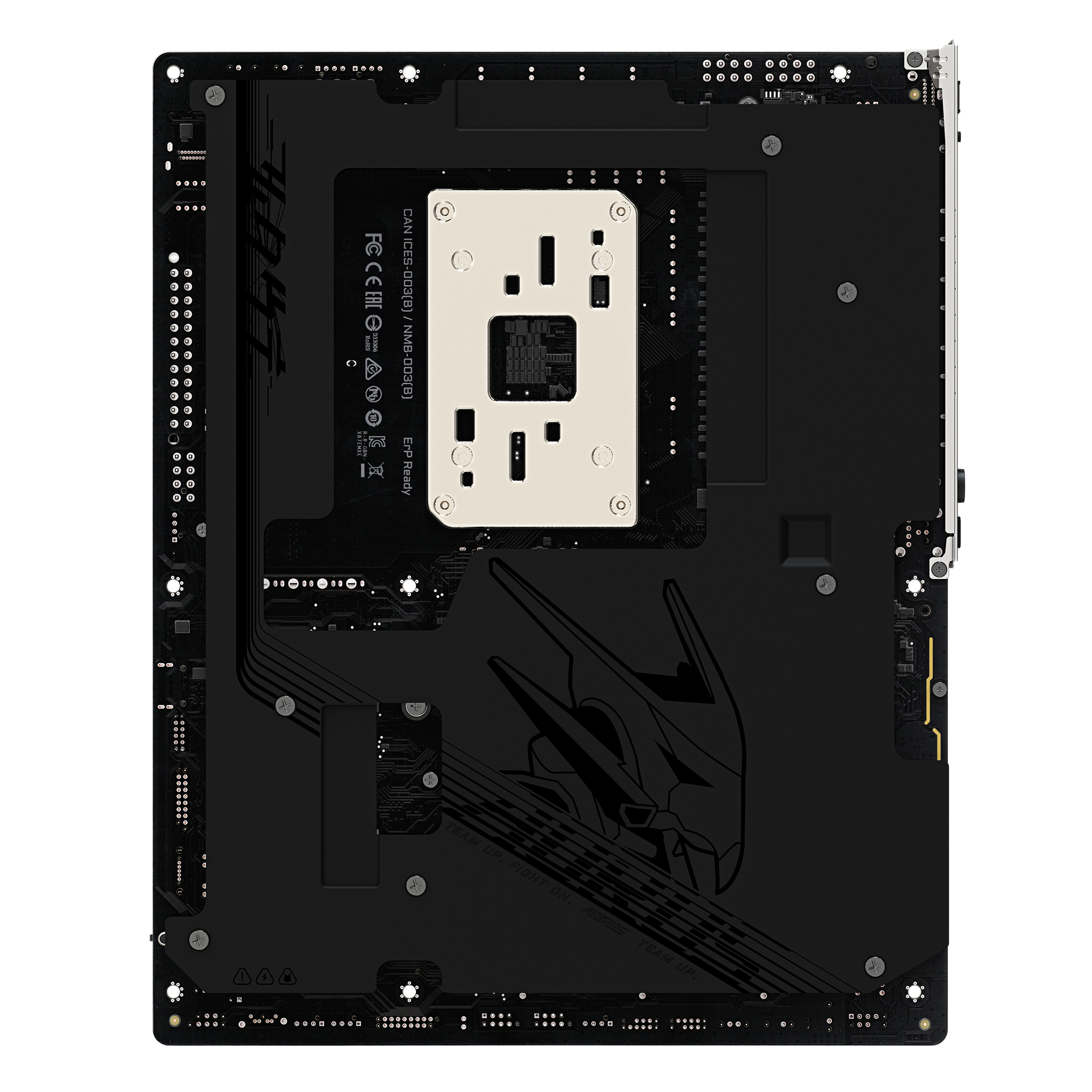

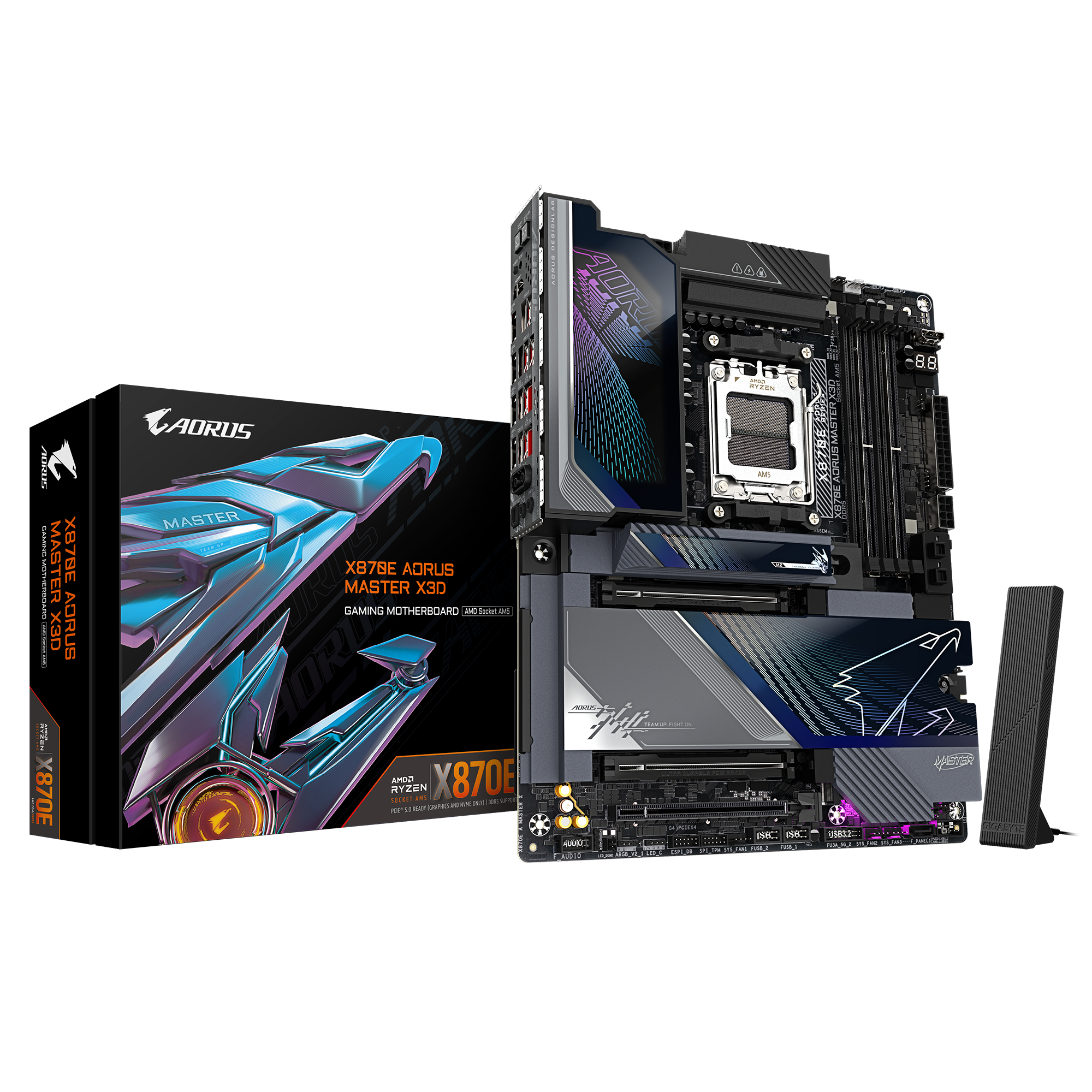

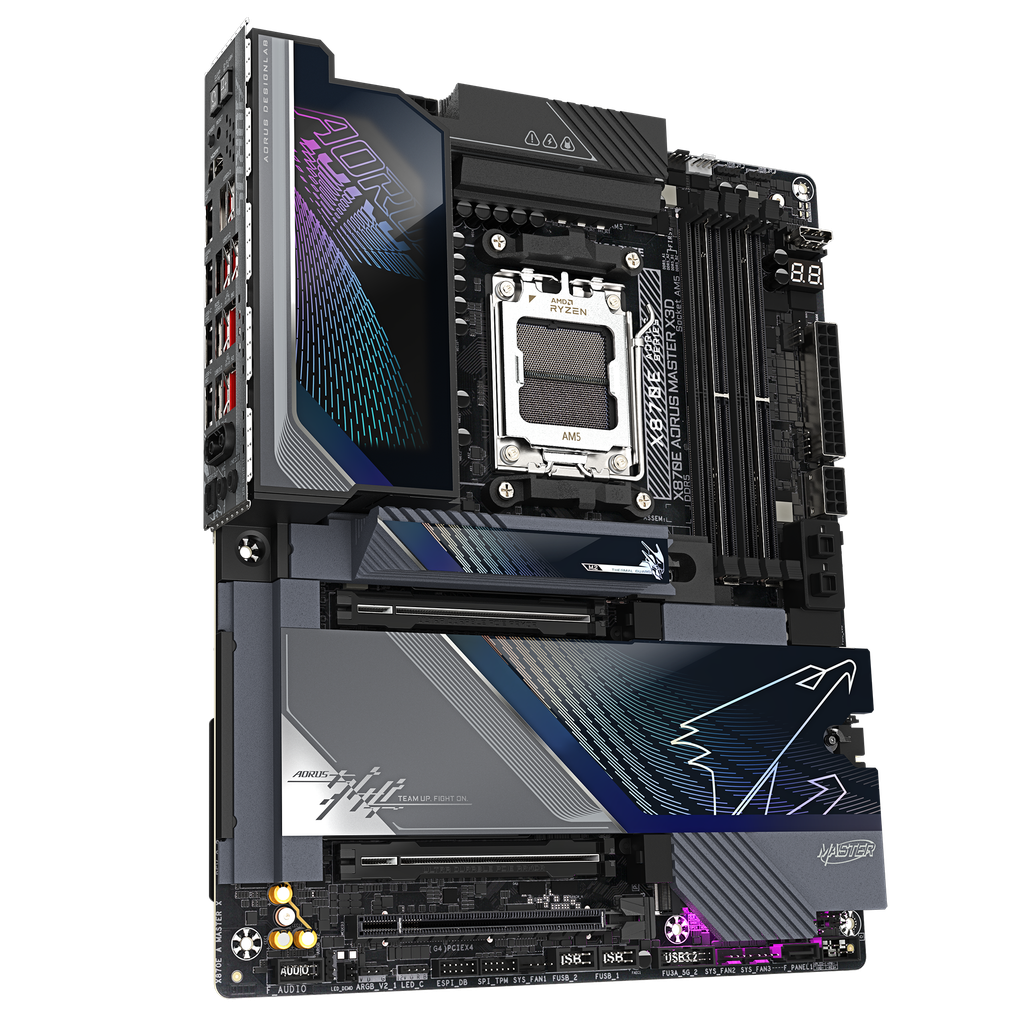

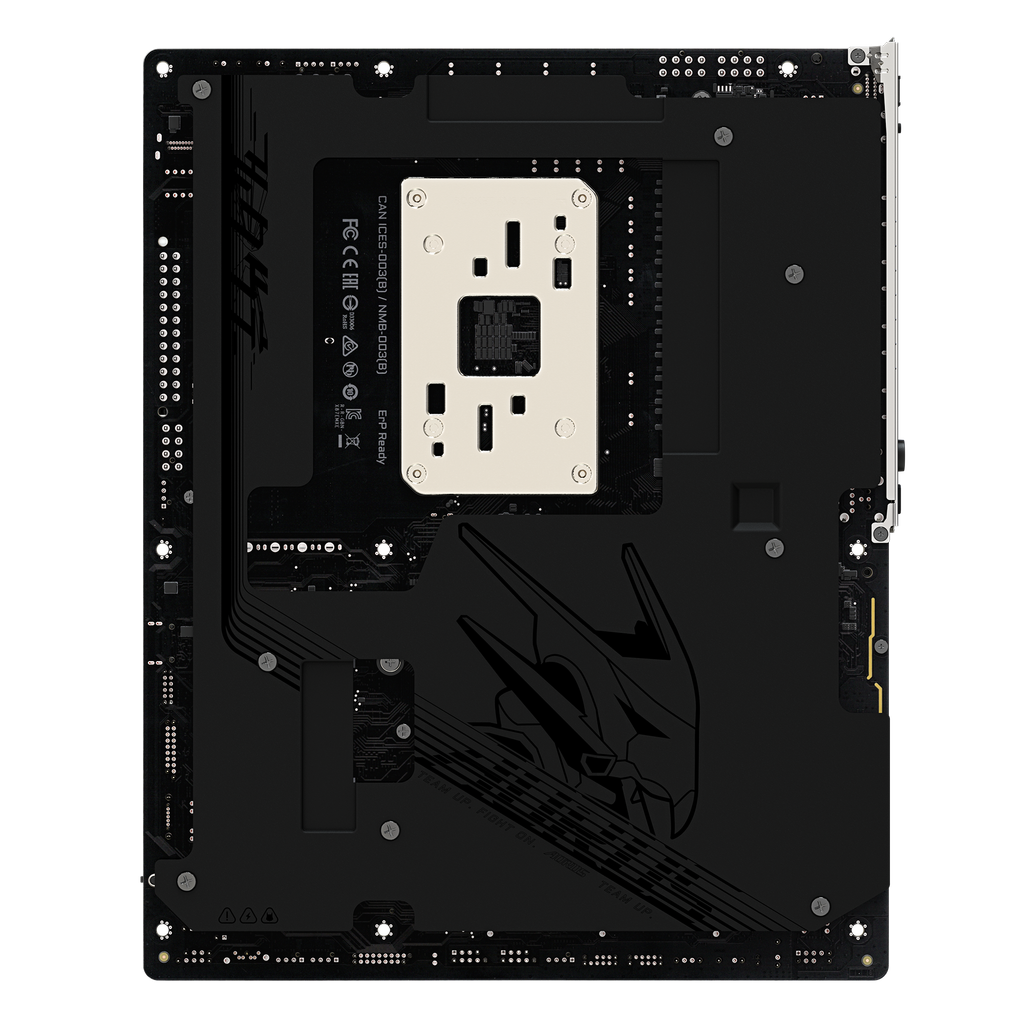

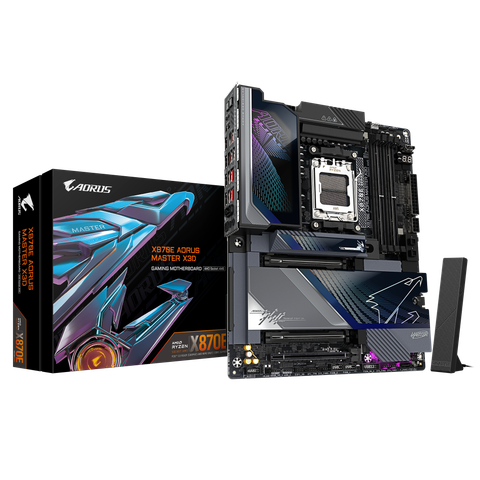

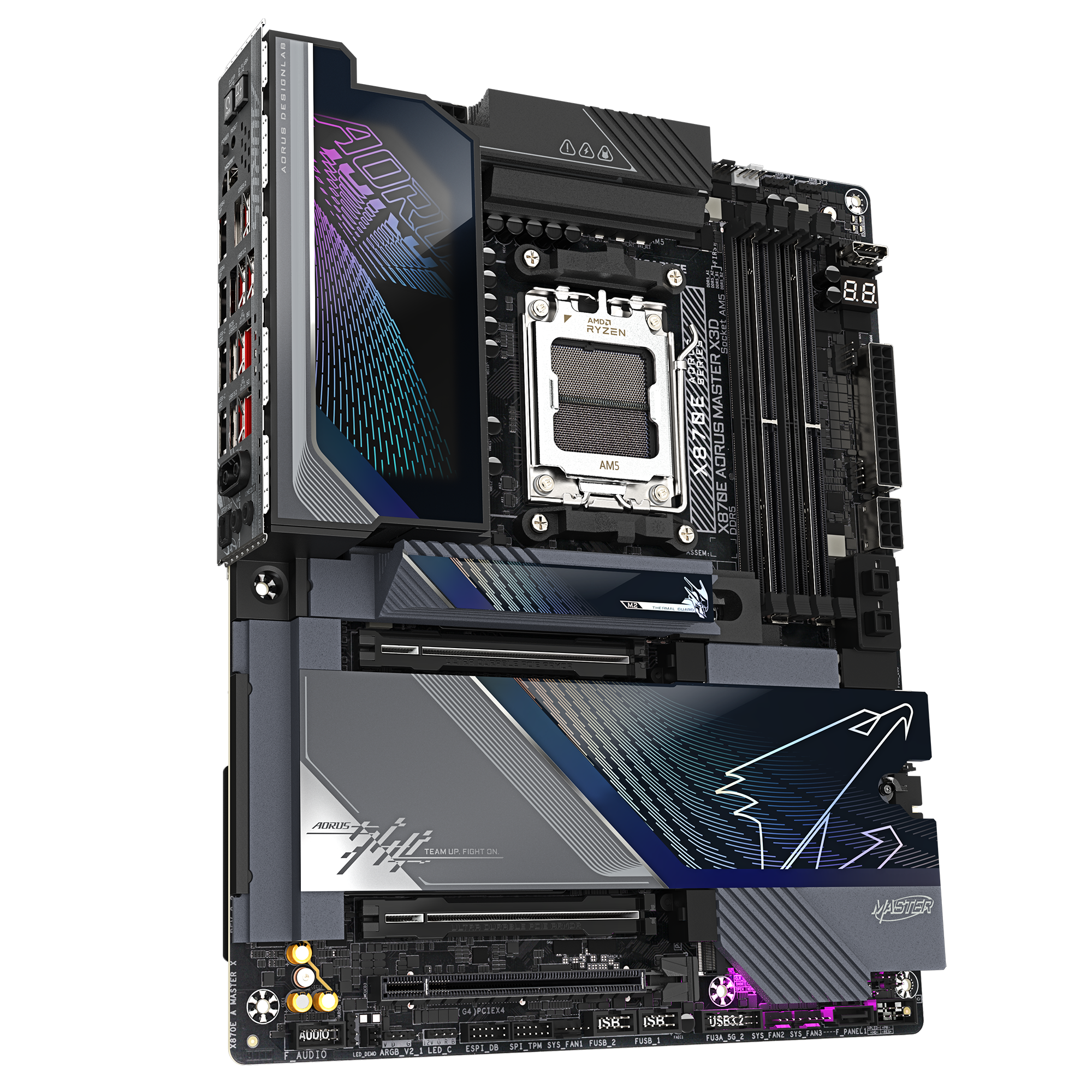

Mainboard X870E AORUS MASTER X3D ( BLack )

Mainboard X870E AORUS MASTER X3D – Tối ưu sức mạnh Ryzen X3D

GIGABYTE X870E AORUS MASTER X3D là bo mạch chủ cao cấp thuộc dòng AORUS, được thiết kế chuyên biệt để khai thác tối đa hiệu năng của các CPU AMD Ryzen X3D.

Với hệ thống VRM mạnh mẽ, hỗ trợ DDR5, PCIe 5.0 và loạt công nghệ hiện đại, đây là nền tảng lý tưởng cho các hệ thống gaming flagship và workstation cao cấp.

Điểm nổi bật của X870E AORUS MASTER X3D

• Tối ưu cho Ryzen X3D – khai thác tối đa hiệu năng gaming.
• Chipset X870E – nền tảng AMD cao cấp nhất.
• VRM cao cấp – cấp điện ổn định cho CPU mạnh.
• DDR5 – hỗ trợ RAM tốc độ cao.
• PCIe 5.0 – sẵn sàng cho GPU & SSD thế hệ mới.
• Kết nối hiện đại – USB4, WiFi, LAN tốc độ cao.

Hiệu năng tối ưu cho CPU X3D

• Tối ưu BIOS và thiết kế cho dòng Ryzen X3D.
• Giữ xung nhịp ổn định khi gaming.
• Tăng hiệu suất tổng thể hệ thống.

👉 Lựa chọn lý tưởng cho Ryzen 7/9 X3D.

Hệ thống VRM mạnh mẽ

• Thiết kế cấp điện cao cấp.
• Đáp ứng CPU đa nhân, hiệu năng cao.
• Ổn định khi tải nặng hoặc chạy lâu dài.

Hỗ trợ DDR5 tốc độ cao

• Tương thích RAM DDR5 mới nhất.
• Hỗ trợ xung cao, tối ưu hiệu năng.
• Phù hợp gaming và workload nặng.

PCIe 5.0 – Sẵn sàng cho tương lai

• Hỗ trợ GPU thế hệ mới.
• SSD NVMe tốc độ cao.
• Đảm bảo nâng cấp lâu dài.

Kết nối cao cấp

• USB4 – tốc độ truyền dữ liệu cực nhanh.
• WiFi – kết nối không dây hiện đại.
• LAN tốc độ cao – tối ưu gaming online.
• Nhiều cổng I/O phục vụ đa thiết bị.

Thiết kế AORUS – Cao cấp & bền bỉ

• Heatsink lớn, tản nhiệt hiệu quả.
• PCB chất lượng cao.
• Thiết kế mạnh mẽ, đậm chất gaming.

Phù hợp cho cấu hình nào?

• PC gaming flagship
• Ryzen 7/9 X3D
• Workstation cao cấp
• Build lâu dài, nâng cấp mạnh

Lưu ý khi sử dụng

• Nên dùng RAM DDR5 chất lượng cao.
• Kết hợp PSU tốt cho hệ thống high-end.
• Cập nhật BIOS để tối ưu CPU X3D.

Thông số kỹ thuật (tóm tắt)

Câu hỏi thường gặp (FAQ)

• Main này có phù hợp CPU X3D không?
  Rất phù hợp, được tối ưu riêng cho dòng X3D.
• Có cần RAM DDR5 cao cấp không?
  Nên dùng RAM tốc độ cao để tối ưu hiệu năng.
• Main này có future-proof không?
  Có, hỗ trợ PCIe 5.0 và nền tảng mới.

Kết luận

X870E AORUS MASTER X3D là bo mạch chủ cao cấp dành cho người dùng cần hiệu năng tối đa, độ ổn định cao và khả năng nâng cấp lâu dài. Đây là nền tảng hoàn hảo cho các hệ thống PC gaming và workstation hàng đầu.

Liên hệ tư vấn & đặt hàng tại Hotgear

Hotgear chuyên mainboard cao cấp, linh kiện PC và build cấu hình theo nhu cầu thực tế.

• CPU

• AMD Socket AM5, support for:
  AMD Ryzen™ 9000 Series Processors/
  AMD Ryzen™ 8000 Series Processors/
  AMD Ryzen™ 7000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)

• Chipset

• AMD X870E

• Memory

• Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
  - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

  * Support for DisplayPort 1.4 version and HDR.


  Integrated Graphics Processor with AMD Radeon™ Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

  * Support for HDMI 1.4 version.


  (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek® ALC1220 CODEC

  * The front panel line out jack supports DSD audio.


  ESS ES9118 DAC chip
  Support for DTS:X® Ultra
  High Definition Audio
  2/4/5.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

• LAN

• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
  Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

• Wireless Communication module

• MediaTek Wi-Fi 7 MT7927, RZ738
  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 320MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
  *** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

• Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode

  * The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.


  Chipset:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

• Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

  * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth.
  When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.


  2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
  2 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.


  RAID 0 and RAID 1 support for SATA storage devices

• USB

• CPU+ASMedia USB4® controller:
  - 2 x USB4® USB Type-C® ports on the back panel
  CPU:
  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  Chipset+USB 3.2 Gen 1 Hub:
  - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  Chipset:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)

  * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors."


  - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x PCIe power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  4 x system fan headers
  1 x system fan extension cable header (can extend three system fan headers through one cable)
  1 x system fan/water cooling pump header
  4 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  5 x M.2 Socket 3 connectors
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x speaker header
  1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  2 x USB 3.2 Gen 1 headers
  2 x USB 2.0/1.1 headers
  1 x noise detection header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x HDMI port (Note)
  1 x chassis intrusion header
  1 x reset jumper
  1 x Clear CMOS jumper
  2 x temperature sensor headers

  (Note) Actual support may vary by CPU.

• Back Panel Connectors

• 1 x Q-Flash Plus button
  1 x Clear CMOS button
  1 x reset button
  1 x power button
  1 x HDMI port (Note)
  2 x USB4® USB Type-C® ports (DisplayPorts (Note))
  1 x USB Type-C® port, with USB 3.2 Gen 2 support
  1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  7 x USB 3.2 Gen 2 Type-A ports (red)
  2 x RJ-45 ports
  2 x antenna connectors (2T2R)
  2 x audio jacks
  1 x optical S/PDIF Out connector

  (Note) Actual support may vary by CPU.

• I/O Controller

• iTE® I/O Controller Chip

• H/W Monitoring

• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


  Noise detection

• BIOS

• 1 x 512 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software

• Norton® Internet Security (OEM version)

• Operating System

• Support for Windows 11 64-bit

• Form Factor

• ATX Form Factor; 30.5cm x 24.4cm
