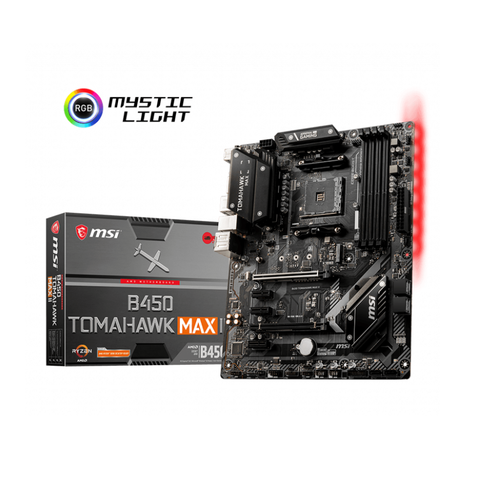

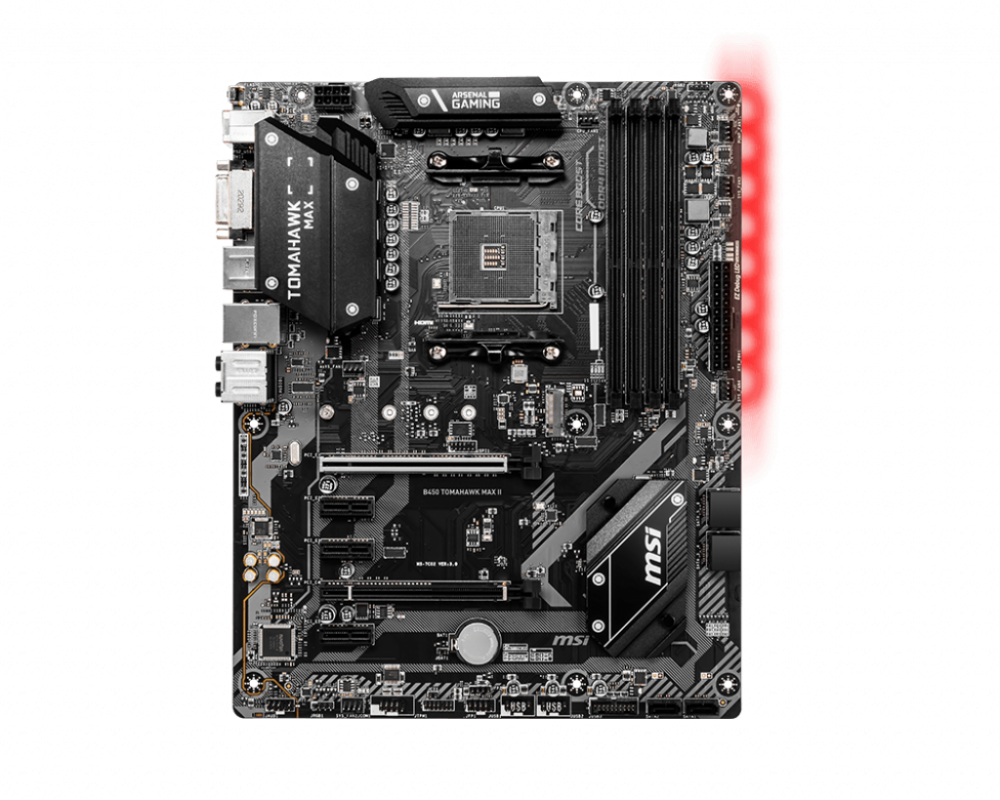

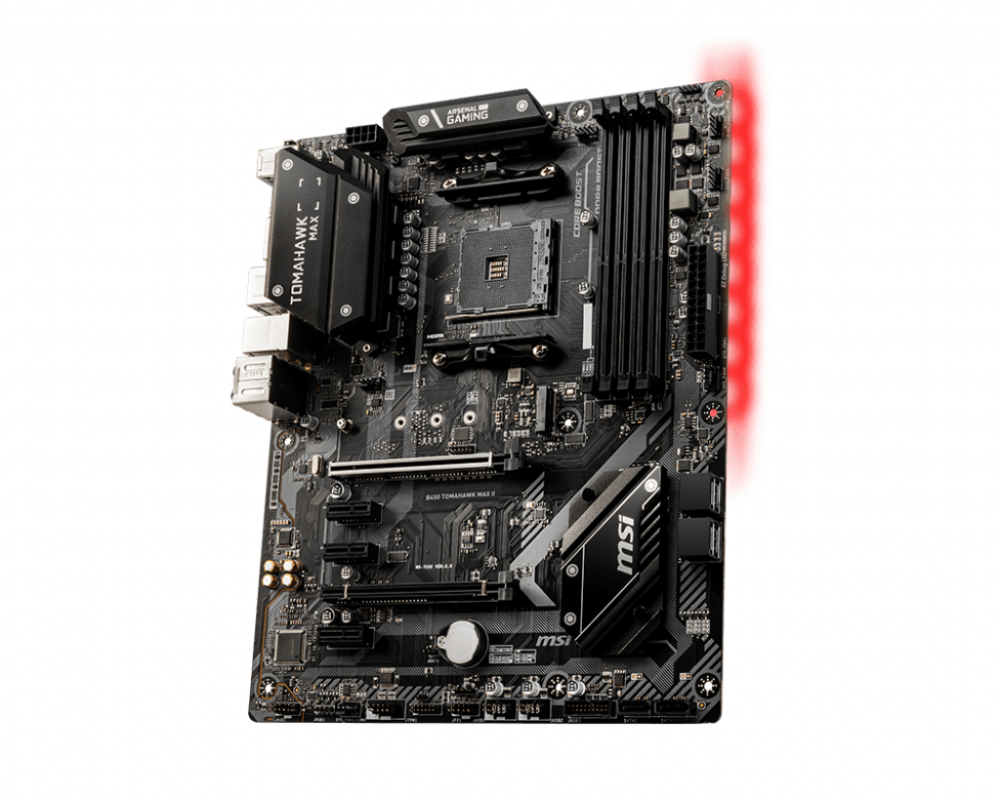

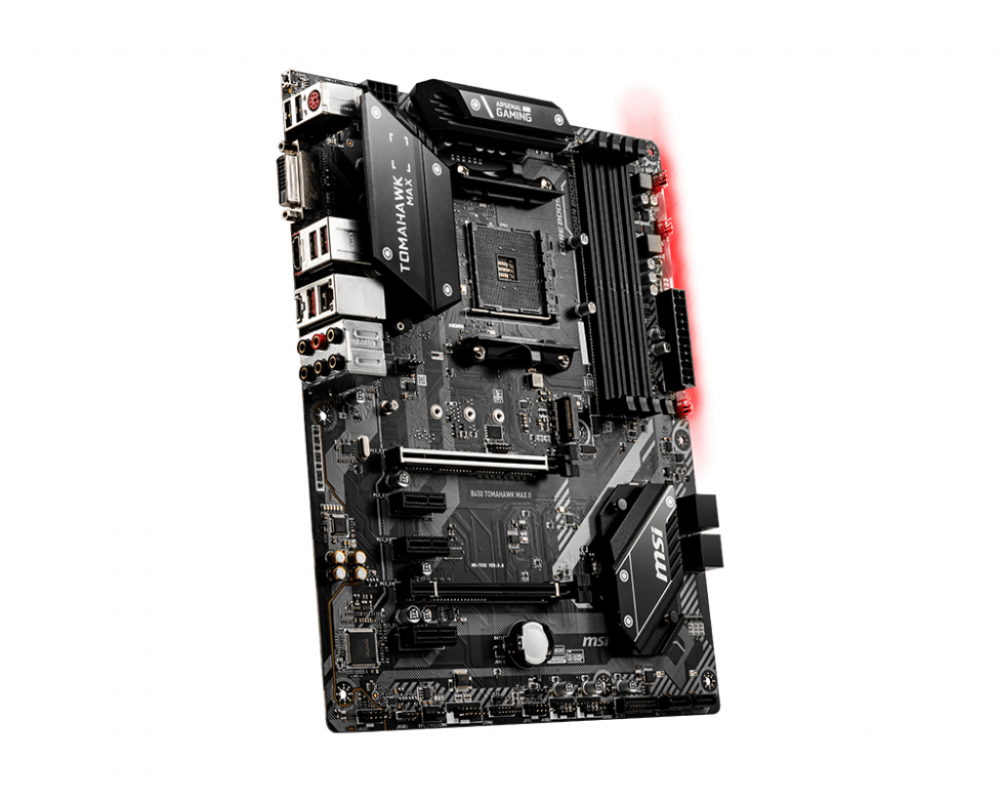

MSI B450 TOMAHAWK MAX II

Thương hiệu: MSI Mã sản phẩm: BH 36T
2,450,000₫ 2,799,000₫
-12%
(Tiết kiệm: 349,000₫)

MSI B450 TOMAHAWK MAX II KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

ĐẶC ĐIỂM NỔI BẬT

Thông tin sản phẩm

Bảo hành: 36 tháng
Hãng sản xuất: MSI

Mô tả sản phẩm

PROCESSOR

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

CHIPSET

AMD® B450 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
    • For AMD Other CPU
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)

See supported memory

SLOTS

  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
  • 3 x PCIe 2.0 x1 slots
  • PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.

ONBOARD GRAPHICS

  • 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
  • 1 x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160@60Hz
  • Maximum shared memory of 16GB
  • Only available when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors.
  • Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® CPU

  • 2 x SATA 6Gb/s ports1
  • 1 x M.2 slot (Key M)1
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
    • Supports 2242/ 2260 /2280/ 22110 storage devices

AMD® B450

  • 4 x SATA 6Gb/s ports
  • SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID

AMD® B450

  • Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB

AMD® B450

  • 1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel
  • 1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Serial Port connector
  • 1 x Clear CMOS jumper
  • 2 x 5050 RGB LED strip 12V connectors

BACK PANEL PORTS

  1. Flash BIOS Button
  2. PS/2 Combo Port
  3. USB 3.2 Gen 1 5Gbps Type-A ports
  4. LAN Port
  5. HD Audio Connectors
  6. USB 2.0 Port
  7. DVI-D Port
  8. HDMI Port
  9. USB 3.2 Gen 2 10Gbps Type-A+C ports
MSI B450 TOMAHAWK MAX back panel ports

DIMENSIONS

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
