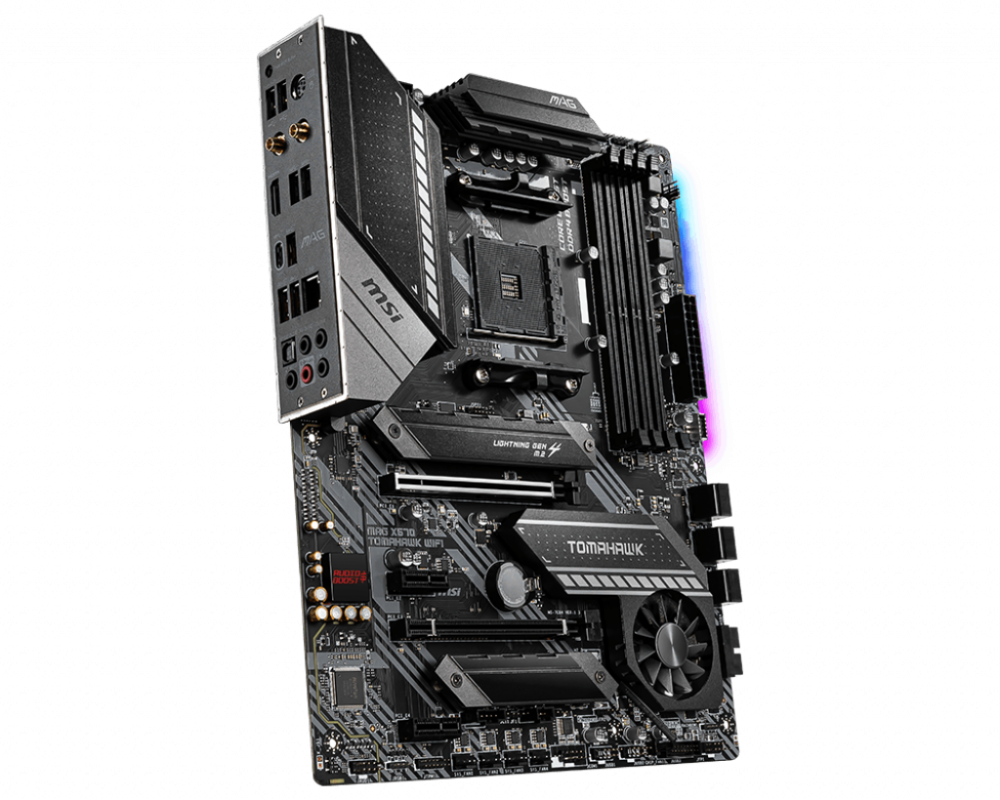

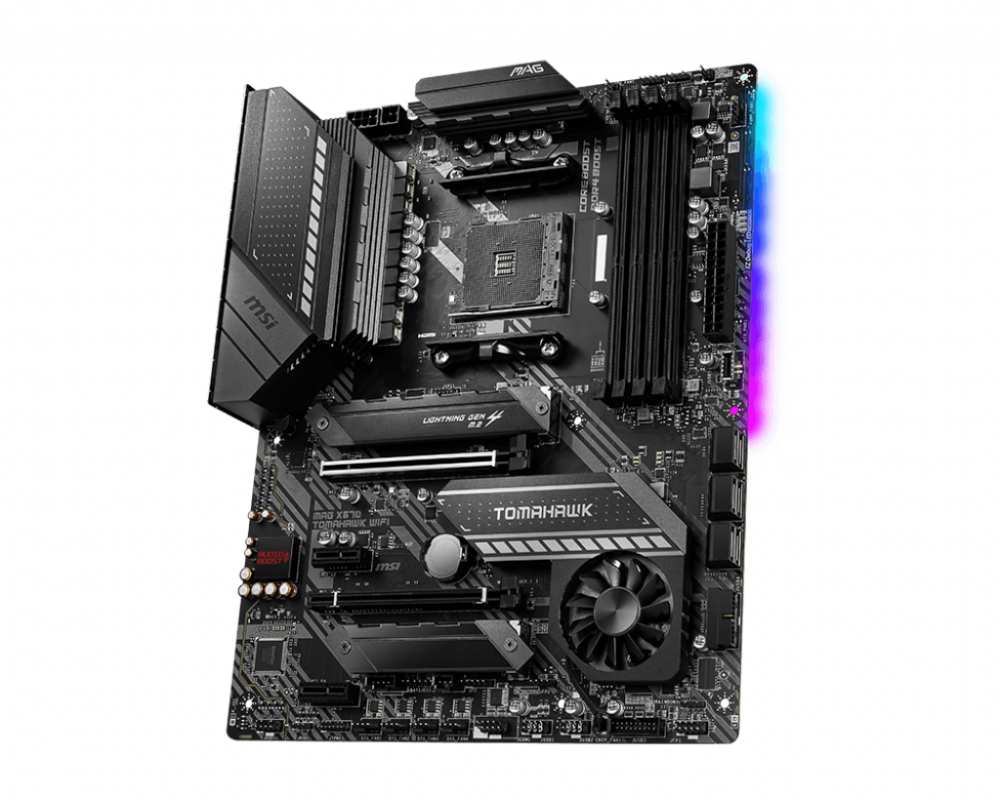

MSI MAG X570 Tomahawk WiFi

Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD^® X570 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB ¹
  • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
  • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

Expansion Slots

• 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
  • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
  • 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
  • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
• 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
• 2x PCIe 3.0 x1 slots

1. The speeds may vary for different devices

Onboard Graphics

• 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz ^1 2

1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
2. Maximum shared memory of 2048 MB

Multi-GPU

• Supports 2-Way AMD^® CrossFire™ Technology

LAN

• 1x Realtek^® 8125B 2.5Gbps LAN Controller

Wireless LAN & Bluetooth^®

Intel^® Wi-Fi 6 AX200

• Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
• Supports Bluetooth^® 5.1
• The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

Storage

• 6x SATA 6Gb/s ports (from AMD^® X570 Chipset)
• 2x M.2 slots (Key M) ¹
  • M2_1 slot (from AMD^® Processor)
    • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD^® X570 Chipset)
    • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices

1. The speeds may vary for different devices

RAID

• Supports RAID 0, RAID 1 and RAID 10

USB

AMD^® X570 Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
• 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD^® Processor

• 2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

Realtek^® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

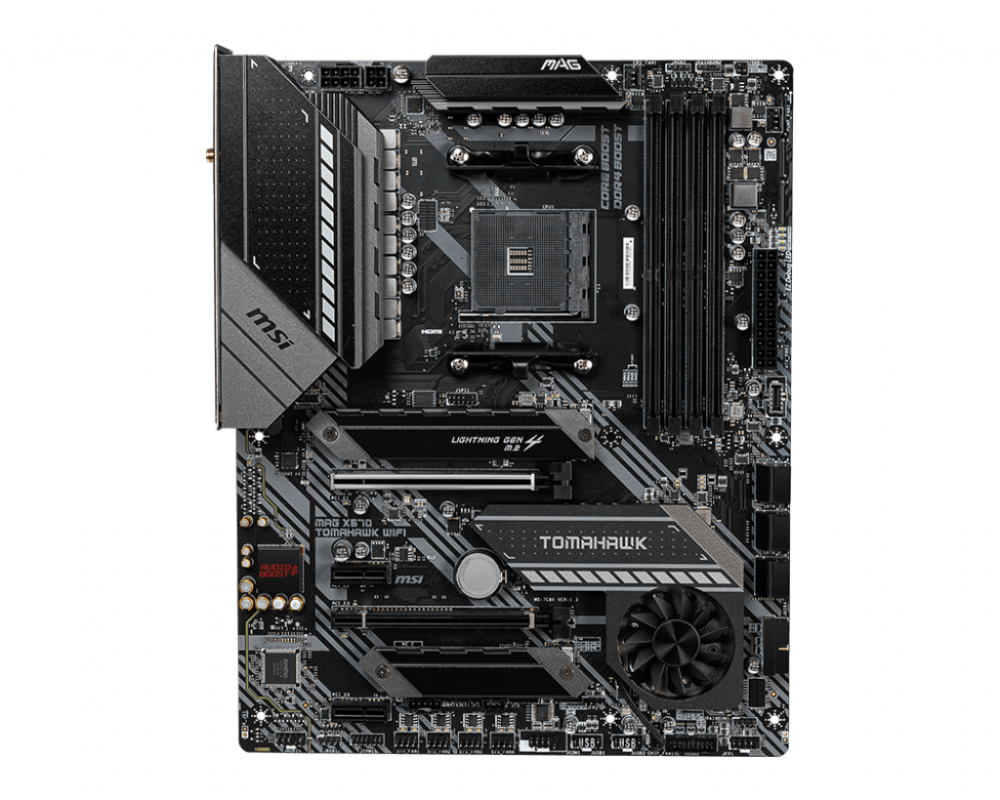

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 3.2 Gen 2 10Gbps Type-C Port
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Serial port connector
• 1x Clear CMOS jumper
• 1x Chassis Intrusion connector
• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LEDs

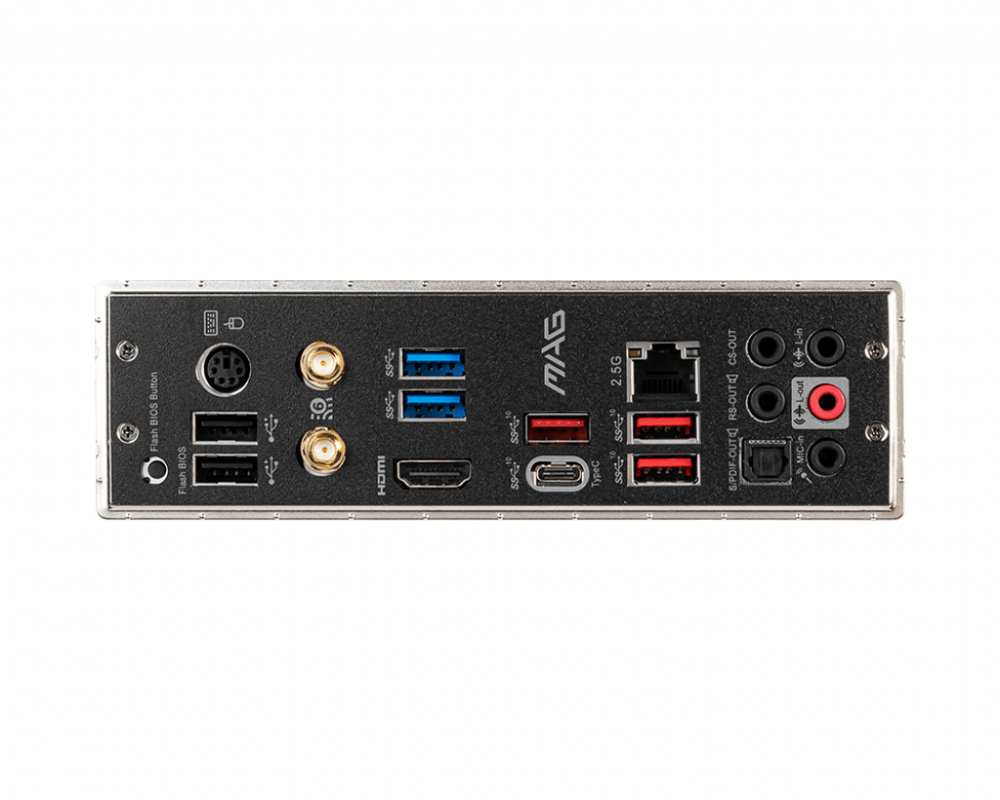

Back panel ports

I/O Controller

• NUVOTON NCT6797 Controller Chip

Hardware Monitor

• CPU/ System/ Chipset temperature detection
• CPU/ System/ Chipset fan speed detection
• CPU/ System/ Chipset fan speed control

BIOS Features

• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.1, SM BIOS 2.8
• Multi-language

Form Factor

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
