Model

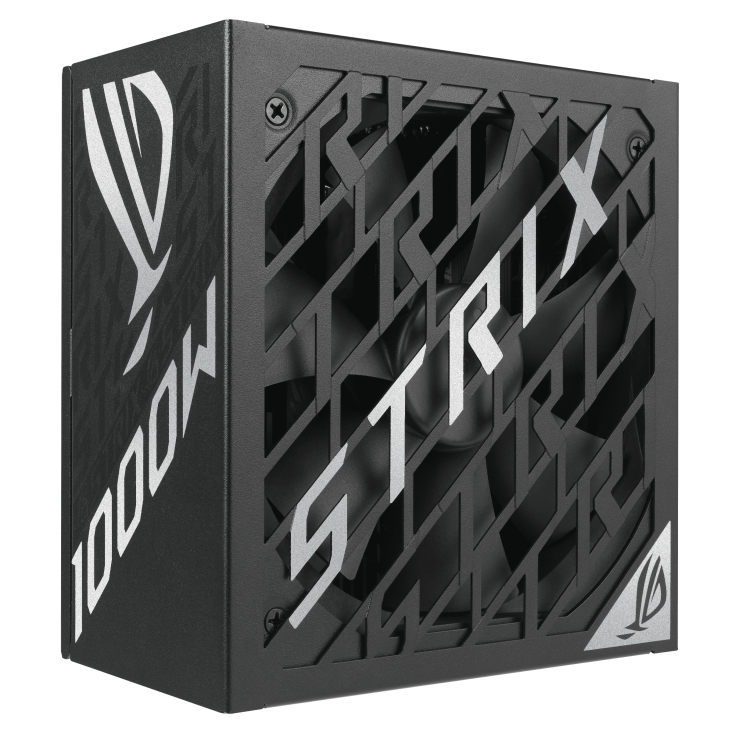

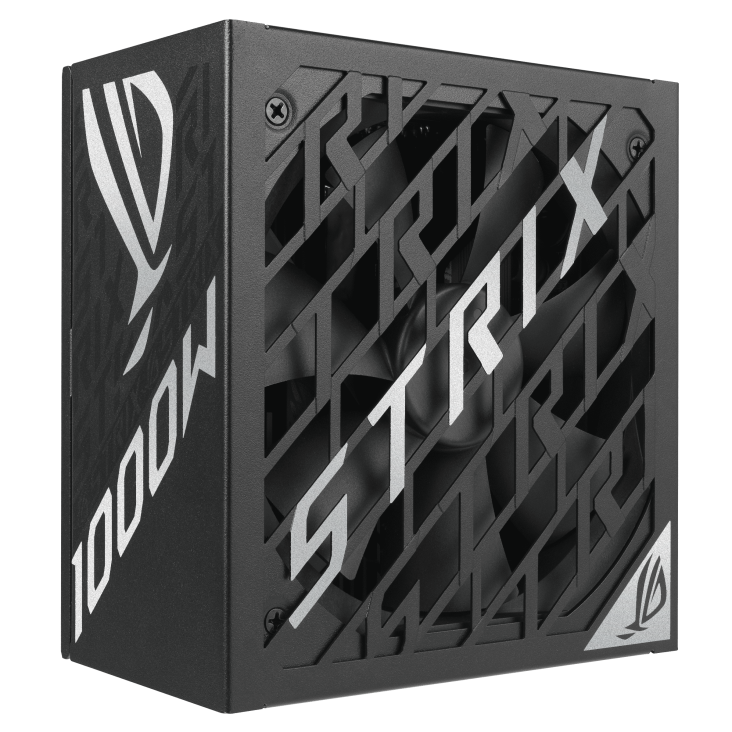

ROG Strix 1000W Platinum (ROG Equalizer)
Intel Form FactorATX12V
PFC TypeActive PFC
ATX StandardATX 3.1
Dimensions160 x 150 x 86 mm
Efficiency80Plus Platinum
MTBF>120,000 hrs @ 25°C
Protection FeaturesOPP/OVP/UVP/SCP/OCP/OTP
Hazardous MaterialsROHS

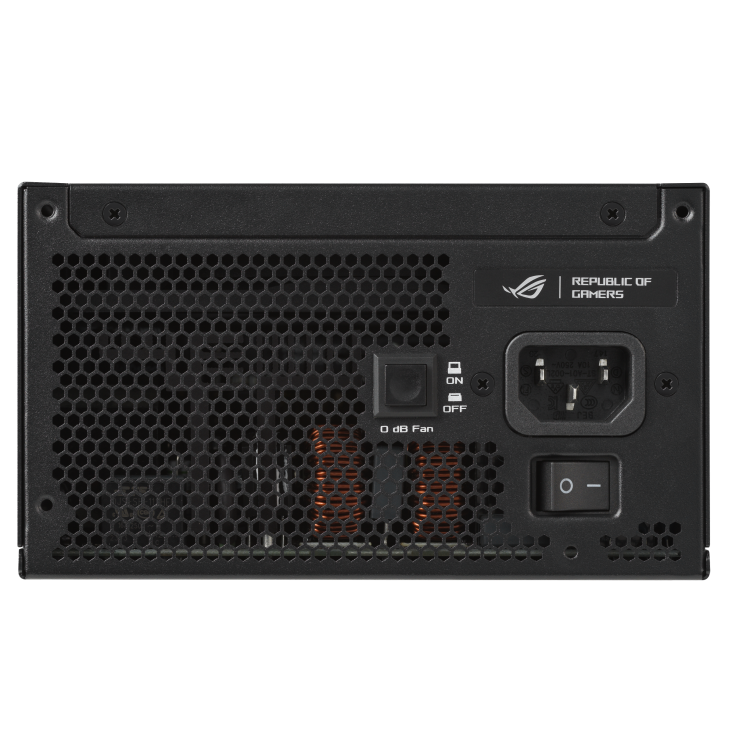

AC Input Range100-240Vac
DC Output Voltage+3.3V +5V +12V -12V +5Vsb
Maximum Load25A 25A 83.3A 0.3A 3A
Combined Load130W 130W 1000W 3.6W 15W
Total Output1000W

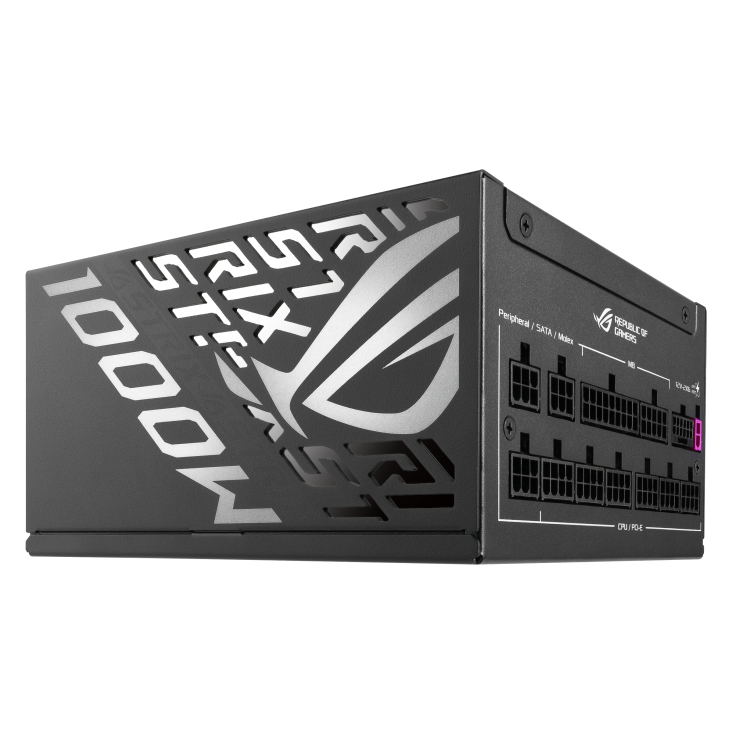

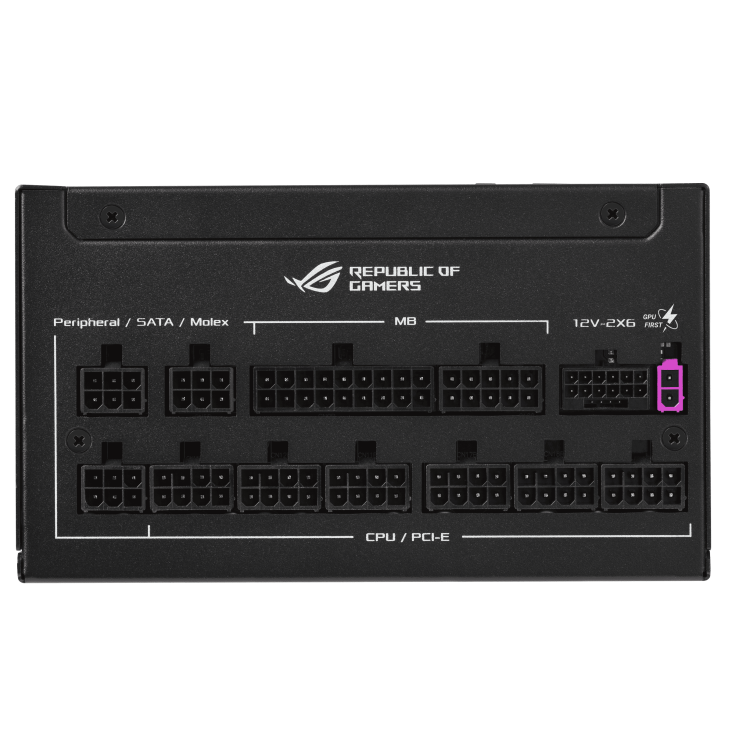

Cable ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x1 (12V-2x6)
PCI-E 6+2-pin x 4
SATA x 6
Peripheral x 3
Package ContentsPower Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
PCI-E (8-pin-to-6+2-pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
Weight1.81 kg (single PSU)
Cybenetics Noise Level CertificationA+
