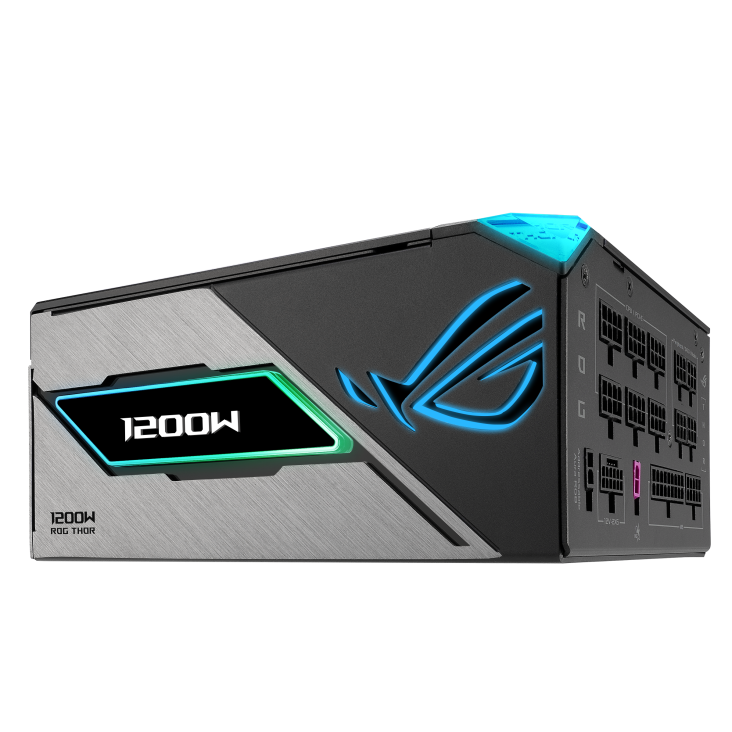

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
- ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
- 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
- 10-year warranty included.
Model
New
ROG Thor 1200W Platinum III
Intel Specification
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
30A 25A 100A 0.3A 3A
Combined Load
125W 125W 1200W 3.6W 15W
Total Output
1200W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5 16-pin Cable x 1 (750mm)
PCI-E Cable 1-to-1 x 4 (750mm)
SATA Cable 1-to-4 x 1 (400+120+120+120mm)
SATA Cable 1-to-3 x 1 (400+120+120mm)
Peripheral 1-to-3 x 2 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Weight
2.37 KG (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
TBD
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
