Intel Form Factor | ATX12V |
PFC Type | Active PFC |
ATX Standard | ATX 3.1 |
Dimensions | 190 x 150 x 86 mm |
Efficiency | 80Plus Platinum |
MTBF | >120,000 hrs @ 25°C |
Hazardous Materials | ROHS |
AC Input Range | 100-240Vac |
DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
Maximum Load | 30A 25A 100A 0.3A 3A |
Total Output | 1200W |

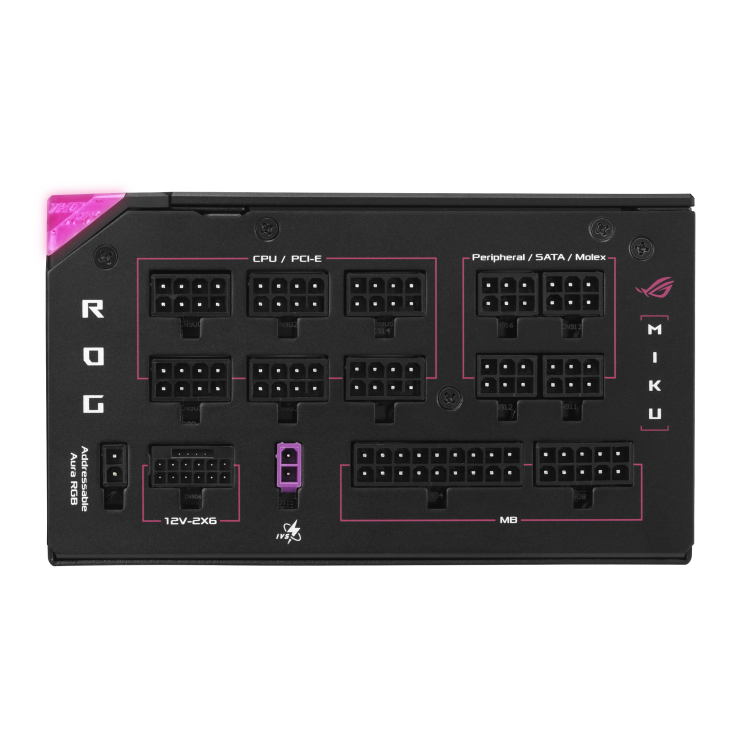

Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 4 SATA x 7 PERIPHERAL x 6 |
Package Contents | Power cord x 1 Motherboard power cable x 1 (610mm) CPU cable x 2 (1000mm) PCI-E Gen 5 16-pin cable x 1 (750mm) PCI-E cable 1-to-1 x 4 (750mm) SATA cable 1-to-4 x 1 (400+120+120+120mm) SATA cable 1-to-3 x 1 (400+120+120mm) Peripheral cable 1-to-3 x 2 (400+150+150mm) Addressable RGB cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis screws package x 1 Cable tie x 12 Thank you card x 1 User manual x 1 |
Weight | 2.37 KG (single PSU) |
AURA SYNC | ARGB |
Cybenetics Noise Level Certification | A++ |
0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |

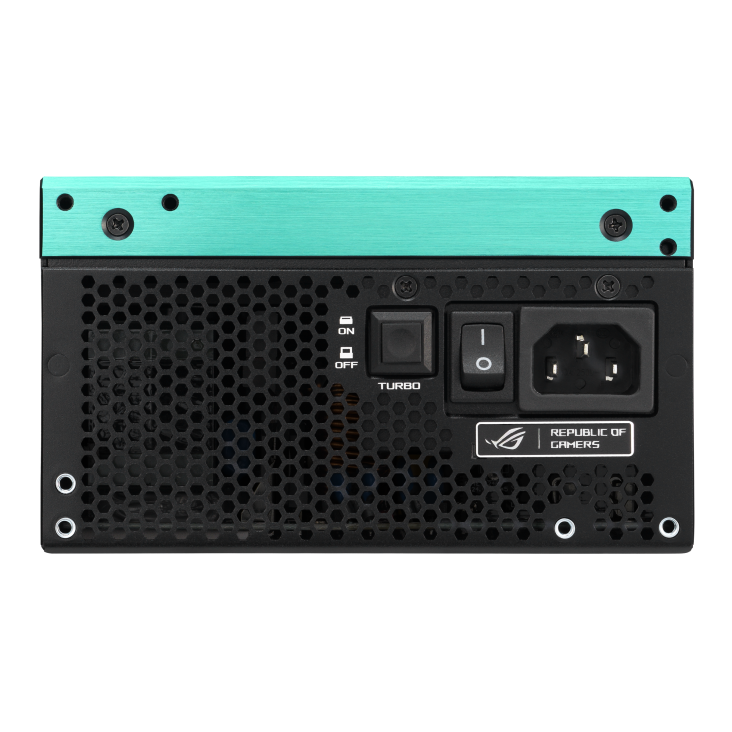

0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
