Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Titanium
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
220-240Vac｜115-240Vac｜100-115Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
30A 25A 250A 0.3A 3A｜30A 25A 133.3A 0.3A 3A｜30A 25A 108.3A 0.3A 3A
Combined Load
125W 125W 3000W 3.6W 15W｜125W 125W 1600W 3.6W 15W｜125W 125W 1300W 3.6W 15W
Total Output
3000W

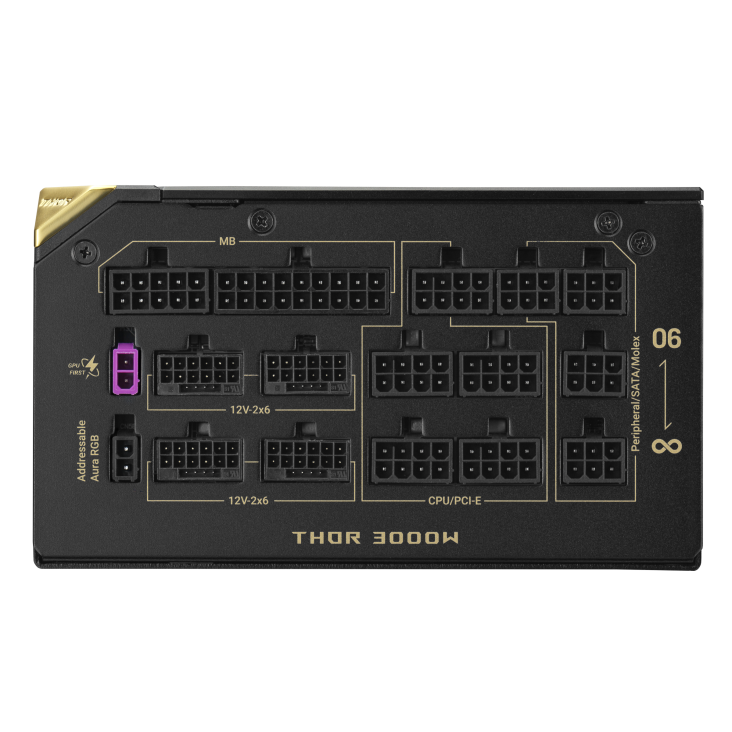

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 4 (12V-2x6/ROG EQUALIZER)
SATA x 9
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm)
PCI-E Cable 1-to-1 x 3 (750mm)
SATA Cable 1-to-3 x 3 (400+120+120mm)
Peripheral 1-to-3 x 1 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG OLED stand x 1
ROG 20TH Thank You Card x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Weight
2.5 kg (single PSU)
AURA SYNC
ARGB

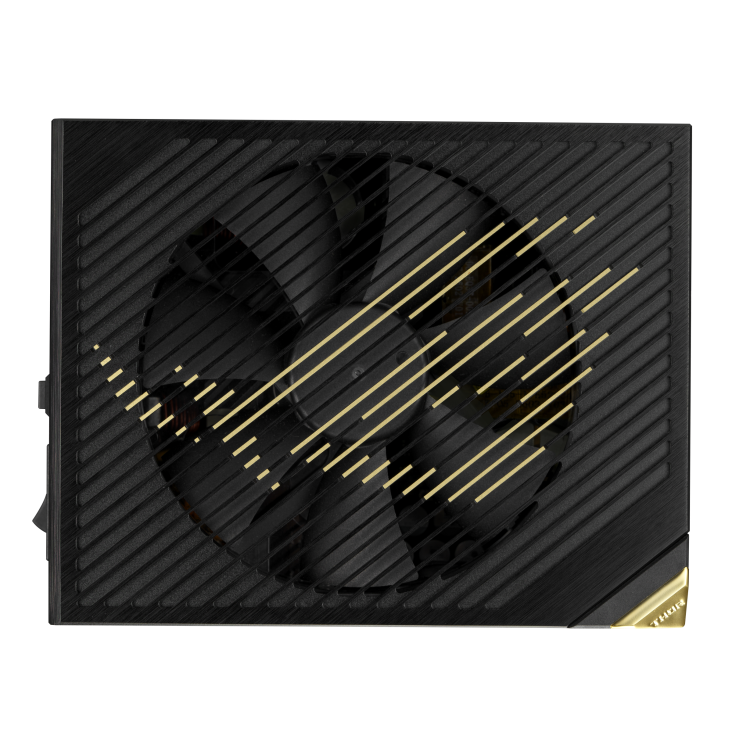

0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
