Specifications
General
Model No.
PH-P1200GH_WT01
UPC Code
886523510390
Materials
Steel | ABS plastic
Color
Black
Dimensions
Length x Width x Height
140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in
Power Output
1200 Watt
PCIe Gen5 Output
600 Watt
80 Plus
Platinum
Technical Details
DC Output Ratings

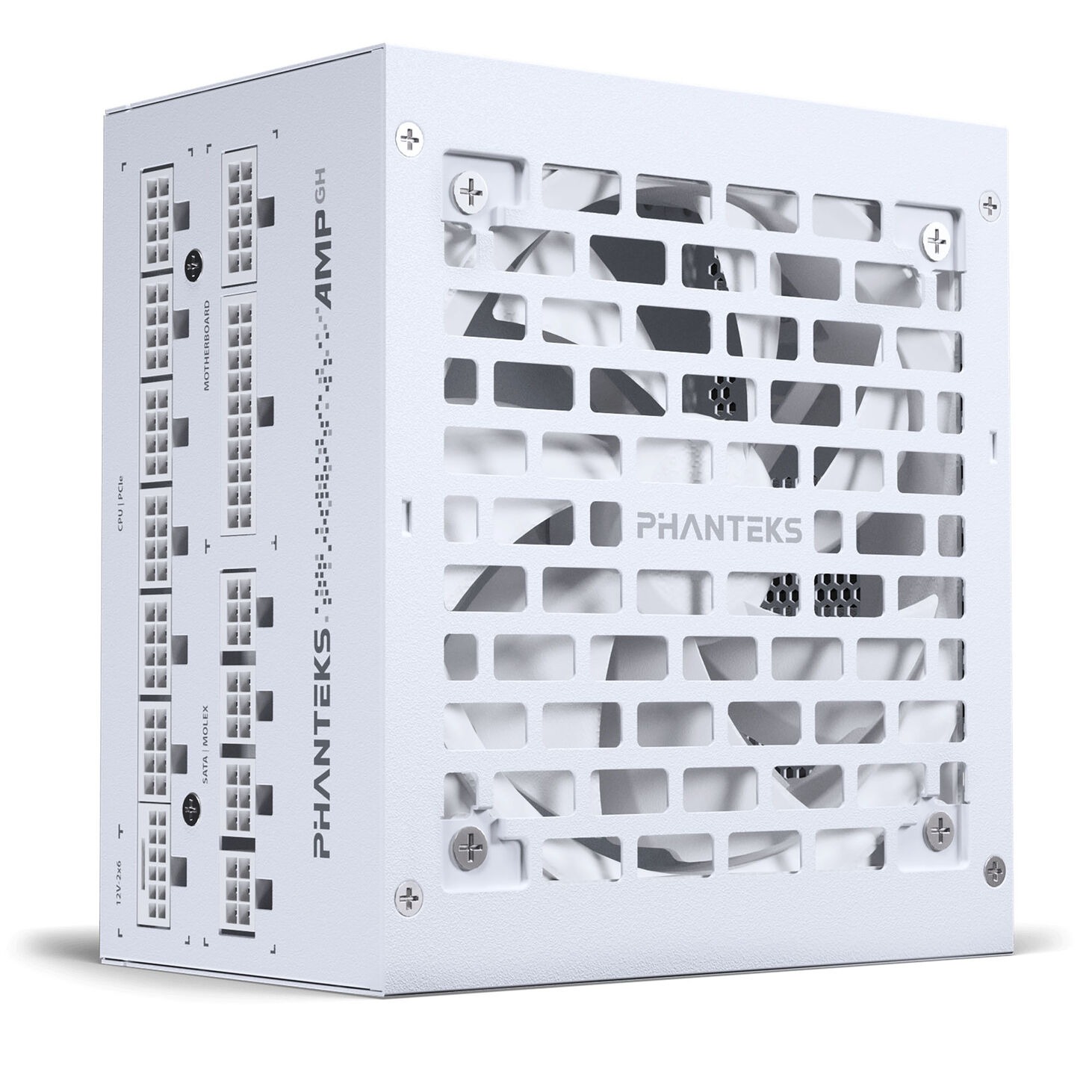

Cooling Fan
120 mm Hydraulic bearing fan
Back Plate
Fully Modular
MTFB
> 100.000 hrs at 25˚C (Excluding DC fan)
Platform
Intel ATX 3.1 | PCIe Gen5.1

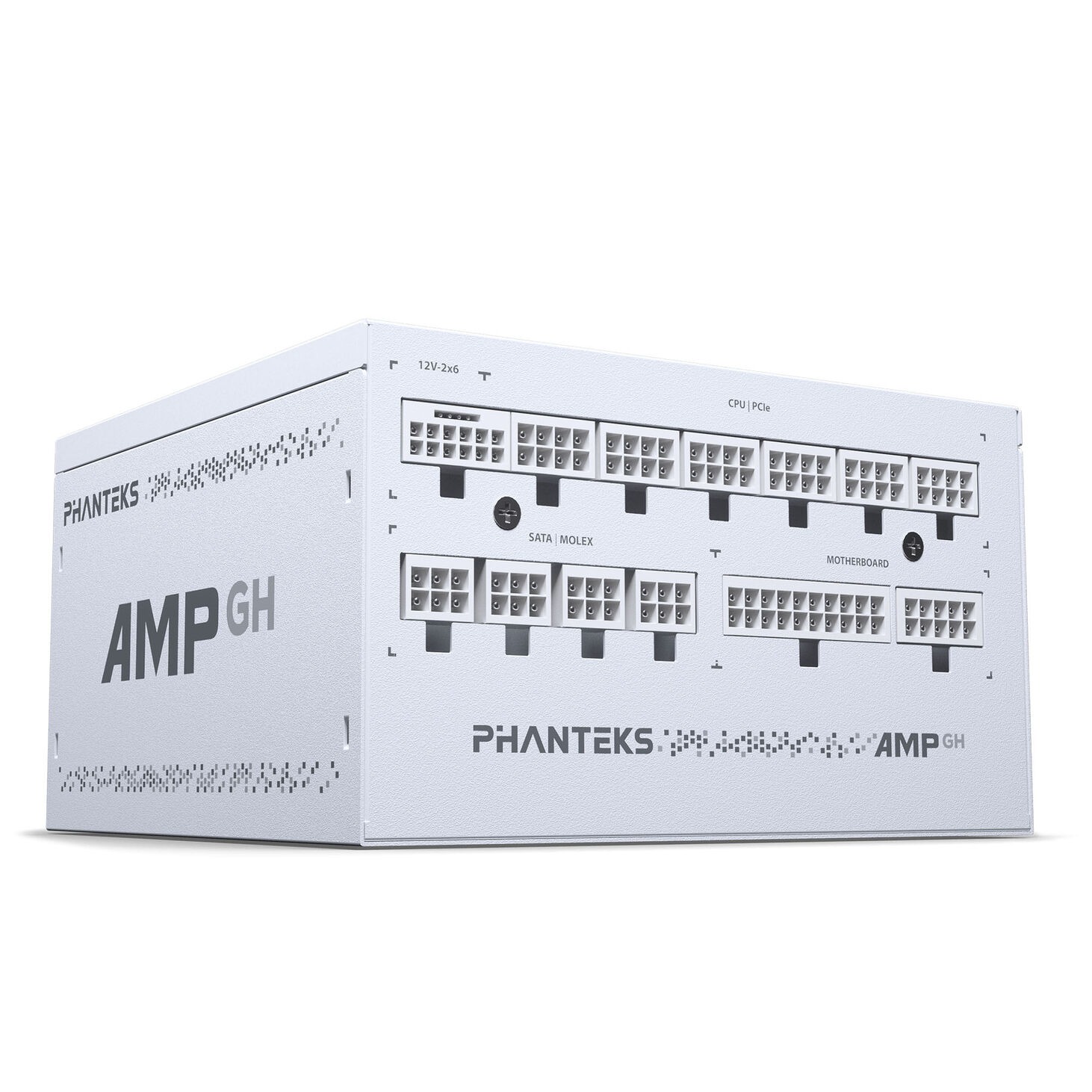

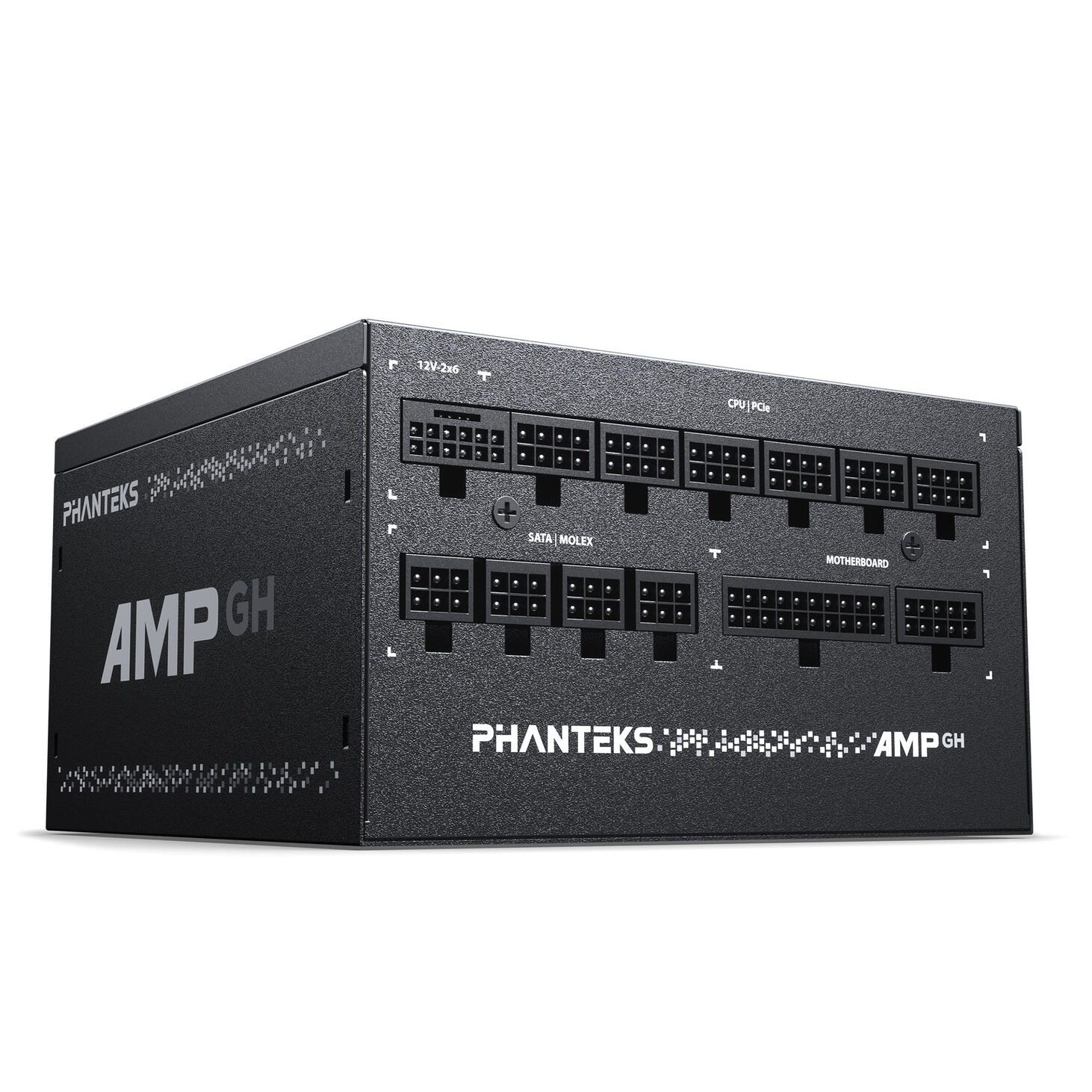

Power Supply Output Connectors
| 1x | Mainboard → 18+10 Pin |
| 6x | CPU | PCIe → 8 Pin |
| 4x | SATA | Molex → 6 Pin |
| 1x | 12V-2×6 → PCIe |
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
Extra
Net Weight
2.33 kg | 5.13 lbs
Gross Weight
3.81 kg | 8.39 lbs
Warranty
8 Years limited
Learn more
Scope of Delivery
1x AMD GH power supply unit
1x C13 Power cord 1500 mm

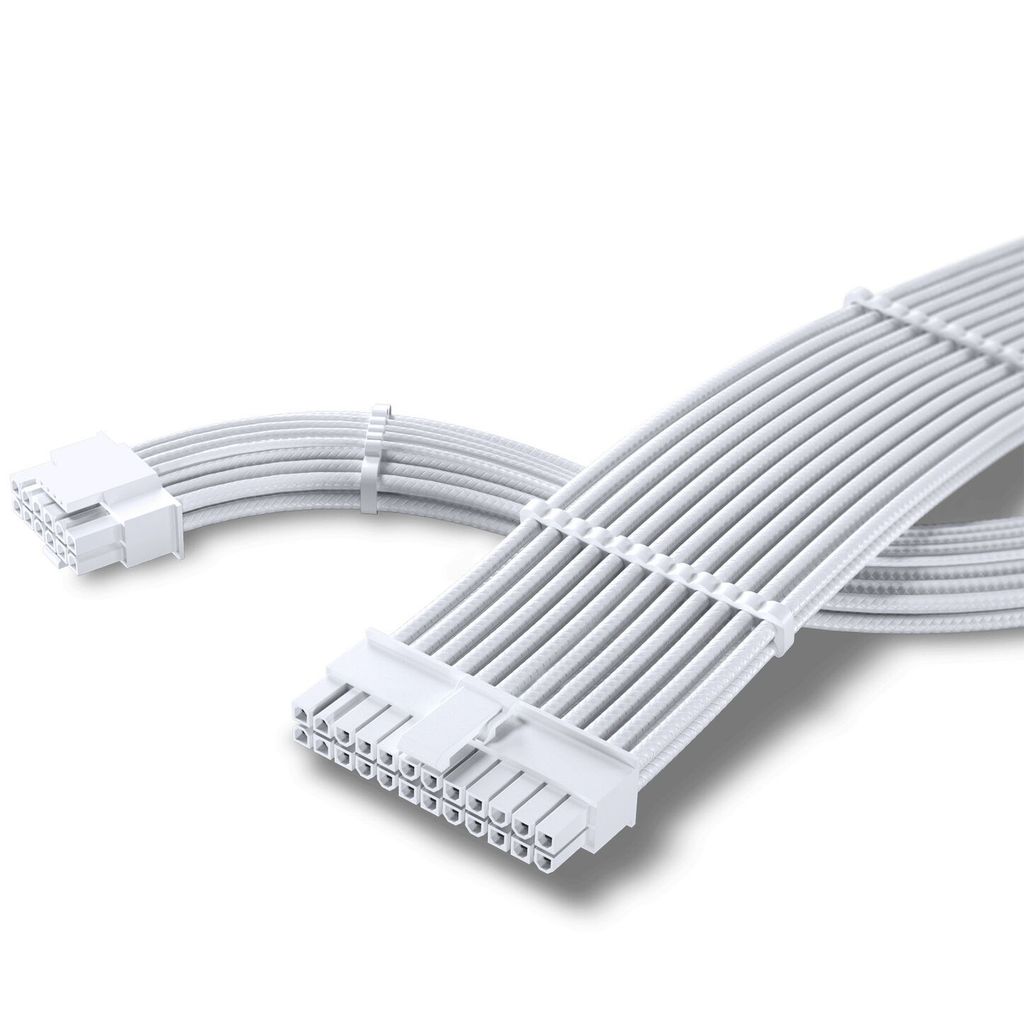

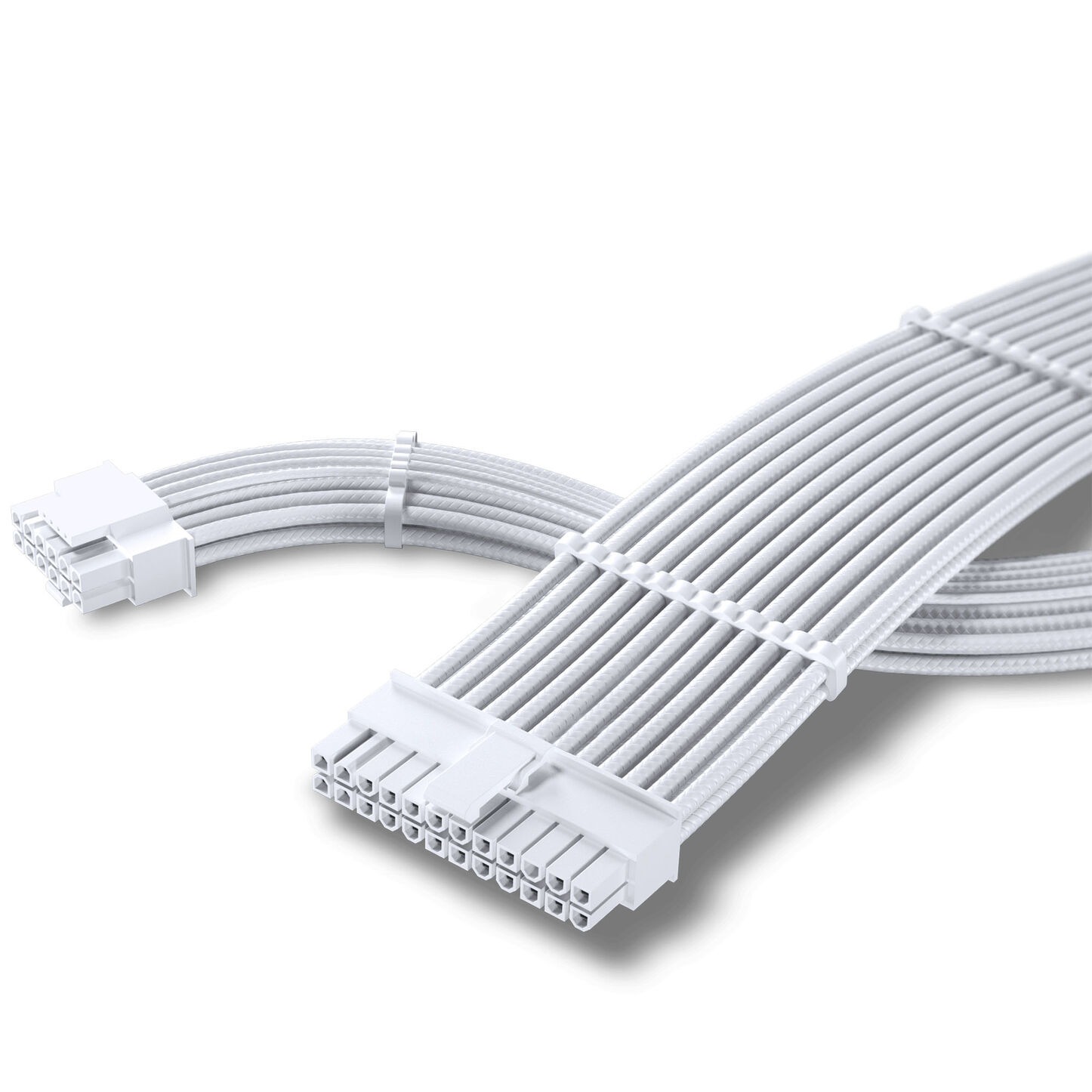

Cables
Textured
1x 18+10-Pin Mainboard 610 mm
2x 4+4-Pin CPU 650 mm
4x 6+2-Pin PCI-E 750 mm
1x 12V-2×6 720 mm
2x 6-Pin 4-SATA 450 – 150 | 150 | 150 mm
1x 6-Pin 2-SATA + 2-Molex 450 – 150 | 150 | 150 mm
Accessory Box
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
1x Installation guide
