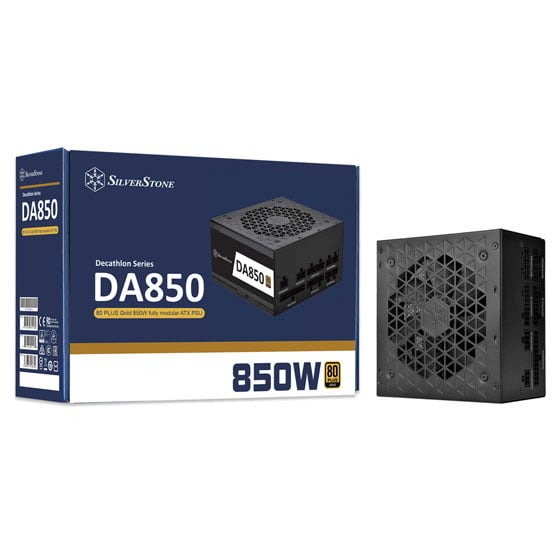

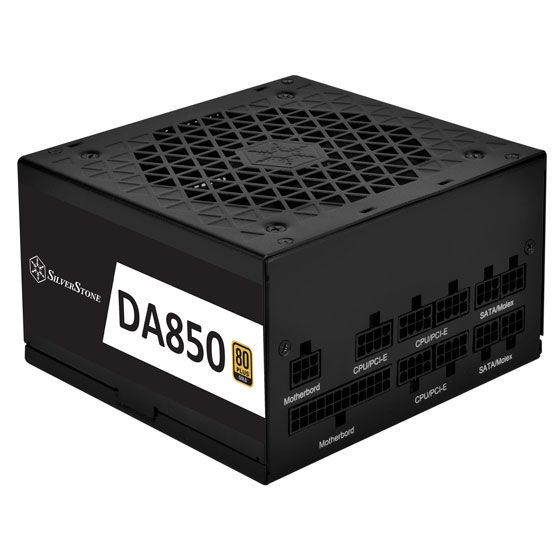

DA850 Gold
80 PLUS Gold 850W fully modular ATX power supply
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm FDB fan with 18 dBA minimum
- Japanese electrolytic capacitors
- Specially designed cover designed to effectively dissipate the residual heat
- Compact design with a 140mm depth for easy integration
- Strict ±3% voltage regulation and low ripple & noise
- Product Specifications
- File Download
- Recommended Products
- Product Reviews
- Q & A
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Japanese electrolytic capacitors
Specially designed cover designed to effectively dissipate the residual heat
Advanced protections for safety and security
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection
Product Specifications
Product No.
SST-DA850-G
Model (safety certification)
SST-AX0850MCGD-A
Color
black (lead-free paint)
Max. DC Output
850W
Power density
471W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 70.5A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | 3.0A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±3% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 40mV | 30mV | 40mV |
Combined +3.3V & +5V
110W
Combined +12V
846W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0 ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (600mm)
2 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 2)
2 x 8 / 6-Pin PCIe connector ("650mm / 150mm" x 3)
8 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2)
6 x 4-Pin Peripheral connector + 2 x 4-Pin Floppy adapter connector ("600mm / 150mm / 150mm / 150mm" x 2)
Cooling System
Silent 120mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.46 kg
Other
GPU Support list
Compatible with ATX12V v2.4
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
