| P/N | PS-TPD-1200FNFAGx-H |
| WATTS | 1200W |
| MODEL | TTP-1200AH2FKG |
| MAX. OUTPUT CAPACITY | 1200W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 15A Max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |

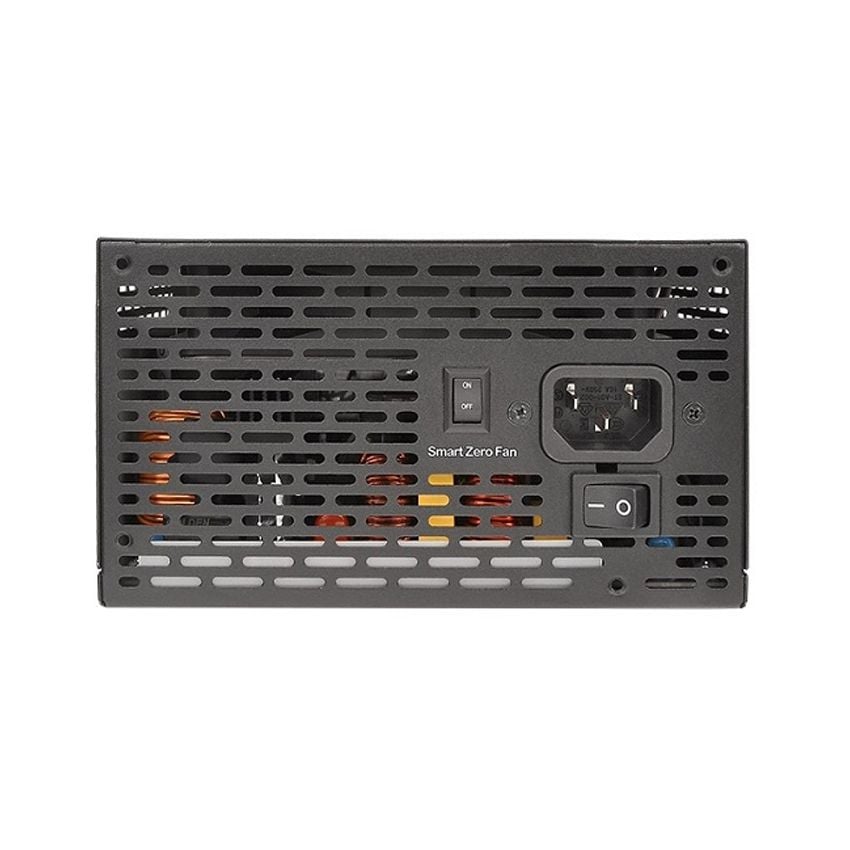

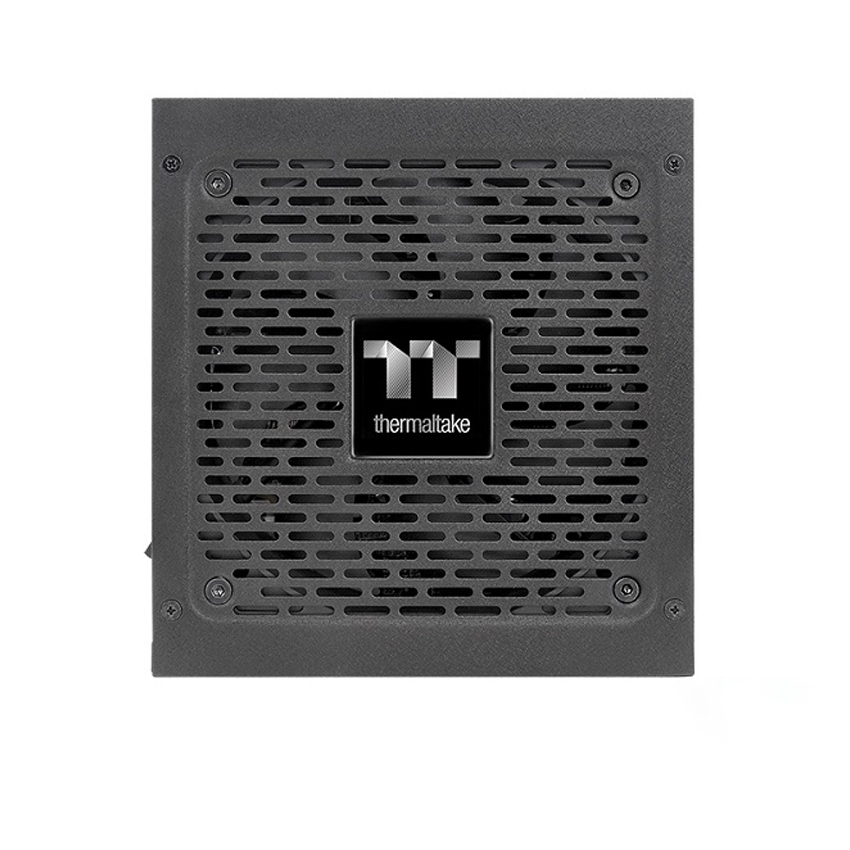

| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |

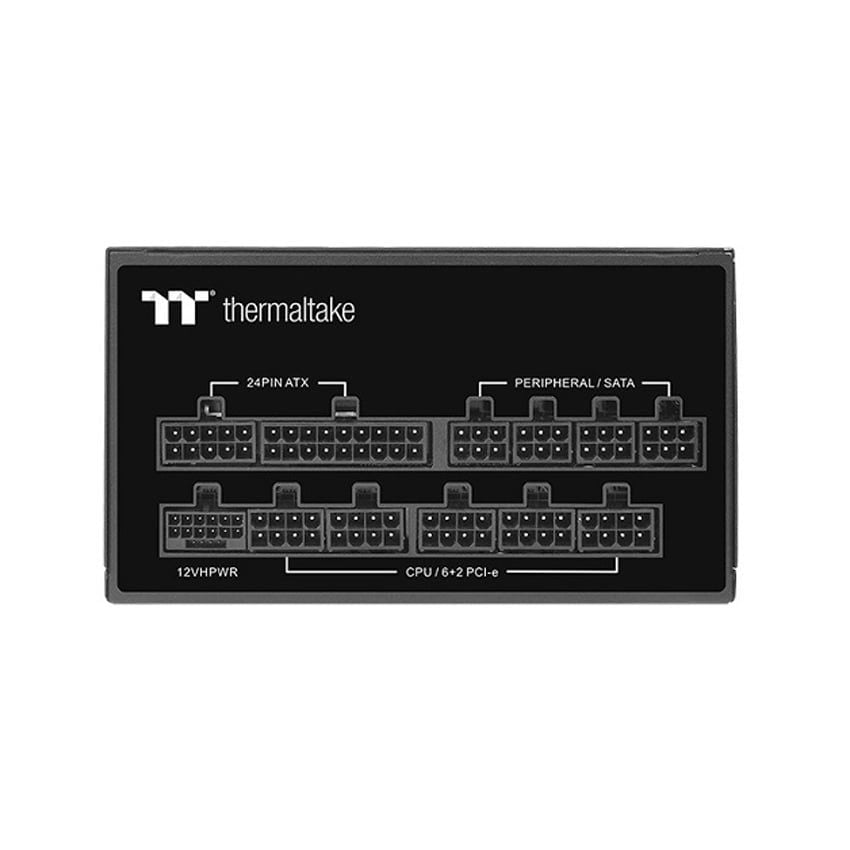

| PCI-E 6+2PIN | 5 |
| PCIE 12+4PIN | 1(600W) |
