Thông tin sản phẩm
NEW chính hãng
Bảo hành: 36 Tháng
Hãng sản xuất: Supermicro

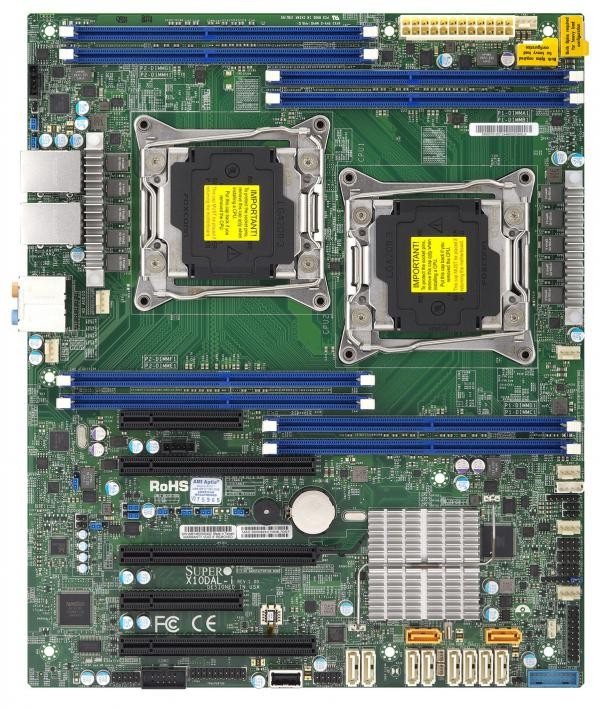

FEATURES
- Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
- Intel® C612 chipset
- Up to 512GB LRDIMM / 256GB RDIMM ECC DDR4 2133MHz; 8x DIMM slots
- 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x4 (in x8), 1x PCI-E 2.0 x4 (in x8) slot
- Intel® i210 Dual port GbE LAN
- 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
- 6x USB 3.0 (4 rear, 2 via header) 3x USB 2.0 (2 via header, 1 Type A)
- 7.1 HD Audio with optical S/PDIF
- Thunderbolt Add-On Card support
SPECIFICATIONS
| Product SKUs | |
| MBD-X10DAL-i -B | X10DAL-i (Bulk Pack) |
| MBD-X10DAL-i -O | X10DAL-i (Retail Pack) |
| Physical Stats | |
| Form Factor | ATX |
| Dimensions | 12" x 10", (30.5cm x 25.4cm) |
| Processor/Cache | |
| CPU |
|
| Cores / Cache | Up to 18 Cores / Up to 45MB Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
|
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices | |
| Chipset | Intel® C612 chipset |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers |
|
| Input / Output | |
| SATA | 10x SATA3 (6Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| USB |
|
| Audio | 7.1 HD Audio with optical S/PDIF |
| Serial Port / Header | 1x COM Port (1 header) |
| DOM | 2x SuperDOM (Disk on Module) ports |
| TPM | 1x TPM 1.2 20-pin Header |
