Key Features
5.0-Inch HD Display
Max Noise Level
KANALI Software Center
Native Processing

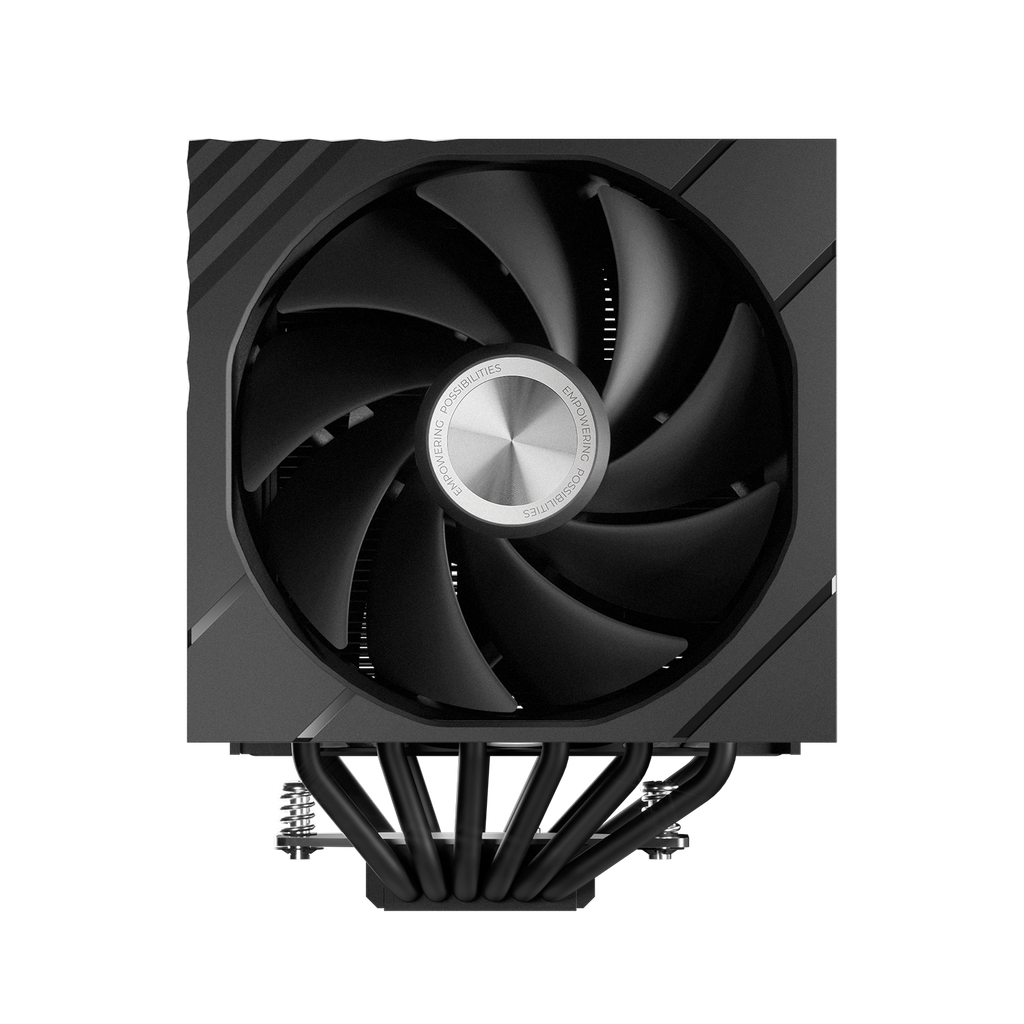

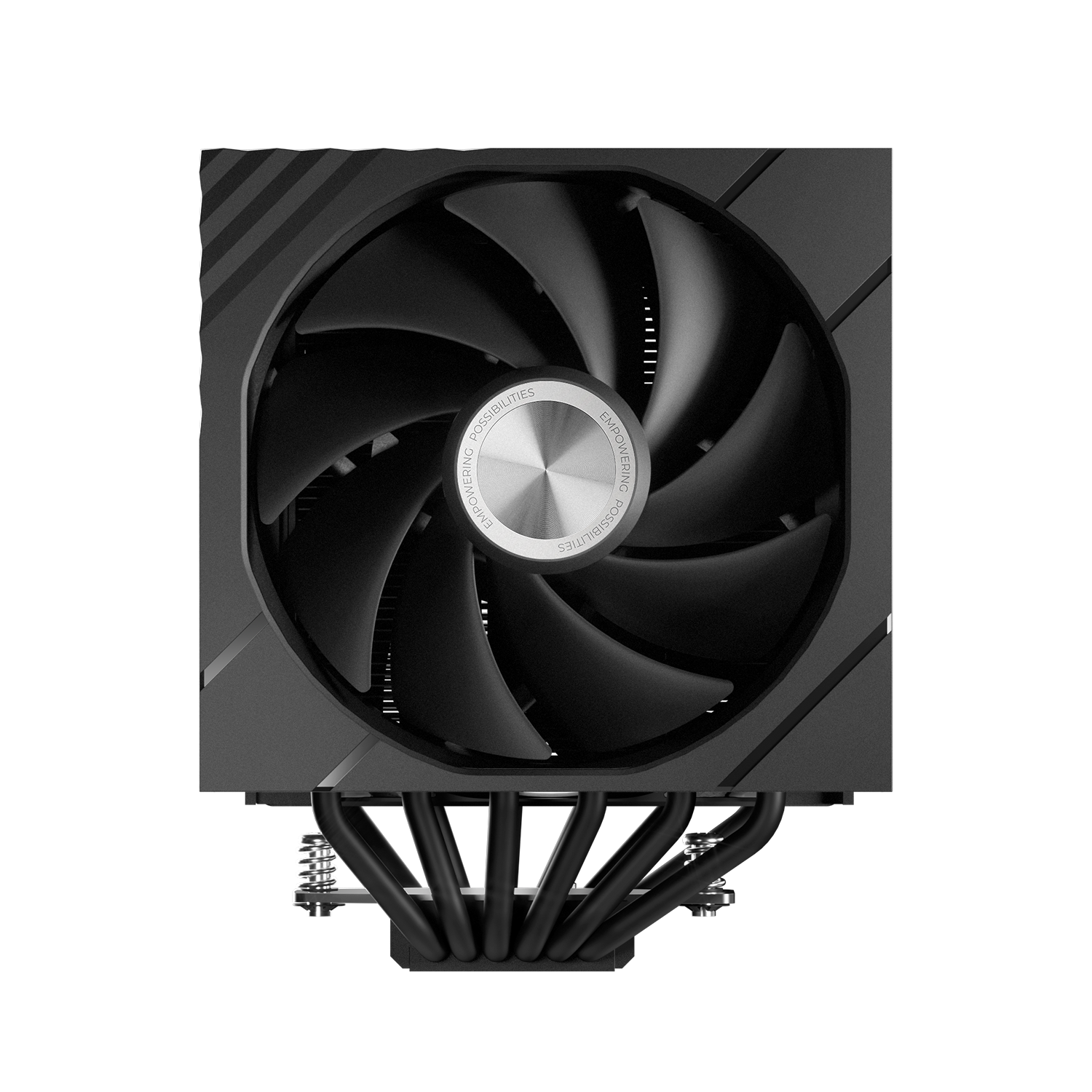

Rail-Mounted ROTA Fans
Void-Free Soldering

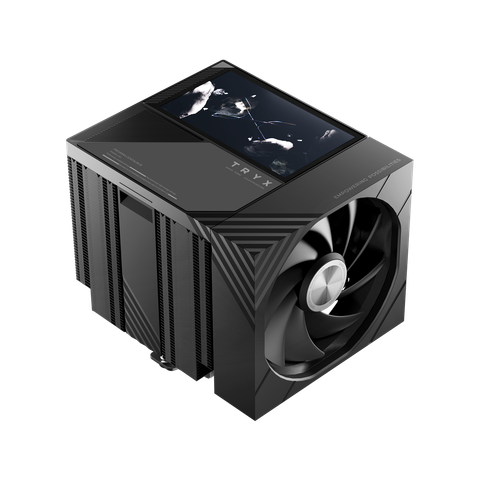

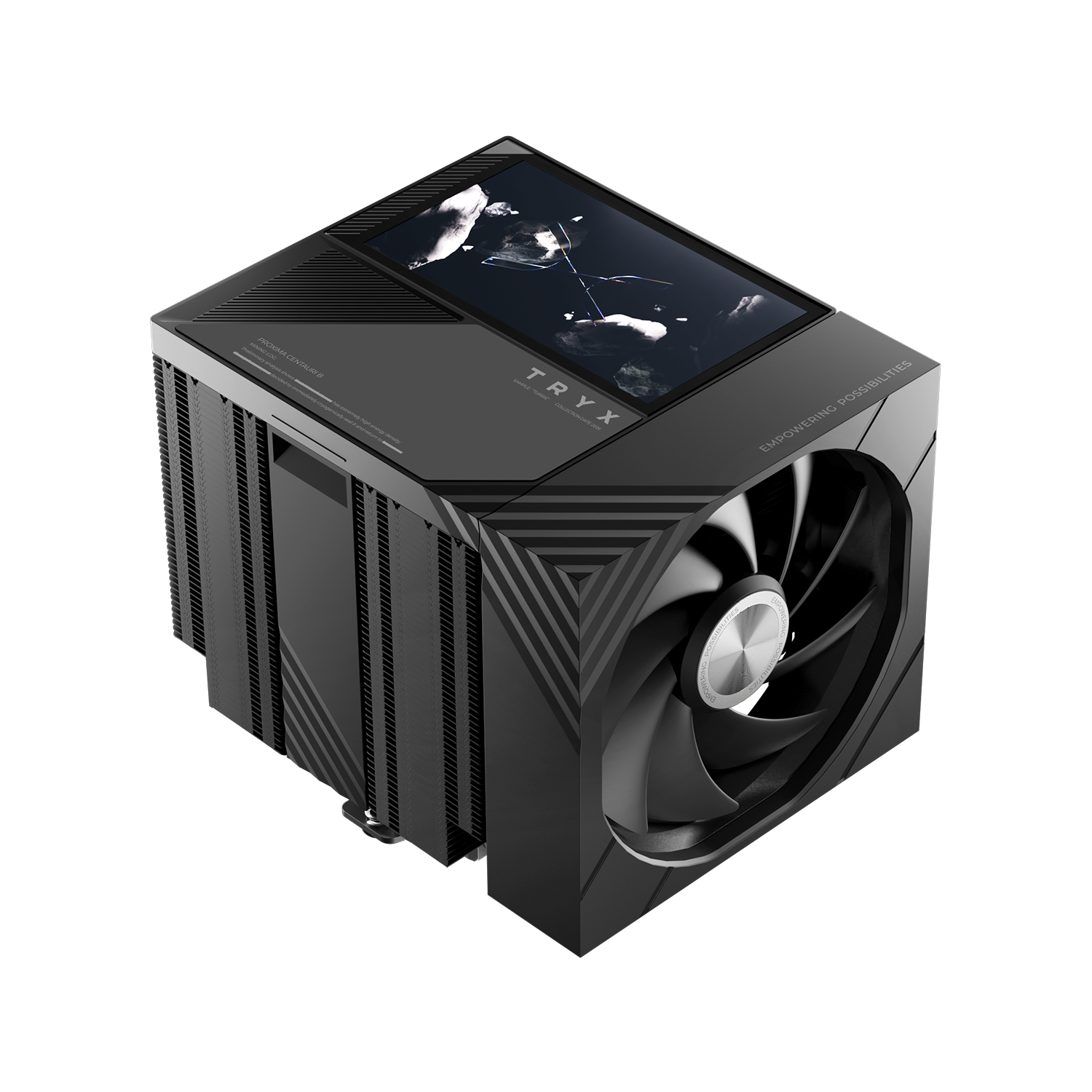

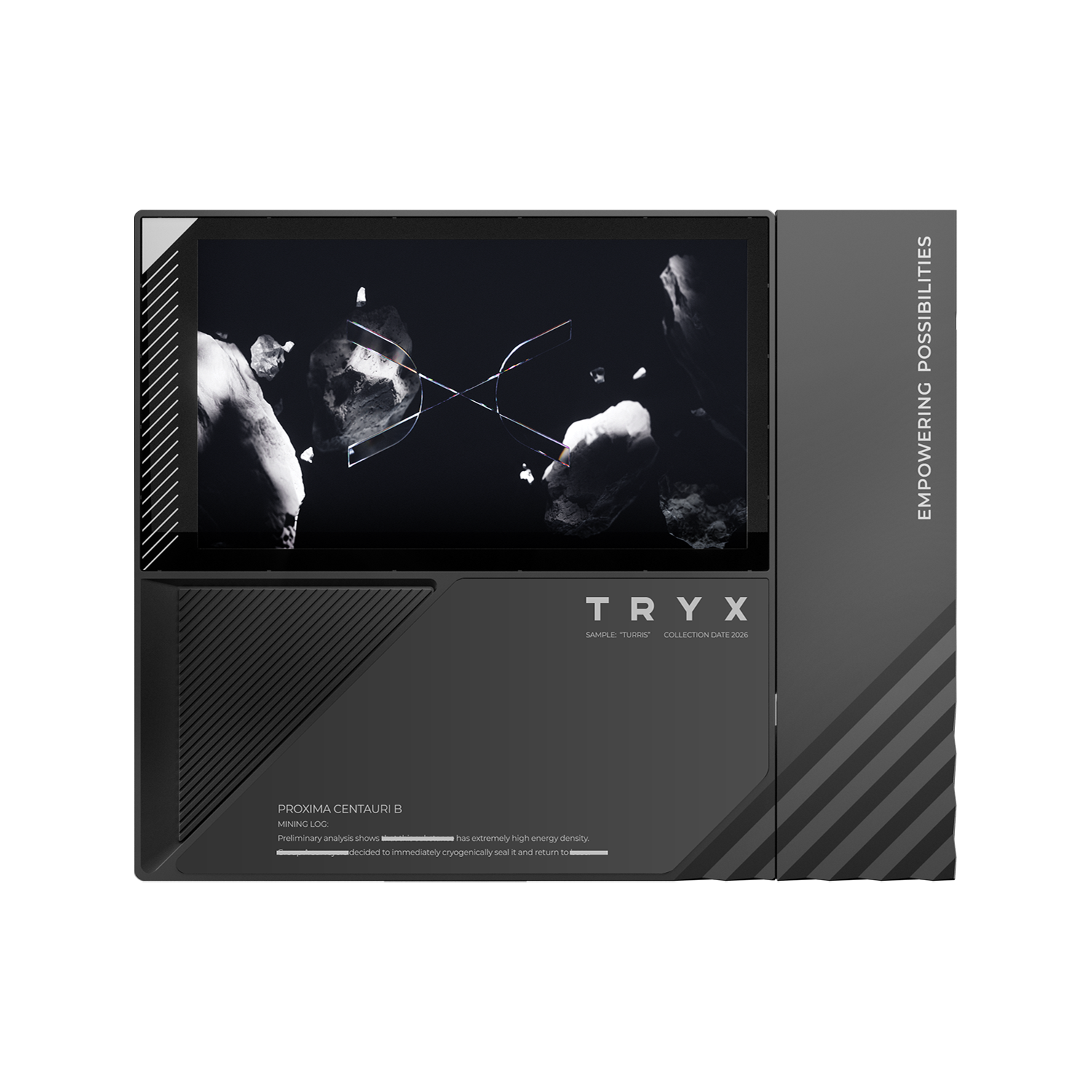

5.0-Inch Large Display
Magnetic IPS display; upload and play custom GIFs, static images, or video files up to 500MB via KANALI. Real-time dynamic monitoring of CPU & GPU temperature, usage, and core frequency, keeping you informed of system status at a glance.
Lower Noise, Stronger Performance
Equipped with two ROTA fans, deliver powerful performance while keeping noise at a minimum. Even at the maximum 1850 RPM, overall noise does not exceed 32.5 dBA, while sustaining a powerful cooling capacity of 280W TDP. Eliminate noise without compromising thermal performance. A 50 RPM speed offset between the two ROTA fans prevents resonance, keeping noise smooth and unobtrusive.
Designed for Silence
1

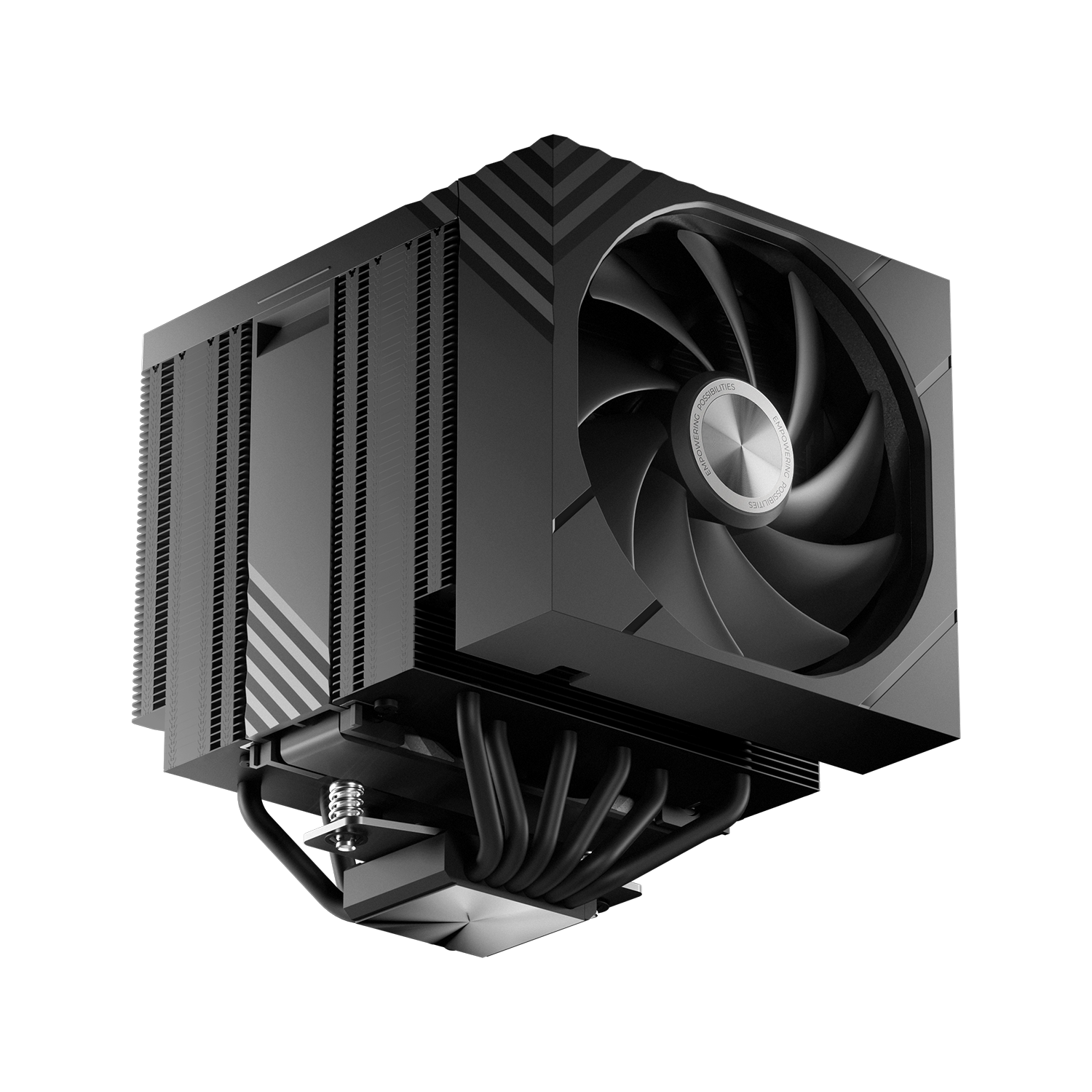

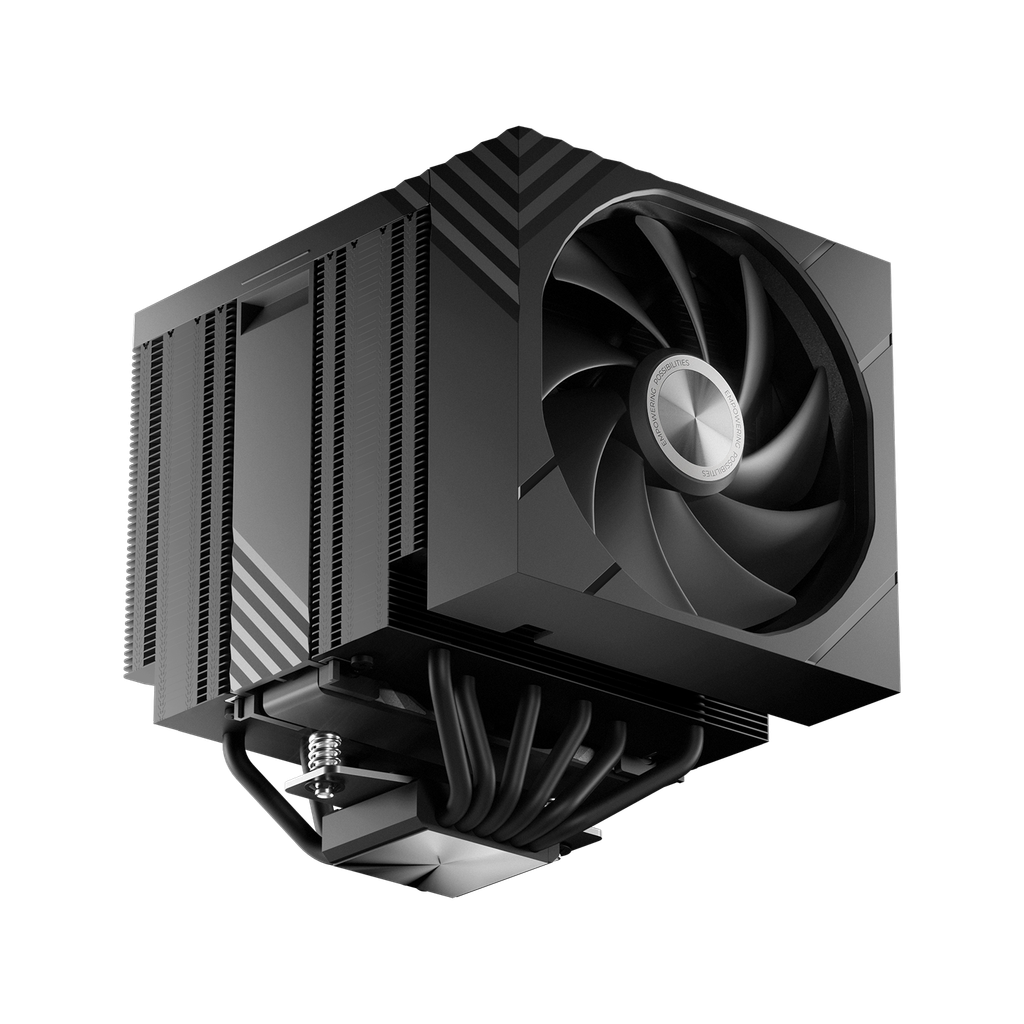

Dual-Tower Six Heat Pipes
2
Nickel-Plated Micro-Convex Copper Base
Six composite heat pipes arranged to maximize effective thermal conductivity area.
1
2
Void-Free Soldering
Advanced Reflow Tech: Built using high-precision, void-free soldering for a flawless build. Maximized Heat Transfer: An ultra-thin, uniform bond layer that significantly lowers thermal resistance. Seamless & Durable: Built with timeless quality and performance made to last.
Standard Soldering
TRYX Void-Reflow Soldering
Silent Performance
Native Processing Solution
Embedded Stand-Alone CPU
Basic SpecScreen SpecFAN SpecOther
Basic Spec
ColorBlack
Socket CompatibilityIntel LGA: 1851 / 1700 AMD: AM4 / AM5
Dimensions165 mm × 135 mm × 165 mm
Heatsink Dimensions127.5 mm × 135 mm × 159 mm
Net Weight1.85 KG
Heat-Pipe6 mm × 6
TDP280 W
Overall Noise32.5 dBA at Highest RPM 1850 RPM
Screen Spec
Screen Size5.0-Inch
Screen Resolution1280 × 720
Screen Brightness500 nits
Screen Refresh Rate60 Hz
FAN Spec
Fan Dimensions120 mm × 120 mm × 25 mm
Fan Speen500-1850 ±10% RPM / 500-1800 ±10% RPM
Fan Airflow66.32 CFM
Fan Air Pressure2.1 mmH2O
Fan Noise27.42 dBA
Fan Connector4-PIN PWM
Bearing TypeFluid Dynamic Bearing (FDB)
Fan Rated Voltage12 V
Fan Rated Current0.1 A
Fan Power Consumption1.2 W
Other
Package ContentsTURRIS 620 Air-Cooler, Accessory Box
Warranty6-Years (3-Years Display)
