Through A Glass Brightly
There is no mystery without illumination; no function without form.
The prism-inspired, polyhedral perimeter of the FV270 RGB mid-tower formed from tempered curved glass provides an unrivaled panoramic interior view of your build in full glory, while innovative angled cooling fan placements revolutionize airflow dynamics.
Facilitating backwards cable management and future-proofed for extreme builds with capacity to spare for bleeding-edge motherboards and GPUs, the FV270 RGB is anything but another brick in the wall.
Type
- Tempered, curved glass panoramic perimeter amplifies transparency and brilliance for an epic view.
- Angled cooling fan placements focus airflow in uninterrupted, continuous streams.
- Additional air intake accessed by lifted front.
- Reverse cable management eliminates clutter.
- Compatible with bleeding-edge E-ATX motherboards and accommodates 420mm GPUs, with rotatable brackets for horizontal/vertical orientation options.
- Strategically positioned and easily removable filters guard against dust.
- Easily detachable top and bottom brackets streamlines setup.
Breathe

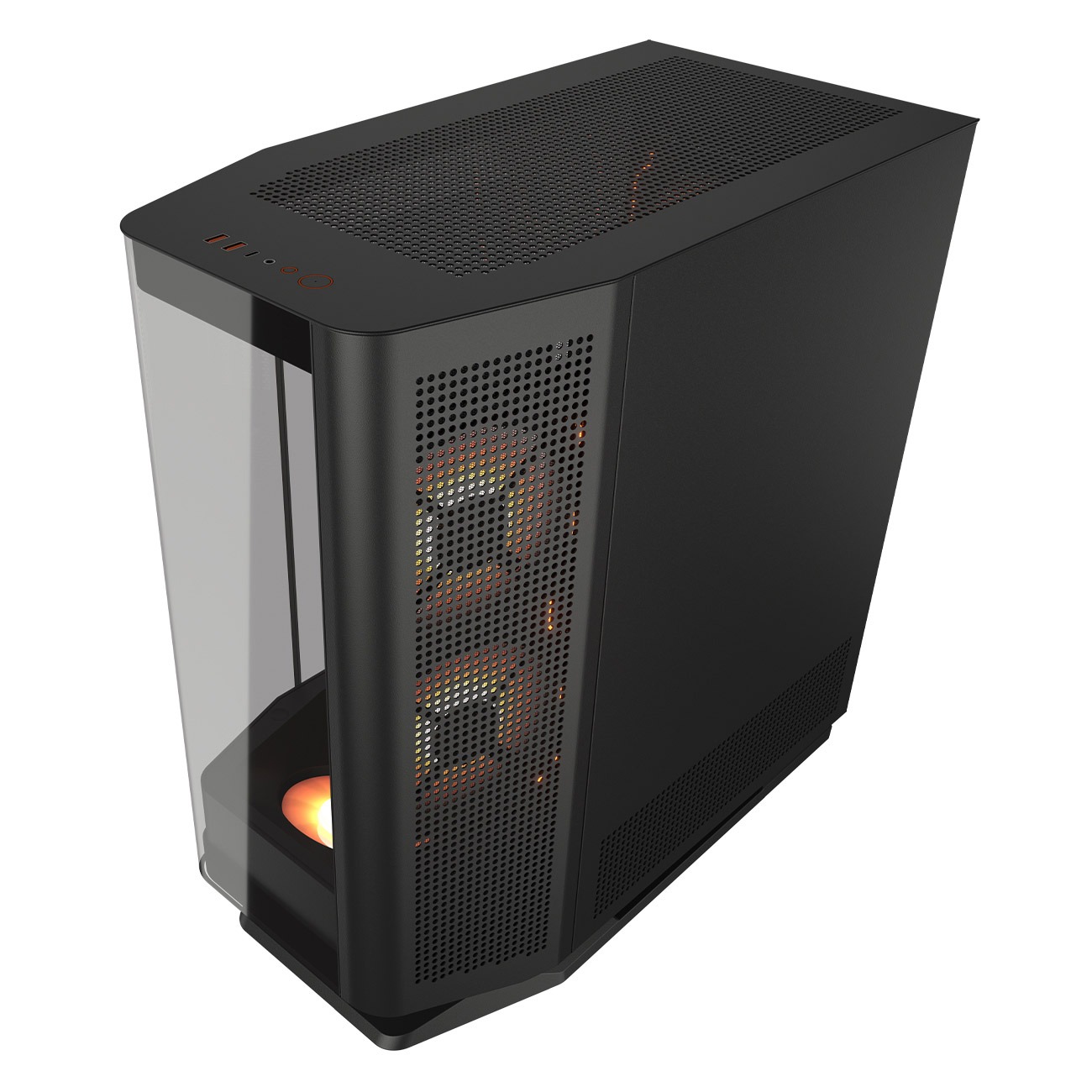

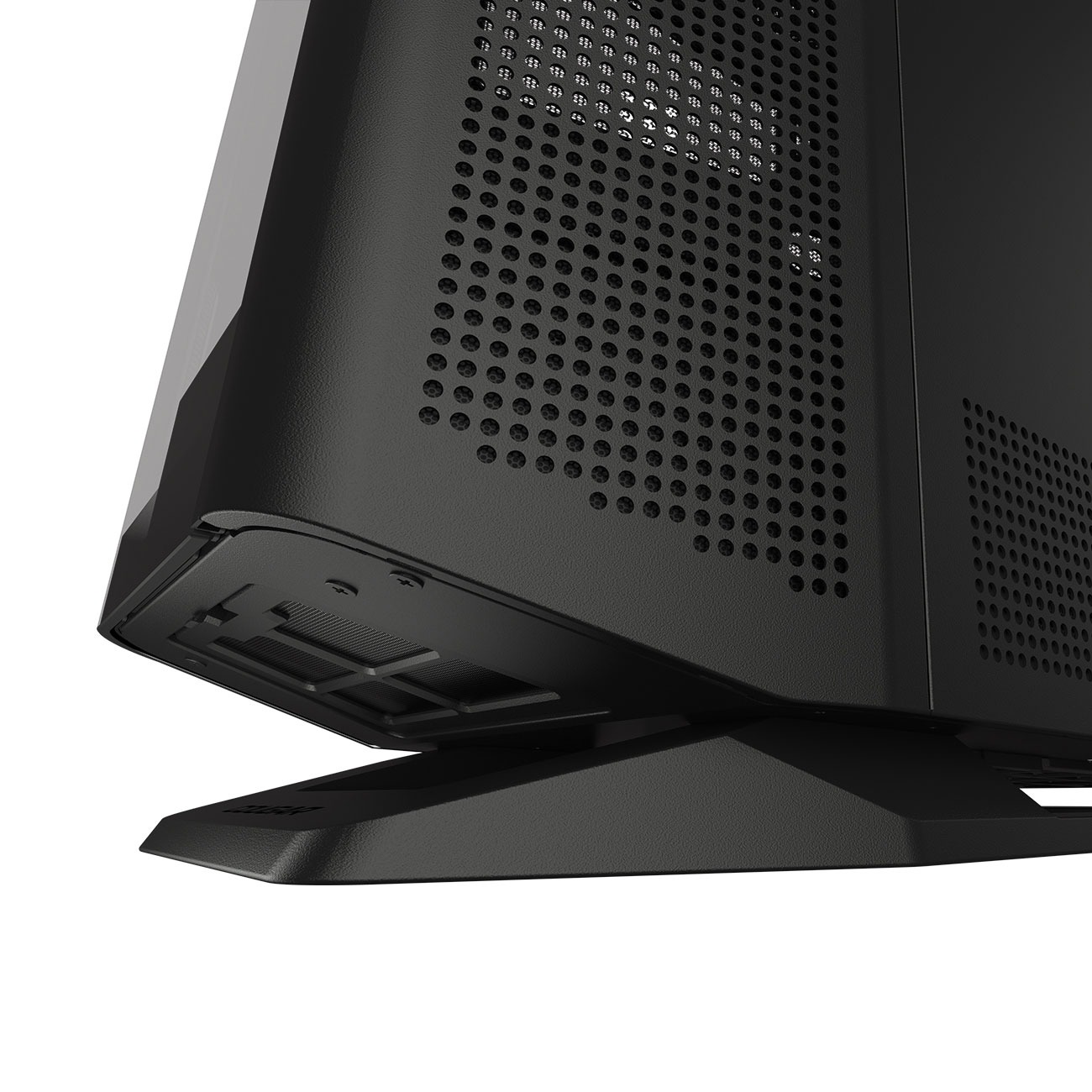

Harmonizing form with function, the FV270 RGB’s polyhedral design sets a new standard for airflow dynamics. Placing cooling fans on angled faces ensure uninterrupted, focused streams and the lifted front accesses an additional axis of ventilation, allowing air intake from below.
Angled Cooling Fan Placements Focus Airflow in Uninterrupted,
Continuous Streams.
Water cooling radiator support
Top radiator : overall thickness < 55mm
Air cooling support
Prism of Light

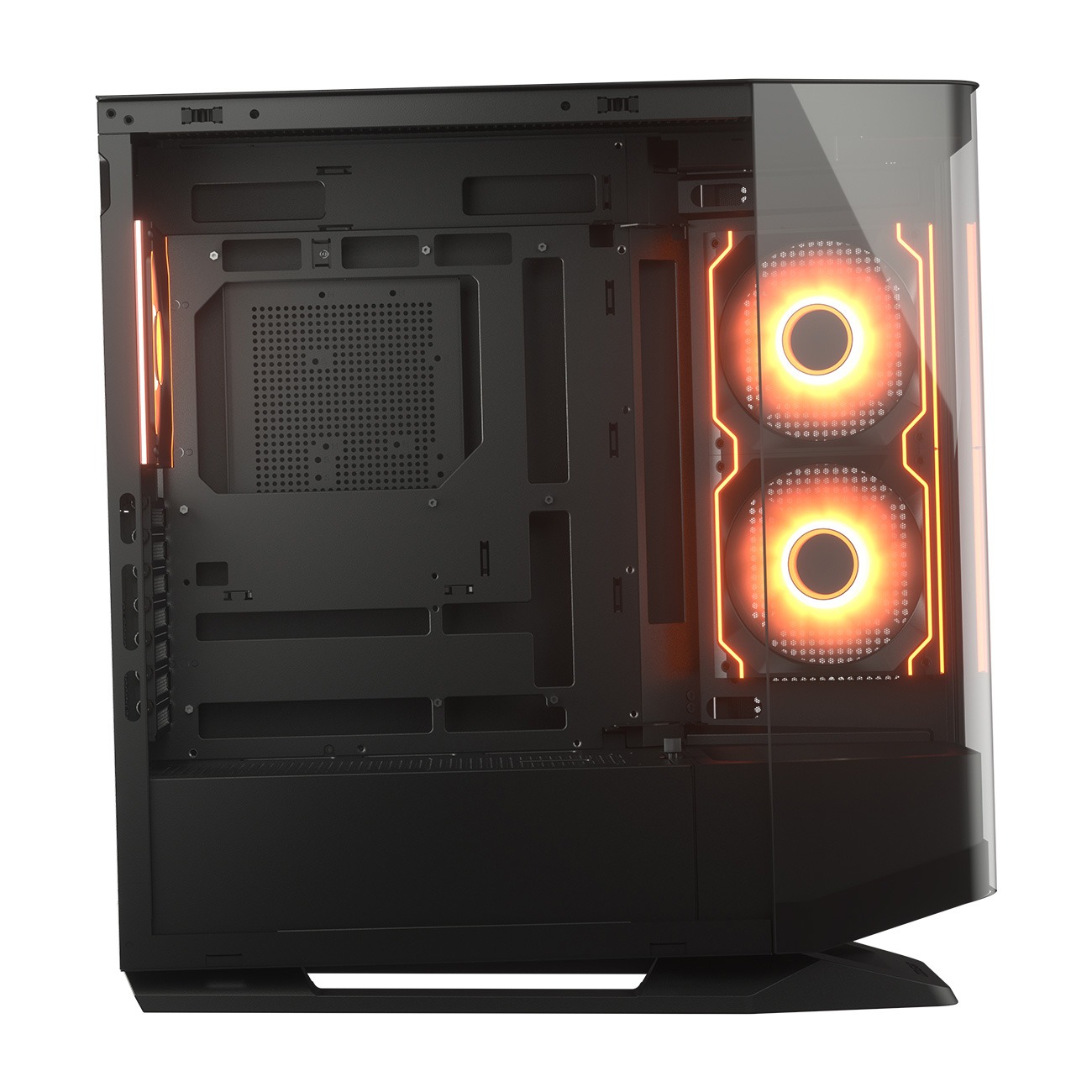

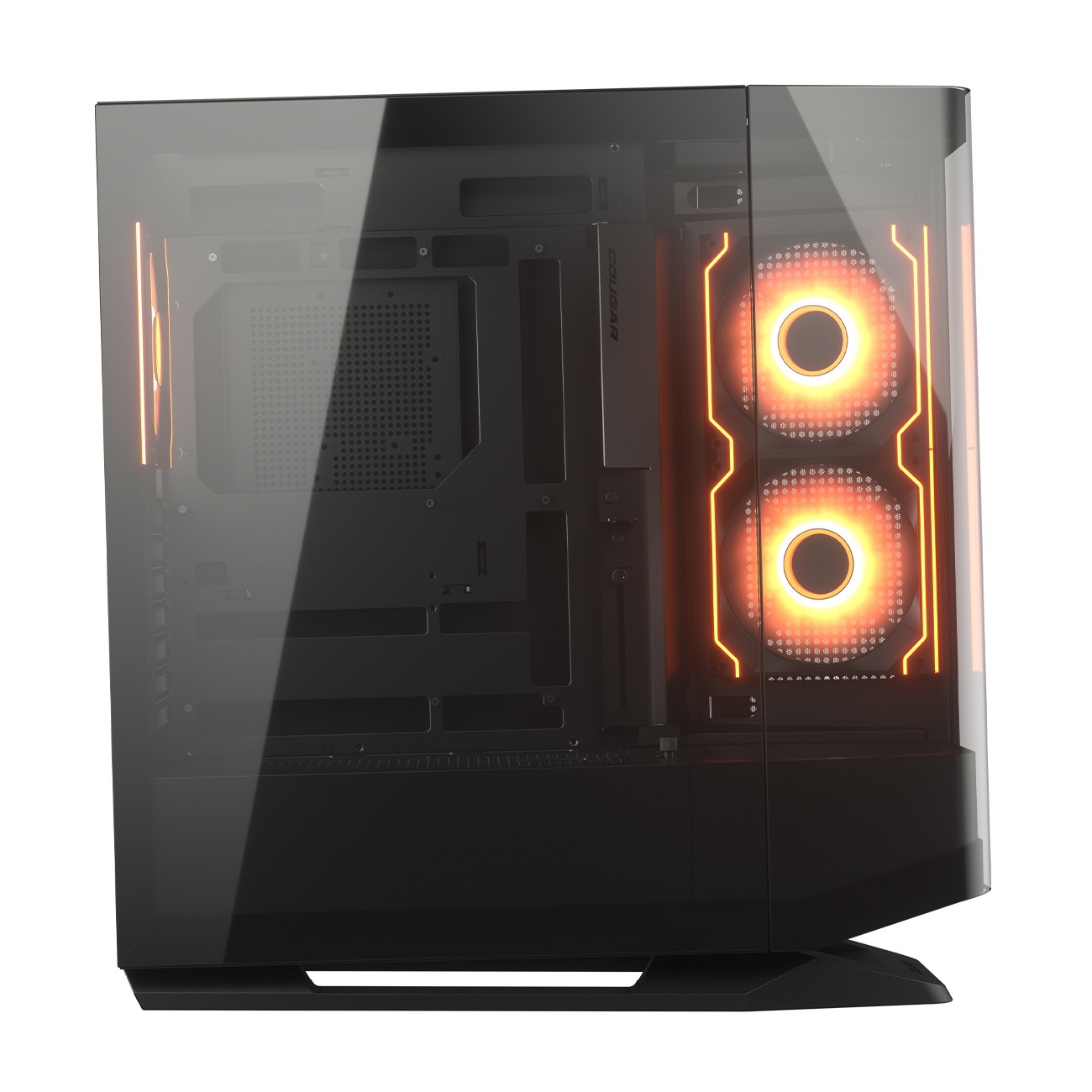

The FV270 RGB offers an unparalleled panoramic view of the interior with a tempered, curved glass perimeter. Unlike rectangular cases, this prism-inspired design eliminates obstructive straight edges and vastly increases transparency, amplifying both visibility and lighting brilliance.
Light. Speed.
The FV270 RGB features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.
Outside the Wall
Support for reverse cable management conceals cable clutter behind the reverse side of the motherboard, covered by a solid side of the FV270. The clean exterior lets your components shine without distraction – literally.
*Supported models: ASUS BTF, GIGABYTE PROJECT STEALTH, and MSI Project Zero.
Tomorrow, Today
With broad compatibility for bleeding-edge E-ATX motherboards and accommodating GPUs of up to 420mm with rotatable brackets for horizontal/vertical orientation options, the FV270 RGB is engineered for the gaming rigs of the future. Create without limit, build without constraints, and stay ready for the next gen of tech.
Security Detail

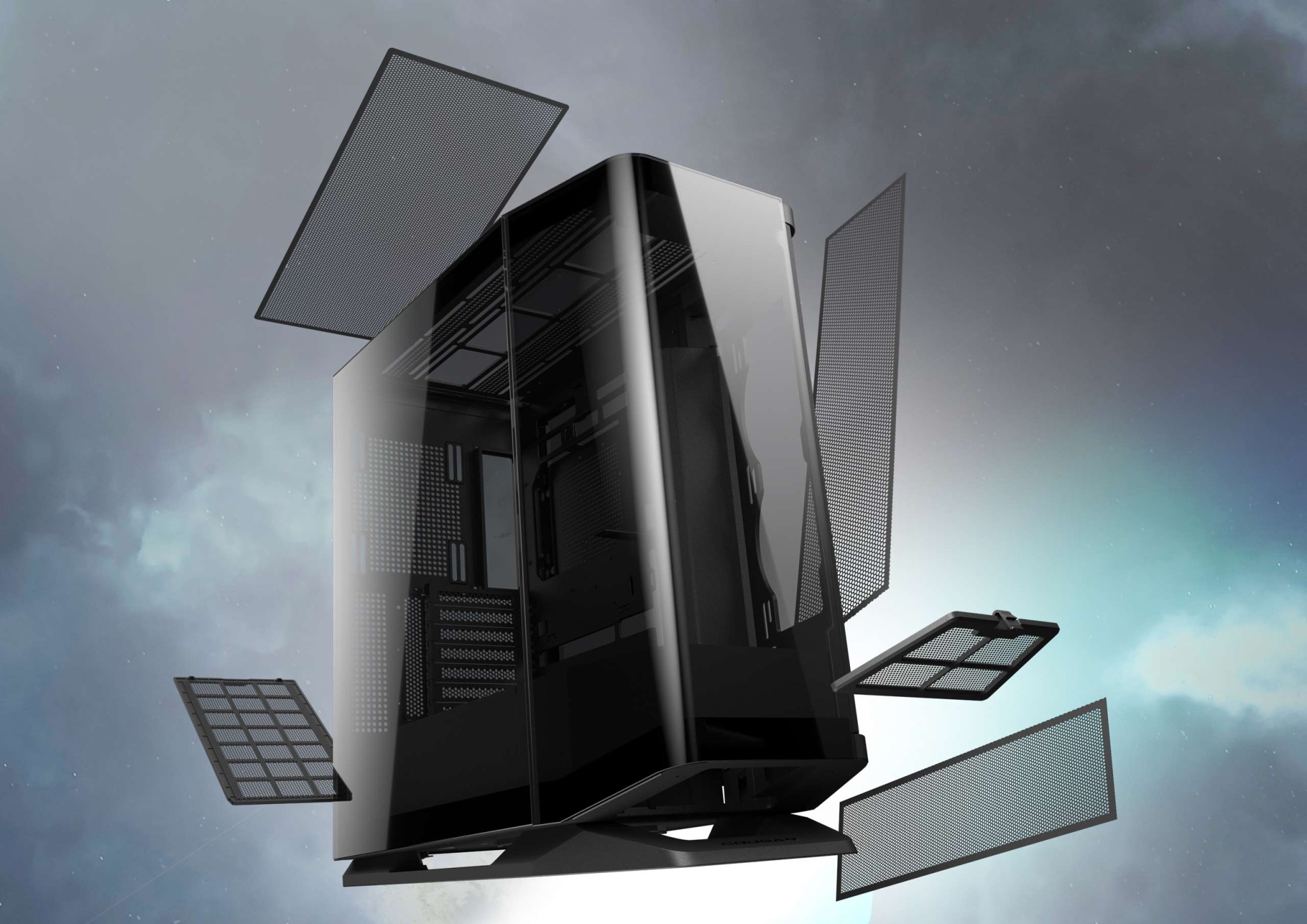

Strategically positioned and easily removable filters guard against dust infiltration and shields vital components. This comprehensive filtration prolongs the longevity of your hardware, minimizing maintenance efforts and preserving the pristine condition of your PC.
Quick Change

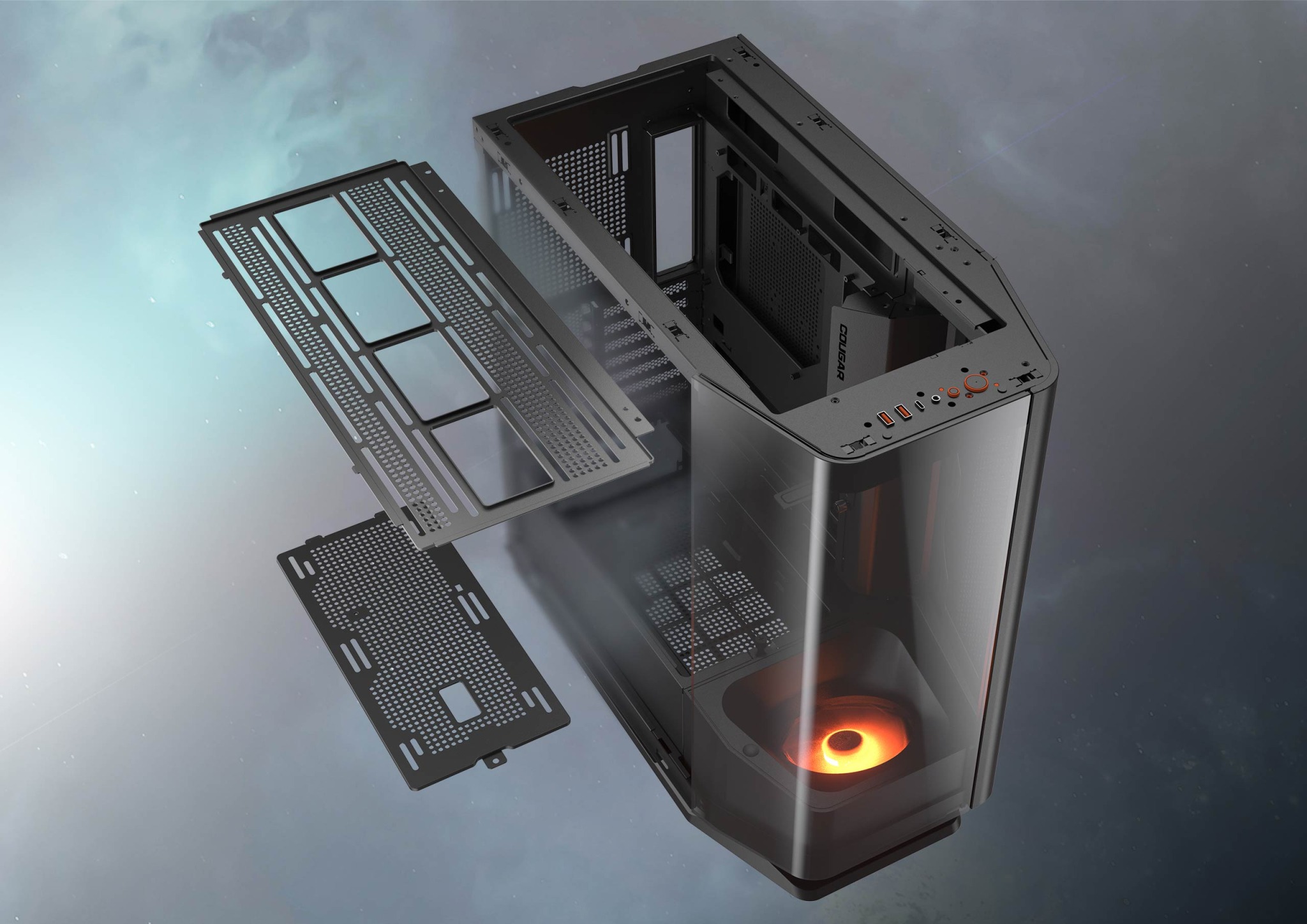

Tool-less bracket design streamlines setup: easily detachable top and bottom brackets lets you install or change without hassle and opens up interior space.
Full House
The FV270 RGB can house up to 4 x 2.5” SSD drives and 2 x 3.5” HDD drives.
Peripheral Vision
The FV270 RGB I/O panel includes 2 x USB 3.0 and 1 x USB-C ports.
Center Stage
An optional mounting platform – designed to showcase your prized collectibles within the panoramic interior – offers a dedicated space for hobby figurines, turning your PC into a personalized gallery.
**Accessory not included, available for separate purchase.
Rotating platform weight limit: 1kg
Through A Glass Brightly
Specifications
| Product Name | FV270 RGB / FV270 RGB(White) | |
|---|---|---|
| Case Form Factor | Mid Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX | |
| Dimensions (WxHxD) | 268 x 530 x 512 (mm) 10.6 x 20.9 x 20.2 (in) | |
| I/O Panel | Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack, RGB Button | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) | |
| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) | |
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Top | 120mm x 3 / 140mm x 2 |
| M/B Side | 120mm x 2 / 140mm x 2 | |
| PSU Shroud | 120mm x 2 / 140mm x 2 | |
| Bottom | 120mm x 1 | |
| Rear | 120mm x 1 / 140mm x 1 | |
| Pre-installed Fans | M/B Side | 140mm Reversed ARGB PWM fan x 2 |
| Bottom | 120mm Reversed ARGB PWM fan x 1 | |
| Rear | 140mm ARGB PWM fan x 1 | |
| Speed | 500 (±200) - 1200 (±10%) RPM | |
| Connector | 5V 3 Pin (ARGB) / 4 Pin (Fan) | |
| Maximun Number of Fans | 9 | |
| Water Cooling Support | Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| M/B Side | 280mm / 240mm / 140mm / 120mm | |
| PSU Shroud | 240mm / 120mm | |
| Bottom | - | |
| Rear | 140mm / 120mm | |
| PWM and RGB Hub Sync with M/B | Yes | |
| Max. Graphics Card Length | Horizontal | 420 (mm) / 16.5 (in) (Only fans at the M/B Side) 330 (mm) / 13 (in) (Radiator with fans at the M/B Side) |
| Vertical | 450 (mm) / 17.7 (in) | |
| Max. CPU Cooler Height | 180 (mm) / 7.1 (in) | |
| Max. PSU Length | 250 (mm) / 9.8 (in) |
