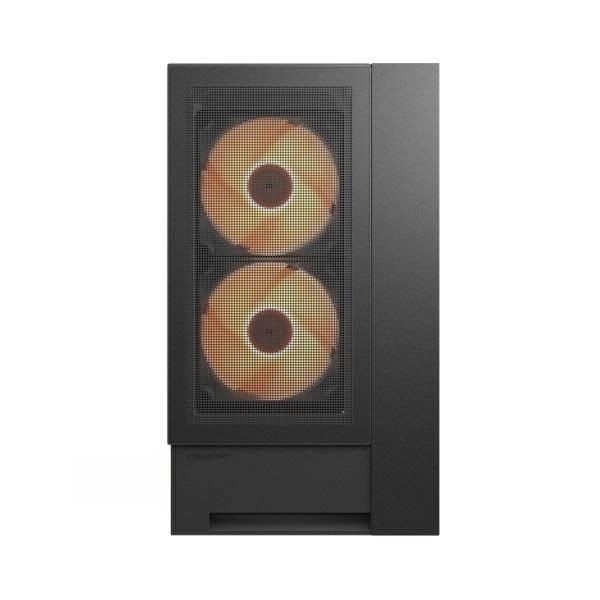

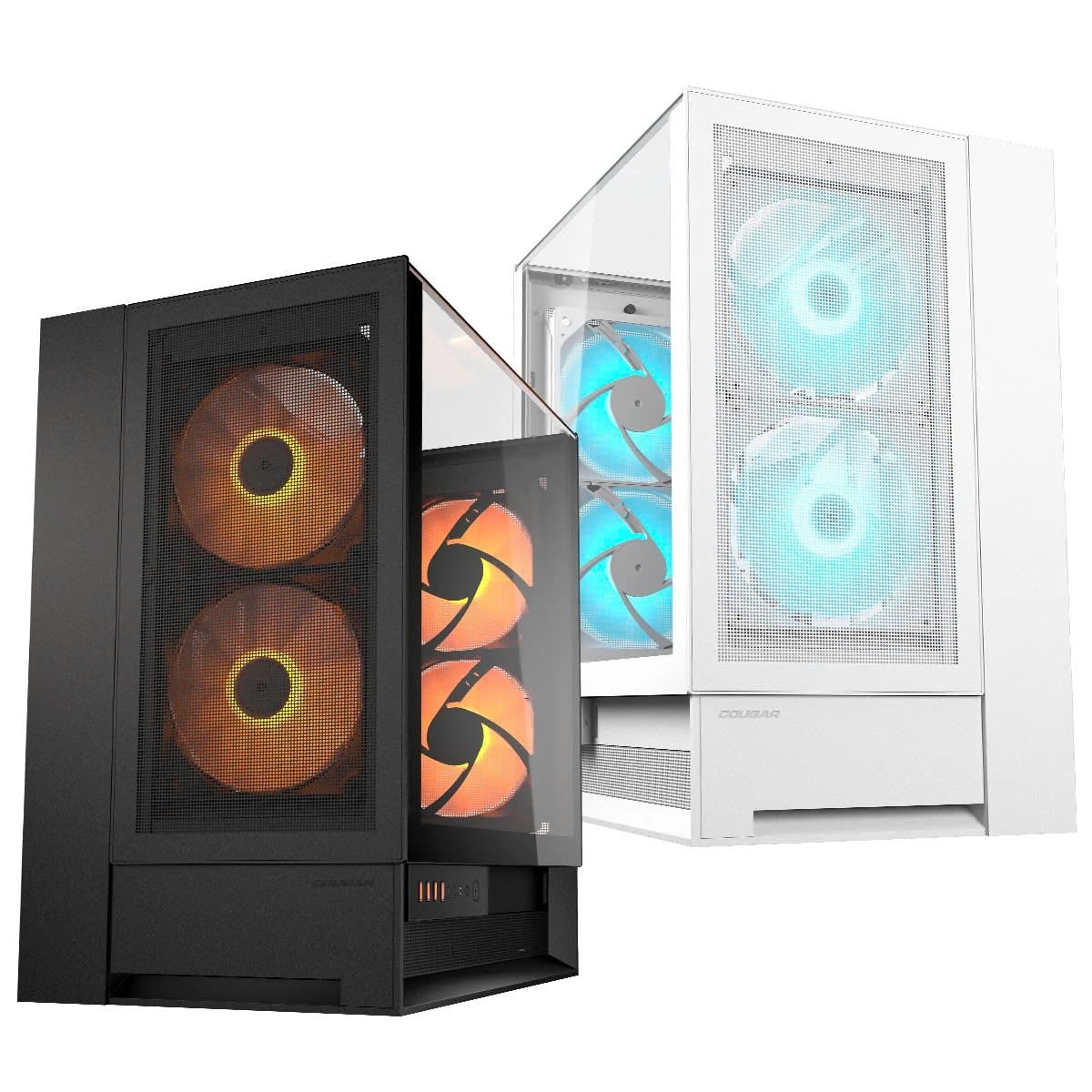

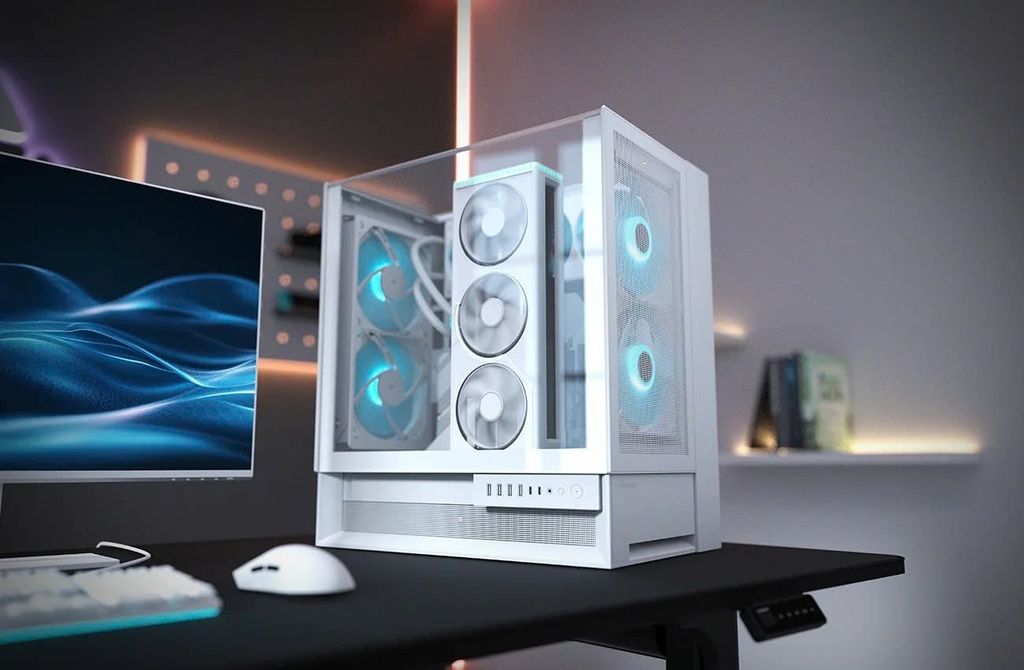

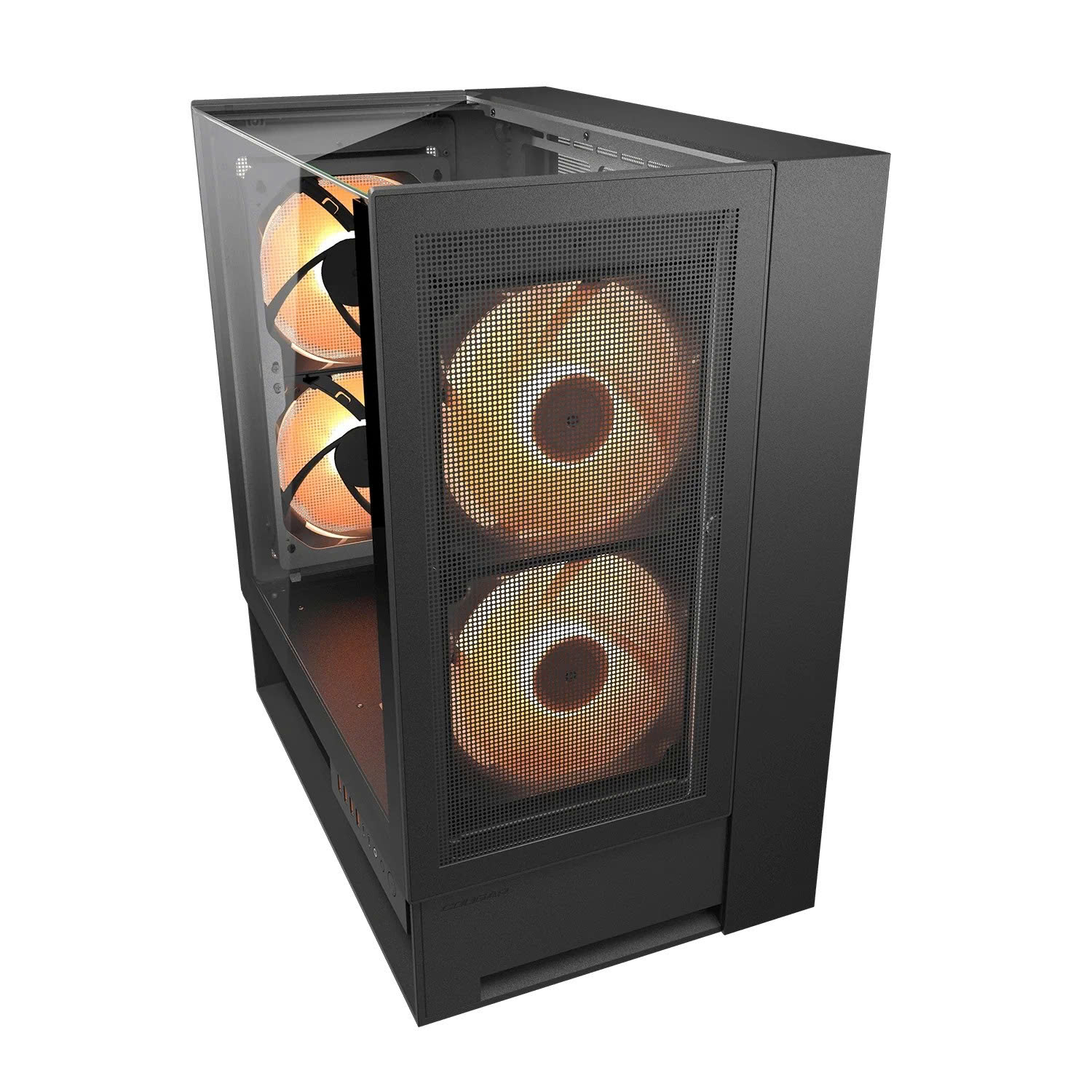

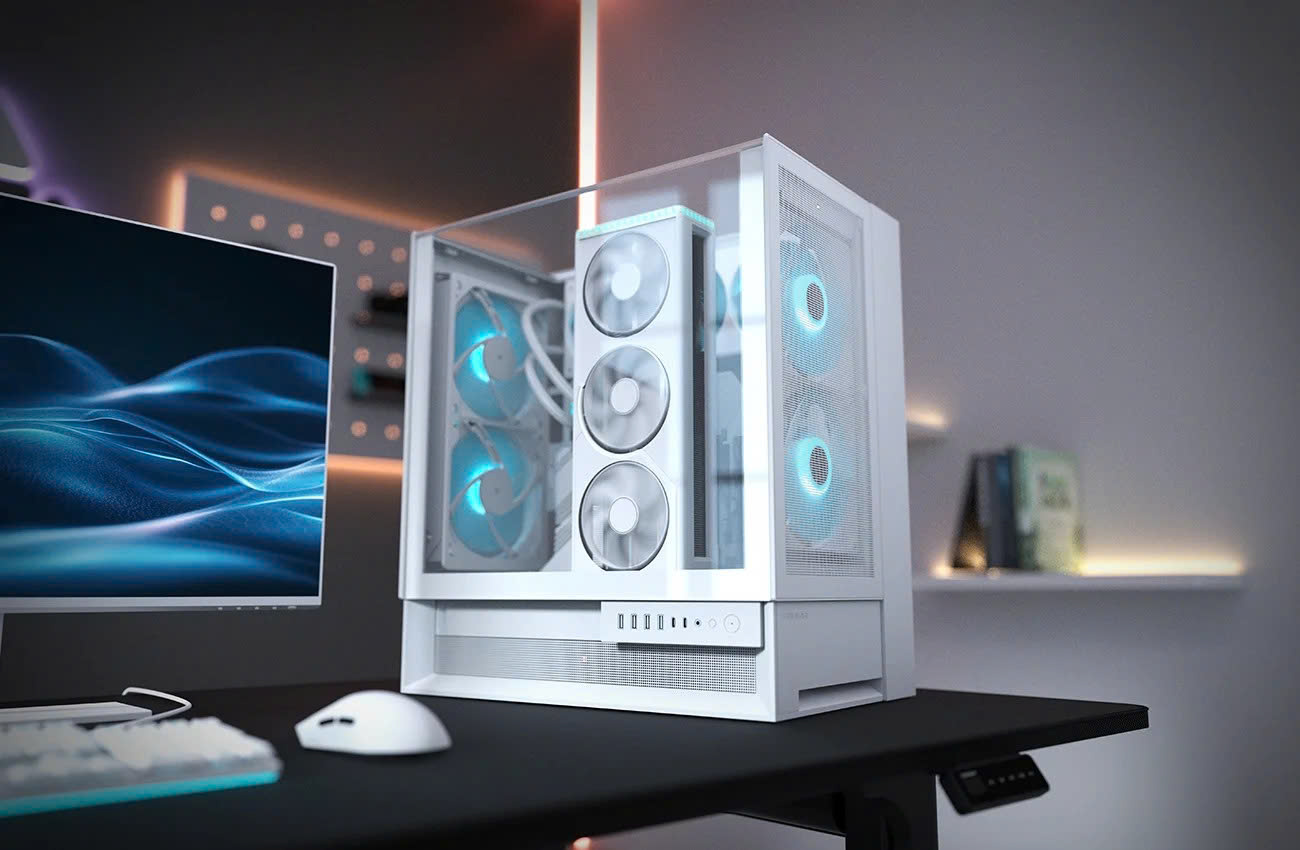

Product Name
OmnyX / OmnyX
Case Form Factor
Mid Tower
Motherboard Type
Mini ITX / Micro ATX / ATX
Dimensions (WxHxD)
300(W) x 520(H) x 470(D) (mm)
11.8(W) x 20.5(H) x 18.5(D) (in)
I/O Panel
USB 3.2 Gen 2 Type-C x 2, USB 3.0 Type-A x 4, 4 Pole Headset Audio Jack x 1, RGB Button
3.5″ Drive Bay
2
2.5″ Drive Bay
2
Expansion Slots
7 (horizontal slots can be converted into vertical slots)
Cooling Fan Support
Front: *120mm x 2 / *140mm x 2 / 160mm x 2
M/B Side: 120mm x 3
Rear: *120mm x 2 / *140mm x 2 / 160mm x 2
Pre-installed Fans

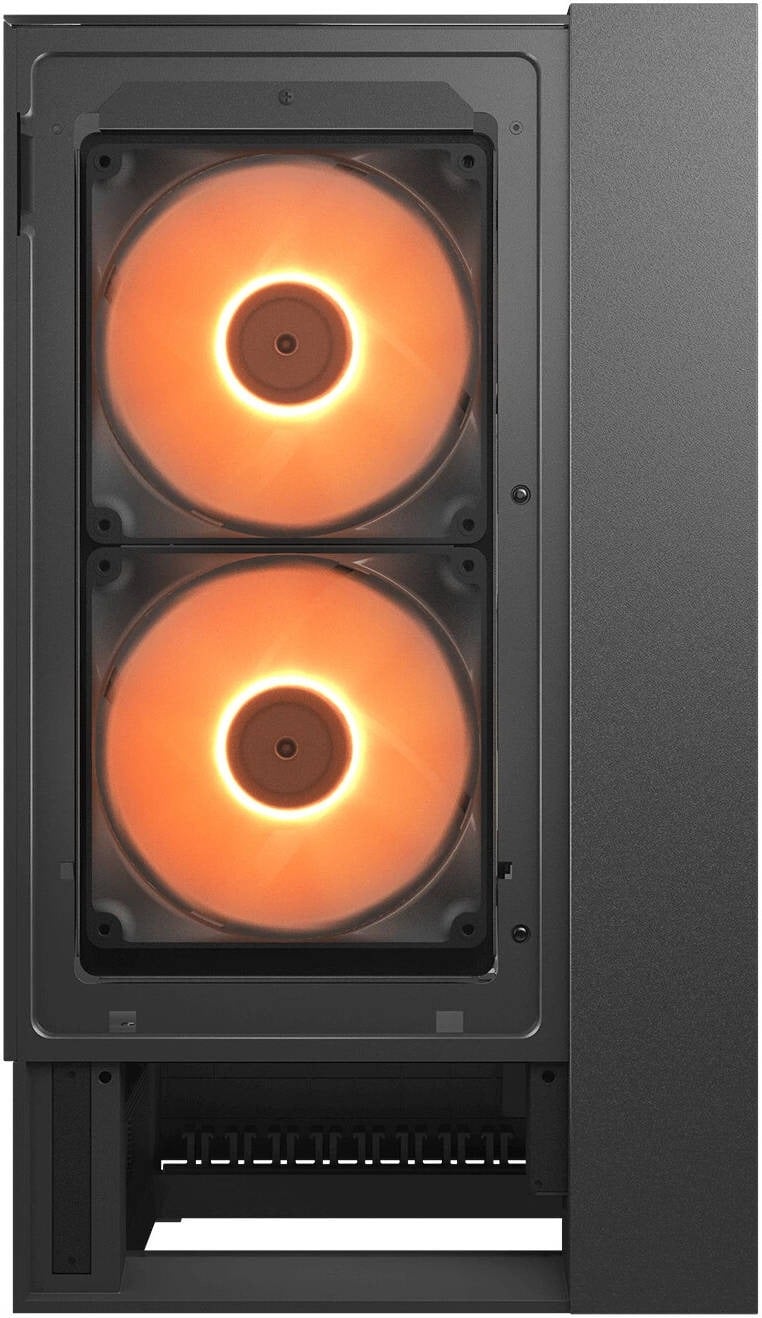

Front: 160mm ARGB PWM fan x 2 (Forward Blade)
Rear: 160mm ARGB PWM fan x 2 (Reverse Blade)
Speed: 300–1200 ±10% RPM
Connector: 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximum Number of Fans
7
Water Cooling Support
Front: *280mm / *240 mm / *140 mm / *120mm
M/B Side: 360mm / 240mm
Rear: *280mm / *240 mm / *140 mm / *120mm
RGB Hub Sync with M/B
Yes
Max. Graphics Card Length
380(mm) / 15(in)
Max. CPU Cooler Height
170(mm) / 6.7(in)
Max. PSU Length
200(mm) / 7.9(in)
